Product Details:
|
| Material: | Copper | Usage: | Wire Cable Connect |
|---|---|---|---|
| Plating: | Tin | Packaging: | Opp Bag + Carton |
| Type: | Terminal Lugs | Color: | Silver |
| High Light: | EN Non Insulated Terminal,Copper Ferrules Cord End Terminals,Copper Non Insulated Terminal |
||

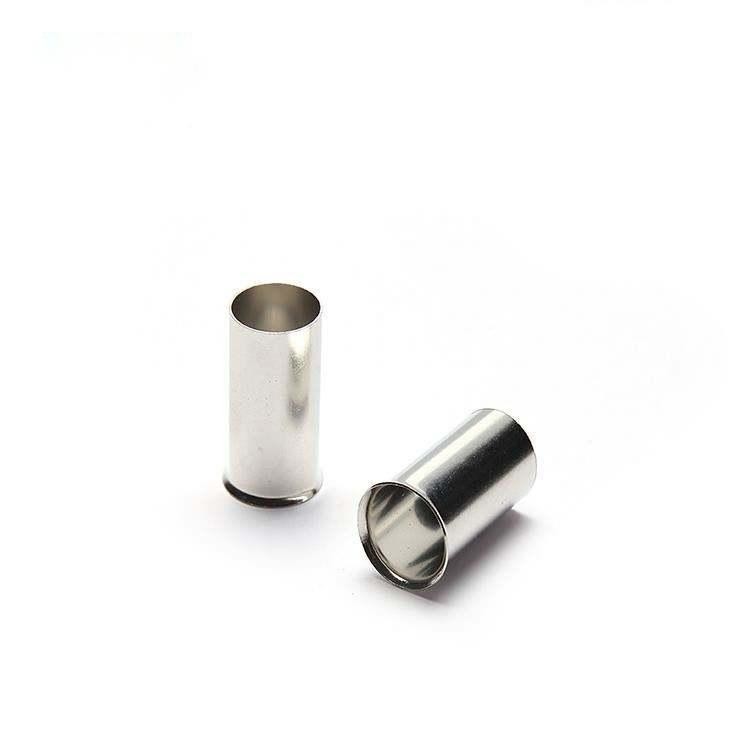

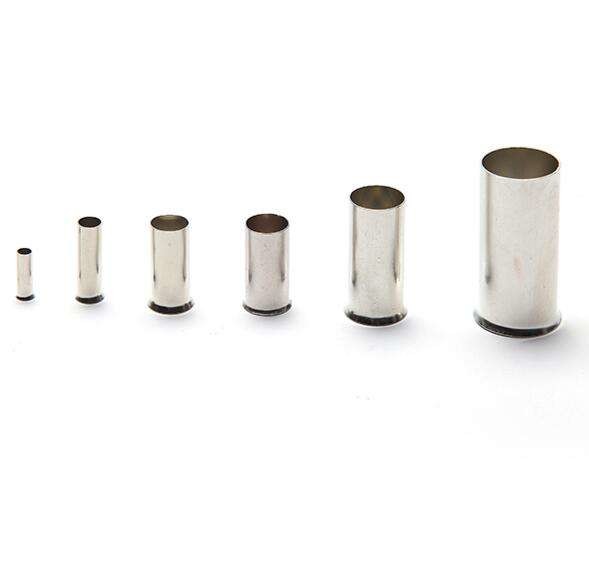

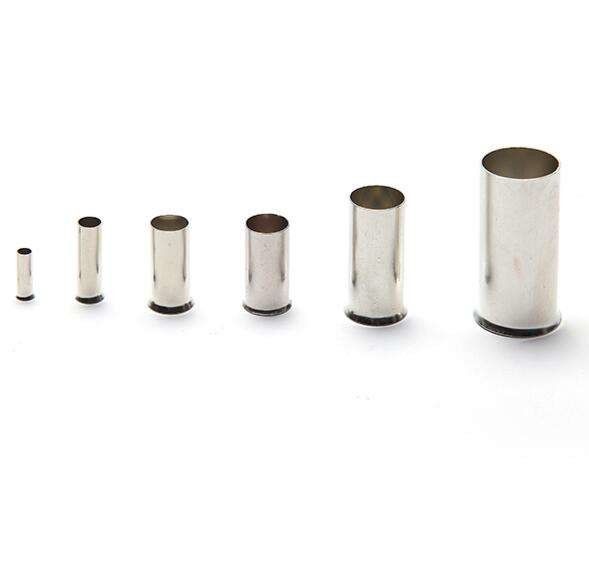

EN Series Non-Insulated Terminal Lugs Copper Ferrules Cord End Terminals
| Item No. | Dimension(mm) | Wire range | ||||
| L | D∅ | C∅ | W∅ | A.W.G | mm² | |
| EN0306 | 6.0 | 1.1 | 0.8 | 1.5 | 24 | 0.3 |
| EN0308 | 8.0 | |||||
| EN0505 | 5.0 | 1.3 | 1.0 | 1.7 | 22 | 0.5 |
| EN0506 | 6.0 | |||||
| EN0508 | 8.0 | |||||
| EN0510 | 10.0 | |||||
| EN0512 | 12.0 | |||||
| EN7506 | 6.0 | 1.5 | 1.2 | 1.9 | 20 | 0.75 |
| EN7508 | 8.0 | |||||
| EN7510 | 10.0 | |||||
| EN7512 | 12.0 | |||||
| EN7515 | 15.0 | |||||
| EN1006 | 6.0 | 1.7 | 1.4 | 2.2 | 18 | 1.0 |
| EN1008 | 8.0 | |||||
| EN1010 | 10.0 | |||||
| EN1012 | 12.0 | |||||
| EN1015 | 15.0 | |||||
| EN1018 | 18.0 | |||||
| EN1507 | 7.0 | 2.0 | 1.7 | 2.5 | 16 | 1.5 |
| EN1508 | 8.0 | |||||
| EN1510 | 10.0 | |||||
| EN1512 | 12.0 | |||||
| EN1515 | 15.0 | |||||
| EN1518 | 18.0 | |||||
| EN2506 | 6.0 | 2.6 | 2.3 | 3.3 | 14 | 2.5 |
| EN2507 | 7.0 | |||||
| EN2508 | 8.0 | |||||
| EN2510 | 10.0 | |||||
| EN2512 | 12.0 | |||||
| EN2515 | 15.0 | |||||
| EN2518 | 18.0 | |||||
| EN4009 | 9.0 | 3.2 | 2.8 | 3.9 | 12 | 4 |
| EN4010 | 10.0 | |||||
| EN4012 | 12.0 | |||||
| EN4015 | 15.0 | |||||
| EN4018 | 18.0 | |||||
FAQ:
1. Are you factory or trading company?
Yes,we are manufacturer in Wenzhou,China. We can give you the competitive price & after sale service.
2. Can we print our logo/website/company name on products?
Yes,your logo can be printed as your demand. we can offer OEM service.
3. What's the lead time for regular order?
7-15 days as order quantity
4. Can you provide samples? Are the samples free?
Yes, samples can be provided with freight charge to be collect.
5. How does your factory do regarding quality control?
All the products will be 100% checked before the shipment.
6. When can I get the price?
Usually we quote within 24 hours after we get your inquiry.
7.What is MOQ?
No limit.
8.Which shipping method do you provide?
For samples or small orders, goods will be sent by express.
For regular orders, goods can be sent by air or by sea, just according to your demand.
