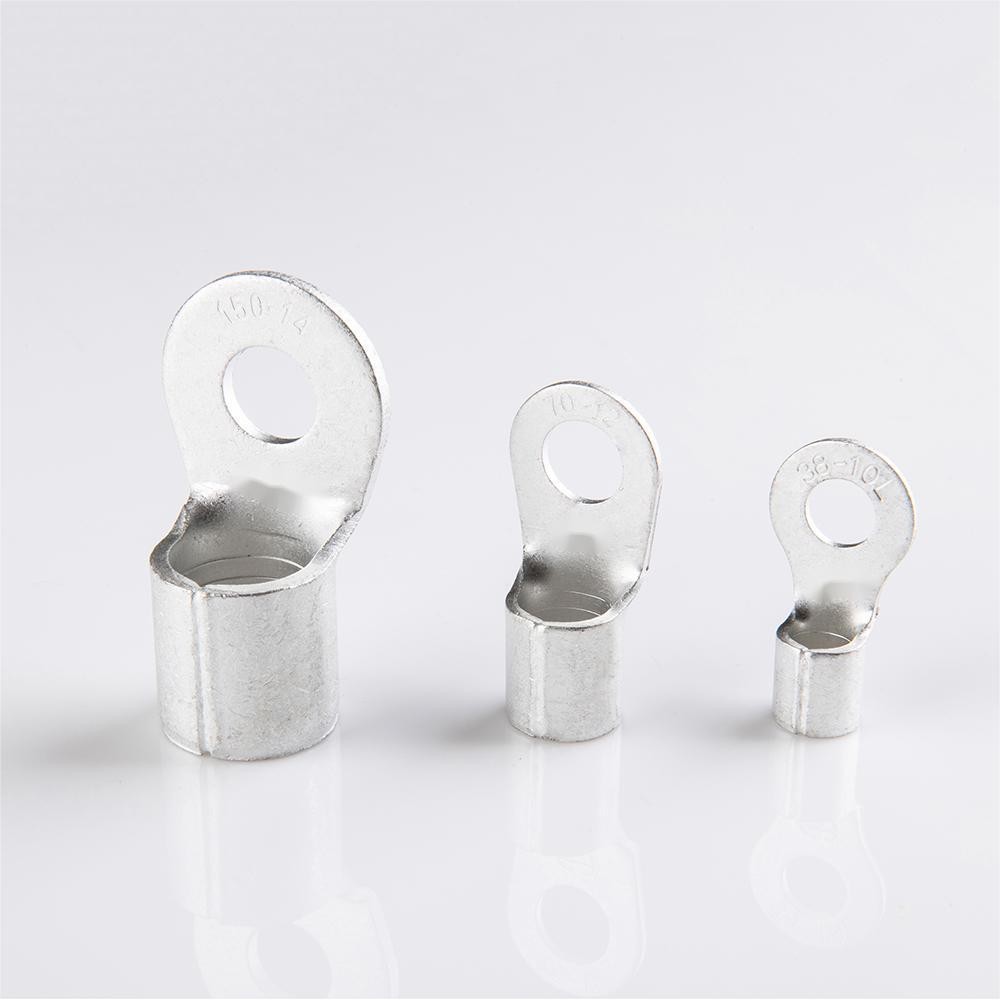

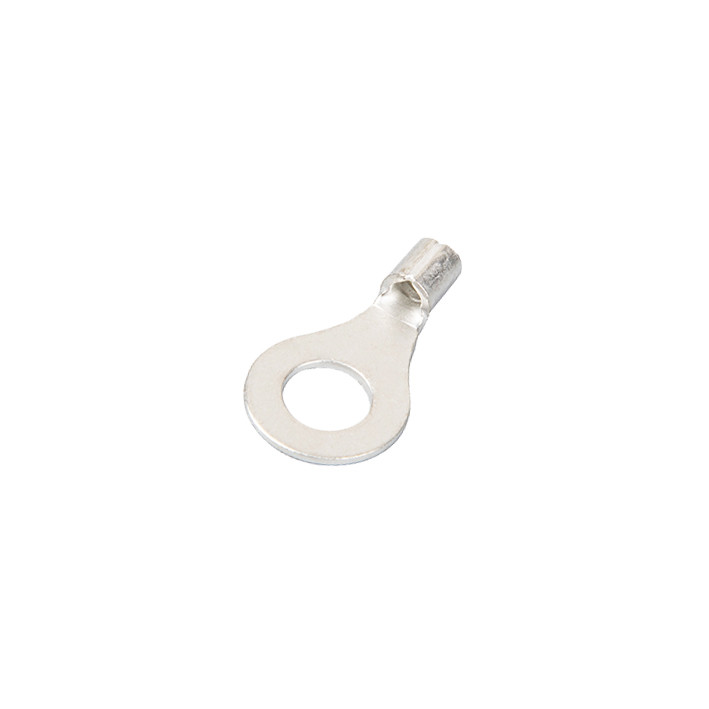

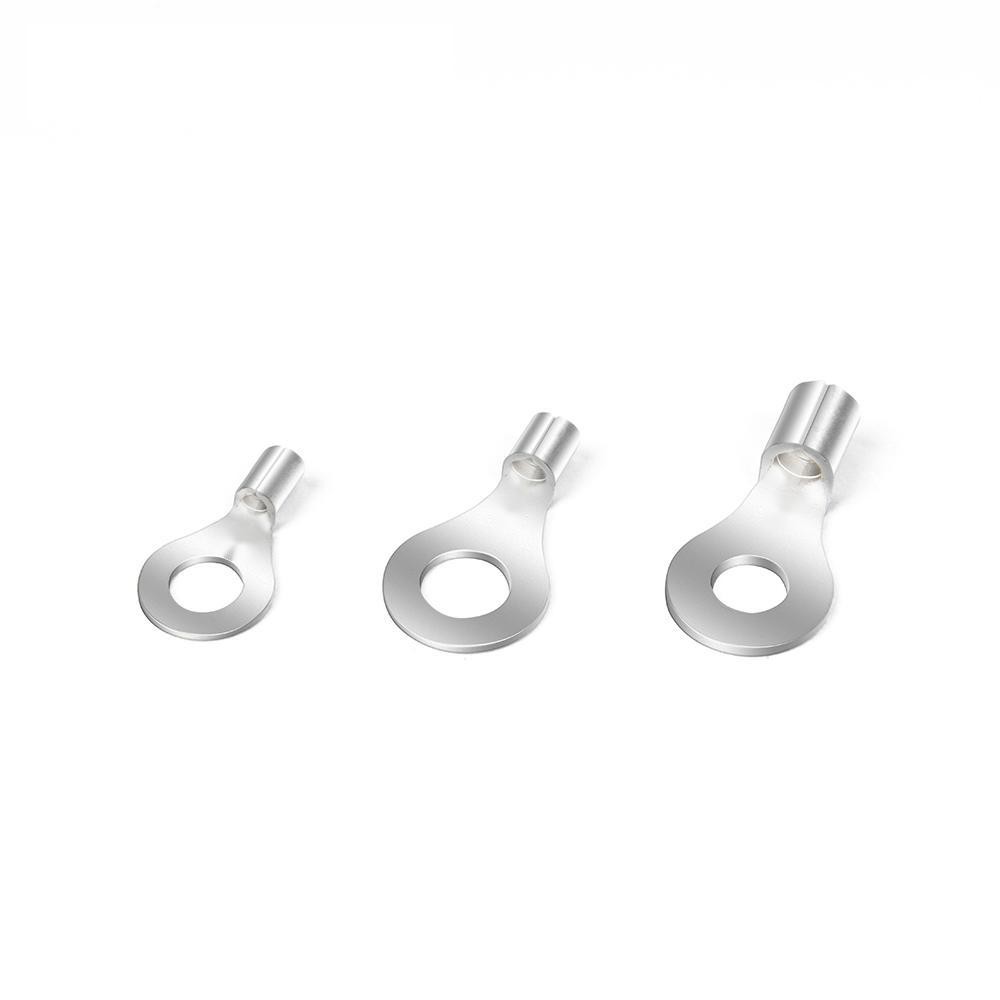

RNB 14-4 Non Insulated Ring Terminals For Quick Crimp Electrical Terminal Connectors
Application:
Size: RNB1.25 ~ RNB325-27
Material: RoHS approved copper, PVC Insulation.
Finish: Tin plated
Standard: CE, RoHS
FOB Port SHANGHAI / NINGBO
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| RNB8-4 | #8 | 4.3 | 8.8 | 23.8 | 9.3 | 8.5 | 7.2 | 4.5 |
| RNBS8-5 | #10 | 5.3 | 8.8 | 23.8 | 11.1 | |||
| RNBM8-5 | #10 | 5.3 | 12.0 | 23.8 | 9.3 | |||
| RNBL8-5 | #10 | 5.3 | 15.0 | 29.8 | 13.8 | |||
| RNBS8-6 | 1/4 | 6.4 | 12.0 | 23.8 | 9.3 | |||
| RNBL8-6 | 1/4 | 6.4 | 15.0 | 29.8 | 13.8 | |||
| RNB8-8 | 5/16 | 8.4 | 15.0 | 29.8 | 13.8 | |||
| RNB8-10 | 3/8 | 10.5 | 15.0 | 29.8 | 13.8 | |||
| RNB8-12 | 1/2 | 13.0 | 20.0 | 33.5 |
15.0 |
|||
Wire range: 6-10㎜², A.W.G:8, Imax=62A
Wire range: 10-16㎜², A.W.G:6, Imax=88A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| RNB14-4 | #8 | 4.3 | 12.0 | 29.8 | 13.3 | 10.5 | 9.0 | 5.8 |
| RNB14-5 | #10 | 5.3 | 12.0 | 29.8 | 13.3 | |||
| RNBS14-6 | 1/4 | 6.4 | 12.0 | 29.8 | 13.3 | |||
| RNBL14-6 | 1/4 | 6.4 | 16.0 | 32.8 | 13.3 | |||
| RNB14-8 | 5/16 | 8.4 | 16.0 | 32.8 | 14.5 | |||
| RNB14-10 | 3/8 | 10.5 | 16.0 | 32.8 | 14.5 | |||
| RNB14-12 | 1/2 | 13.0 | 22.0 | 41.0 | 19.5 | |||
Wire range: 16-25㎜², A.W.G:4, Imax=115A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| RNBS22-5 | #10 | 5.3 | 12.2 | 33.2 | 14.5 | 12.0 | 11.5 | 7.7 |
| RNBL22-5 | #10 | 5.3 | 16.5 | 33.7 | 13.5 | |||
| RNBS22-6 | 1/4 | 6.4 | 12.2 | 33.2 | 14.5 | |||
| RNBL22-6 | 1/4 | 6.4 | 16.5 | 33.7 | 13.5 | |||
| RNB22-8 | 5/16 | 8.4 | 16.5 | 33.7 | 13.5 | |||
| RNB22-10 | 3/8 | 10.5 | 16.5 | 33.7 | 13.5 | |||
| RNB22-11 | 7/16 | 11.5 | 22.0 | 42.5 | 19.5 | |||
| RNB22-12 | 1/2 | 13.0 | 22.0 | 42.5 | 19.5 | |||
Wire range: 25-35㎜², A.W.G:2, Imax=160A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| RNB38-5 | #10 | 5.3 | 15.3 | 39.0 | 18.3 | 14.0 | 13.3 | 9.4 |
| RNB38-6 | 1/4 | 6.4 | 15.3 | 39.0 | 18.3 | |||
| RNBS38-8 | 5/16 | 8.4 | 15.3 | 39.0 | 18.3 | |||
| RNBL38-8 | 5/16 | 8.4 | 22.0 | 42.7 | 17.7 | |||
| RNBS38-10 | 3/8 | 10.5 | 15.3 | 39.0 | 18.3 | |||
| RNBL38-10 | 3/8 | 10.5 | 22.0 | 42.7 | 17.7 | |||
| RNB38-11 | 7/16 | 11.5 | 22.0 | 42.7 | 17.7 | |||
| RNB38-12 | 1/2 | 13.0 | 22.0 | 42.7 | 17.7 | |||
FAQ:
1. Are you factory or trading company?
Yes,we are manufacturer in Wenzhou,China. We can give you the competitive price & after sale service.
2. Can we print our logo/website/company name on products?
Yes,your logo can be printed as your demand. we can offer OEM service.
3. What's the lead time for regular order?
7-15 days as order quantity
4. Can you provide samples? Are the samples free?
Yes, samples can be provided with freight charge to be collect.
5. How does your factory do regarding quality control?
All the products will be 100% checked before the shipment.
6. When can I get the price?
Usually we quote within 24 hours after we get your inquiry.
