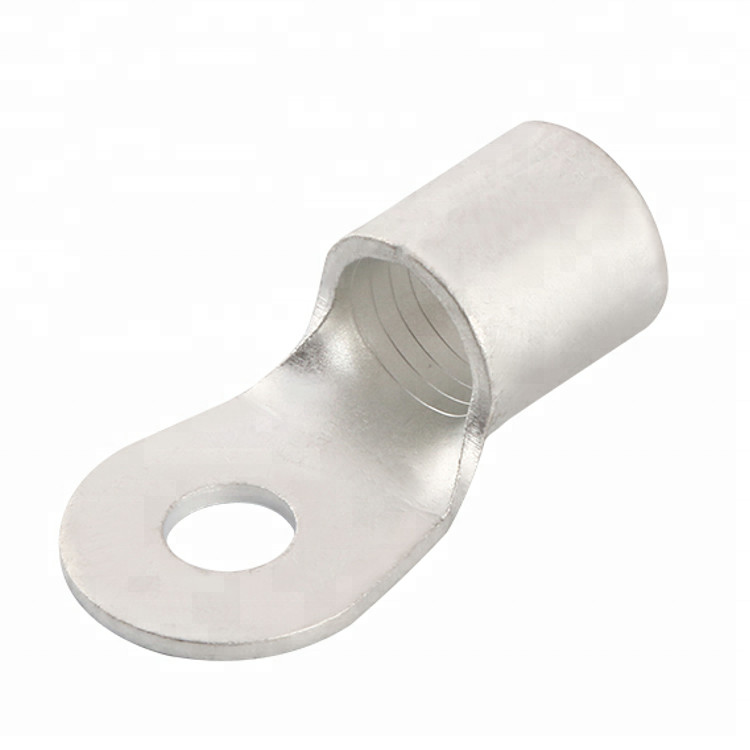

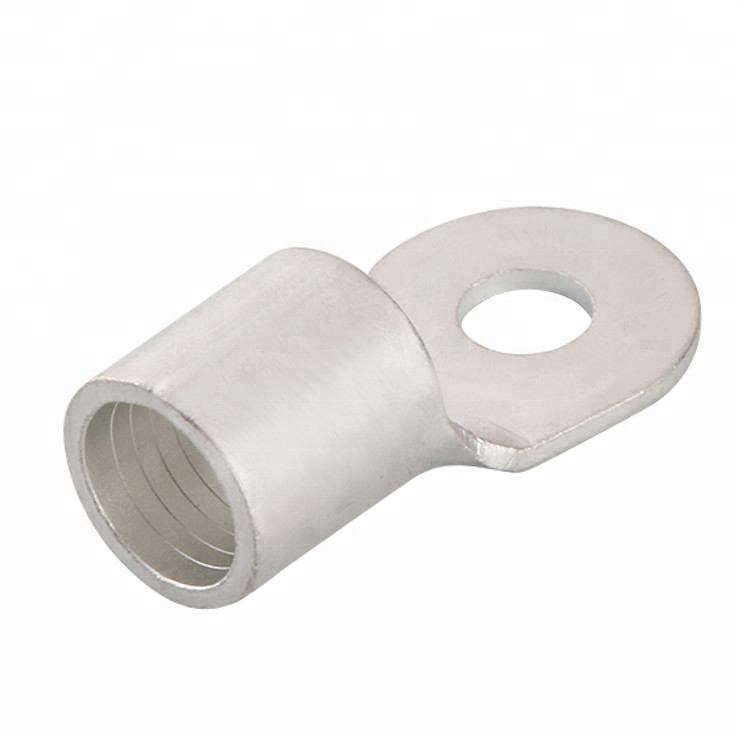

RNB Ring Uninsulated Copper Terminal Wire Crimp Soldering Bare Connector Lugs
| Item No: | TO Non-insulated Ring Terminals |
| Product name: | TO Cold pressed terminal |
| Color: | Tinned copper |
| Material: | Brass or Copper |
| Application: | Wire and cable connection |
| Product Type | Terminals |
Wire range: 0.5-1.5㎜², A.W.G:22~16, Imax=19A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| RNB1.25-3.2 | #4 | 3.2 | 5.7 | 12.6 | 4.95 | 4.8 | 3.4 | 1.7 |
| RNBS1.25-3.5 | #6 | 3.7 | 5.7 | 12.6 | 4.95 | |||
| RNBM1.25-3.5 | #6 | 3.7 | 6.6 | 14.4 | 6.3 | |||
| RNBL1.25-3.5 | #6 | 3.7 | 8.0 | 15.8 | 7.0 | |||
| RNBS1.25-4 | #8 | 4.3 | 6.6 | 14.4 | 6.3 | |||
| RNBL1.25-4 | #8 | 4.3 | 8.0 | 15.8 | 7.0 | |||
| RNB1.25-5 | #10 | 5.3 | 8.0 | 15.8 | 7.0 | |||
| RNBL1.25-5 | #10 | 5.3 | 9.8 | 18.0 | 8.5 | |||
| RNBS1.25-6 | 1/4 | 6.4 | 9.8 | 18.0 | 8.5 | |||
| RNB1.25-6 | 1/4 | 6.4 | 11.6 | 21.8 | 11.1 | |||
| RNB1.25-8 | 5/16 | 8.4 | 11.6 | 21.8 | 11.1 | |||
| RNB1.25-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 | |||
| RNB1.25-12 | 1/2 | 13.0 | 19.2 | 31.0 | 16.5 | |||
Wire range: 1.5-2.5㎜², A.W.G:16~14, Imax=27A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| RNB2-3.2 | #4 | 3.2 | 6.6 | 12.3 | 4.3 | 4.8 | 4.1 | 2.3 |
| RNBS2-3.5 | #6 | 3.7 | 6.6 | 12.3 | 4.3 | |||
| RNBM2-3.5 | #6 | 3.7 | 6.6 | 16.0 | 7.0 | |||
| RNBL2-3.5 | #6 | 3.7 | 8.5 | 16.8 | 7.75 | |||
| RNBS2-4 | #8 | 4.3 | 6.6 | 16.0 | 7.0 | |||
| RNBL2-4 | #8 | 4.3 | 8.5 | 16.8 | 7.75 | |||
| RNBS2-5 | #10 | 5.3 | 8.5 | 16.8 | 7.75 | |||
| RNBL2-5 | #10 | 5.3 | 9.5 | 16.8 | 7.25 | |||
| RNB2-6 | 1/4 | 6.4 | 12.0 | 21.8 | 11.0 | |||
| RNB2-8 | 5/16 | 8.4 | 12.0 | 21.8 | 11.0 | |||
| RNB2-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 | |||
| RNB2-12 | 1/2 | 13.0 | 19.2 | 31.0 | 16.5 | |||
Wire range: 2.5-4㎜², A.W.G:14~12, Imax=37A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| RNB3.5-4 | #8 | 4.3 | 8.0 | 18.0 | 7.7 | 6.0 | 5.0 | 3.0 |
| RNBS3.5-5 | #10 | 5.3 | 8.0 | 18.0 | 7.7 | |||
| RNBL3.5-5 | #10 | 5.3 | 12.0 | 21.4 | 7.7 | |||
| RNB3.5-6 | 1/4 | 6.4 | 12.0 | 21.4 | 7.7 | |||
| RNB3.5-8 | 5/16 | 8.4 | 15.0 | 27.0 | 13.5 | |||
| RNB3.5-10 | 3/8 | 10.5 | 15.0 | 27.0 | 13.5 | |||
Wire range: 4-6㎜², A.W.G:12~10, Imax=48A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| RNB5.5-3.5 | #6 | 3.7 | 7.2 | 15.7 | 5.9 | 6.8 | 5.6 | 3.4 |
| RNBS5.5-4 | #8 | 4.3 | 7.2 | 15.7 | 5.9 | |||
| RNBL5.5-4 | #8 | 4.3 | 9.5 | 19.8 | 8.3 | |||
| RNB5.5-5 | #10 | 5.3 | 9.5 | 19.8 | 8.3 | |||
| RNB5.5-6 | 1/4 | 6.4 | 12.0 | 25.8 | 13.0 | |||
| RNB5.5-8 | 5/16 | 8.4 | 15.0 | 28.0 | 13.7 | |||
| RNB5.5-10 | 3/8 | 10.5 | 15.0 | 28.0 | 13.7 | |||
| RNB5.5-12 | 1/2 | 13.0 | 19.2 | 32.4 |
