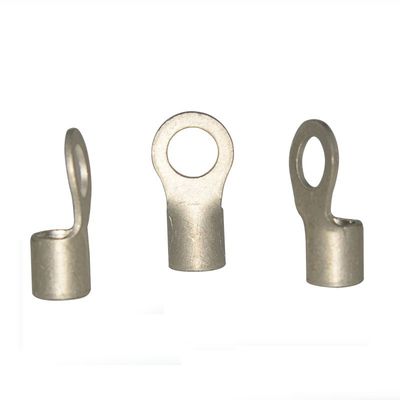

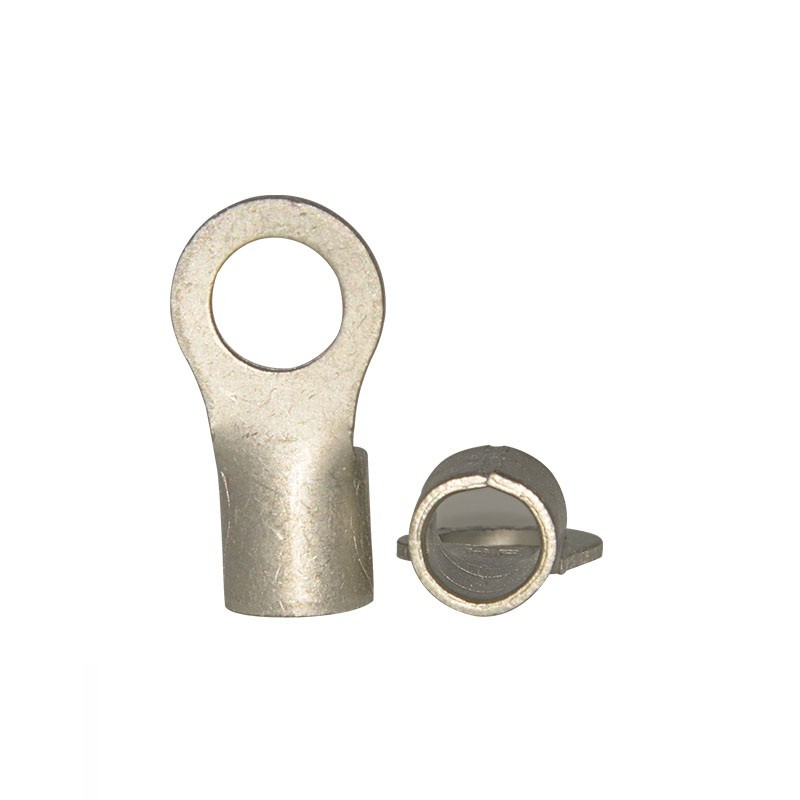

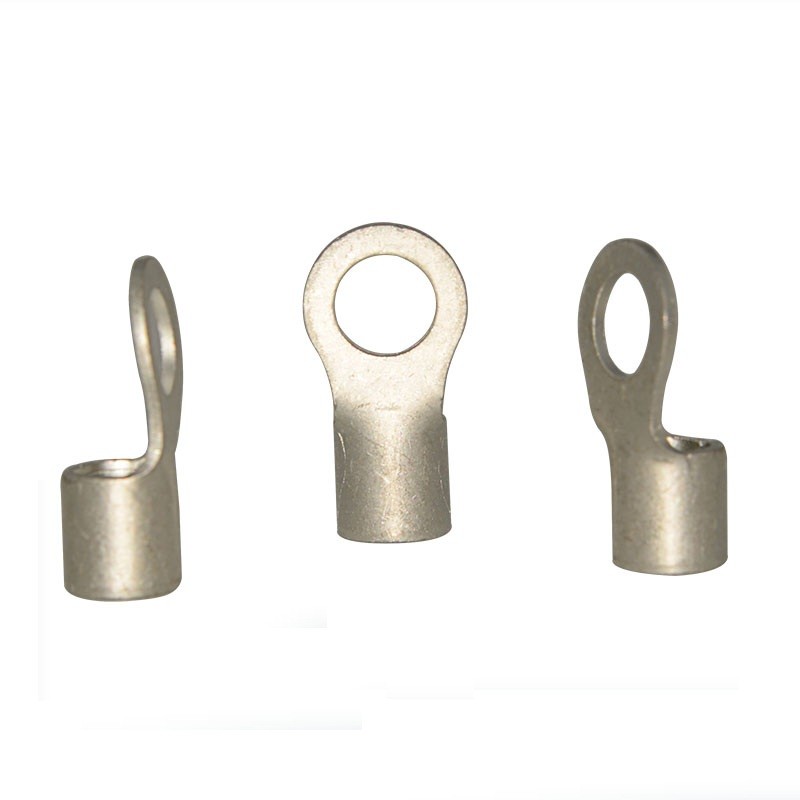

TO Type AWG 250/300 MCM Non Insulated Ring Copper Terminal Lugs Ring
Application:
Insulation: Non-insulation
Model Number: RNB
Material: RoHS approved copper, PVC Insulation.
Finish: Tin plated
Standard: CE, RoHS
Package: 100 pcs / bag
welded to form a seamless sleeve, allowing the crimping jaw to rotate 360
enable universal used with studs/screws to fix on equipments
Wire range: 120-150㎜², A.W.G:250/300MCM, Imax=395A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| RNB150-8 | 5/16 | 8.4 | 36.0 | 66.0 | 23.0 | 27.0 | 26.6 | 19.5 |
| RNB150-10 | 3/8 | 10.5 | ||||||
| RNB150-11 | 7/16 | 11.5 | ||||||
| RNB150-12 | 1/2 | 13.0 | ||||||
| RNB150-14 | 9/16 | 15.0 | ||||||
| RNB150-16 | 5/8 | 17.0 | 36.0 | 81.0 | 36.0 | |||
| RNB150-18 | 11/16 | 19.0 | ||||||
| RNB150-20 | 3/4 | 21.0 | ||||||
| RNB150-22 | 7/8 | 23.0 | ||||||
| RNB150-24 | 15/16 | 25.0 | ||||||
| RNB150-27 | 1 | 28.0 | ||||||
Wire range: 150-185㎜², A.W.G:300/350MCM, Imax=440A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| RNB180-8 | 5/16 | 8.4 | 38.5 | 69.0 | 24.5 | 28.5 | 28.6 | 21.0 |
| RNB180-10 | 3/8 | 10.5 | ||||||
| RNB180-11 | 7/16 | 11.5 | ||||||
| RNB180-12 | 1/2 | 13.0 | ||||||
| RNB180-14 | 9/16 | 15.0 | ||||||
| RNB180-16 | 5/8 | 17.0 | 38.5 | 86.6 | 39.0 | |||
| RNB180-18 | 11/16 | 19.0 | ||||||
| RNB180-20 | 3/4 | 21.0 | ||||||
| RNB180-22 | 7/8 | 23.0 | ||||||
| RNB180-24 | 15/16 | 25.0 | ||||||
| RNB180-27 | 1 | 28.0 | ||||||
Wire range: 185-240㎜², A.W.G:400/500MCM, Imax=470A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| RNB200-8 | 5/16 | 8.4 | 44.0 | 72.0 | 24.5 | 31.5 | 32.6 | 24.0 |
| RNB200-10 | 3/8 | 10.5 | ||||||
| RNB200-11 | 7/16 | 11.5 | ||||||
| RNB200-12 | 1/2 | 13.0 | ||||||
| RNB200-14 | 9/16 | 15.0 | ||||||
| RNB200-16 | 5/8 | 17.0 | 44.0 | 91.1 | 37.5 | |||
| RNB200-18 | 11/16 | 19.0 | ||||||
| RNB200-20 | 3/4 | 21.0 | ||||||
| RNB200-22 | 7/8 | 23.0 | ||||||
| RNB200-24 | 15/16 | 25.0 | ||||||
| RNB200-27 | 1 | 28.0 | ||||||
Wire range: 300-400㎜², A.W.G:500/600MCM, Imax=650A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| RNB325-8 | 5/16 | 8.4 | 50.0 | 88.0 | 33.5 | 35.5 | 37.1 | 28.0 |
| RNB325-10 | 3/8 | 10.5 | ||||||
| RNB325-11 | 7/16 | 11.5 | ||||||
| RNB325-12 | 1/2 | 13.0 | ||||||
| RNB325-14 | 9/16 | 15.0 | ||||||
| RNB325-16 | 5/8 | 17.0 | 50.5 | 105.7 | 45.0 | |||
| RNB325-18 | 11/16 | 19.0 | ||||||
| RNB325-20 | 3/4 | 21.0 | ||||||
| RNB325-22 | 7/8 | 23.0 | ||||||
| RNB325-24 | 15/16 | 25.0 | ||||||
| RNB325-27 | 1 | 28.0 | ||||||
