Detail Information

Application:	Wire Connecting	A.W.G:	#2-8
Item:	Connectors & Terminals	Type:	Crimp Terminal
Craftsmanship:	Cold Pressing	OEM:	Acceptable
Highlight:	Copper Brass Ring Bare Naked Cable , Non Insulated Ring Bare Naked Cable , Lug Wire Crimp Connector Terminal

Product Description

Non Insulated Copper Brass Ring Bare Naked Cable Lug Wire Crimp Connector Terminal

Item No:	TO Non-insulated Ring Terminals
Product name:	TO Cold pressed terminal
Color:	Tinned copper
Material:	Brass or Copper
Application:	Wire and cable connection
Product Type	Terminals

Wire range: 6-10㎜², A.W.G:8, Imax=62A

Item No.	Stud size	Dimension (mm)
Item No.	Stud size	d2	B	L	F	E	D∅	d∅
RNB8-4	#8	4.3	8.8	23.8	9.3	8.5	7.2	4.5
RNBS8-5	#10	5.3	8.8	23.8	11.1
RNBM8-5	#10	5.3	12.0	23.8	9.3
RNBL8-5	#10	5.3	15.0	29.8	13.8
RNBS8-6	1/4	6.4	12.0	23.8	9.3
RNBL8-6	1/4	6.4	15.0	29.8	13.8
RNB8-8	5/16	8.4	15.0	29.8	13.8
RNB8-10	3/8	10.5	15.0	29.8	13.8
RNB8-12	1/2	13.0	20.0	33.5	15.0

Wire range: 10-16㎜², A.W.G:6, Imax=88A

Item No.	Stud size	Dimension (mm)
Item No.	Stud size	d2	B	L	F	E	D∅	d∅
RNB14-4	#8	4.3	12.0	29.8	13.3	10.5	9.0	5.8
RNB14-5	#10	5.3	12.0	29.8	13.3
RNBS14-6	1/4	6.4	12.0	29.8	13.3
RNBL14-6	1/4	6.4	16.0	32.8	13.3
RNB14-8	5/16	8.4	16.0	32.8	14.5
RNB14-10	3/8	10.5	16.0	32.8	14.5
RNB14-12	1/2	13.0	22.0	41.0	19.5

Wire range: 16-25㎜², A.W.G:4, Imax=115A

Item No.	Stud size	Dimension (mm)
Item No.	Stud size	d2	B	L	F	E	D∅	d∅
RNBS22-5	#10	5.3	12.2	33.2	14.5	12.0	11.5	7.7
RNBL22-5	#10	5.3	16.5	33.7	13.5
RNBS22-6	1/4	6.4	12.2	33.2	14.5
RNBL22-6	1/4	6.4	16.5	33.7	13.5
RNB22-8	5/16	8.4	16.5	33.7	13.5
RNB22-10	3/8	10.5	16.5	33.7	13.5
RNB22-11	7/16	11.5	22.0	42.5	19.5
RNB22-12	1/2	13.0	22.0	42.5	19.5

Wire range: 25-35㎜², A.W.G:2, Imax=160A

Item No.	Stud size	Dimension (mm)
Item No.	Stud size	d2	B	L	F	E	D∅	d∅
RNB38-5	#10	5.3	15.3	39.0	18.3	14.0	13.3	9.4
RNB38-6	1/4	6.4	15.3	39.0	18.3
RNBS38-8	5/16	8.4	15.3	39.0	18.3
RNBL38-8	5/16	8.4	22.0	42.7	17.7
RNBS38-10	3/8	10.5	15.3	39.0	18.3
RNBL38-10	3/8	10.5	22.0	42.7	17.7
RNB38-11	7/16	11.5	22.0	42.7	17.7
RNB38-12	1/2	13.0	22.0	42.7	17.7

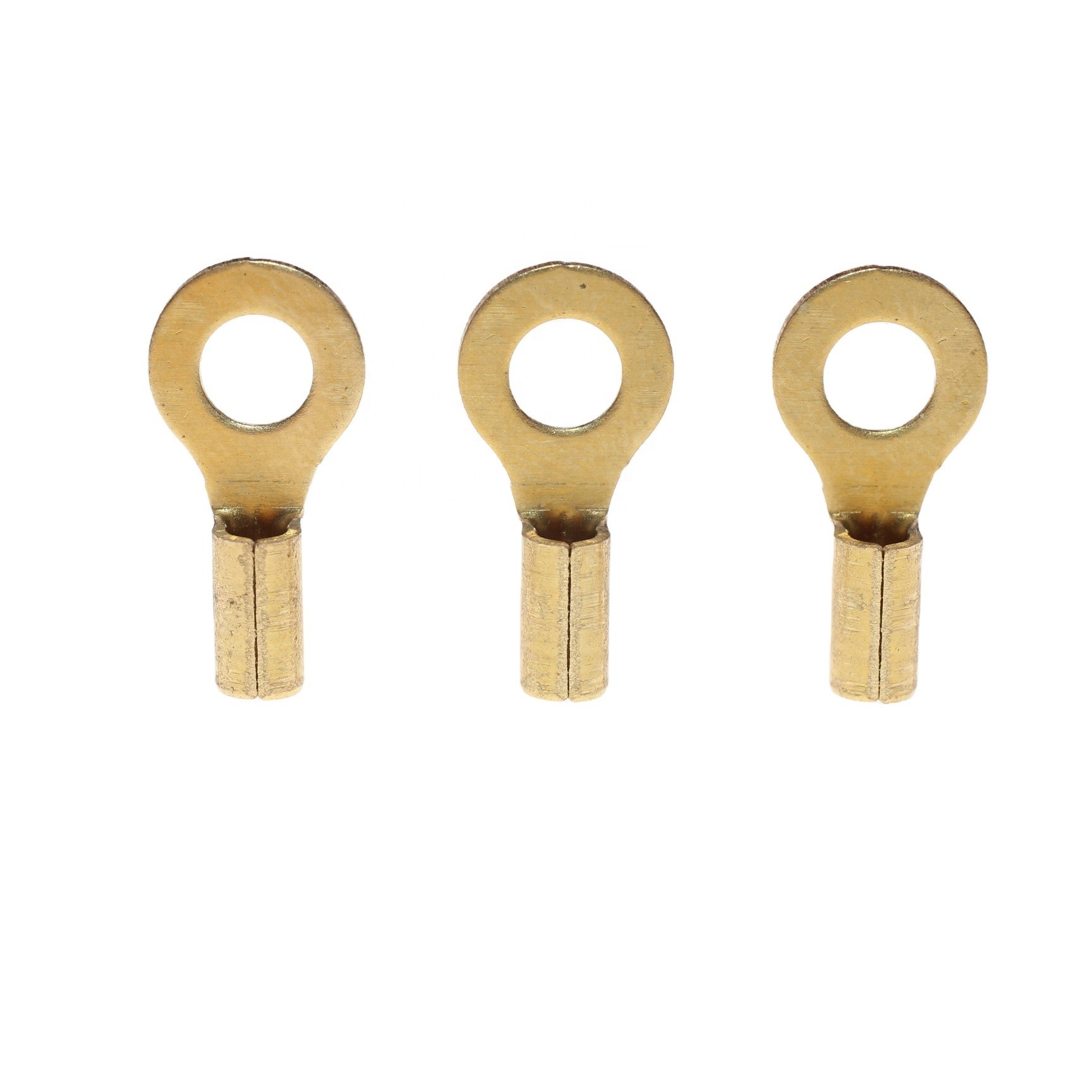

Copper Brass Non Insulated Terminal Ring Bare Naked Cable Lug Wire Crimp Connector 0

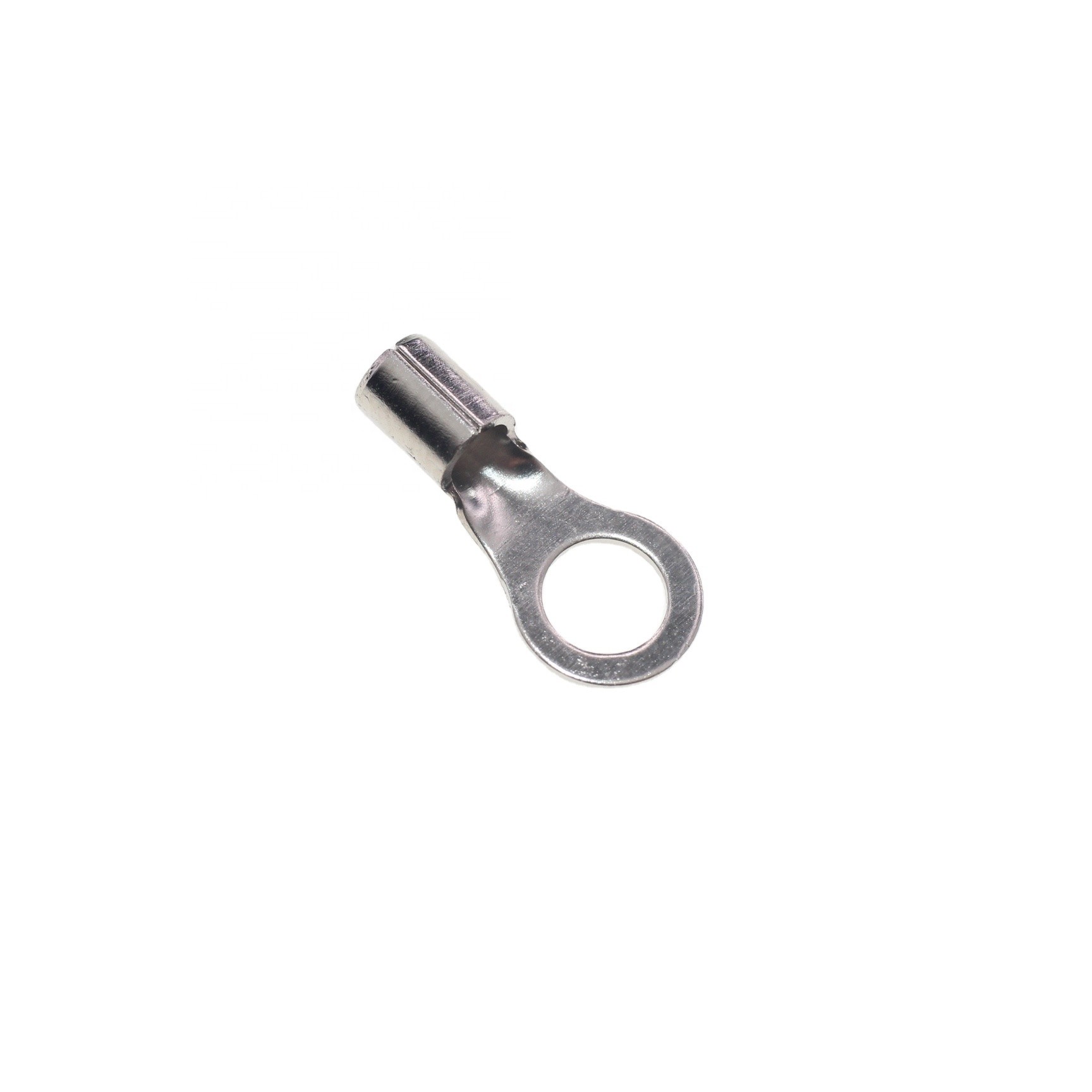

Copper Brass Non Insulated Terminal Ring Bare Naked Cable Lug Wire Crimp Connector 1

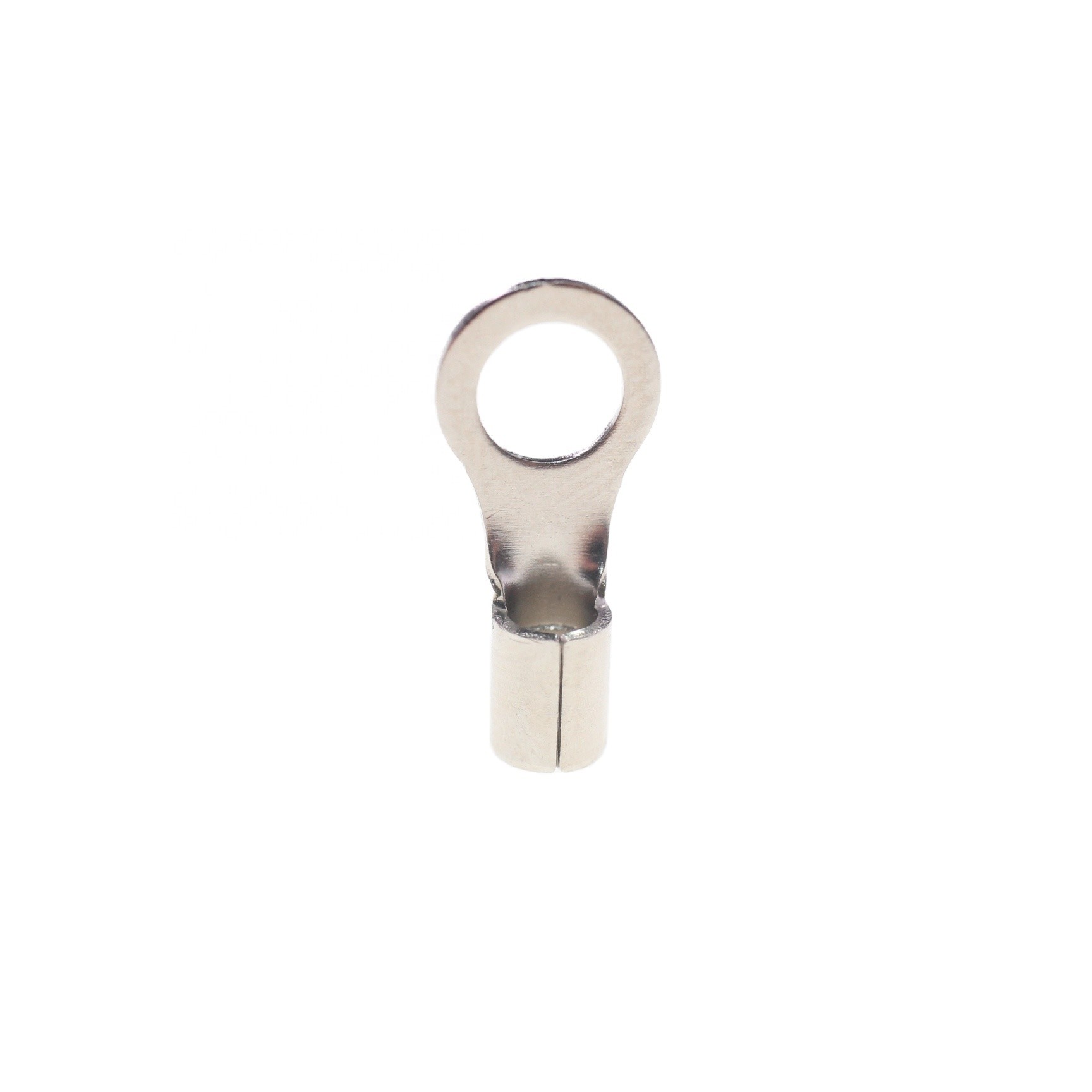

Copper Brass Non Insulated Terminal Ring Bare Naked Cable Lug Wire Crimp Connector 2

FAQ:

1. Are you factory or trading company?

Yes,we are manufacturer in Wenzhou,China. We can give you the competitive price & after sale service.
2. Can we print our logo/website/company name on products?
Yes,your logo can be printed as your demand. we can offer OEM service.
3. What's the lead time for regular order?
7-15 days as order quantity

4. Can you provide samples? Are the samples free?
Yes, samples can be provided with freight charge to be collect.
5. Could you change the size for customer?
Yes, the sizes can be customized, for more details, please contact us freely.
6. How about the after-sale service?

Any comments are welcomed,we will solve your application problems.

Tag:

Place of Origin:	China
Brand Name:	YOKG
Certification:	CE
Model Number:	RNB series

Minimum Order Quantity:	10000PCS
Price:	Negotiable
Packaging Details:	Standard export packing or According to customer's demand
Delivery Time:	15days or Depends on ordering QTYS
Payment Terms:	L/C, D/P, T/T
Supply Ability:	100000pcs per Month
