Product Details:
|
| Type: | Crimp Terminal | Surface Treatment: | Tin Plating , Silver Plating, Gold Palting |
|---|---|---|---|
| Item: | Non-insulated Cord End Crimp Cable Terminals | Model Number: | EN Series |
| Certificate: | ROHS , CE | Place Of Origin: | Zhejiang, China |
| High Light: | Non Insulated Ferrules Cord End Terminals,8AWG Non Insulated Terminals,EN 10 AWG Non Insulated Terminals |
||

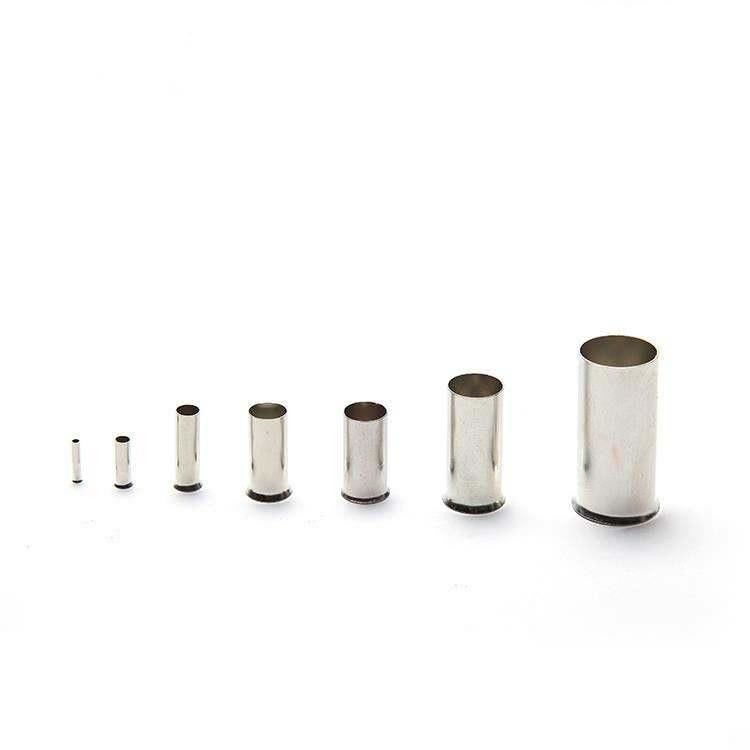

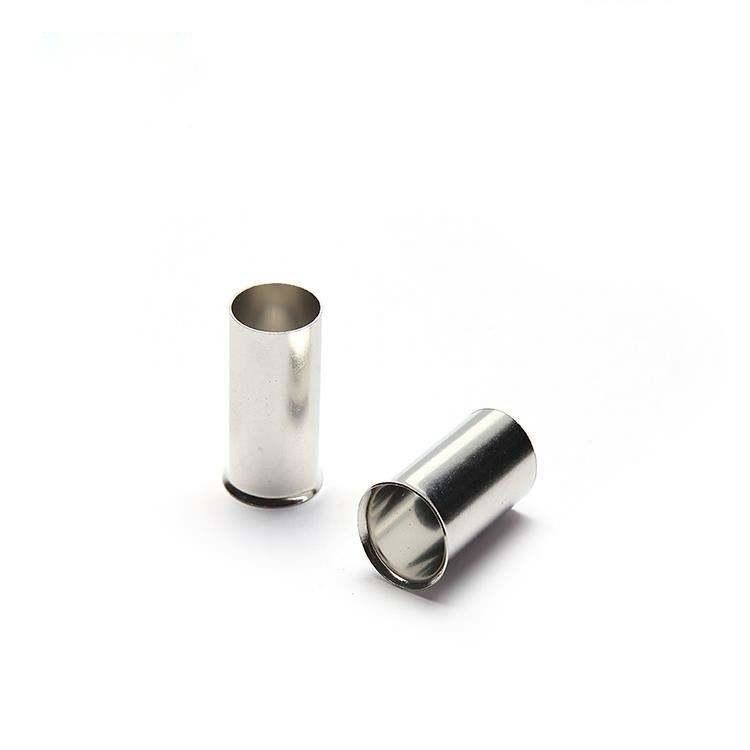

Electrical Wire Connector EN 10 8AWG Copper non-Insulated Ferrules Cord End Terminals
| Item No. | Dimension(mm) | Wire range | ||||
| L | D∅ | C∅ | W∅ | A.W.G | mm² | |
| EN6006 | 6.0 | 3.9 | 3.5 | 4.7 | 10 | 6 |
| EN6010 | 10.0 | |||||
| EN6012 | 12.0 | |||||
| EN6015 | 15.0 | |||||
| EN6018 | 18.0 | |||||
| EN10-12 | 12.0 | 4.9 | 4.5 | 5.8 | 8 | 10 |
| EN10-15 | 15.0 | |||||
| EN10-16 | 16.0 | |||||
| EN10-18 | 18.0 | |||||
| EN16-12 | 12.0 | 6.2 | 5.8 | 7.2 | 6 | 16 |
| EN16-15 | 15.0 | |||||
| EN16-16 | 16.0 | |||||
| EN16-18 | 18.0 | |||||
| EN16-20 | 20.0 | |||||
| EN16-22 | 22.0 | |||||
| EN16-25 | 25.0 | |||||
| EN16-30 | 30.0 | |||||
| EN25-12 | 12.0 | 7.9 | 7.5 | 9.1 | 4 | 25 |
| EN25-15 | 15.0 | |||||
| EN25-16 | 16.0 | |||||
| EN25-18 | 18.0 | |||||
| EN25-20 | 20.0 | |||||
| EN25-22 | 22.0 | |||||
| EN25-25 | 25.0 | |||||
| EN25-30 | 30.0 | |||||
| EN35-12 | 12.0 | 8.7 | 8.3 | 10.2 | 2 | 35 |
| EN35-15 | 15.0 | |||||
| EN35-16 | 16.0 | |||||
| EN35-18 | 18.0 | |||||
| EN35-20 | 20.0 | |||||
| EN35-25 | 25.0 | |||||
| EN35-30 | 30.0 | |||||
| EN50-12 | 12.0 | 10.9 | 10.3 | 12.7 | 1/0 | 50 |
| EN50-18 | 18.0 | |||||
| EN50-22 | 22.0 | |||||
| EN50-25 | 25.0 | |||||
| EN50-30 | 30.0 | |||||
| EN70-22 | 22.0 | 14.3 | 13.5 | 15.8 | 2/0 | 70 |
| EN70-25 | 25.0 | |||||
| EN70-30 | 30.0 | |||||
| EN90-25 | 25.0 | 15.6 | 14.8 | 17.3 | 3/0 | 95 |
| EN90-30 | 30.0 | |||||
| EN90-32 | 32.0 | |||||
| EN120-30 | 30.0 | 17.7 | 16.7 | 20.2 | 4/0 | 120 |
| EN120-32 | 32.0 | |||||
| EN120-34 | 34.0 | |||||
| EN120-38 | 38.0 | |||||
| EN150-32 | 32.0 | 20.6 | 19.6 | 23.0 | 250/300 MCM |
150 |
| EN150-34 | 34.0 | |||||
| EN150-38 | 38.0 | |||||
| EN185-32 | 32.0 | 21.4 | 20.2 | 23.9 | 300/500 MCM |
185 |
| EN185-40 | 40.0 | |||||
FAQ:
1. Are you factory or trading company?
Yes,we are manufacturer in Wenzhou,China. We can give you the competitive price & after sale service.
2. Can we print our logo/website/company name on products?
Yes,your logo can be printed as your demand. we can offer OEM service.
3. What's the lead time for regular order?
7-15 days as order quantity
4. Can you provide samples? Are the samples free?
Yes, samples can be provided with freight charge to be collect.
5. How does your factory do regarding quality control?
All the products will be 100% checked before the shipment.
6. When can I get the price?
Usually we quote within 24 hours after we get your inquiry.
7.What is MOQ?
No limit.
8.Which shipping method do you provide?
For samples or small orders, goods will be sent by express.
For regular orders, goods can be sent by air or by sea, just according to your demand.
