Product Details:
|
| Surface Treatment: | Coated Tin | Application: | Wire Connecting |
|---|---|---|---|
| Product Name: | Ring Type Non-insulated Terminal | Shape: | Ring Lug And Tube |
| Model Number: | RNB / TO | Series: | Non-insulation TerminaLS |
| High Light: | Electrical Naked Crimp Terminals,AWG 22-16 RNB Crimp Terminals,Round Copper Ends Cable Lug Terminals |
||

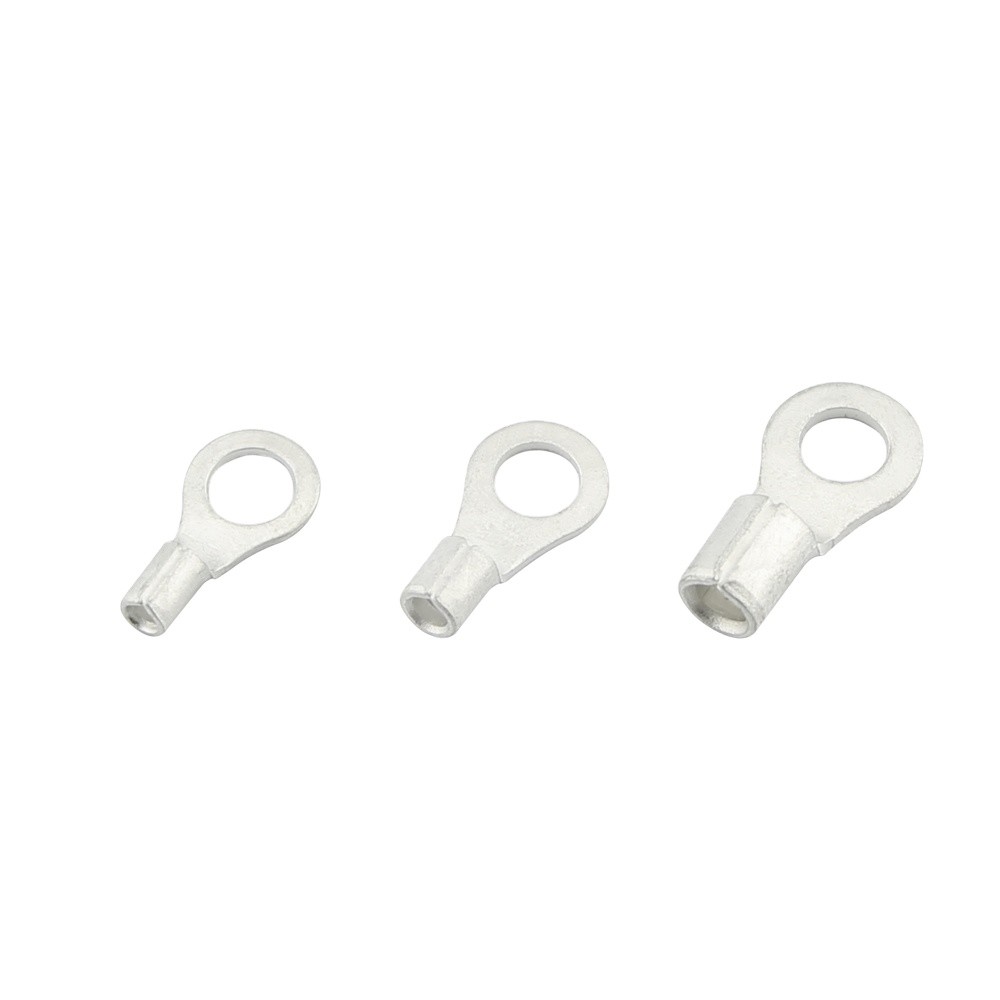

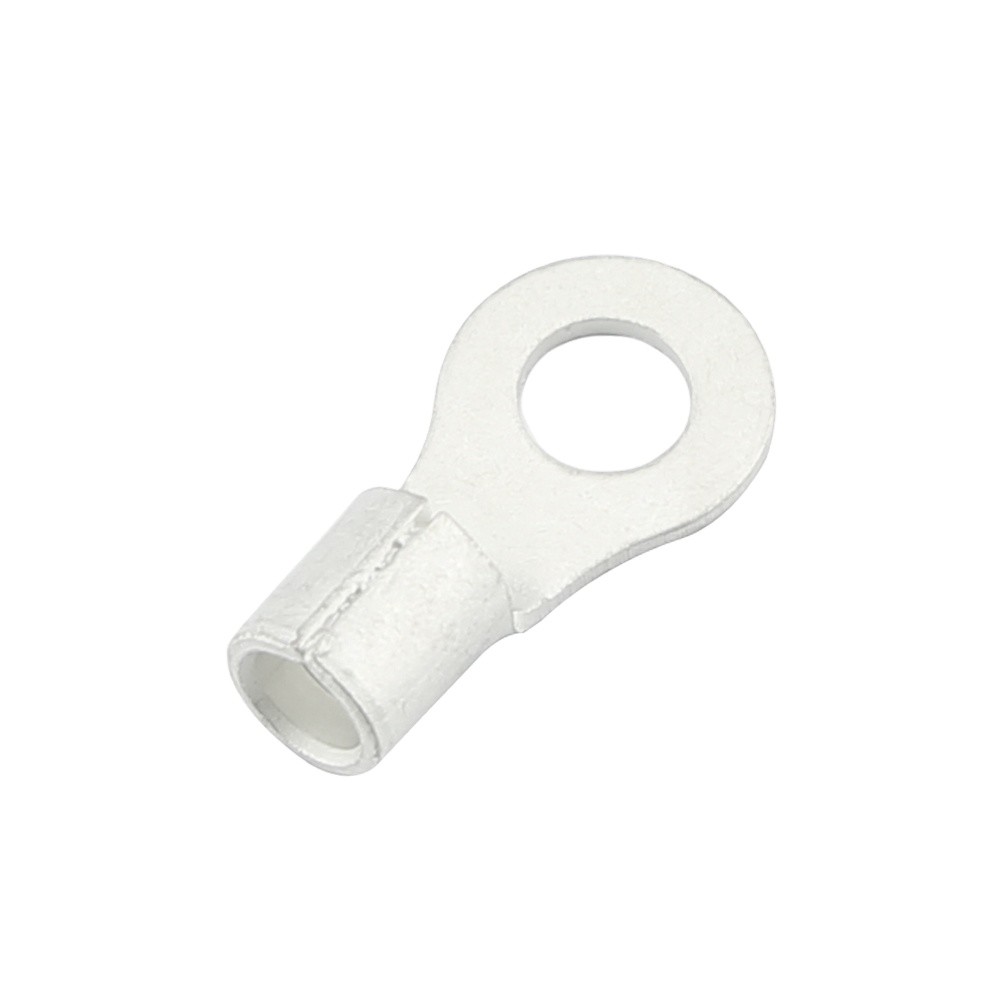

AWG 22-16 RNB Electrical Naked Crimp Terminals Round Copper Ends Cable Lug
Application:
Product name:Ring type non-insulated terminal
Insulation: Non-insulation
Model Number: RNB
Material: RoHS approved copper, PVC Insulation.
Finish: Tin plated
Shape:Ring lug and tube
Material: Copper or Brass
Standard: CE, RoHS
Package: 100 pcs / bag
welded to form a seamless sleeve, allowing the crimping jaw to rotate 360
enable universal used with studs/screws to fix on equipments
Wire range: 0.5-1.5㎜², A.W.G:22~16, Imax=19A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| RNB1.25-3.2 | #4 | 3.2 | 5.7 | 12.6 | 4.95 | 4.8 | 3.4 | 1.7 |
| RNBS1.25-3.5 | #6 | 3.7 | 5.7 | 12.6 | 4.95 | |||
| RNBM1.25-3.5 | #6 | 3.7 | 6.6 | 14.4 | 6.3 | |||
| RNBL1.25-3.5 | #6 | 3.7 | 8.0 | 15.8 | 7.0 | |||
| RNBS1.25-4 | #8 | 4.3 | 6.6 | 14.4 | 6.3 | |||
| RNBL1.25-4 | #8 | 4.3 | 8.0 | 15.8 | 7.0 | |||
| RNB1.25-5 | #10 | 5.3 | 8.0 | 15.8 | 7.0 | |||
| RNBL1.25-5 | #10 | 5.3 | 9.8 | 18.0 | 8.5 | |||
| RNBS1.25-6 | 1/4 | 6.4 | 9.8 | 18.0 | 8.5 | |||
| RNB1.25-6 | 1/4 | 6.4 | 11.6 | 21.8 | 11.1 | |||
| RNB1.25-8 | 5/16 | 8.4 | 11.6 | 21.8 | 11.1 | |||
| RNB1.25-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 | |||
| RNB1.25-12 | 1/2 | 13.0 | 19.2 | 31.0 | 16.5 |
|||
Wire range: 1.5-2.5㎜², A.W.G:16~14, Imax=27A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| RNB2-3.2 | #4 | 3.2 | 6.6 | 12.3 | 4.3 | 4.8 | 4.1 | 2.3 |
| RNBS2-3.5 | #6 | 3.7 | 6.6 | 12.3 | 4.3 | |||
| RNBM2-3.5 | #6 | 3.7 | 6.6 | 16.0 | 7.0 | |||
| RNBL2-3.5 | #6 | 3.7 | 8.5 | 16.8 | 7.75 | |||
| RNBS2-4 | #8 | 4.3 | 6.6 | 16.0 | 7.0 | |||
| RNBL2-4 | #8 | 4.3 | 8.5 | 16.8 | 7.75 | |||
| RNBS2-5 | #10 | 5.3 | 8.5 | 16.8 | 7.75 | |||
| RNBL2-5 | #10 | 5.3 | 9.5 | 16.8 | 7.25 | |||
| RNB2-6 | 1/4 | 6.4 | 12.0 | 21.8 | 11.0 | |||
| RNB2-8 | 5/16 | 8.4 | 12.0 | 21.8 | 11.0 | |||
| RNB2-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 | |||
| RNB2-12 | 1/2 | 13.0 | 19.2 | 31.0 | 16.5 | |||
Wire range: 2.5-4㎜², A.W.G:14~12, Imax=37A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| RNB3.5-4 | #8 | 4.3 | 8.0 | 18.0 | 7.7 | 6.0 | 5.0 | 3.0 |
| RNBS3.5-5 | #10 | 5.3 | 8.0 | 18.0 | 7.7 | |||
| RNBL3.5-5 | #10 | 5.3 | 12.0 | 21.4 | 7.7 | |||
| RNB3.5-6 | 1/4 | 6.4 | 12.0 | 21.4 | 7.7 | |||
| RNB3.5-8 | 5/16 | 8.4 | 15.0 | 27.0 | 13.5 | |||
| RNB3.5-10 | 3/8 | 10.5 | 15.0 | 27.0 | 13.5 | |||
Wire range: 4-6㎜², A.W.G:12~10, Imax=48A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| RNB5.5-3.5 | #6 | 3.7 | 7.2 | 15.7 | 5.9 | 6.8 | 5.6 | 3.4 |
| RNBS5.5-4 | #8 | 4.3 | 7.2 | 15.7 | 5.9 | |||
| RNBL5.5-4 | #8 | 4.3 | 9.5 | 19.8 | 8.3 | |||
| RNB5.5-5 | #10 | 5.3 | 9.5 | 19.8 | 8.3 | |||
| RNB5.5-6 | 1/4 | 6.4 | 12.0 | 25.8 | 13.0 | |||
| RNB5.5-8 | 5/16 | 8.4 | 15.0 | 28.0 | 13.7 | |||
| RNB5.5-10 | 3/8 | 10.5 | 15.0 | 28.0 | 13.7 | |||
| RNB5.5-12 | 1/2 | 13.0 | 19.2 | 32.4 |
16.0 |
|||
