Product Details:
|
| A.W.G: | 22-16,16-14,14-12,12-10,8-4 | Package: | 1000 Pcs/Bag,500 Pcs/Bag, 100 Pcs / Bag |
|---|---|---|---|
| Type: | Crimp Bare Non Insulated | Product Name: | TU |
| Model Number: | SNB | Application: | Wire Crimping |
| High Light: | Bare Non Insulated Y Terminal,TU Crimp Non Insulated Terminal,Wire Connector Shovel Terminal |
||

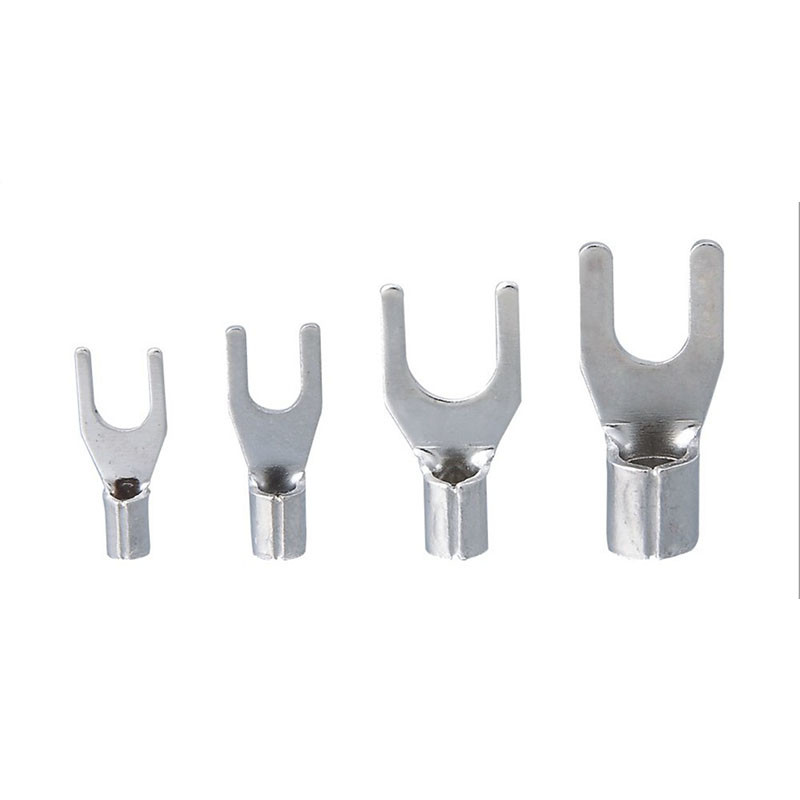

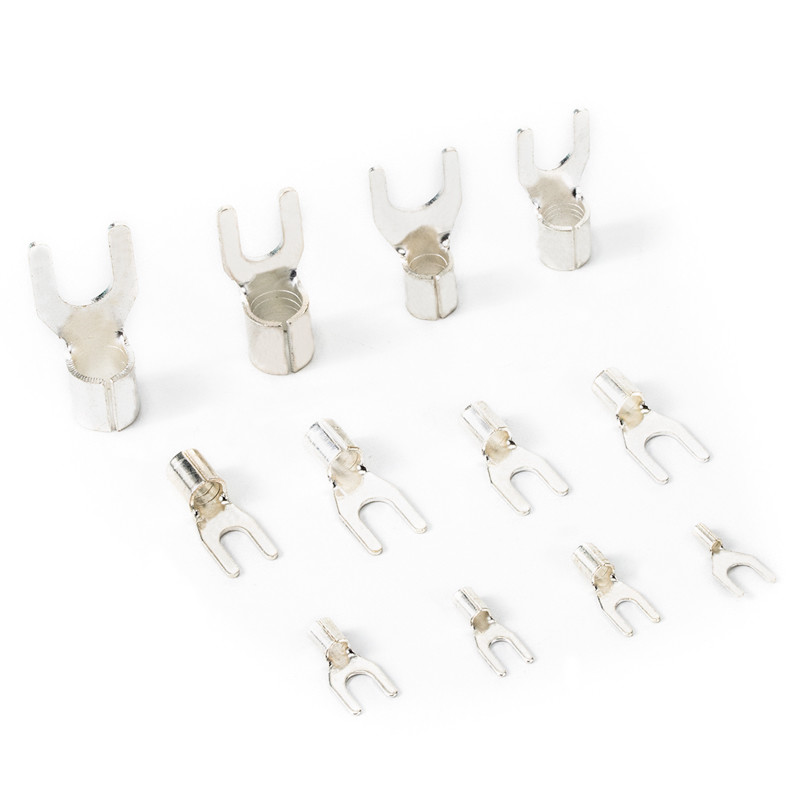

SNB Series TU Crimp Bare Non-Insulated Y Terminal Wire Connector Shovel Terminal
| Type | Crimp bare non-Insulated Spade Terminals |
| Product Name | TU (SNB series) |
| A.W.G | 22-16, 16-14, 14-12, 12-10, 8-4 |
| Metal Material | Brass & Copper |
| Application | Wire crimping |
Wire range: 0.5-1.5㎜², A.W.G:22~16, Imax=19A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| SNB1.25-3.2 | #4 | 3.2 | 5.7 | 16.0 | 6.5 | 4.8 | 3.4 | 1.7 |
| SNBS1.25-3.5 | #6 | 3.7 | 5.7 | 16.0 | 6.5 | |||
| SNBL1.25-3.5 | #6 | 3.7 | 6.4 | 16.0 | 6.5 | |||
| SNBS1.25-4 | #8 | 4.3 | 6.4 | 16.0 | 6.5 | |||
| SNBM1.25-4 | #8 | 4.3 | 7.2 | 16.0 | 6.5 | |||
| SNBL1.25-4 | #8 | 4.3 | 8.1 | 16.0 | 6.5 | |||
| SNBS1.25-5 | #10 | 5.3 | 8.1 | 16.0 | 6.5 | |||
| SNBL1.25-5 | #10 | 5.3 | 9.5 | 16.0 | 6.5 | |||
| SNBS1.25-6 | 1/4 | 6.4 | 9.5 | 16.0 | 6.5 | |||
| SNBL1.25-6 | 1/4 | 6.4 | 12.0 | 22.0 | 11.0 | |||
| SNB1.25-8 | 5/16 | 8.4 | 14.5 | 23.5 | 12.5 | |||
Wire range: 1.5-2.5㎜², A.W.G:16~14, Imax=27A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| SNB2-3.2 | #4 | 3.2 | 5.7 | 16.0 | 6.5 | 4.8 | 4.1 | 2.3 |
| SNBS2-3.5 | #6 | 3.7 | 5.7 | 16.0 | 6.5 | |||
| SNBL2-3.5 | #6 | 3.7 | 6.0 | 16.0 | 6.5 | |||
| SNBS2-4 | #8 | 4.3 | 6.4 | 16.0 | 6.5 | |||
| SNBM2-4 | #8 | 4.3 | 7.2 | 16.0 | 6.5 | |||
| SNBL2-4 | #8 | 4.3 | 8.1 | 16.0 | 6.5 | |||
| SNBS2-5 | #10 | 5.3 | 8.1 | 16.0 | 6.5 | |||
| SNBL2-5 | #10 | 5.3 | 9.5 | 16.0 | 6.5 | |||
| SNBS2-6 | 1/4 | 6.4 | 9.5 | 16.0 | 6.5 | |||
| SNBL2-6 | 1/4 | 6.4 | 12.0 | 22.0 | 11.0 | |||
| SNB2-8 | 5/16 | 8.4 | 14.5 | 23.5 | 12.5 | |||
Wire range: 2.5-4㎜², A.W.G:14~12, Imax=37A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| SNB3.5-3 | #4 | 3.2 | 5.7 | 18.3 | 7.0 | 6.0 | 5.0 | 3.0 |
| SNB3.5-4 | #8 | 4.3 | 8.0 | 18.3 | 7.0 | |||
| SNB3.5-5 | #10 | 5.3 | 8.0 | 18.3 | 7.0 | |||
| SNB3.5-6 | 1/4 | 6.4 | 12.0 | 21.5 | 12.1 | |||
Wire range: 4-6㎜², A.W.G:12~10, Imax=48A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| SNB5.5-3.5 | #6 | 3.7 | 8.3 | 19.5 | 7.5 | 6.8 | 5.6 | 3.4 |
| SNBS5.5-4 | #8 | 4.3 | 8.3 | 19.5 | 7.5 | |||
| SNBL5.5-4 | #8 | 4.3 | 9.0 | 19.5 | 7.5 | |||
| SNB5.5-5 | #10 | 5.3 | 9.0 | 19.5 | 7.5 | |||
| SNBS5.5-6 | 1/4 | 6.4 | 9.0 | 19.5 | 7.5 | |||
| SNBL5.5-6 | 1/4 | 6.4 | 12.0 | 25.5 | 12.0 | |||
| SNB5.5-8 | 5/16 | 8.4 | 14.0 | 24.5 | 11.5 | |||
Wire range: 6-25㎜², A.W.G:8~4
| Item No. | Stud size | Dimension (mm) | Imax | ||||||
| d2 | B | L | F | E | D∅ | d∅ | |||
| SNB8-4 | #8 | 4.3 | 8.7 | 23.0 | 6.0 | 8.5 | 7.2 | 4.5 | 62A |
| SNB8-5 | #10 | 5.3 | 12.0 | 24.5 | 5.7 | 8.5 | 7.2 | 4.5 | 62A |
| SNB8-6 | 1/4 | 6.4 | 12.0 | 24.5 | 5.7 | 8.5 | 7.2 | 4.5 | 62A |
| SNB8-8 | 5/16 | 8.4 | 14.5 | 28.0 | 8.3 | 8.5 | 7.2 | 4.5 | 62A |
| SNB14-6 | 1/4 | 6.4 | 12.0 | 28.0 | 7.5 | 10.5 | 9.0 | 5.8 | 88A |
| SNB14-8 | 5/16 | 8.4 | 14.0 | 28.0 | 7.5 | 10.5 | 9.0 | 5.8 | 88A |
| SNB22-8 | 5/16 | 8.4 | 14.0 | 34.5 | 9.0 | 12.0 | 11.5 | 7.7 | 115A |
