Product Details:
|
| Model Number: | RNB60-6 | Type: | Terminal |
|---|---|---|---|
| Surface Treatment: | Tin | Insulation Material: | None |
| OEM: | Yes | Material: | Copper & Brass |
| High Light: | RNB Series Non Insulated Ring Terminals,Quick Crimp Electrical Non Insulated Terminal,Tin plated Non Insulated Terminal |
||

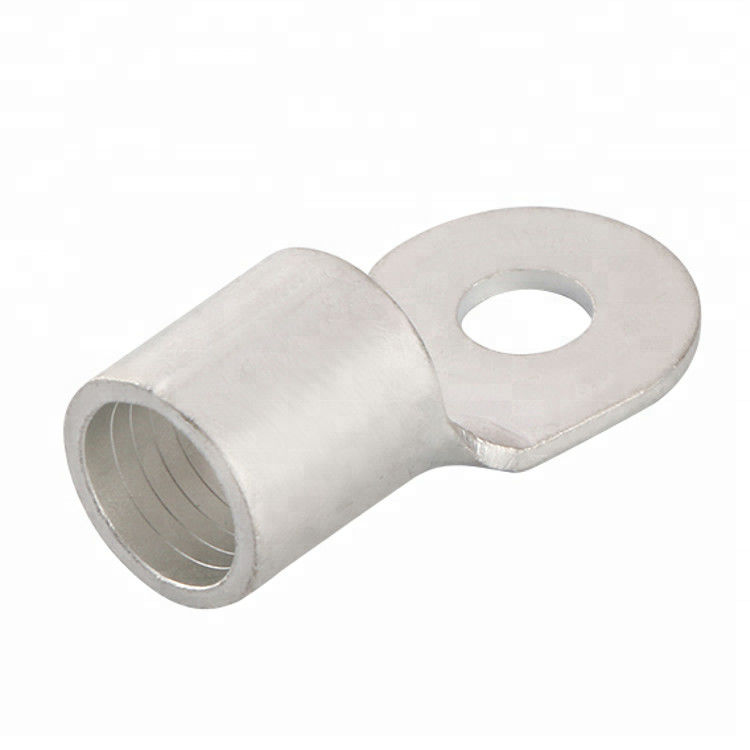

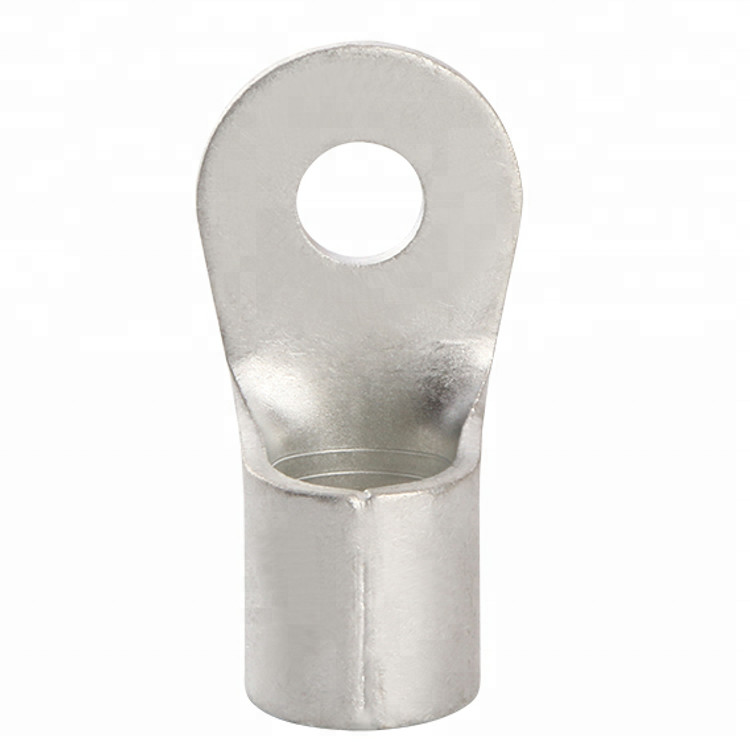

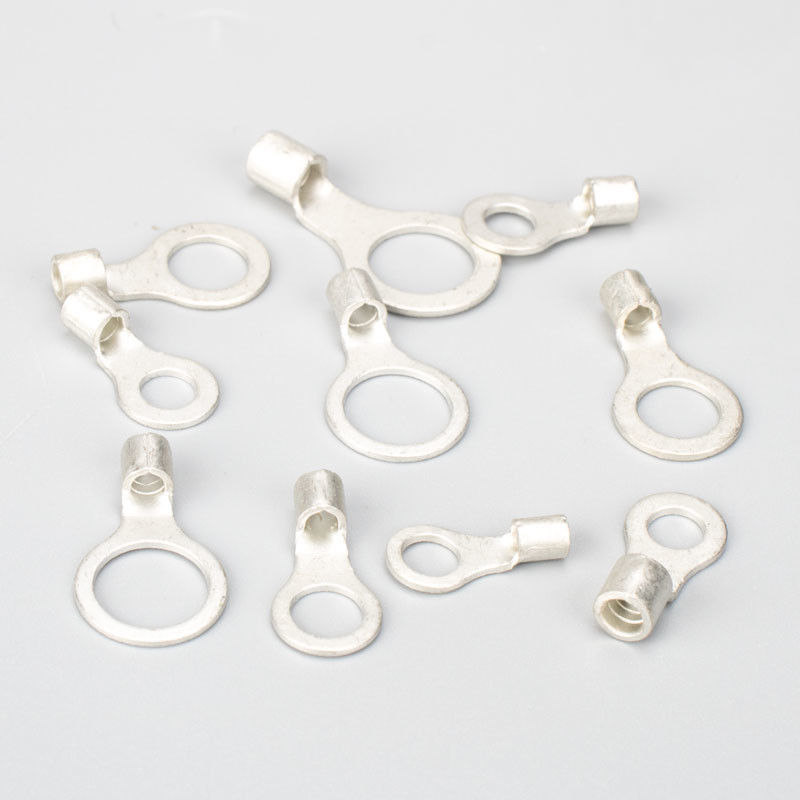

RNB Series Non Insulated Ring Terminals For Quick Crimp Electrical Terminal Connectors
Application:
Insulation: Non-insulation
Material: RoHS approved copper, PVC Insulation.
Finish: Tin plated
Standard: CE, RoHS
welded to form a seamless sleeve, allowing the crimping jaw to rotate 360
enable universal used with studs/screws to fix on equipments
Wire range: 35-50㎜², A.W.G:1/0, Imax=215A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| RNB60-6 | 1/4 | 6.4 | 22.0 | 49.7 | 20.7 | 18.0 | 15.4 | 11.4 |
| RNB60-8 | 5/16 | 8.4 | ||||||
| RNB60-10 | 3/8 | 10.5 | ||||||
| RNB60-11 | 7/16 | 11.5 | ||||||
| RNB60-12 | 1/2 | 13.0 | ||||||
| RNB60-14 | 9/16 | 15.0 | 32.0 | 57.5 | 23.5 | |||
| RNB60-16 | 5/8 | 17.0 | ||||||
| RNB60-18 | 11/16 | 19.0 | ||||||
| RNB60-20 | 3/4 | 21.0 | ||||||
| RNB60-22 | 7/8 | 23.0 | ||||||
Wire range: 50-70㎜², A.W.G:2/0, Imax=235A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| RNB70-6 | 1/4 | 6.4 | 24.0 | 51.0 | 20.0 | 19.0 | 17.5 | 13.3 |
| RNB70-8 | 5/16 | 8.4 | ||||||
| RNB70-10 | 3/8 | 10.5 | ||||||
| RNB70-11 | 7/16 | 11.5 | ||||||
| RNB70-12 | 1/2 | 13.0 | ||||||
| RNB70-14 | 9/16 | 15.0 | 32.0 | 61.0 | 26.0 | |||
| RNB70-16 | 5/8 | 17.0 | ||||||
| RNB70-18 | 11/16 | 19.0 | ||||||
| RNB70-20 | 3/4 | 21.0 | ||||||
| RNB70-22 | 7/8 | 23.0 | ||||||
Wire range: 70-95㎜², A.W.G:3/0, Imax=255A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| RNB80-6 | 1/4 | 6.4 | 27.0 | 54.2 | 20.7 | 20.0 | 19.5 | 14.5 |
| RNB80-8 | 5/16 | 8.4 | ||||||
| RNB80-10 | 3/8 | 10.5 | ||||||
| RNB80-11 | 7/16 | 11.5 | ||||||
| RNB80-12 | 1/2 | 13.0 | ||||||
| RNB80-14 | 9/16 | 15.0 | 32.0 | 68.0 | 32.0 | |||
| RNB80-16 | 5/8 | 17.0 | ||||||
| RNB80-18 | 11/16 | 19.0 | ||||||
| RNB80-20 | 3/4 | 21.0 | ||||||
| RNB80-22 | 7/8 | 23.0 | ||||||
Wire range: 95-120㎜², A.W.G:4/0, Imax=300A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| RNB100-6 | 1/4 | 6.4 | 28.5 | 55.6 | 20.4 | 21.0 | 22.1 | 16.4 |
| RNB100-8 | 5/16 | 8.4 | ||||||
| RNB100-10 | 3/8 | 10.5 | ||||||
| RNB100-11 | 7/16 | 11.5 | ||||||
| RNB100-12 | 1/2 | 13.0 | ||||||
| RNB100-14 | 9/16 | 15.0 | 32.0 | 69.0 | 32.0 | |||
| RNB100-16 | 5/8 | 17.0 | ||||||
| RNB100-18 | 11/16 | 19.0 | ||||||
| RNB100-20 | 3/4 | 21.0 | ||||||
| RNB100-22 | 7/8 | 23.0 | ||||||
