Product Details:
|
| Model Number: | TU (SNB) | Product Name: | U Shape Terminal Connector Cable Terminal Connector |
|---|---|---|---|
| Application: | Industrial | Cable Size: | 0.5-6mm2 |
| Material: | Copper | Max Current: | 19A-37A |
| High Light: | Non Insulated Spade Terminal,TU Naked Brass Non Insulated Terminal,Cold Pressed Non Insulated Spade Terminal |
||

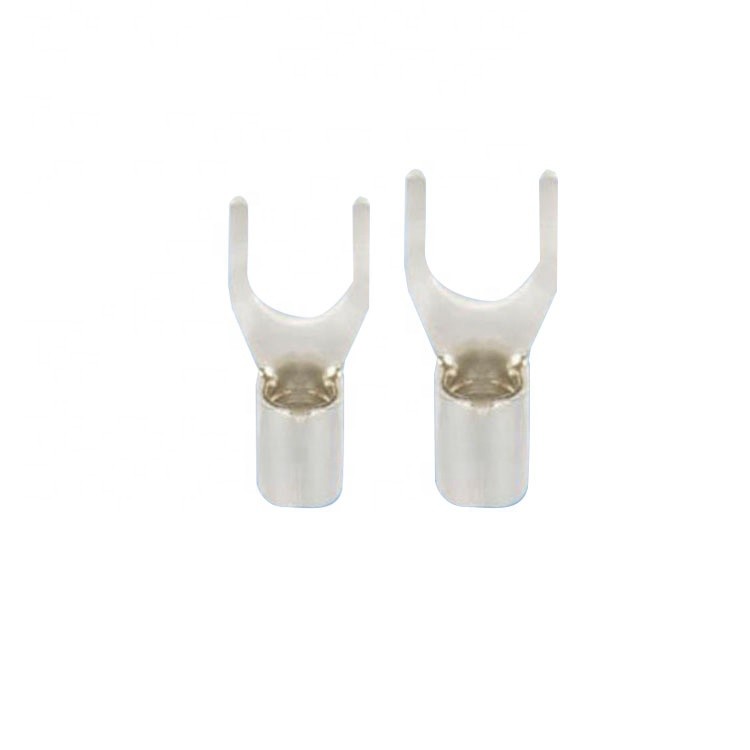

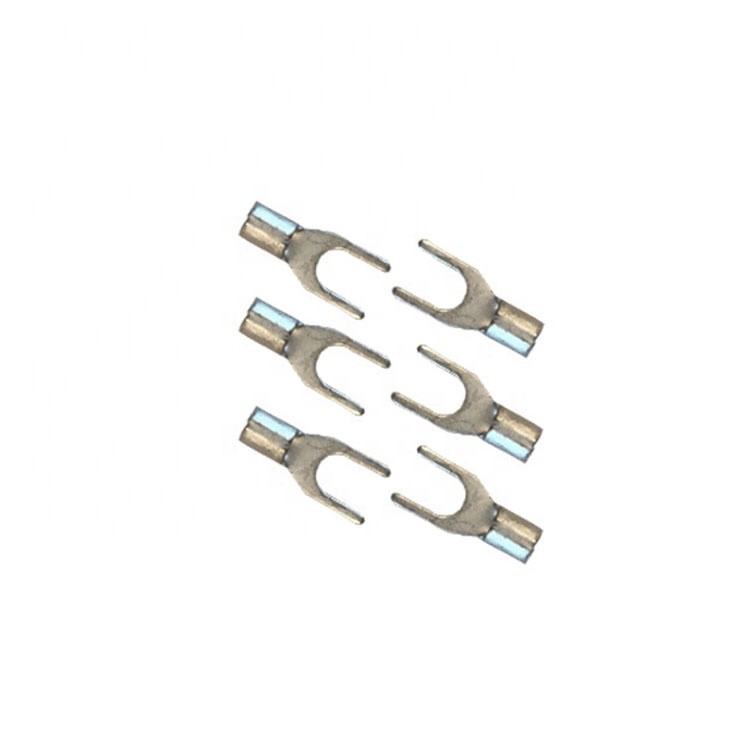

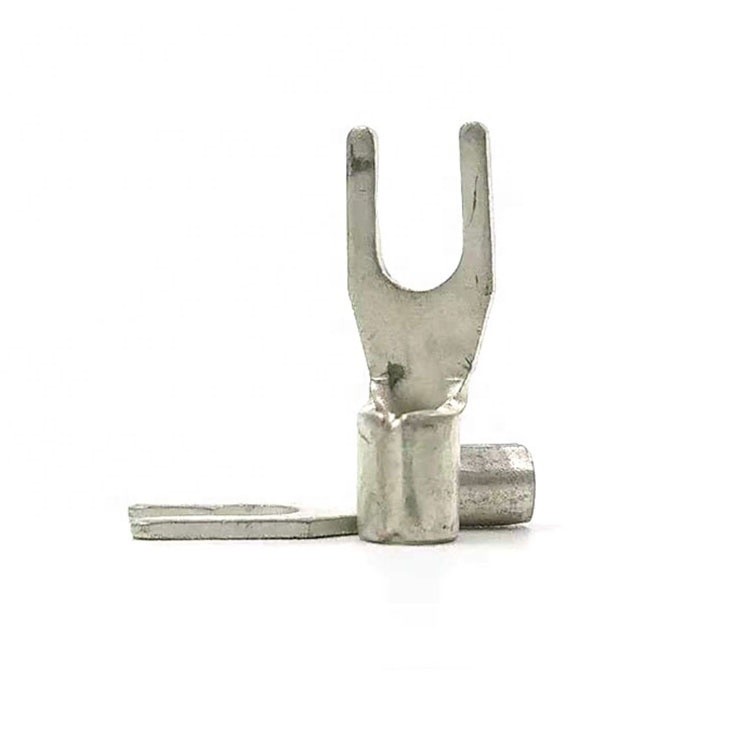

Cold Pressed TU Naked Brass U Shape Cable Non Insulated Spade Terminal
Application:
Terminals and adapter of cold compression, which are produced according to the standard of America,Japan and Germany.
They are widely used in many industries, such as machinery,spinning,electric power,railway, shipbuilding, spaceflight and aviation,light industry,household electrical appliances,computer and complete equipment of automated assembly, etc. The surface of Delixi termnals and adapter are tinned T2 copper, which assure the credible conductivity.
There is thread in the inner hole of the afterbody of termnals, theinsulation covering is hard, and there is no break and no rebound.
| Item No: | TO Non-insulated Ring Terminals |
| Product name: | SNB Spade Terminals |
| Color: | Tinned copper |
| Material: | Brass or Copper, Plating:Tin |
| Product Type | Terminals |
| Max current | Imax 19A,27A,37A,48A,62A,88A,115A |
| Shape | Spade |
Wire range: 0.5-1.5㎜², A.W.G:22~16, Imax=19A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| SNB1.25-3.2 | #4 | 3.2 | 5.7 | 16.0 | 6.5 | 4.8 | 3.4 | 1.7 |
| SNBS1.25-3.5 | #6 | 3.7 | 5.7 | 16.0 | 6.5 | |||
| SNBL1.25-3.5 | #6 | 3.7 | 6.4 | 16.0 | 6.5 | |||
| SNBS1.25-4 | #8 | 4.3 | 6.4 | 16.0 | 6.5 | |||
| SNBM1.25-4 | #8 | 4.3 | 7.2 | 16.0 | 6.5 | |||
| SNBL1.25-4 | #8 | 4.3 | 8.1 | 16.0 | 6.5 | |||
| SNBS1.25-5 | #10 | 5.3 | 8.1 | 16.0 | 6.5 | |||
| SNBL1.25-5 | #10 | 5.3 | 9.5 | 16.0 | 6.5 | |||
| SNBS1.25-6 | 1/4 | 6.4 | 9.5 | 16.0 | 6.5 | |||
| SNBL1.25-6 | 1/4 | 6.4 | 12.0 | 22.0 | 11.0 | |||
| SNB1.25-8 | 5/16 | 8.4 | 14.5 | 23.5 | 12.5 | |||
Wire range: 1.5-2.5㎜², A.W.G:16~14, Imax=27A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| SNB2-3.2 | #4 | 3.2 | 5.7 | 16.0 | 6.5 | 4.8 | 4.1 | 2.3 |
| SNBS2-3.5 | #6 | 3.7 | 5.7 | 16.0 | 6.5 | |||
| SNBL2-3.5 | #6 | 3.7 | 6.0 | 16.0 | 6.5 | |||
| SNBS2-4 | #8 | 4.3 | 6.4 | 16.0 | 6.5 | |||
| SNBM2-4 | #8 | 4.3 | 7.2 | 16.0 | 6.5 | |||
| SNBL2-4 | #8 | 4.3 | 8.1 | 16.0 | 6.5 | |||
| SNBS2-5 | #10 | 5.3 | 8.1 | 16.0 | 6.5 | |||
| SNBL2-5 | #10 | 5.3 | 9.5 | 16.0 | 6.5 | |||
| SNBS2-6 | 1/4 | 6.4 | 9.5 | 16.0 | 6.5 | |||
| SNBL2-6 | 1/4 | 6.4 | 12.0 | 22.0 | 11.0 | |||
| SNB2-8 | 5/16 | 8.4 | 14.5 | 23.5 | 12.5 | |||
Wire range: 2.5-4㎜², A.W.G:14~12, Imax=37A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| SNB3.5-3 | #4 | 3.2 | 5.7 | 18.3 | 7.0 | 6.0 | 5.0 | 3.0 |
| SNB3.5-4 | #8 | 4.3 | 8.0 | 18.3 | 7.0 | |||
| SNB3.5-5 | #10 | 5.3 | 8.0 | 18.3 | 7.0 | |||
| SNB3.5-6 | 1/4 | 6.4 | 12.0 | 21.5 | 12.1 | |||
Wire range: 4-6㎜², A.W.G:12~10, Imax=48A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| SNB5.5-3.5 | #6 | 3.7 | 8.3 | 19.5 | 7.5 | 6.8 | 5.6 | 3.4 |
| SNBS5.5-4 | #8 | 4.3 | 8.3 | 19.5 | 7.5 | |||
| SNBL5.5-4 | #8 | 4.3 | 9.0 | 19.5 | 7.5 | |||
| SNB5.5-5 | #10 | 5.3 | 9.0 | 19.5 | 7.5 | |||
| SNBS5.5-6 | 1/4 | 6.4 | 9.0 | 19.5 | 7.5 | |||
| SNBL5.5-6 | 1/4 | 6.4 | 12.0 | 25.5 | 12.0 | |||
| SNB5.5-8 | 5/16 | 8.4 | 14.0 | 24.5 | 11.5 | |||
Wire range: 6-25㎜², A.W.G:8~4
| Item No. | Stud size | Dimension (mm) | Imax | ||||||
| d2 | B | L | F | E | D∅ | d∅ | |||
| SNB8-4 | #8 | 4.3 | 8.7 | 23.0 | 6.0 | 8.5 | 7.2 | 4.5 | 62A |
| SNB8-5 | #10 | 5.3 | 12.0 | 24.5 | 5.7 | 8.5 | 7.2 | 4.5 | 62A |
| SNB8-6 | 1/4 | 6.4 | 12.0 | 24.5 | 5.7 | 8.5 | 7.2 | 4.5 | 62A |
| SNB8-8 | 5/16 | 8.4 | 14.5 | 28.0 | 8.3 | 8.5 | 7.2 | 4.5 | 62A |
| SNB14-6 | 1/4 | 6.4 | 12.0 | 28.0 | 7.5 | 10.5 | 9.0 | 5.8 | 88A |
| SNB14-8 | 5/16 | 8.4 | 14.0 | 28.0 | 7.5 | 10.5 | 9.0 | 5.8 | 88A |
| SNB22-8 | 5/16 | 8.4 | 14.0 | 34.5 | 9.0 | 12.0 | 11.5 | 7.7 | 115A |
FAQ:
1. Are you factory or trading company?
Yes,we are manufacturer in Wenzhou,China. We can give you the competitive price & after sale service.
2. What's the lead time for regular order?
7-15 days as order quantity
3. Can you provide samples? Are the samples free?
Yes, samples can be provided with freight charge to be collect.
4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
5.What is your terms of packing?
Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
6. How about the after-sale service?
Any comments are welcomed,we will solve your application problems.
Contact Person: Saniya
Tel: 0086-13819426886
