Product Details:
|
| Surface: | Plating Tin | Product Name: | Non-insulated Fork Terminals |
|---|---|---|---|
| Item: | Spade Terminal | Place Of Origin: | Wenzhou, China |
| Package: | 100pcs/Bag | Model Number: | SNB Series |
| High Light: | Naked Spade Type Terminal,SNB Uninsulated Terminal,Non Insulated Crimp Copper Lug Terminal |
||

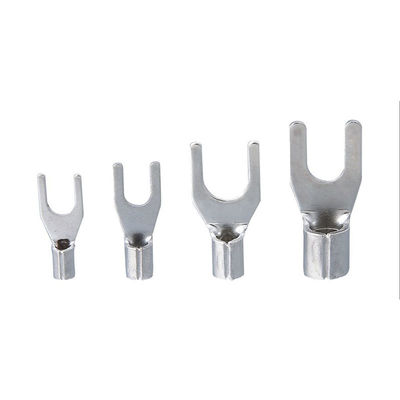

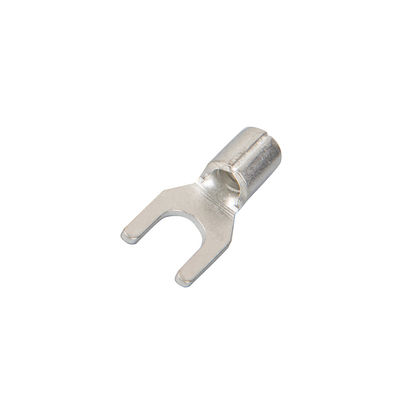

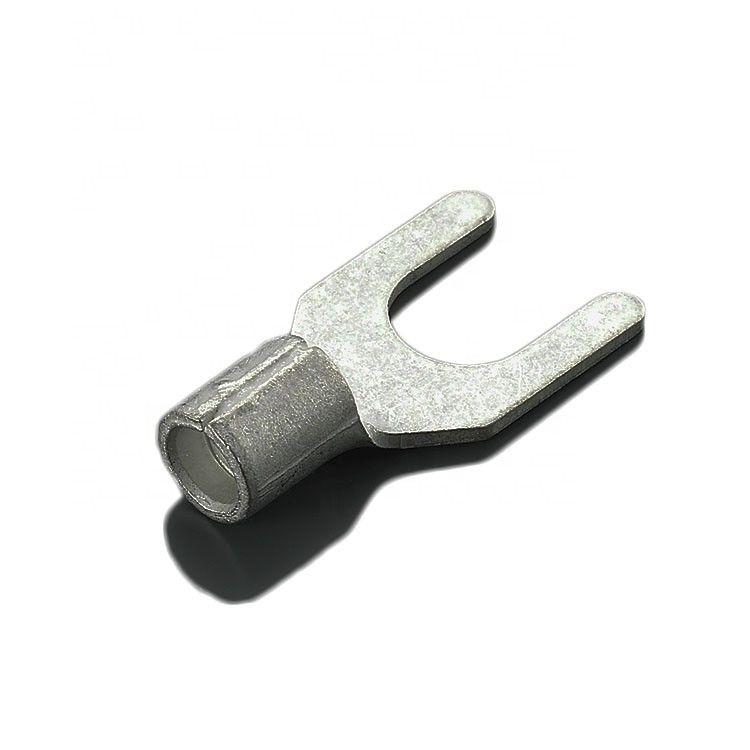

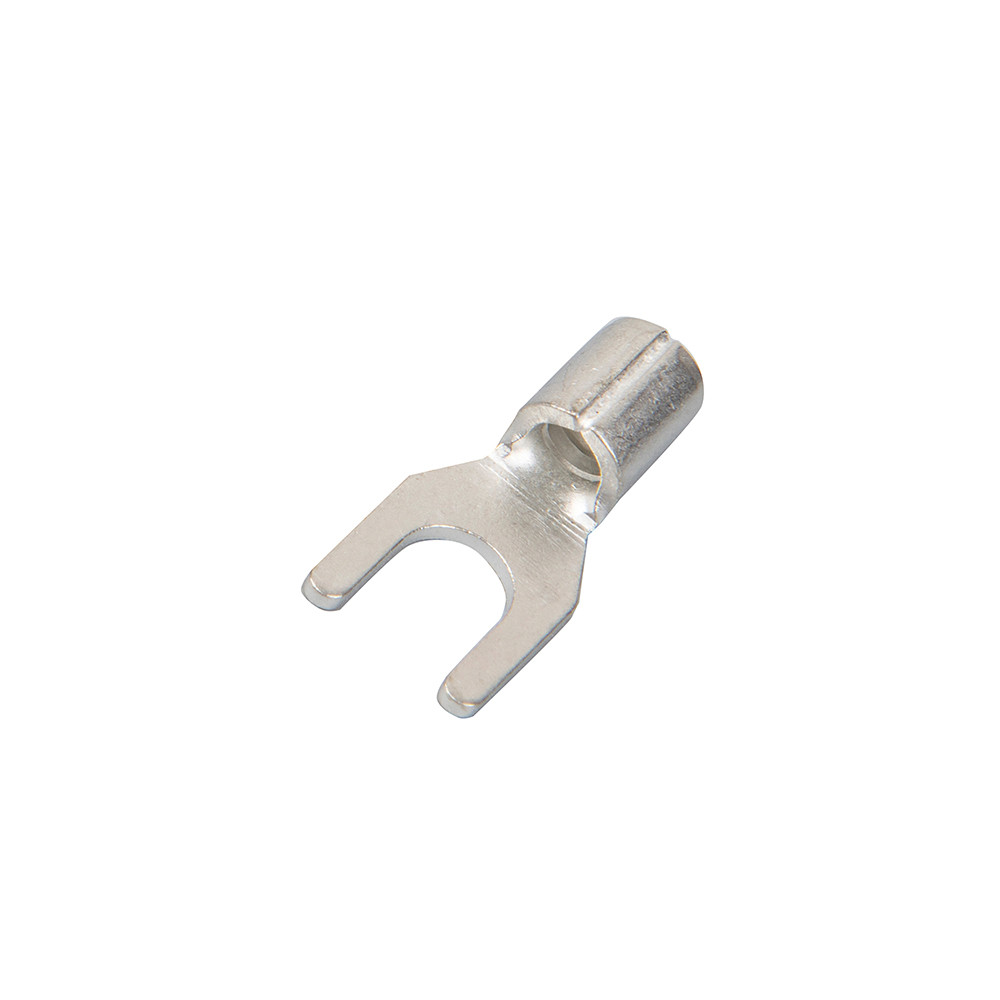

Naked Spade Type Terminal SNB Uninsulated Crimp Copper Lug Terminal
| Item No: | TO Non-insulated Ring Terminals |
| Product name: | SNB Spade Terminals |
| Color: | Tinned copper |
| Material: | Brass or Copper, Plating:Tin |
| Application: | Wire and cable connection |
| Product Type | Terminals |
| Max current | Imax 19A,27A,37A,48A,62A,88A,115A |
| Shape | Spade |
Wire range: 0.5-1.5㎜², A.W.G:22~16, Imax=19A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| SNB1.25-3.2 | #4 | 3.2 | 5.7 | 16.0 | 6.5 | 4.8 | 3.4 | 1.7 |
| SNBS1.25-3.5 | #6 | 3.7 | 5.7 | 16.0 | 6.5 | |||
| SNBL1.25-3.5 | #6 | 3.7 | 6.4 | 16.0 | 6.5 | |||
| SNBS1.25-4 | #8 | 4.3 | 6.4 | 16.0 | 6.5 | |||
| SNBM1.25-4 | #8 | 4.3 | 7.2 | 16.0 | 6.5 | |||
| SNBL1.25-4 | #8 | 4.3 | 8.1 | 16.0 | 6.5 | |||
| SNBS1.25-5 | #10 | 5.3 | 8.1 | 16.0 | 6.5 | |||
| SNBL1.25-5 | #10 | 5.3 | 9.5 | 16.0 | 6.5 | |||
| SNBS1.25-6 | 1/4 | 6.4 | 9.5 | 16.0 | 6.5 | |||
| SNBL1.25-6 | 1/4 | 6.4 | 12.0 | 22.0 | 11.0 | |||
| SNB1.25-8 | 5/16 | 8.4 | 14.5 | 23.5 | 12.5 | |||
Wire range: 1.5-2.5㎜², A.W.G:16~14, Imax=27A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| SNB2-3.2 | #4 | 3.2 | 5.7 | 16.0 | 6.5 | 4.8 | 4.1 | 2.3 |
| SNBS2-3.5 | #6 | 3.7 | 5.7 | 16.0 | 6.5 | |||
| SNBL2-3.5 | #6 | 3.7 | 6.0 | 16.0 | 6.5 | |||
| SNBS2-4 | #8 | 4.3 | 6.4 | 16.0 | 6.5 | |||
| SNBM2-4 | #8 | 4.3 | 7.2 | 16.0 | 6.5 | |||
| SNBL2-4 | #8 | 4.3 | 8.1 | 16.0 | 6.5 | |||
| SNBS2-5 | #10 | 5.3 | 8.1 | 16.0 | 6.5 | |||
| SNBL2-5 | #10 | 5.3 | 9.5 | 16.0 | 6.5 | |||
| SNBS2-6 | 1/4 | 6.4 | 9.5 | 16.0 | 6.5 | |||
| SNBL2-6 | 1/4 | 6.4 | 12.0 | 22.0 | 11.0 | |||
| SNB2-8 | 5/16 | 8.4 | 14.5 | 23.5 | 12.5 | |||
Wire range: 2.5-4㎜², A.W.G:14~12, Imax=37A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| SNB3.5-3 | #4 | 3.2 | 5.7 | 18.3 | 7.0 | 6.0 | 5.0 | 3.0 |
| SNB3.5-4 | #8 | 4.3 | 8.0 | 18.3 | 7.0 | |||
| SNB3.5-5 | #10 | 5.3 | 8.0 | 18.3 | 7.0 | |||
| SNB3.5-6 | 1/4 | 6.4 | 12.0 | 21.5 | 12.1 | |||
Wire range: 4-6㎜², A.W.G:12~10, Imax=48A
| Item No. | Stud size | Dimension (mm) | ||||||
| d2 | B | L | F | E | D∅ | d∅ | ||
| SNB5.5-3.5 | #6 | 3.7 | 8.3 | 19.5 | 7.5 | 6.8 | 5.6 | 3.4 |
| SNBS5.5-4 | #8 | 4.3 | 8.3 | 19.5 | 7.5 | |||
| SNBL5.5-4 | #8 | 4.3 | 9.0 | 19.5 | 7.5 | |||
| SNB5.5-5 | #10 | 5.3 | 9.0 | 19.5 | 7.5 | |||
| SNBS5.5-6 | 1/4 | 6.4 | 9.0 | 19.5 | 7.5 | |||
| SNBL5.5-6 | 1/4 | 6.4 | 12.0 | 25.5 | 12.0 | |||
| SNB5.5-8 | 5/16 | 8.4 | 14.0 | 24.5 | 11.5 | |||
Wire range: 6-25㎜², A.W.G:8~4
| Item No. | Stud size | Dimension (mm) | Imax | ||||||
| d2 | B | L | F | E | D∅ | d∅ | |||
| SNB8-4 | #8 | 4.3 | 8.7 | 23.0 | 6.0 | 8.5 | 7.2 | 4.5 | 62A |
| SNB8-5 | #10 | 5.3 | 12.0 | 24.5 | 5.7 | 8.5 | 7.2 | 4.5 | 62A |
| SNB8-6 | 1/4 | 6.4 | 12.0 | 24.5 | 5.7 | 8.5 | 7.2 | 4.5 | 62A |
| SNB8-8 | 5/16 | 8.4 | 14.5 | 28.0 | 8.3 | 8.5 | 7.2 | 4.5 | 62A |
| SNB14-6 | 1/4 | 6.4 | 12.0 | 28.0 | 7.5 | 10.5 | 9.0 | 5.8 | 88A |
| SNB14-8 | 5/16 | 8.4 | 14.0 | 28.0 | 7.5 | 10.5 | 9.0 | 5.8 | 88A |
| SNB22-8 | 5/16 | 8.4 | 14.0 | 34.5 | 9.0 | 12.0 | 11.5 | 7.7 | 115A |
FAQ:
1. Are you factory or trading company?
Yes,we are manufacturer in Wenzhou,China. We can give you the competitive price & after sale service.
2. What's the lead time for regular order?
7-15 days as order quantity
3. Can you provide samples? Are the samples free?
Yes, samples can be provided with freight charge to be collect.
4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
5.What is your terms of packing?
Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
6. How about the after-sale service?
Any comments are welcomed,we will solve your application problems.
