| Product Name: | Electrical Connector | AWG: | 22-16 16-14 14-12 12-10 |
|---|---|---|---|
| Material: | Copper Or Brass | Usage: | Connect Cable |
| Wire Range: | 0.5-1.5 ㎟ | Type: | Crimp Terminal |
| High Light: | Y Type Insulated Crimp Terminal,Wire Connector SV,Fork Spade Splice Terminal |
||

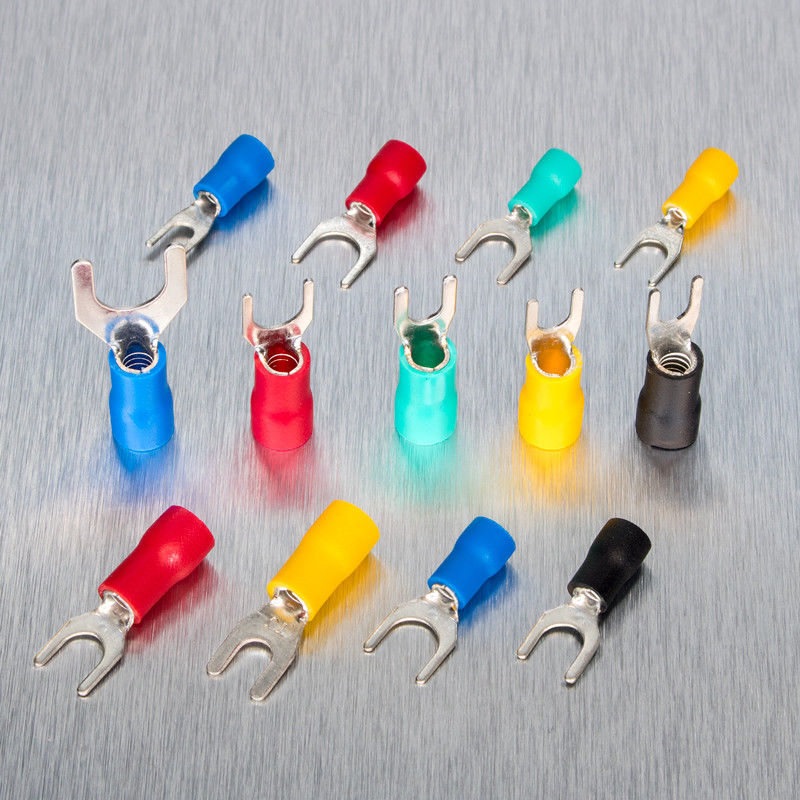

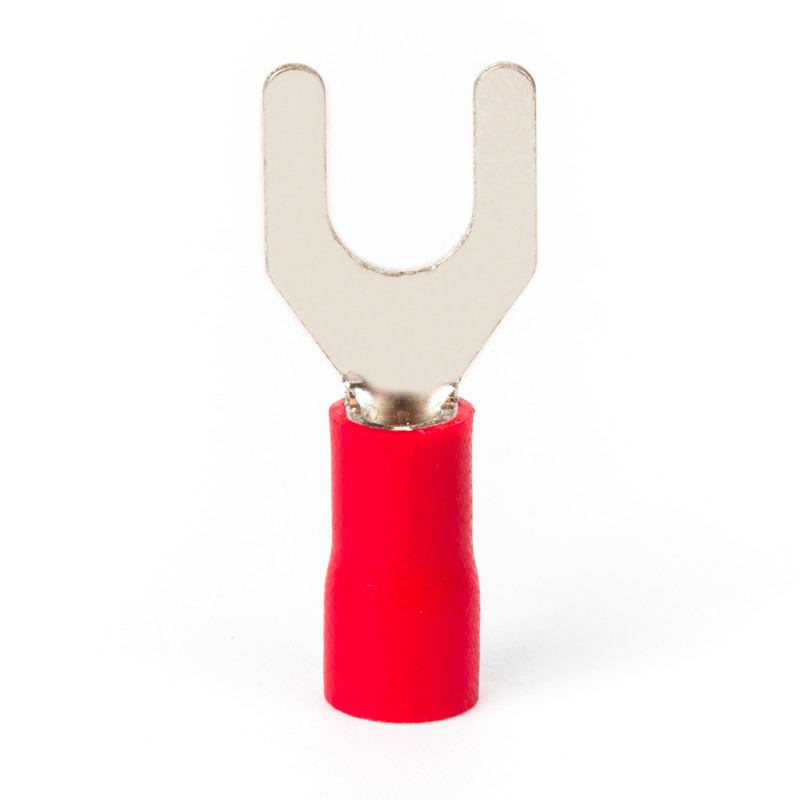

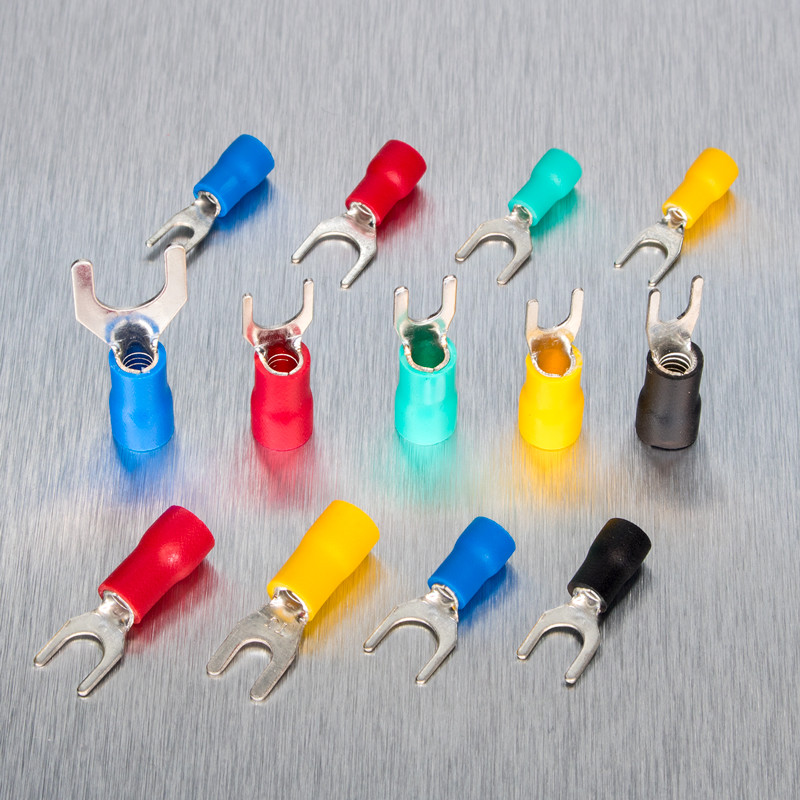

Wire Connector SV Y Type Insulated Crimp Terminal Fork Spade Splice Terminal
| Item No. | SV series |
| Metal Material | Copper&Brass |
| Surface coating | Electro Tin Plated |
| Insulator material | Flame retardant PP |
| Application | Wire crimping |
| A.W.G | 22-16 16-14 14-12 12-10 |
| Color | Red, yellow, blue, black |
| Wire range | 0.5-1.5 ㎟,1.5-2.5 ㎟,2.5-4 ㎟,4-6 ㎟ |
| Item No. | Stud size | Dimension (mm) | Color | |||||
| d2 | B | L | F | H | D∅ | |||
| SV1.25-3.2 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
| SVS1.25-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | |||
| SVL1.25-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | |||
| SVS1.25-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | |||
| SVM1.25-4 | #8 | 4.3 | 7.2 | 21.1 | 6.5 | |||
| SVL1.25-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | |||
| SVS1.25-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||
| SVL1.25-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | |||
| SVS1.25-6 | 1/4 | 6.4 | 9.5 | 21.2 | 6.5 | |||
| SVL1.25-6 | 1/4 | 6.4 | 12.0 | 27.2 | 11.0 | |||
| SV1.25-8 | 5/16 | 8.4 | 14.0 | 29.0 | 12.5 | |||
Wire range: 1.5-2.5 ㎟, AWG:16-14, Imax=27A
| Item No. | Stud size | Dimension (mm) | Color | |||||
| d2 | B | L | F | H | D∅ | |||
| SV2-3.2 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.9 | Blue |
| SVS2-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | |||
| SVL2-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | |||
| SVS2-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | |||
| SVM2-4 | #8 | 4.3 | 7.2 | 21.1 | 6.5 | |||
| SVL2-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | |||
| SVS2-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||
| SVL2-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | |||
| SVS2-6 | 1/4 | 6.4 | 9.5 | 21.2 | 6.5 | |||
| SVL2-6 | 1/4 | 6.4 | 12.0 | 27.2 | 11.0 | |||
| SV2-8 | 5/16 | 8.4 | 14.0 | 29.0 |
12.5 |
|||
Wire range: 2.5-4 ㎟, AWG:14-12, Imax=37A
| Item No. | Stud size | Dimension (mm) | Color | |||||
| d2 | B | L | F | H | D∅ | |||
| SV3.5-3 | #4 | 3.2 | 5.7 | 24.8 | 7.0 | 13.0 | 6.2 | Black |
| SV3.5-4 | #8 | 4.3 | 8.0 | 24.8 | 7.0 | |||
| SV3.5-5 | #10 | 5.3 | 8.0 | 24.8 | 7.0 | |||
| SV3.5-6 | 1/4 | 6.4 | 12.0 | 28.0 | 12.1 | |||
| SV3.5-8 | 5/16 | 8.4 | 12.0 | 33.7 |
13.7 |
|||
Wire range: 4-6 ㎟, AWG:12-10, Imax=48A
| Item No. | Stud size | Dimension (mm) | Color | |||||
| d2 | B | L | F | H | D∅ | |||
| SV5.5-3.5 | #6 | 3.7 | 8.3 | 25.2 | 7.5 | 13.0 | 6.7 | Yellow |
| SVS5.5-4 | #8 | 4.3 | 8.3 | 25.2 | 7.5 | |||
| SVL5.5-4 | #8 | 4.3 | 9.0 | 25.2 | 7.5 | |||
| SV5.5-5 | #10 | 5.3 | 9.0 | 25.2 | 7.5 | |||
| SVS5.5-6 | 1/4 | 6.4 | 9.0 | 25.2 | 7.5 | |||
| SVL5.5-6 | 1/4 | 6.4 | 12.0 | 31.2 | 12.0 | |||
| SV5.5-8 | 5/16 | 8.4 | 14.0 | 30.0 | 11.5 | |||
