Detail Information

Type:	Splice	Material:	Brass
Insulation:	PVC	A.W.G:	22-16, 16-14, 12-10
Wire Range:	0.5-1.5mm²，1.5-2.5mm²， 4-6 Mm²	Product:	Fully Insulated Female Disconnects
Highlight:	1.5mm² Insulated Female Disconnects , Fully Insulated Female Disconnects , PVC Insulated Female Disconnects

Product Description

Plating Tin Brass PVC insulated Fully Insulated Female Disconnects

Product Name	Fully Insulated Female Disconnects
Body Material	Brass
Insulation	PVC
Plating	Tin
Type	FDFD
Color	Red,Blue,Yellow
Wire range(mm2)	0.5-1.5 1..5-2.5 4-6
A.W.G	22-16,16-14,12-10

Wire range: 0.5-1.5 ㎟, AWG:22-16, Imax=10A

Item No.	Nema Tab(mm)	Dimension (mm)				Color
Item No.	Nema Tab(mm)	B	d∅	D∅	L	Color
FDFD1.25-110(5)	0.5 x 2.8	3.8	1.7	3.8	20.0	Red
FDFD1.25-110(8)	0.8 x 2.8	3.8	1.7	3.8	20.0
FDFD1.25-187(5)	0.5 x 4.75	5.6	1.7	3.8	20.0
FDFD1.25-187(8)	0.8 x 4.75	5.6	1.7	3.8	20.0
FDFD1.25-250	0.8 x 6.35	7.4	1.7	3.8	21.5

Wire range: 1.5-2.5 ㎟, AWG:16-14, Imax=15A

Item No.	Nema Tab(mm)	Dimension (mm)				Color
Item No.	Nema Tab(mm)	B	d∅	D∅	L	Color
FDFD2-110(5)	0.5 x 2.8	3.8	2.3	4.3	20.0	Blue
FDFD2-110(8)	0.8 x 2.8	3.8	2.3	4.3	20.0
FDFD2-187(5)	0.5 x 4.75	5.6	2.3	4.3	22.0
FDFD2-187(8)	0.8 x 4.75	5.6	2.3	4.3	22.0
FDFD2-250	0.8 x 6.35	7.4	2.3	4.3	24.0

Wire range: 4-6 ㎟, AWG:12-10, Imax=24A

Item No.	Nema Tab(mm)	Dimension (mm)				Color
Item No.	Nema Tab(mm)	B	d∅	D∅	L	Color
FDFD5.5-187(5)	0.5 x 4.8	5.6	3.4	5.7	23.8	Yellow
FDFD5.5-250	0.8 x 6.35	7.4	3.4	5.7	25.5
FDFD5.5-375	1.2 x 9.4	10.9	3.4	5.7	30.0

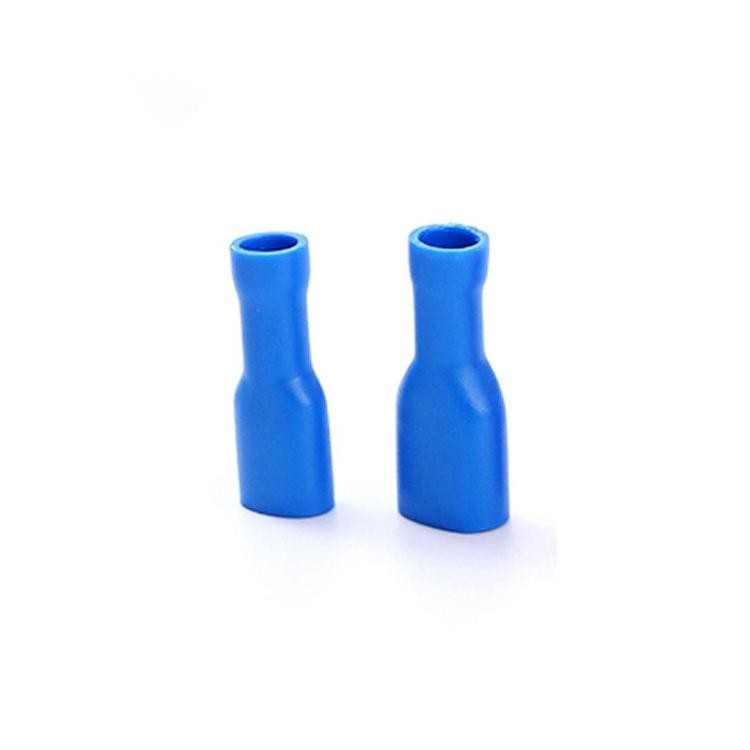

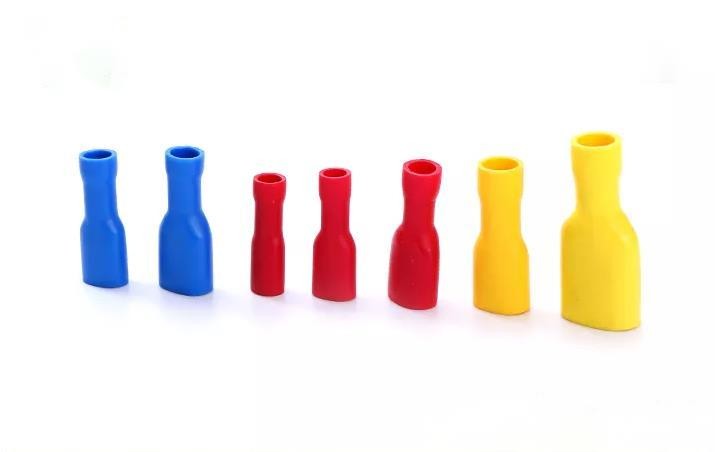

PVC Insulated Fully Insulated Female Disconnects Plating Tin Brass 0

PVC Insulated Fully Insulated Female Disconnects Plating Tin Brass 1

PVC Insulated Fully Insulated Female Disconnects Plating Tin Brass 2

Why Choose Us:

---------------------------------------------

a. Reply your inquiry in 24 working hours.
b. Technical and professional guidance.
c. Best quality and best price.

We maintain excellent products and strive for 100% customer satisfaction. A good feedback is very important, we welcome for your kind suggestion or feedback on goods and our service.

FAQ:
1. Are you factory or trading company?

Yes,we are manufacturer in Wenzhou,China. We can give you the competitive price & after sale service.
2. Can we print our logo/website/company name on products?
We can print the informations as customers' authorization.
3. What's the lead time for regular order?
7-15 days as order quantity

4. Can you provide samples? Are the samples free?
Yes, samples can be provided with freight charge to be collect.
5. Could you change the size for customer?
Yes, the sizes can be customized, for more details, please contact us freely.

6. Which shipping method do you provide?
For samples or small orders, goods will be sent by express.
For regular orders, goods can be sent by air or by sea, just according to your demand.

7.What's the price?
Different items different market will be different cost, we will keep to give best and competitive price for each customer.

Tag:

Place of Origin:	China
Brand Name:	YOKG
Certification:	CE
Model Number:	FDFD series

Minimum Order Quantity:	10000PCS
Price:	Negotiable
Packaging Details:	Standard export packing or According to customer's demand
Delivery Time:	15days or Depends on ordering QTYS
Payment Terms:	L/C, D/P, T/T
Supply Ability:	100000pcs per Month
