Electrical Insulated Male Wire Disconnect And Female Cable Lug Tinned Copper

10000PCS
MOQ
Negotiable
Price
Electrical Insulated Male Wire Disconnect And Female Cable Lug Tinned Copper
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Wire Connecting
Type: Insulated Male Disconnects Terminals
Color: Red Blue Yellow
Material: Copper & Brass
Surface Treatment: Coated Tin Plating
Place Of Origin: Zhejiang, China
High Light:

Electrical Insulated Male Wire Disconnect

,

Tinned Copper Insulated Wire Terminals

,

Insulated Male Disconnects Terminals

Basic Infomation
Place of Origin: China
Brand Name: YOKG
Certification: CE
Model Number: MDD series
Payment & Shipping Terms
Packaging Details: Standard export packing or According to customer's demand
Delivery Time: 15days or Depends on ordering QTYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000pcs per Month
Product Description

Tinned Copper Electrical Insulated Male Wire Disconnect And Female Cable Lug



Wire range: 0.5-1.5 ㎟, AWG:22-16, Imax=10A

Item No. Nema Tab(mm) Dimension (mm) Color
B d∅ D∅ L H
MDD1.25-110(5) 0.5 x 2.8 2.8 1.7 4.3 17.7 10.0 Red
MDD1.25-110(8) 0.8 x 2.8 2.8 1.7 4.3 17.7
MDD1.25-187(5) 0.5 x 4.75 4.75 1.7 4.3 20.0
MDD1.25-187(8) 0.8 x 4.75 4.75 1.7 4.3 20.0
MDD1.25-250 0.8 x 6.35 6.35 1.7 4.3 21.0



Wire range: 1.5-2.5 ㎟, AWG:16-14, Imax=15A

Item No. Nema Tab(mm) Dimension (mm) Color
B d∅ D∅ L H
MDD2-110(5) 0.5 x 2.8 2.8 2.3 4.3 17.7 10.0 Blue
MDD2-110(8) 0.8 x 2.8 2.8 2.3 4.3 17.7
MDD2-187(5) 0.5 x 4.75 4.75 2.3 4.3 20.0
MDD2-187(8) 0.8 x 4.75 4.75 2.3 4.3 20.0
MDD2-250 0.8 x 6.35 6.35 2.3 4.3 21.0



Wire range: 4-6 ㎟, AWG:12-10, Imax=24A

Item No. Nema Tab(mm) Dimension (mm) Color
B d∅ D∅ L H
MDD5.5-250 0.8 x 6.35 6.35 3.4 5.7 25.0 13.0 Yellow

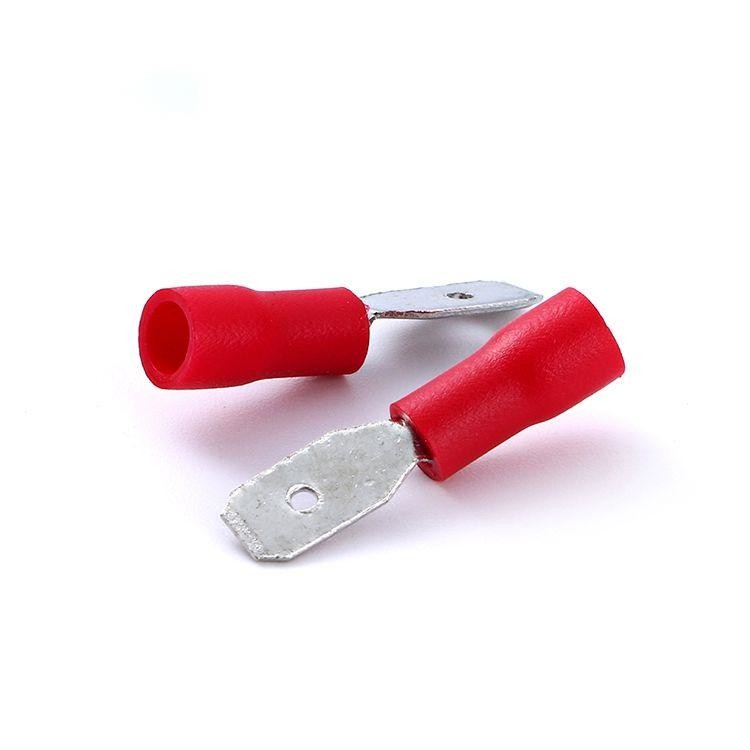

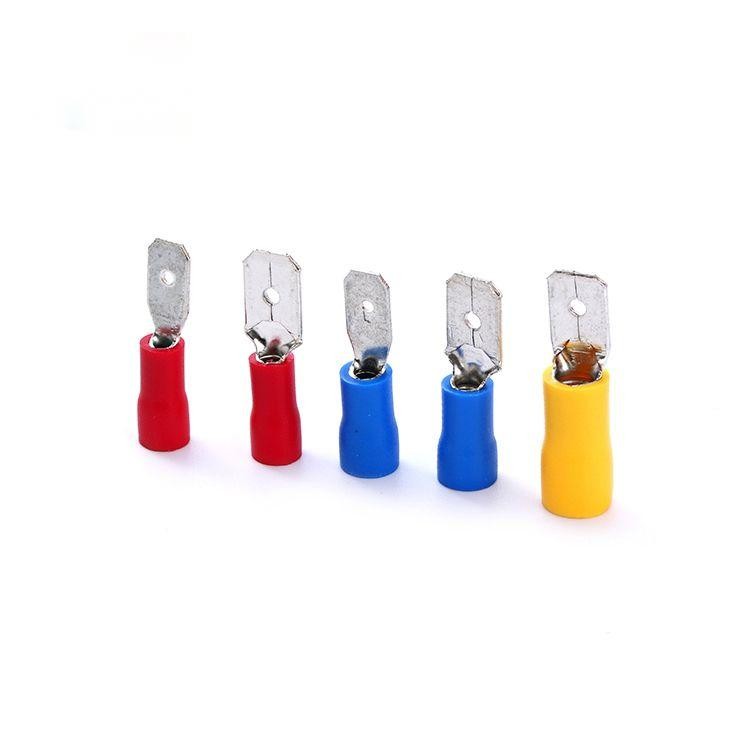

Electrical Insulated Male Wire Disconnect And Female Cable Lug Tinned Copper 0

Electrical Insulated Male Wire Disconnect And Female Cable Lug Tinned Copper 1

Electrical Insulated Male Wire Disconnect And Female Cable Lug Tinned Copper 2



FAQ:
1. Are you factory or trading company?

Yes,we are manufacturer in Wenzhou,China. We can give you the competitive price & after sale service.
2. Can we print our logo/website/company name on products?
Yes,your logo can be printed as your demand. we can offer OEM service.
3. What's the lead time for regular order?
7-15 days as order quantity

4. Can you provide samples? Are the samples free?
We provide free samples by express, but you need pay the express charge or make samples collection at your side.
5. Could you change the size for customer?
Yes, the sizes can be customized, for more details, please contact us freely.
6. How about the after-sale service?

Any comments are welcomed,we will solve your application problems.
