Detail Information

Product Name:	Female Spade Terminal	Color:	Red Blue Yellow
Insulation:	PVC	Material:	Brass
Surface Treatment:	Coated Tin	Model Number:	FDD Series
Highlight:	Tin Plating Insulated Disconnect Terminal , Insulated Spade Female Disconnect Terminal , Insulated Disconnect Terminal Blue Shovel

Product Description

Blue Shovel Coated Tin Plating Insulated Spade Female Disconnect Terminal

Product description:

Material: Insulation:PVC,Terminal Body:Brass,Plating:Tin

Color Red,Blue,Yellow

Packing : 100Pcs/Bag

Wire range: 0.5-1.5 ㎟, AWG:22-16, Imax=10A

Item No.	Nema Tab(mm)	Dimension (mm)					Color
Item No.	Nema Tab(mm)	B	d∅	D∅	L	H	Color
FDD1.25-110(5)	0.5 x 2.8	3.8	1.7	3.8	19.0	10.0	Red
FDD1.25-110(8)	0.8 x 2.8	3.8	1.7	3.8	19.0
FDD1.25-187(5)	0.5 x 4.75	5.6	1.7	3.8	19.0
FDD1.25-187(8)	0.8 x 4.75	5.6	1.7	3.8	19.0
FDD1.25-205	0.5 x 5.2	6.5	1.7	3.8	20.0
FDD1.25-250	0.8 x 6.35	7.4	1.7	3.8	21.0

Wire range: 1.5-2.5 ㎟, AWG:16-14, Imax=15A

Item No.	Nema Tab(mm)	Dimension (mm)					Color
Item No.	Nema Tab(mm)	B	d∅	D∅	L	H	Color
FDD2-110(5)	0.5 x 2.8	3.8	2.3	4.3	19.0	10.0	Blue
FDD2-110(8)	0.8 x 2.8	3.8	2.3	4.3	19.0
FDD2-187(5)	0.5 x 4.75	5.6	2.3	4.3	19.0
FDD2-187(8)	0.8 x 4.75	5.6	2.3	4.3	19.0
FDD2-205	0.5 x 5.2	6.5	2.3	4.3	20.0
FDD2-250	0.8 x 6.35	7.4	2.3	4.3	21.0
FDD2-312	0.8 x 8.0	9.0	2.3	4.3	23.0

Wire range: 4-6 ㎟, AWG:12-10, Imax=24A

Item No.	Nema Tab(mm)	Dimension (mm)					Color
Item No.	Nema Tab(mm)	B	d∅	D∅	L	H	Color
FDD5.5-250	0.8 x 6.35	7.4	3.4	5.7	25.0	13.0	Yellow
FDD5.5-375	1.2 x 9.4	10.9	3.4	5.7	29.6	13	Yellow

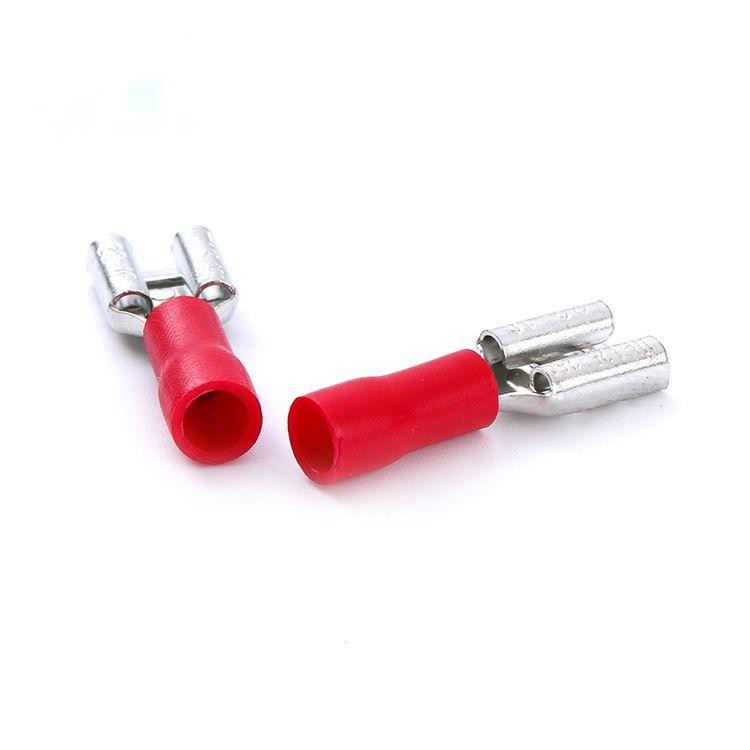

Coated Tin Plating Insulated Disconnect Terminal Spade Female Blue Shovel 0

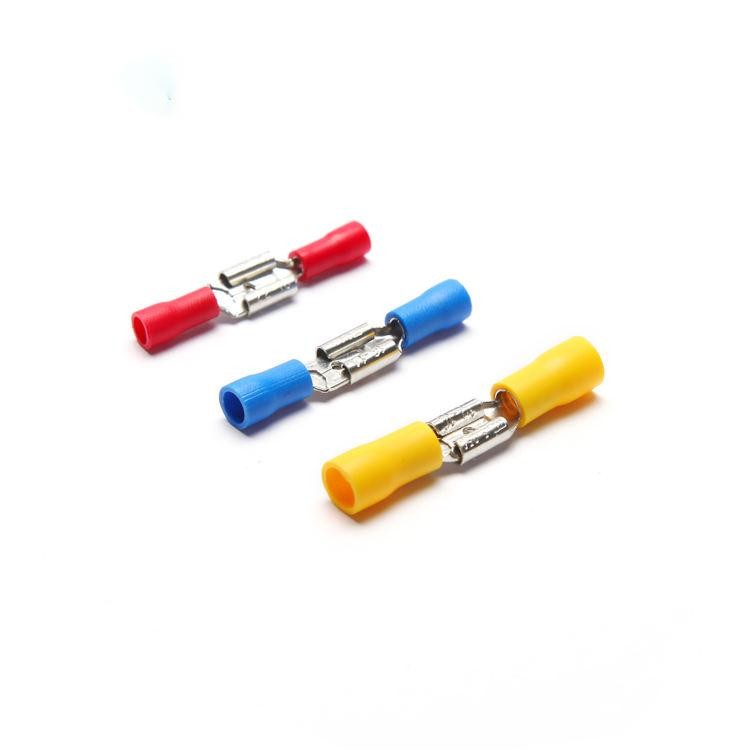

Coated Tin Plating Insulated Disconnect Terminal Spade Female Blue Shovel 1

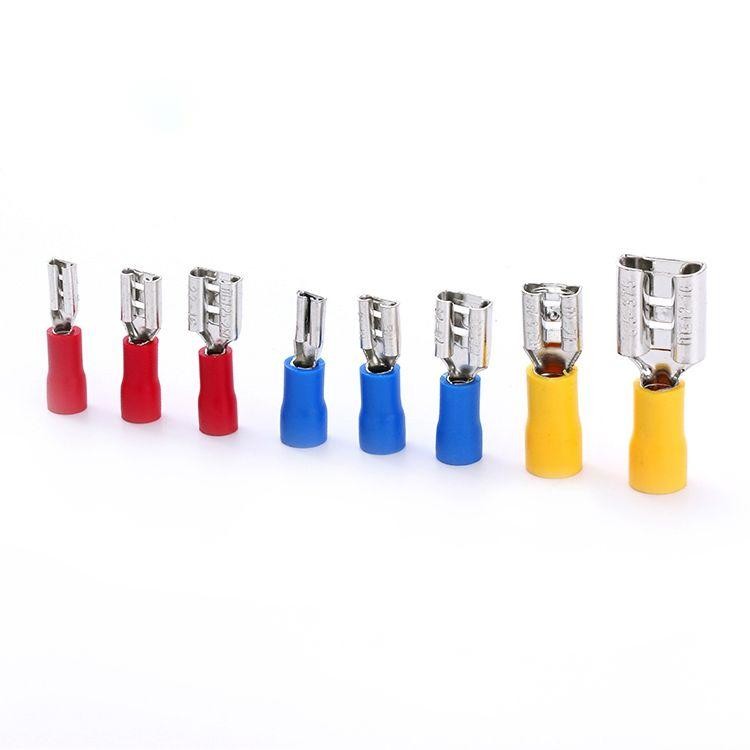

Coated Tin Plating Insulated Disconnect Terminal Spade Female Blue Shovel 2

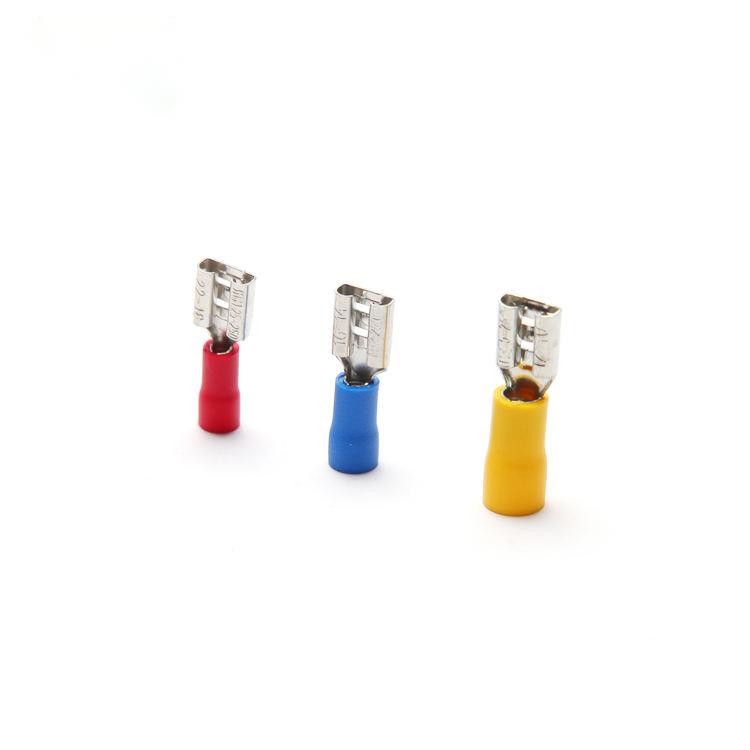

Coated Tin Plating Insulated Disconnect Terminal Spade Female Blue Shovel 3

Why Choose Us:

---------------------------------------------

a. Reply your inquiry in 24 working hours.
b. Technical and professional guidance.
c. Best quality and best price.

We maintain excellent products and strive for 100% customer satisfaction. A good feedback is very important, we welcome for your kind suggestion or feedback on goods and our service.

FAQ:
1. Are you factory or trading company?

Yes,we are manufacturer in Wenzhou,China. We can give you the competitive price & after sale service.
2. Can we print our logo/website/company name on products?
We can print the informations as customers' authorization.
3. What's the lead time for regular order?
7-15 days as order quantity

4. Can you provide samples? Are the samples free?
Yes, samples can be provided with freight charge to be collect.
5. Could you change the size for customer?
Yes, the sizes can be customized, for more details, please contact us freely.

6. Which shipping method do you provide?
For samples or small orders, goods will be sent by express.
For regular orders, goods can be sent by air or by sea, just according to your demand.

7.What's the price?
Different items different market will be different cost, we will keep to give best and competitive price for each customer.

Tag:

Place of Origin:	China
Brand Name:	YOKG
Certification:	CE
Model Number:	FDD series

Minimum Order Quantity:	10000PCS
Price:	Negotiable
Packaging Details:	Standard export packing or According to customer's demand
Delivery Time:	15days or Depends on ordering QTYS
Payment Terms:	L/C, D/P, T/T
Supply Ability:	100000pcs per Month
