Detail Information

Name:	Insulated Flange Spade Terminals	Type:	Spade Terminal
Max Current:	19A 27A 48A	Wire Range:	0.5-1.5m㎡ & 1.5-2.5m㎡ & 4-6m㎡
Surface:	Plating Tin	Package:	100pcs Per Bag
Highlight:	FSV Insulated Electrical Cable Lug Terminal , Tinned Connector Insulated Wire Terminals , 19A Insulated Flange Spade Lug Terminal

Product Description

FSV 19A Tinned Connector Insulated Flange Spade Electrical Cable Lug Terminal

Product description:

Material: Insulation:PVC,Terminal Body:Copper,Plating:Tin

Color Red,Blue,Yellow

Packing : 100Pcs/Bag Or as customer's request

Wire range: 0.5-1.5 ㎟, AWG:22-16, Imax=19A

Item No.	Stud size	Dimension (mm)						Color
Item No.	Stud size	d2	B	L	F	H	D∅	Color
FSV1.25-3.5	#6	3.7	7.5	19.0	5.1	10.0	4.3	Red
FSV1.25-4	#8	4.3	7.5	19.0	5.1
FSV1.25-5	#10	5.3	7.5	19.0	5.1

Wire range: 1.5-2.5 ㎟, AWG:16-14, Imax=27A

Item No.	Stud size	Dimension (mm)						Color
Item No.	Stud size	d2	B	L	F	H	D∅	Color
FSV2-3.5	#6	3.7	7.5	19.0	5.2	10.0	4.9	Blue
FSV2-4	#8	4.3	7.5	19.0	5.2
FSV2-5	#10	5.3	7.5	19.0	5.2

Wire range: 4-6 ㎟, AWG:12-10, Imax=48A

Item No.	Stud size	Dimension (mm)						Color
Item No.	Stud size	d2	B	L	F	H	D∅	Color
FSV5.5-3.5	#6	3.7	8.5	25.5	7.5	13.0	6.7	Yellow
FSV5.5-4	#8	4.3	8.5	25.5	7.5
FSV5.5-5	#10	5.3	8.5	25.5	7.5

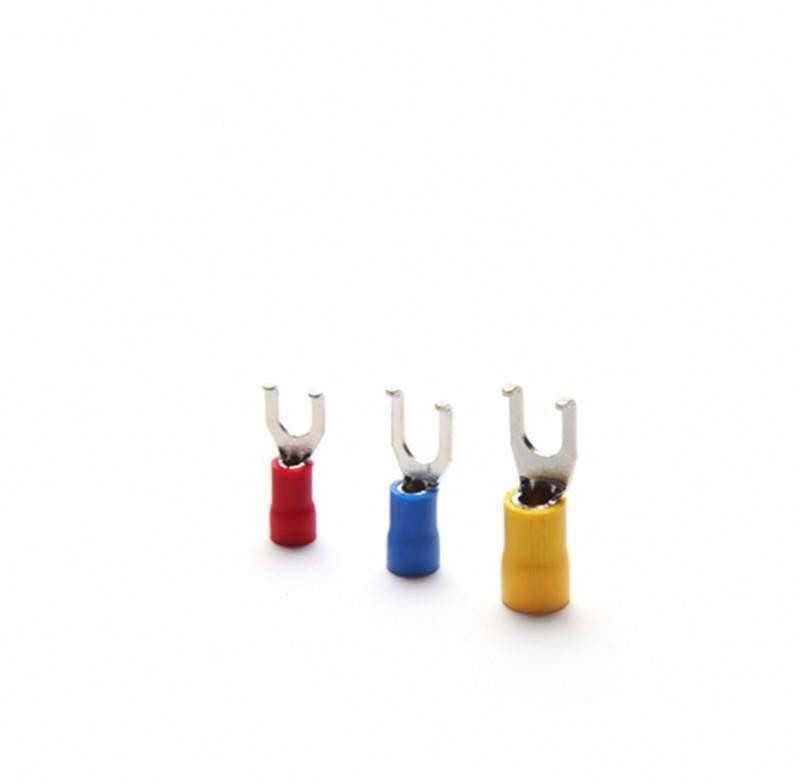

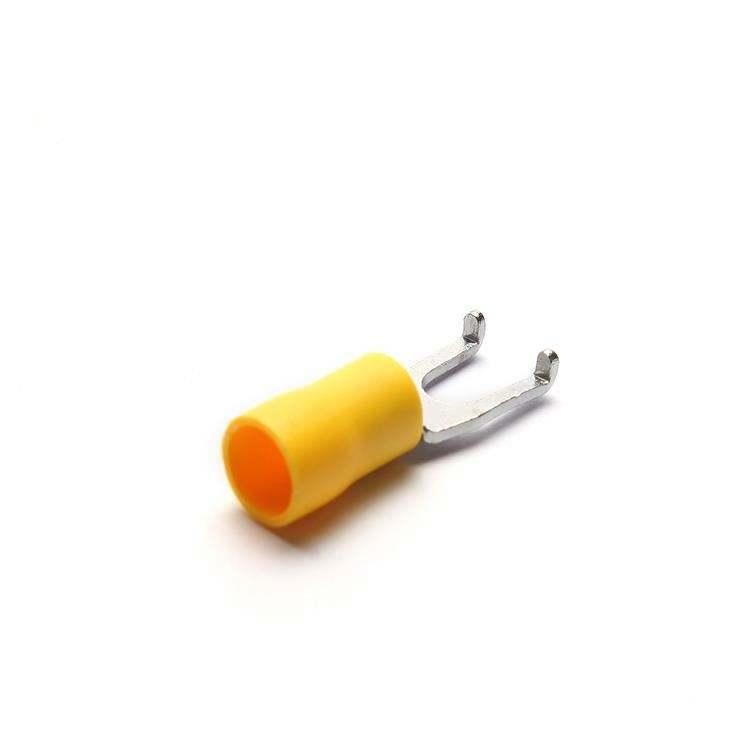

FSV 19A Insulated Flange Spade Electrical Cable Lug Terminal Tinned Connector 0

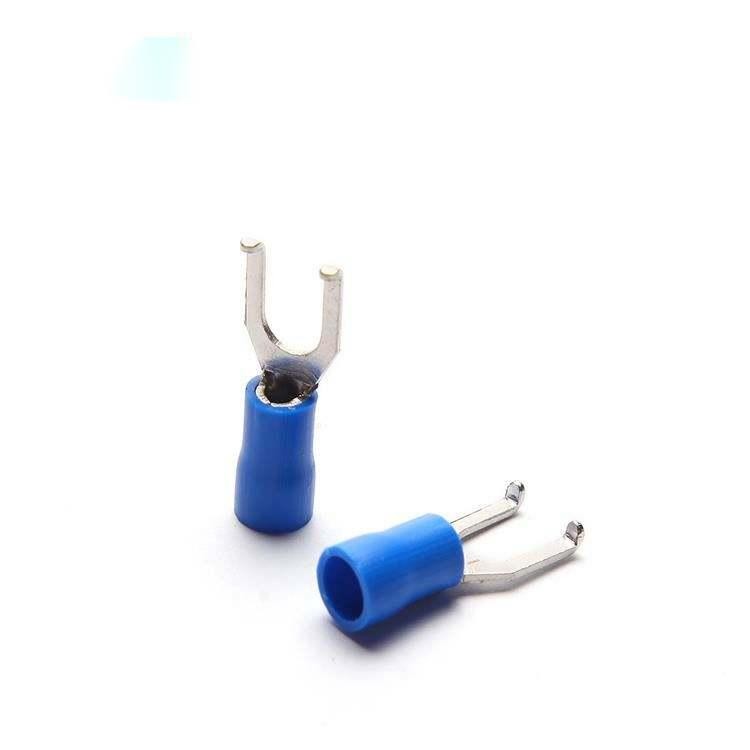

FSV 19A Insulated Flange Spade Electrical Cable Lug Terminal Tinned Connector 1

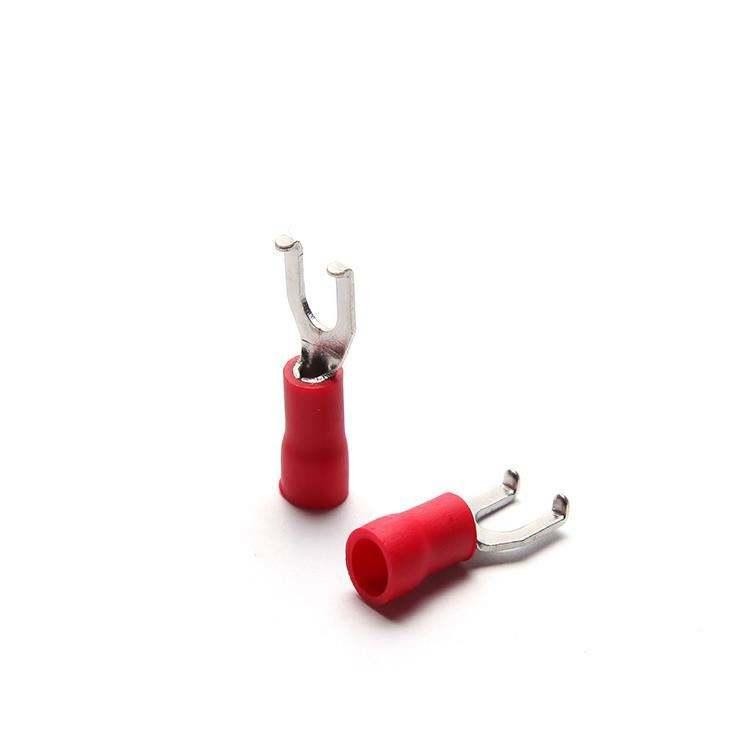

FSV 19A Insulated Flange Spade Electrical Cable Lug Terminal Tinned Connector 2

FAQ:
1. Are you factory or trading company?

Yes,we are manufacturer in Wenzhou,China. have our own punching machine
2. Can we print our logo/website/company name on products?
We can print the informations as customers' authorization.
3. What's the lead time for regular order?
7-15 days as order quantity

4. Can you provide samples? Are the samples free?
Yes, samples can be provided with freight charge to be collect.
5. Could you change the size for customer?
Yes, the sizes can be customized, for more details, please contact us freely.

6. Which shipping method do you provide?
For samples or small orders, goods will be sent by express.
For regular orders, goods can be sent by air or by sea, just according to your demand.

7.What's the price?
Different items different market will be different cost, we will keep to give best and competitive price for each customer.

8.which port is the nearest from you?

Ningbo and Shanghai Port are the nearest.

Tag:

Place of Origin:	China
Brand Name:	YOKG
Certification:	CE
Model Number:	FSV series

Minimum Order Quantity:	10000PCS
Price:	Negotiable
Packaging Details:	Standard export packing or According to customer's demand
Delivery Time:	15days or Depends on ordering QTYS
Payment Terms:	L/C, D/P, T/T
Supply Ability:	100000pcs per Month
