Product Details:
|
| Wire Size: | 0.5-1.5, 1.5-2.5, 4-6,6-10,10-16,16-25,25-35 | Color: | Red, Blue, Yellow |
|---|---|---|---|
| Type: | Crimp Terminal | Material: | Copper+PVC |
| Surface Treatment: | Tin Plating | Product Name: | Insulated Butt Connectors |
| High Light: | Insulated Butt Crimp Connectors Terminals,12-10 AWG insulated Wire Terminals,PVC insulated Butt Crimp Connectors |
||

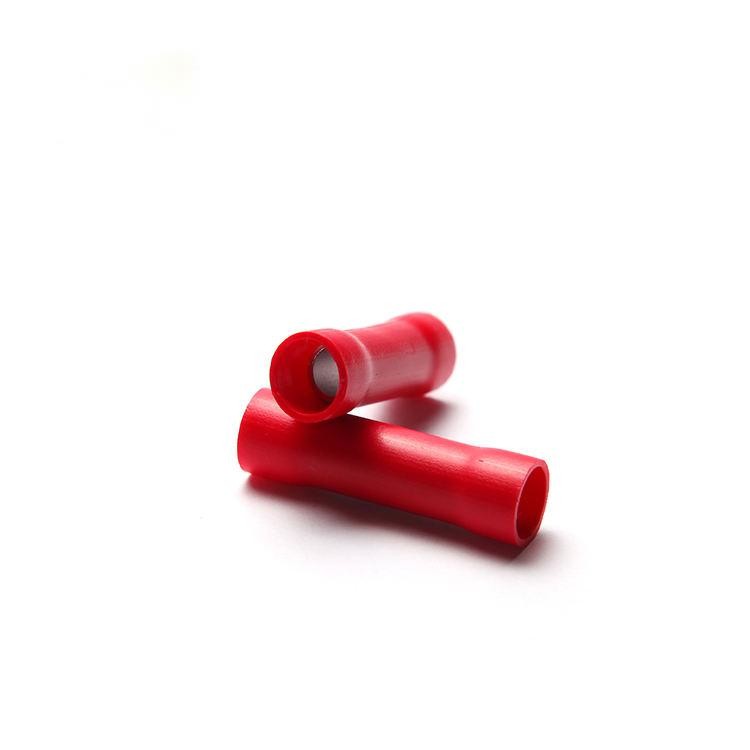

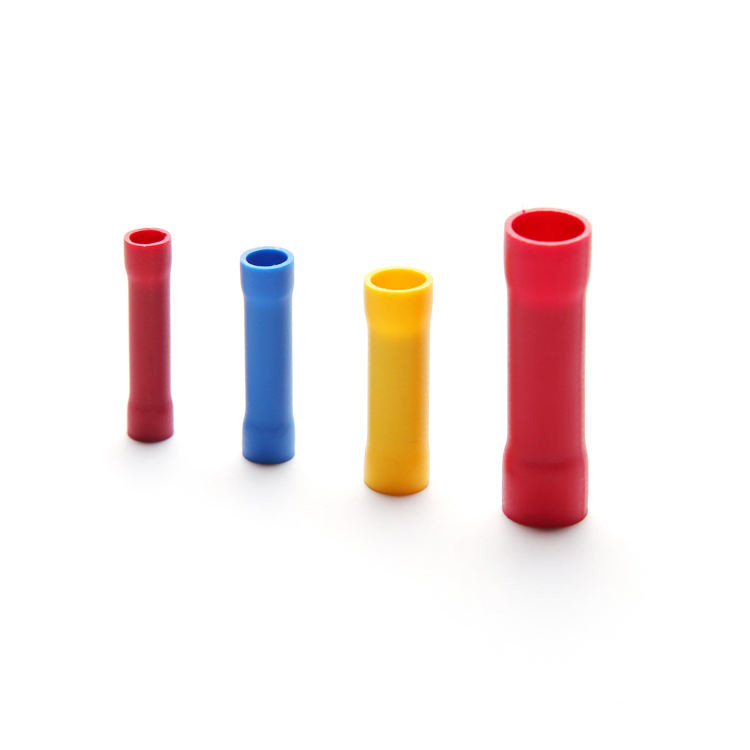

12-10 AWG Insulated Butt Crimp Connectors Terminals With PVC Insulation
| Name | Insulated butt connectors |
| Body Material | Copper |
| Insulation | PVC |
| Plating | Tin |
| Type | BV |
| Color | Red,Blue,Yellow |
| Wire range(mm2) | 0.5-1.5 1..5-2.5 4-6 6-10 10-16 16-25 25-35 |
| A.W.G | 22-16,16-14,12-10,8,6,4,2 |
| Working temperature | -40°C---105° |
| Item No. | Dimension (mm) | Wire range | Imax | Color | |||
| I | d∅ | L | A.W.G | mm² | |||
| BV1.25 | 15.0 | 1.7 | 26.0 | 22-16 | 0.5-1.5 | 19A | Red |
| BV2 | 15.0 | 2.3 | 26.0 | 16-14 | 1.5-2.5 | 27A | Blue |
| BV5.5 | 15.0 | 3.4 | 26.0 | 12-10 | 4-6 | 48A | Yellow |
| BV8 | 21.0 | 4.5 | 32.0 | 8 | 6-10 | 62A | Red |
| BV14 | 26.0 | 5.8 | 42.0 | 6 | 10-16 | 88A | Blue |
| BV22 | 29.0 | 7.7 | 50.0 | 4 | 16-25 | 115A | Yellow |
| BV38 | 32.0 | 9.4 | 55.0 | 2 | 25-35 | 160A | Red |
Why Choose Us:
---------------------------------------------
a. Reply your inquiry in 24 working hours.
b. Technical and professional guidance.
c. Best quality and best price.
We maintain excellent products and strive for 100% customer satisfaction. A good feedback is very important, we welcome for your kind suggestion or feedback on goods and our service.
FAQ:
1. Are you factory or trading company?
Yes,we are manufacturer in Wenzhou,China. We can give you the competitive price & after sale service.
2. Can we print our logo/website/company name on products?
We can print the informations as customers' authorization.
3. What's the lead time for regular order?
7-15 days as order quantity
4. Can you provide samples? Are the samples free?
Yes, samples can be provided with freight charge to be collect.
5. Could you change the size for customer?
Yes, the sizes can be customized, for more details, please contact us freely.
6. Which shipping method do you provide?
For samples or small orders, goods will be sent by express.
For regular orders, goods can be sent by air or by sea, just according to your demand.
7.What's the price?
Different items different market will be different cost, we will keep to give best and competitive price for each customer.
