Detail Information

Product Name:	Insulated Lock Spade Terminal	Wire Range:	0.5-1.5m㎡,1.5-2.5m㎡,4-6m㎡
Current:	Imax=19A 27A 48A	Surface:	Plating Tin
Material:	PVC,Copper	A.W.G:	22-16,16-14,12-10
Highlight:	48A Insulated Wire Terminals , Insulated Lock Spade Terminal , Copper Fork Lock LSV Wire Terminals

Product Description

Customized Insulated Lock Spade Terminal LSV,LSVL,LSVS Copper Fork Lock Type

Product Name	SPLICE,Lug ,Crimp/Spade Terminal
Working Temperature	-40 to 105°C
Material	Copper/PVC/Brass
Color	Red/Blue/Yellow
Product Type	Terminal

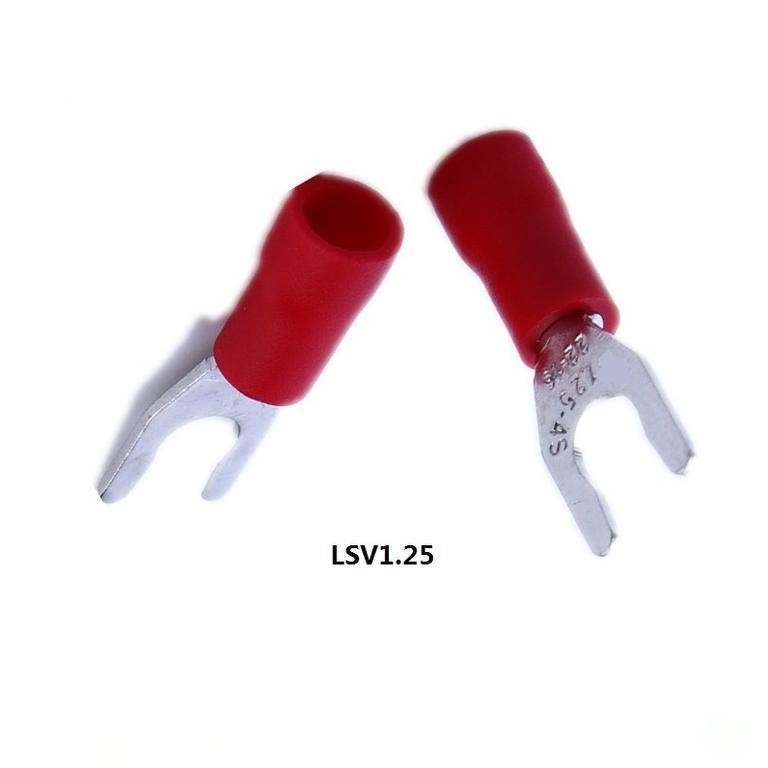

Wire range: 0.5-1.5 ㎟, AWG:22-16, Imax=19A

Item No.	Stud size	Dimension (mm)						Color
Item No.	Stud size	d2	B	L	F	H	D∅	Color
LSV1.25-3.5	#6	3.7	6.4	21.2	6.5	10.0	4.3	Red
LSVS1.25-4	#8	4.3	7.2	21.2	6.5
LSVL1.25-4	#8	4.3	8.1	21.2	6.5
LSVS1.25-5	#10	5.3	8.1	21.2	6.5
LSVL1.25-5	#10	5.3	9.5	21.2	6.5

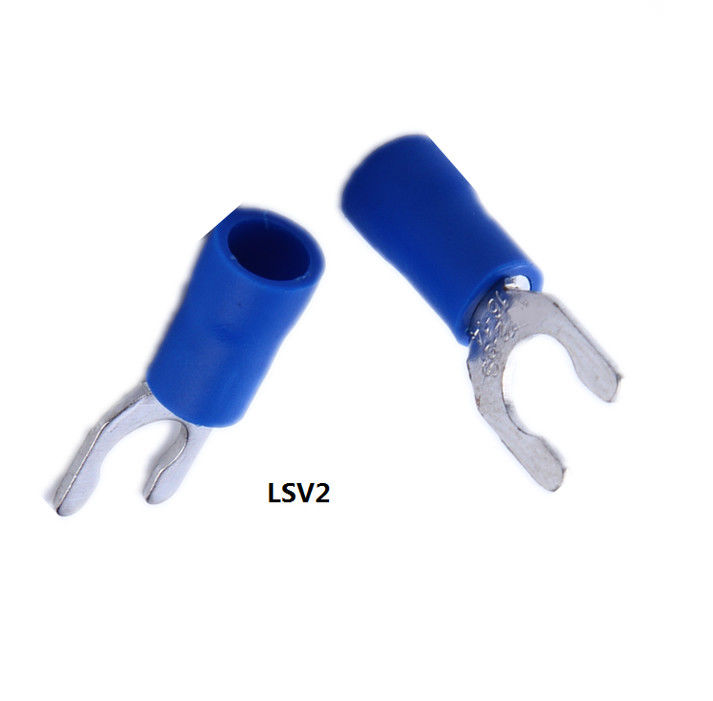

Wire range: 1.5-2.5 ㎟, AWG:16-14, Imax=27A

Item No.	Stud size	Dimension (mm)						Color
Item No.	Stud size	d2	B	L	F	H	D∅	Color
LSV2-3.5	#6	3.7	6.0	21.2	6.5	10.0	4.9	Blue
LSVS2-4	#8	4.3	7.2	21.2	6.5
LSVL2-4	#8	4.3	8.1	21.2	6.5
LSVS2-5	#10	5.3	8.1	21.2	6.5
LSVL2-5	#10	5.3	9.5	21.2	6.5

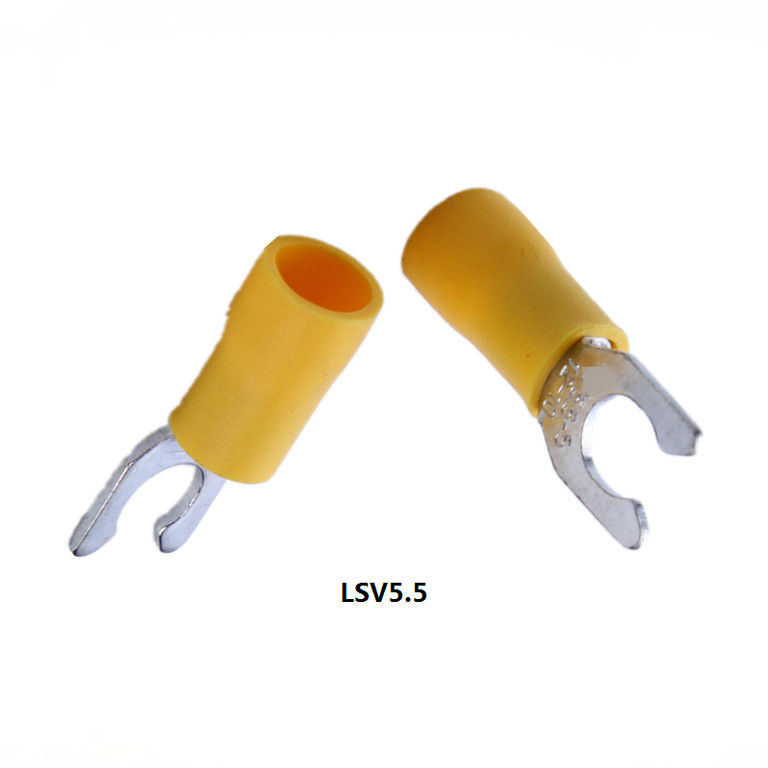

Wire range: 4-6 ㎟, AWG:12-10, Imax=48A

Item No.	Stud size	Dimension (mm)						Color
Item No.	Stud size	d2	B	L	F	H	D∅	Color
LSV5.5-3.5	#6	3.7	8.3	25.2	7.5	13.0	6.7	Yellow
LSV5.5-4	#8	4.3	8.3	25.2	7.5
LSV5.5-5	#10	5.3	9.0	25.2	7.5
LSV5.5-6	1/4	6.4	12.0	31.2	12.0

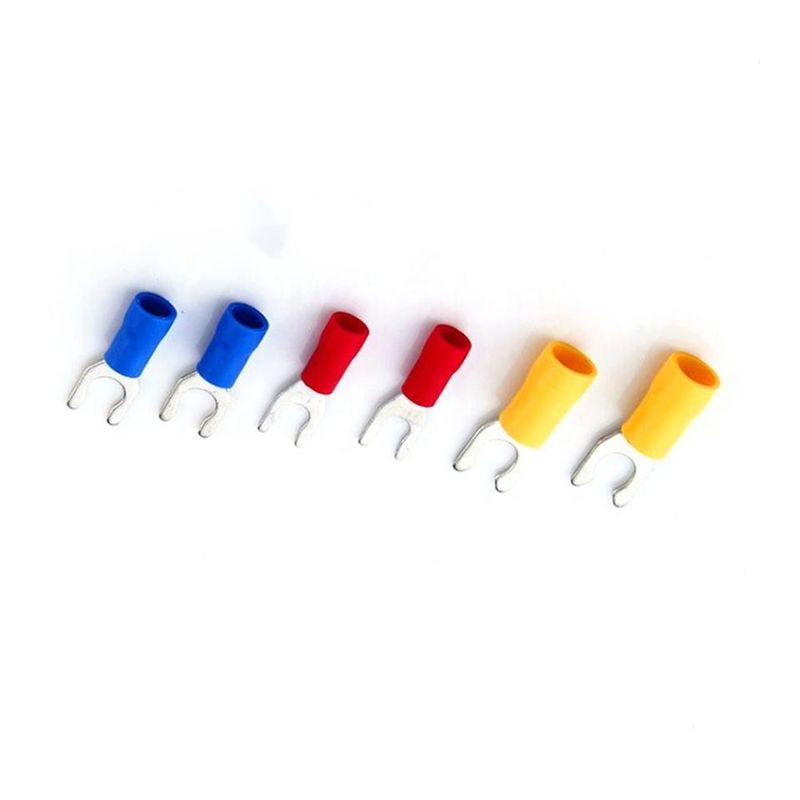

Customized Insulated Lock Spade Terminal LSV LSVL LSVS Copper Fork Lock Type 0

Customized Insulated Lock Spade Terminal LSV LSVL LSVS Copper Fork Lock Type 1

FAQ:
1. Are you factory or trading company?

Yes,we are manufacturer in Wenzhou,China. We can give you the competitive price & after sale service.
2. Can we print our logo/website/company name on products?
We can print the informations as customers' authorization.
3. What's the lead time for regular order?
7-15 days as order quantity

4. Can you provide samples? Are the samples free?
Yes, samples can be provided with freight charge to be collect.
5. Could you change the size for customer?
Yes, the sizes can be customized, for more details, please contact us freely.

6.What is MOQ?
No limit.

7. Which shipping method do you provide?
For samples or small orders, goods will be sent by express.
For regular orders, goods can be sent by air or by sea, just according to your demand.

Tag:

Place of Origin:	China
Brand Name:	YOKG
Certification:	CE
Model Number:	LSV, LSVS, LSVL

Minimum Order Quantity:	10000PCS
Price:	Negotiable
Packaging Details:	Standard export packing or According to customer's demand
Delivery Time:	15days or Depends on ordering QTYS
Payment Terms:	L/C, D/P, T/T
Supply Ability:	100000pcs per Month
