Detail Information

Type:	Cold-pressed Hook Terminal	Material:	Copper/Brass
Working Temperature:	-40 To 105°C	Color:	Red/Blue/Yellow
Package:	1000PCS/Bag	Application:	Wire Connecting
Highlight:	Pre Insulated Hook Terminals Lugs , Insulated Electrical Terminals Lugs , HV1.25 Pvc Insulated Wire Terminals

Product Description

HV1.25-3.5 Series Pvc Pre Insulated Hook Connecting Electrical Terminals Lugs

Name	Insulated hook terminals
Body Material	Copper
Insulation	PVC
Plating	Tin
Type	HV
Color	Red,Blue, Yellow
A.W.G	22-16,16-14,12-10
Imax	19A,27A,48A

Wire range: 0.5-1.5 ㎟, AWG:22-16, Imax=19A

Item No.	Stud size	Dimension (mm)						Color
Item No.	Stud size	d2	B	L	F	H	D∅	Color
HV1.25-3.5	#6	3.7	8.0	21.0	7.0	10.0	4.3	Red
HV1.25-4	#8	4.3	8.0	21.0	7.0
HV1.25-5	#10	5.3	8.0	21.0	7.0
HV1.25-6	1/4	6.4	11.6	27.0	11.0

Wire range: 1.5-2.5 ㎟, AWG:16-14, Imax=27A

Item No.	Stud size	Dimension (mm)						Color
Item No.	Stud size	d2	B	L	F	H	D∅	Color
HV2-3.5	#6	3.7	8.5	22.0	7.75	10.0	4.9	Blue
HV2-4	#8	4.3	8.5	22.0	7.75
HV2-5	#10	5.3	9.5	22.0	7.25
HV2-6	1/4	6.4	12.0	27.0	11.0

Wire range: 4-6 ㎟, AWG:12-10, Imax=48A

Item No.	Stud size	Dimension (mm)						Color
Item No.	Stud size	d2	B	L	F	H	D∅	Color
HV5.5-3.5	#6	3.7	7.2	21.4	5.9	13.0	6.7	Yellow
HV5.5-4	#8	4.3	9.5	25.5	8.25
HV5.5-5	#10	5.3	9.5	25.5	8.25
HV5.5-6	1/4	6.4	12.0	31.5	13.0

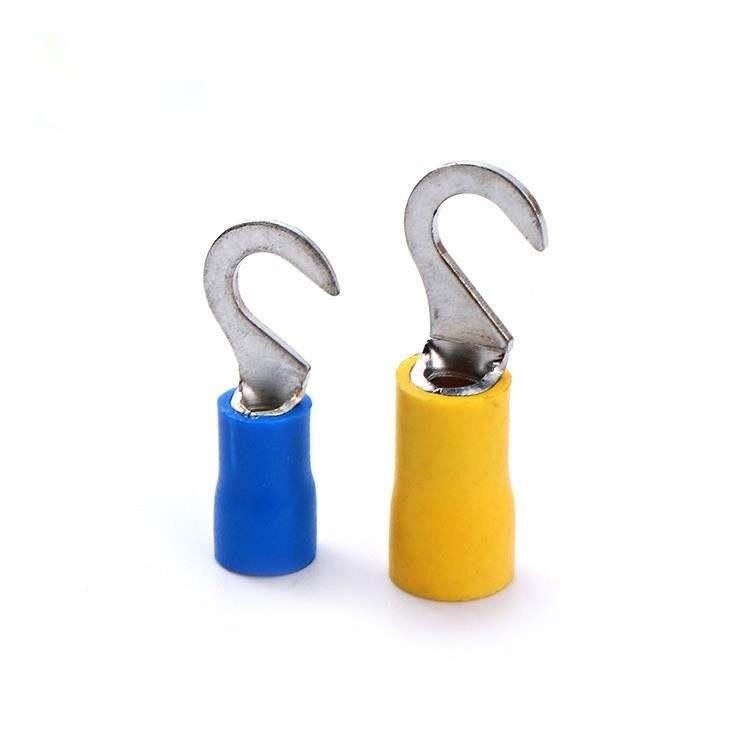

Pre Insulated Hook Connecting Electrical Terminals Lugs HV1.25-3.5 Series Pvc 0

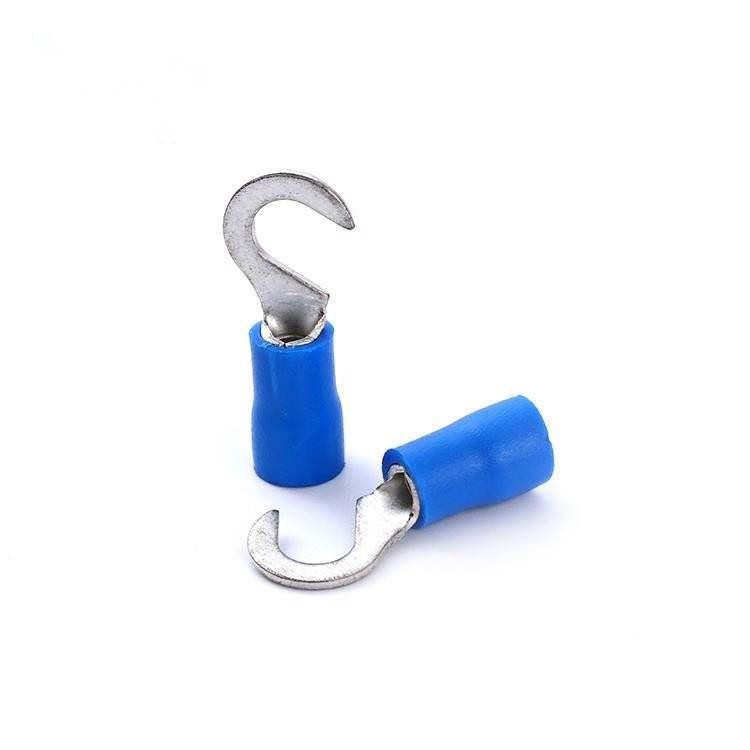

Pre Insulated Hook Connecting Electrical Terminals Lugs HV1.25-3.5 Series Pvc 1

Pre Insulated Hook Connecting Electrical Terminals Lugs HV1.25-3.5 Series Pvc 2

Pre Insulated Hook Connecting Electrical Terminals Lugs HV1.25-3.5 Series Pvc 3

Why Choose Us:

---------------------------------------------

a. Reply your inquiry in 24 working hours.
b. Technical and professional guidance.
c. Best quality and best price.

We maintain excellent products and strive for 100% customer satisfaction. A good feedback is very important, we welcome for your kind suggestion or feedback on goods and our service.

FAQ:
1. Are you factory or trading company?

Yes,we are manufacturer in Wenzhou,China. We can give you the competitive price & after sale service.
2. Can we print our logo/website/company name on products?
We can print the informations as customers' authorization.
3. What's the lead time for regular order?
7-15 days as order quantity

4. Can you provide samples? Are the samples free?
Yes, samples can be provided with freight charge to be collect.
5. Could you change the size for customer?
Yes, the sizes can be customized, for more details, please contact us freely.

6.What is MOQ?
No limit.

7. Which shipping method do you provide?
For samples or small orders, goods will be sent by express.
For regular orders, goods can be sent by air or by sea, just according to your demand.

Tag:

Place of Origin:	China
Brand Name:	YOKG
Certification:	CE
Model Number:	HV 1.25-3.5, HV2-3.5, HV5.5-3.5

Minimum Order Quantity:	10000PCS
Price:	Negotiable
Packaging Details:	Standard export packing or According to customer's demand
Delivery Time:	15days or Depends on ordering QTYS
Payment Terms:	L/C, D/P, T/T
Supply Ability:	100000pcs per Month
