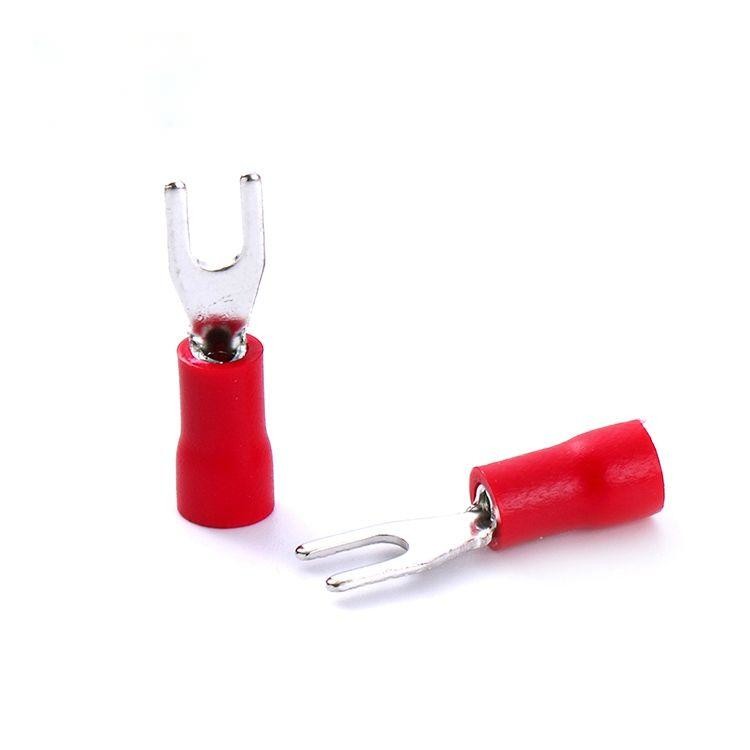

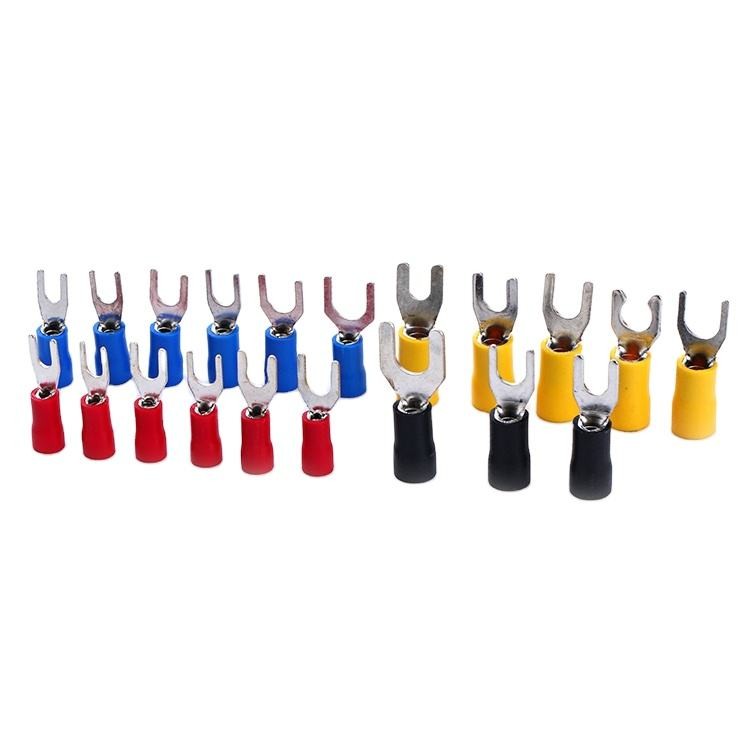

Crimping Tool Terminals Plating Tin Insulated Spade Terminal Connector
| Item No. | Stud size | Dimension (mm) | Color | |||||
| d2 | B | L | F | H | D∅ | |||
| SV1.25-3.2 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
| SVS1.25-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | |||
| SVL1.25-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | |||
| SVS1.25-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | |||
| SVM1.25-4 | #8 | 4.3 | 7.2 | 21.1 | 6.5 | |||
| SVL1.25-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | |||
| SVS1.25-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||
| SVL1.25-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | |||
| SVS1.25-6 | 1/4 | 6.4 | 9.5 | 21.2 | 6.5 | |||
| SVL1.25-6 | 1/4 | 6.4 | 12.0 | 27.2 | 11.0 | |||
| SV1.25-8 | 5/16 | 8.4 | 14.0 | 29.0 | 12.5 | |||
Wire range: 1.5-2.5 ㎟, AWG:16-14, Imax=27A
| Item No. | Stud size | Dimension (mm) | Color | |||||
| d2 | B | L | F | H | D∅ | |||
| SV2-3.2 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.9 | Blue |
| SVS2-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | |||
| SVL2-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | |||
| SVS2-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | |||
| SVM2-4 | #8 | 4.3 | 7.2 | 21.1 | 6.5 | |||
| SVL2-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | |||
| SVS2-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||
| SVL2-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | |||
| SVS2-6 | 1/4 | 6.4 | 9.5 | 21.2 | 6.5 | |||
| SVL2-6 | 1/4 | 6.4 | 12.0 | 27.2 | 11.0 | |||
| SV2-8 | 5/16 | 8.4 | 14.0 | 29.0 |
12.5 |
|||
Wire range: 2.5-4 ㎟, AWG:14-12, Imax=37A
| Item No. | Stud size | Dimension (mm) | Color | |||||
| d2 | B | L | F | H | D∅ | |||
| SV3.5-3 | #4 | 3.2 | 5.7 | 24.8 | 7.0 | 13.0 | 6.2 | Black |
| SV3.5-4 | #8 | 4.3 | 8.0 | 24.8 | 7.0 | |||
| SV3.5-5 | #10 | 5.3 | 8.0 | 24.8 | 7.0 | |||
| SV3.5-6 | 1/4 | 6.4 | 12.0 | 28.0 | 12.1 | |||
| SV3.5-8 | 5/16 | 8.4 | 12.0 | 33.7 |
13.7 |
|||
Wire range: 4-6 ㎟, AWG:12-10, Imax=48A
| Item No. | Stud size | Dimension (mm) | Color | |||||
| d2 | B | L | F | H | D∅ | |||
| SV5.5-3.5 | #6 | 3.7 | 8.3 | 25.2 | 7.5 | 13.0 | 6.7 | Yellow |
| SVS5.5-4 | #8 | 4.3 | 8.3 | 25.2 | 7.5 | |||
| SVL5.5-4 | #8 | 4.3 | 9.0 | 25.2 | 7.5 | |||
| SV5.5-5 | #10 | 5.3 | 9.0 | 25.2 | 7.5 | |||
| SVS5.5-6 | 1/4 | 6.4 | 9.0 | 25.2 | 7.5 | |||
| SVL5.5-6 | 1/4 | 6.4 | 12.0 | 31.2 | 12.0 | |||
| SV5.5-8 | 5/16 | 8.4 | 14.0 | 30.0 | 11.5 | |||
FAQ:
1. Are you factory or trading company?
Yes,we are manufacturer in Wenzhou,China. We can give you the competitive price & after sale service.
2. Can we print our logo/website/company name on products?
We can print the informations as customers' authorization.
3. What's the lead time for regular order?
7-15 days as order quantity
4. Can you provide samples? Are the samples free?
Yes, samples can be provided with freight charge to be collect.
5. Could you change the size for customer?
Yes, the sizes can be customized, for more details, please contact us freely.
6. Which shipping method do you provide?
For samples or small orders, goods will be sent by express.
For regular orders, goods can be sent by air or by sea, just according to your demand.
7.What's the price?
Different items different market will be different cost, we will keep to give best and competitive price for each customer.
