Product Details:
|
| Product Name: | Insulated Ring Crimp Terminal | Model Number: | RV Series |
|---|---|---|---|
| Material: | Copper/brass | Wire Range: | 0.5-6.0mm² |
| Surface Treatment: | Coated Tin | AWG: | 22-16/16-14/14-12/12-10 |
| High Light: | Insulated Ring Crimp Terminal,Electrical Insulated Crimp Terminal,Copper Insulated Terminal |
||

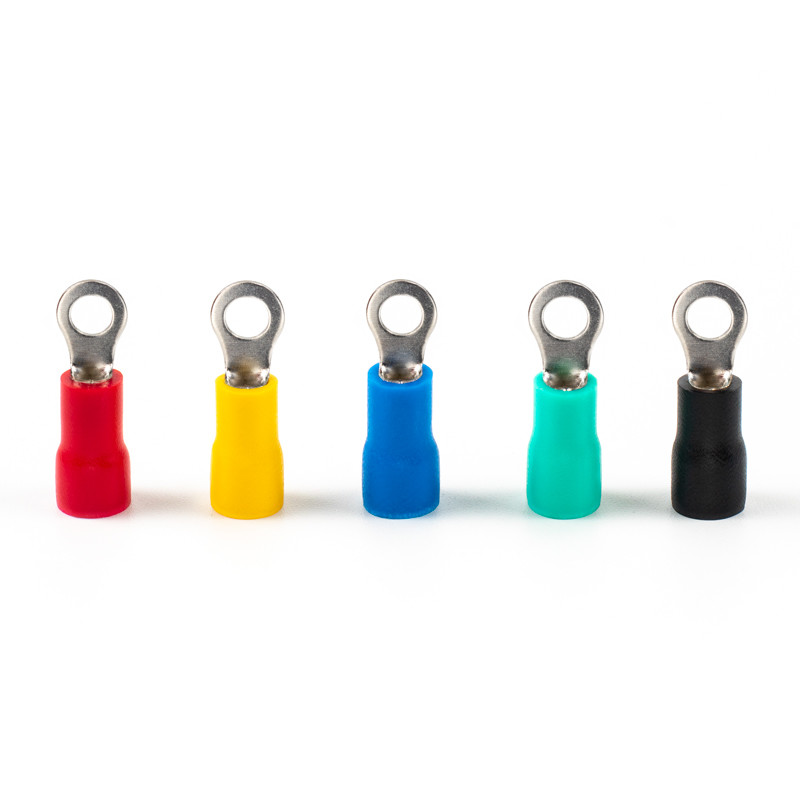

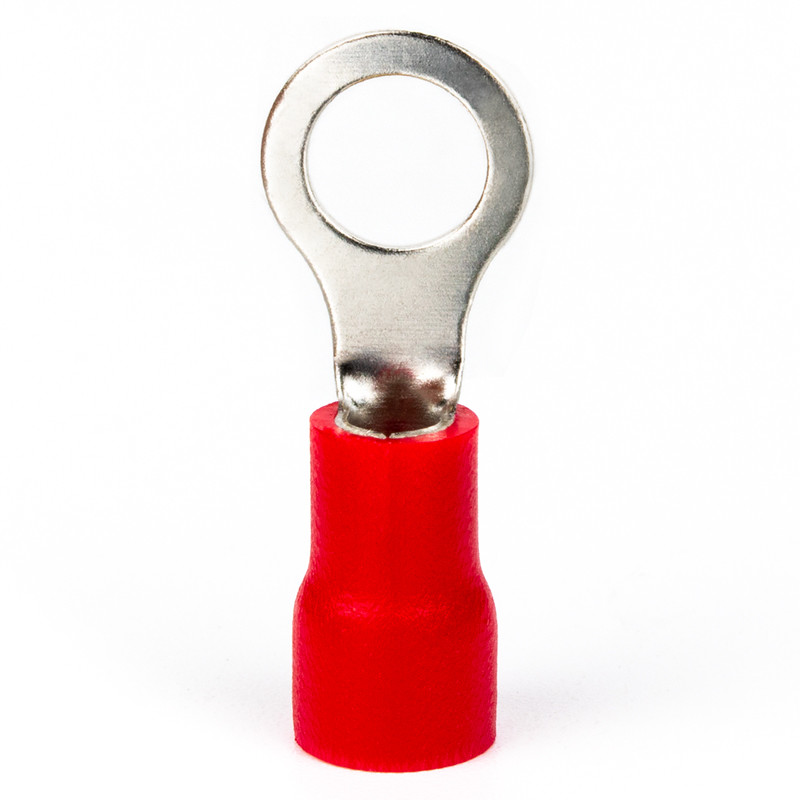

Copper Electrical Wire Connector RV Insulated Ring Crimp Terminal
|
ITEM NO.
|
RV series
|
| Brand | YOKG or OEM |
|
Metal Material
|
Copper/Brass
|
|
Surface coating
|
Electro tin plated
|
|
Insulator material
|
Flame retardant PP
|
|
AWG
|
22-16/16-14/14-12/12-10
|
|
Color
|
Red, yellow, blue, green, black
|
| Usage | Connecting Cable |
|
Pack
|
100pcs/bag
|
Wire range: 0.5-1.5 ㎟, AWG:22-16, Imax=19A
| Item No. | Stud size | Dimension (mm) | Color | |||||
| d2 | B | L | F | H | D∅ | |||
| RV1.25-3.2 | #4 | 3.2 | 5.7 | 17.8 | 4.95 | 10.0 | 4.3 | Red |
| RVS1.25-3.5 | #6 | 3.7 | 5.7 | 17.8 | 4.95 | |||
| RVM1.25-3.5 | #6 | 3.7 | 6.6 | 20.1 | 6.3 | |||
| RVL1.25-3.5 | #6 | 3.7 | 8.0 | 21.5 | 7.0 | |||
| RVS1.25-4 | #8 | 4.3 | 6.6 | 20.1 | 6.3 | |||
| RVL1.25-4 | #8 | 4.3 | 8.0 | 21.5 | 7.0 | |||
| RVS1.25-5 | #10 | 5.3 | 8.0 | 21.5 | 7.0 | |||
| RVS1.25-5 | #10 | 5.3 | 9.8 | 23.0 | 8.5 | |||
| RVS1.25-6 | 1/4 | 6.4 | 9.8 | 23.0 | 8.5 | |||
| RV1.25-6 | 1/4 | 6.4 | 11.6 | 27.5 | 11.1 | |||
| RV1.25-8 | 5/16 | 8.4 | 11.6 | 27.5 | 11.1 | |||
| RV1.25-10 | 3/8 | 10.5 | 13.6 | 31.6 | 13.9 | |||
| RV1.25-12 | 1/2 | 13.0 | 19.2 | 36.0 | 16.5 | |||
Wire range: 1.5-2.5 ㎟, AWG:16-14, Imax=27A
| Item No. | Stud size | Dimension (mm) | Color | |||||
| d2 | B | L | F | H | D∅ | |||
| RV2-3.2 | #4 | 3.2 | 6.6 | 17.8 | 4.3 | 10.0 | 4.9 | Blue |
| RVS2-3.5 | #6 | 3.7 | 6.6 | 17.8 | 4.3 | |||
| RVM2-3.5 | #6 | 3.7 | 6.6 | 21 | 7.0 | |||
| RVL2-3.5 | #6 | 3.7 | 8.5 | 22.5 | 7.75 | |||
| RVS2-4 | #8 | 4.3 | 6.6 | 21 | 7.0 | |||
| RVL2-4 | #8 | 4.3 | 8.5 | 22.5 | 7.75 | |||
| RVS2-5 | #10 | 5.3 | 8.5 | 22.5 | 7.75 | |||
| RVL2-5 | #10 | 5.3 | 9.5 | 22.5 | 7.25 | |||
| RV2-6 | 1/4 | 6.4 | 12.0 | 27.6 | 11 | |||
| RV2-8 | 5/16 | 8.4 | 12.0 | 27.6 | 11 | |||
| RV2-10 | 3/8 | 10.5 | 13.6 | 30.2 | 13.9 | |||
| RV2-12 | 1/2 | 13.0 | 19.2 | 36.5 |
16.5 |
|||
Wire range: 2.5-4 ㎟, AWG:14-12, Imax=37A
| Item No. | Stud size | Dimension (mm) | Color | |||||
| d2 | B | L | F | H | D∅ | |||
| RV3.5-4 | #8 | 4.3 | 8.0 | 24.5 | 7.7 | 13.0 | 6.2 | Black |
| RVS3.5-5 | #10 | 5.3 | 8.0 | 24.5 | 7.7 | |||
| RVL3.5-5 | #10 | 5.3 | 12.0 | 27.9 | 7.7 | |||
| RV3.5-6 | 1/4 | 6.4 | 12.0 | 27.9 | 7.7 | |||
| RV3.5-8 | 5/16 | 8.4 | 15.0 | 32.0 | 13.5 | |||
| RV3.5-10 | 3/8 | 10.5 | 15.0 | 32.0 |
13.5 |
|||
Wire range: 4-6 ㎟, AWG:12-10, Imax=48A
| Item No. | Stud size | Dimension (mm) | Color | |||||
| d2 | B | L | F | H | D∅ | |||
| RV5.5-3.5 | #6 | 3.7 | 7.2 | 21.4 | 5.9 | 13.0 | 6.7 | Yellow |
| RVS5.5-4 | #8 | 4.3 | 7.2 | 21.4 | 5.9 | |||
| RVL5.5-4 | #8 | 4.3 | 9.5 | 25.5 | 8.3 | |||
| RV5.5-5 | #10 | 5.3 | 9.5 | 25.5 | 8.3 | |||
| RV5.5-6 | 1/4 | 6.4 | 12.0 | 31.5 | 13.0 | |||
| RV5.5-8 | 5/16 | 8.4 | 15.0 | 33.7 | 13.7 | |||
| RV5.5-10 | 3/8 | 10.5 | 15.0 | 33.7 | 13.7 | |||
| RV5.5-12 | 1/2 | 13.0 | 19.2 | 38.1 | 16.0 | |||
