Detail Information

Type:	Crimp Terminal	Package:	100pcs/Bag
Joining Method:	Friction Welding	Surface Treatment:	Coated Tin
Wire Range:	0.5-6.0mm²	Place Of Origin:	Wenzhou, China
Highlight:	Copper SV Crimp Terminal , Y Type Insulated Terminal , Pre Insulated Spade Terminal

Product Description

Copper SV Crimp Terminal Copper Y Type Fork Pre-Insulated Spade Terminal

Item No.	SV series
Metal Material	Copper&Brass
Surface coating	Electro Tin Plated
Insulator material	Flame retardant PP
Application	Wire crimping
A.W.G	22-16 16-14 14-12 12-10
Color	Red, yellow, blue, black
Wire range	0.5-1.5 ㎟,1.5-2.5 ㎟,2.5-4 ㎟,4-6 ㎟

Wire range: 0.5-1.5 ㎟, AWG:22-16, Imax=19A

Item No.	Stud size	Dimension (mm)						Color
Item No.	Stud size	d2	B	L	F	H	D∅	Color
SV1.25-3.2	#4	3.2	5.7	21.2	6.5	10.0	4.3	Red
SVS1.25-3.5	#6	3.7	5.7	21.2	6.5
SVL1.25-3.5	#6	3.7	6.4	21.2	6.5
SVS1.25-4	#8	4.3	6.4	21.2	6.5
SVM1.25-4	#8	4.3	7.2	21.1	6.5
SVL1.25-4	#8	4.3	8.1	21.2	6.5
SVS1.25-5	#10	5.3	8.1	21.2	6.5
SVL1.25-5	#10	5.3	9.5	21.2	6.5
SVS1.25-6	1/4	6.4	9.5	21.2	6.5
SVL1.25-6	1/4	6.4	12.0	27.2	11.0
SV1.25-8	5/16	8.4	14.0	29.0	12.5

Wire range: 1.5-2.5 ㎟, AWG:16-14, Imax=27A

Item No.	Stud size	Dimension (mm)						Color
Item No.	Stud size	d2	B	L	F	H	D∅	Color
SV2-3.2	#4	3.2	5.7	21.2	6.5	10.0	4.9	Blue
SVS2-3.5	#6	3.7	5.7	21.2	6.5
SVL2-3.5	#6	3.7	6.4	21.2	6.5
SVS2-4	#8	4.3	6.4	21.2	6.5
SVM2-4	#8	4.3	7.2	21.1	6.5
SVL2-4	#8	4.3	8.1	21.2	6.5
SVS2-5	#10	5.3	8.1	21.2	6.5
SVL2-5	#10	5.3	9.5	21.2	6.5
SVS2-6	1/4	6.4	9.5	21.2	6.5
SVL2-6	1/4	6.4	12.0	27.2	11.0
SV2-8	5/16	8.4	14.0	29.0	12.5

Wire range: 2.5-4 ㎟, AWG:14-12, Imax=37A

Item No.	Stud size	Dimension (mm)						Color
Item No.	Stud size	d2	B	L	F	H	D∅	Color
SV3.5-3	#4	3.2	5.7	24.8	7.0	13.0	6.2	Black
SV3.5-4	#8	4.3	8.0	24.8	7.0
SV3.5-5	#10	5.3	8.0	24.8	7.0
SV3.5-6	1/4	6.4	12.0	28.0	12.1
SV3.5-8	5/16	8.4	12.0	33.7	13.7

Wire range: 4-6 ㎟, AWG:12-10, Imax=48A

Item No.	Stud size	Dimension (mm)						Color
Item No.	Stud size	d2	B	L	F	H	D∅	Color
SV5.5-3.5	#6	3.7	8.3	25.2	7.5	13.0	6.7	Yellow
SVS5.5-4	#8	4.3	8.3	25.2	7.5
SVL5.5-4	#8	4.3	9.0	25.2	7.5
SV5.5-5	#10	5.3	9.0	25.2	7.5
SVS5.5-6	1/4	6.4	9.0	25.2	7.5
SVL5.5-6	1/4	6.4	12.0	31.2	12.0
SV5.5-8	5/16	8.4	14.0	30.0	11.5

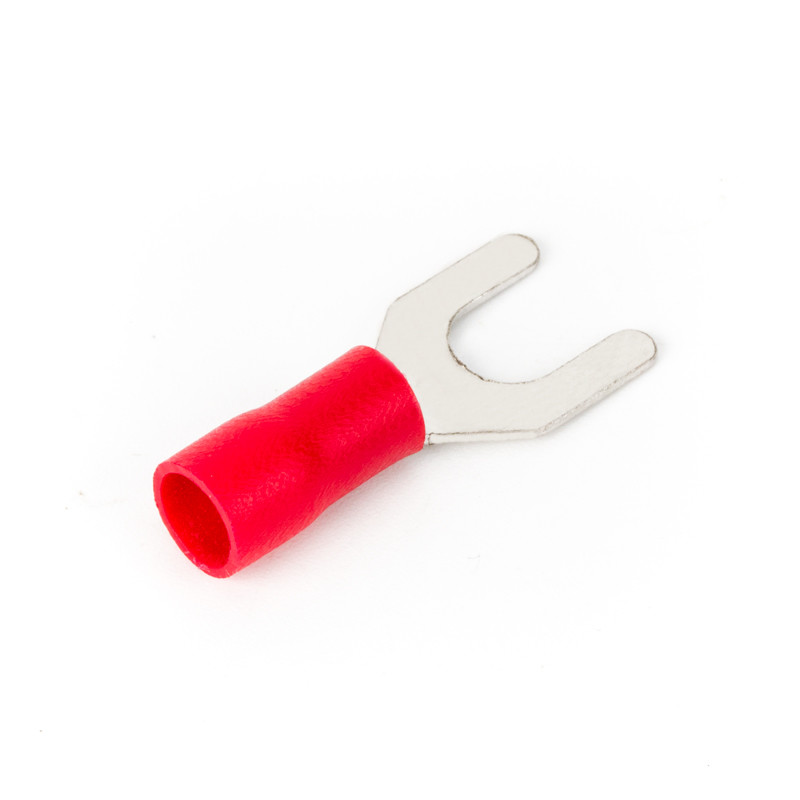

Copper SV Crimp Terminal Y Type Fork Pre Insulated Spade 0

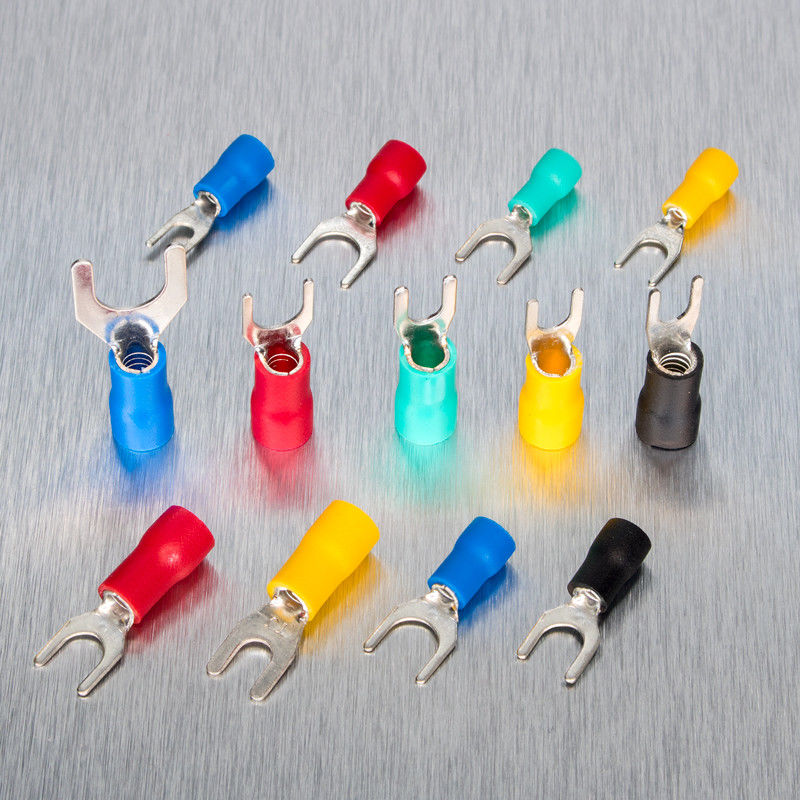

Copper SV Crimp Terminal Y Type Fork Pre Insulated Spade 1

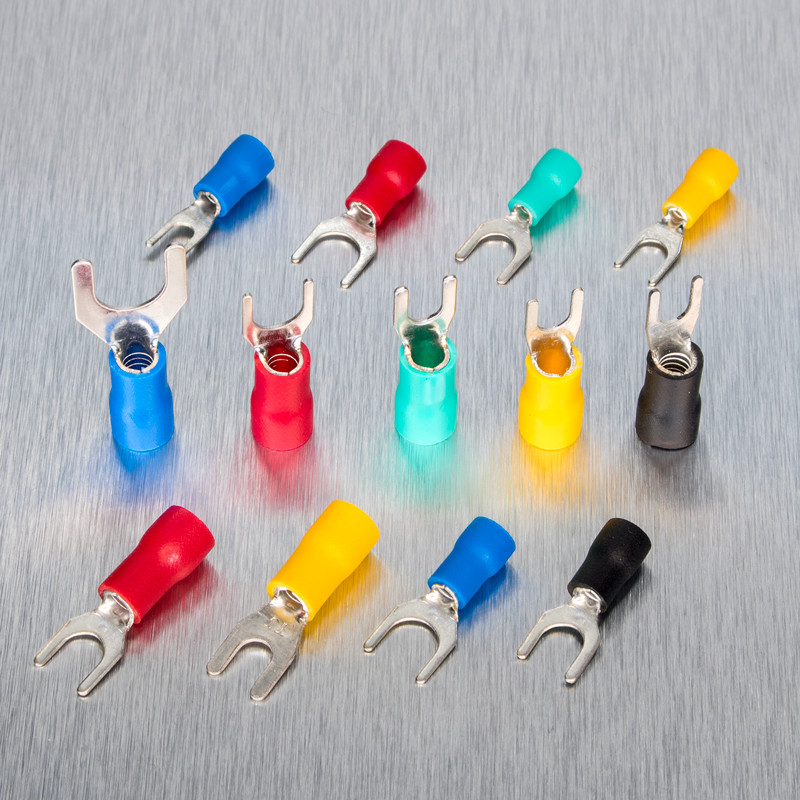

Copper SV Crimp Terminal Y Type Fork Pre Insulated Spade 2

FAQ:
1. Are you factory or trading company?

Yes,we are manufacturer in Wenzhou,China. We can give you the competitive price & after sale service.
2. Can we print our logo/website/company name on products?
Yes,your logo can be printed as your demand. we can offer OEM service.
3. What's the lead time for regular order?
7-15 days as order quantity

4. Can you provide samples? Are the samples free?
Yes, samples can be provided with freight charge to be collect.
5. Could you change the size for customer?
Yes, the sizes can be customized, for more details, please contact us freely.
6. How about the after-sale service?

Any comments are welcomed,we will solve your application problems.

Tag:

Place of Origin:	China
Brand Name:	YOKG
Certification:	CE
Model Number:	SV series

Minimum Order Quantity:	10000PCS
Price:	Negotiable
Packaging Details:	Standard export packing or According to customer's demand
Delivery Time:	15days or Depends on ordering QTYS
Payment Terms:	L/C, D/P, T/T
Supply Ability:	100000pcs per Month
