Detail Information

Features:	Anti-rust Greatly Extended Time, No Sharp Parts	Application:	Wire Crimping
Cable Size:	2 X 2.5	Packaging Of Terminal:	Plastic Bag And Master Cartons
Item:	Crimp Terminal	Product Name:	Ferrules
Highlight:	Insulated Ferrule Terminal , Lugs Twin Cord End Terminal , PVC Cable Insulated Terminal

Product Description

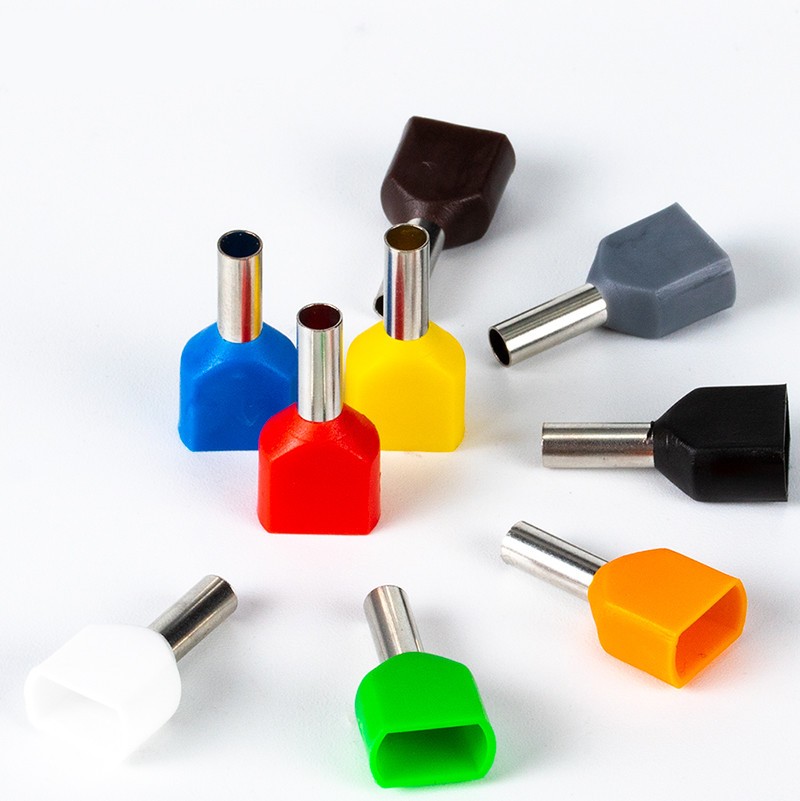

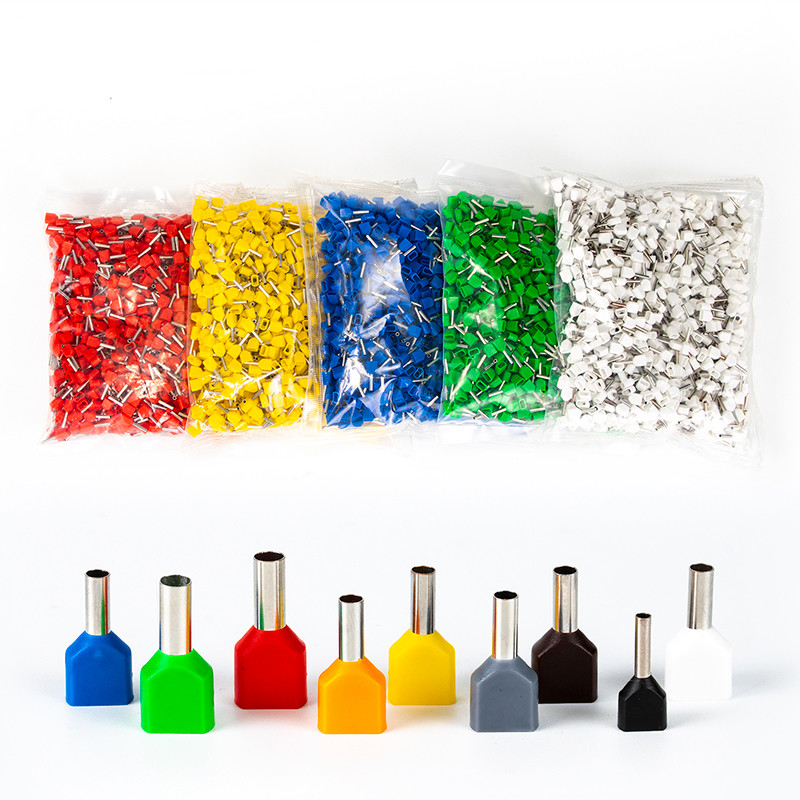

Copper/Brass/PVC Cable Insulated Ferrule Terminal Lugs Twin Cord End Terminal

Product name	Insulated Ferrule Terminal
Item Number	TE series
Material	Copper or Brass
Surface coating	Electro Tin Plated
Insulaor material	Flame retardant PP
AWG	2#6,2#8,2#10,2#12,2#14,2#16,2#18,2#20,2*#22
Color	Red, yellow, blue, green, black, gray, brown, white, orange
Application	Wire crimping
Color	Red, yellow, blue, green, black, gray, brown, white, orange
Brand	Yokg or OEM
Certificate	CE ROHS

Item No.	Dimension (mm)						Wire range
Item No.	F	L	W	B	D∅	C∅	A.W.G	㎟
TE0508	8.0	14.5	5.0	6.5	1.8	1.5	2 x 22	2 x 0.5
TE7508	8.0	14.7	5.5	6.7	2.1	1.8	2 x 20	2 x 0.75
TE7510	10.0	16.7	5.5	6.7	2.1	1.8	2 x 20	2 x 0.75
TE1008	8.0	15.1	5.5	7.1	2.3	2	2 x 18	2 x 1.0
TE1010	10.0	17.1	5.5	7.1	2.3	2	2 x 18	2 x 1.0
TE1508	8.0	15.5	6.4	7.5	2.6	2.3	2 x 16	2 x 1.5
TE1510	10.0	17.5
TE1512	12.0	19.5
TE2510	10.0	18.5	8.0	8.5	3.3	2.9	2 x 14	2 x 2.5
TE2512	12.0	20.5
TE2513	13.0	21.5
TE4012	12.0	23.1	8.8	11.1	4.2	3.8	2 x 12	2 x 4
TE6014	14.0	26.1	9.5	12.1	5.3	4.9	2 x 10	2 x 6
TE10-14	14.0	26.6	12.6	12.6	6.9	6.5	2 x 8	2 x 10
TE16-14	14.0	31.3	19.0	17.3	8.7	8.6	2 x 6	2 x 16

Quickly understand the model:

TE: Product series
15: suitable for two 1.5 square millimeter wire
10: Exposed length of copper tube
Material: copper & brass
Insulator material: flame retardant PP

PVC Cable Insulated Ferrule Terminal Lugs Twin Cord End 0

PVC Cable Insulated Ferrule Terminal Lugs Twin Cord End 1

FAQ:
1. Could I have prices of your products?
Well welcome. Please feel free to send us any inquiry. You will get our reply in 24 hours.
2. Can we print our logo/website/company name on products?
Of course, you could. We are a professional manufacturer and we have many years of OEM experience.
3. What's the lead time for regular order?
7-15 days as order quantity

4. Can you provide samples? Are the samples free?
Yes, samples can be provided with freight charge to be collect.
5. Could you change the size for customer?
Yes, the sizes can be customized, for more details, please contact us freely.
6. How about the after-sale service?

Any comments are welcomed,we will solve your application problems.

Tag:

Place of Origin:	China
Brand Name:	YOKG
Certification:	CE
Model Number:	TE series

Minimum Order Quantity:	10000PCS
Price:	Negotiable
Packaging Details:	Standard export packing or According to customer's demand
Delivery Time:	15days or Depends on ordering QTYS
Payment Terms:	L/C, D/P, T/T
Supply Ability:	100000pcs per Month
