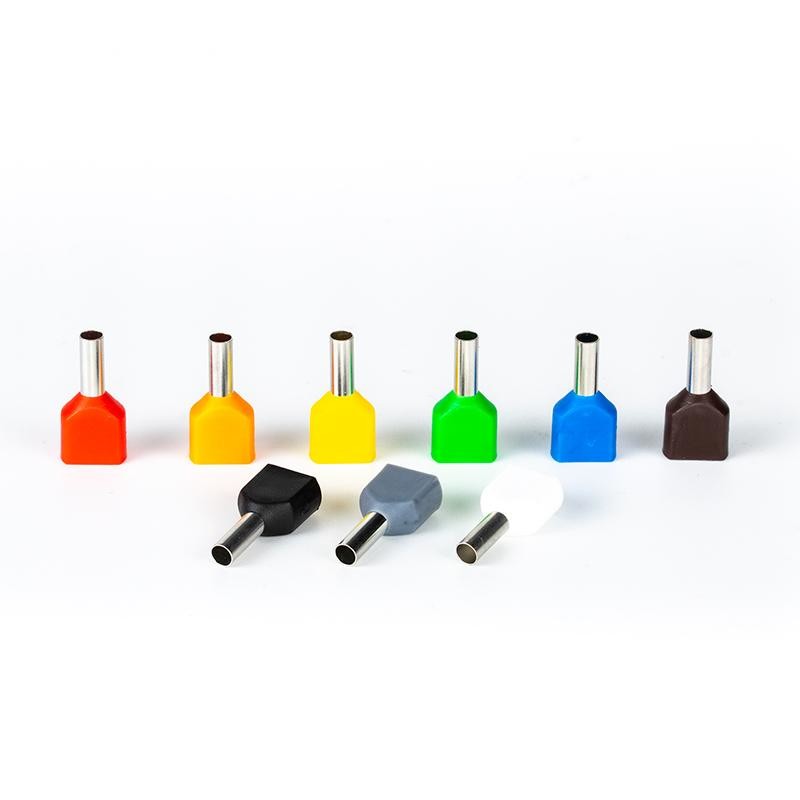

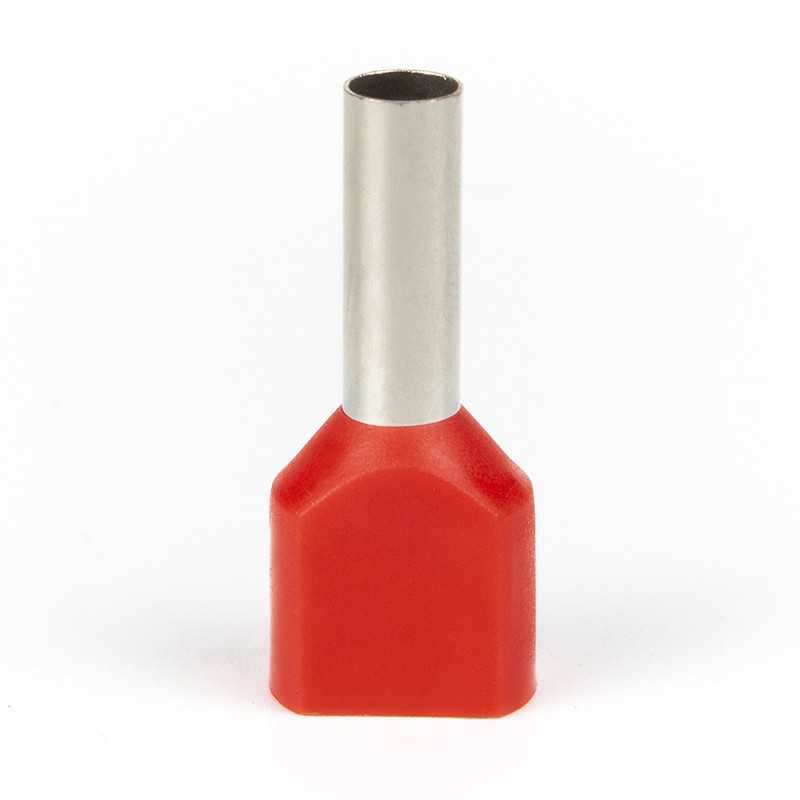

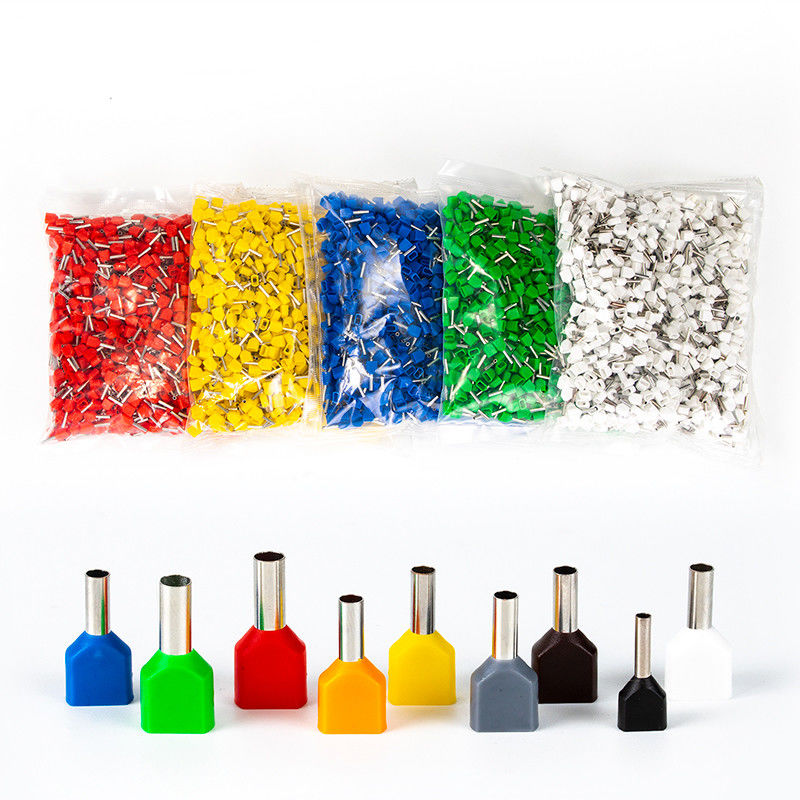

Copper Insulated TE1510 Twin Cord End Double Bootlace Ferrules Tube Crimp Terminal
| Item Number | TE series |
| Material | Copper or Brass |
| Surface coating | Electro Tin Plated |
| Insulaor material | Flame retardant PP |
| AWG | 2*#6,2*#8,2*#10,2*#12,2*#14,2*#16,2*#18,2*#20,2*#22 |
| Color | Red, yellow, blue, green, black, gray, brown, white, orange |
| Application | Wire crimping |
| Item No. | Dimension (mm) | Wire range | ||||||
| F | L | W | B | D∅ | C∅ | A.W.G | ㎟ | |
| TE0508 | 8.0 | 14.5 | 5.0 | 6.5 | 1.8 | 1.5 | 2 x 22 | 2 x 0.5 |
| TE7508 | 8.0 | 14.7 | 5.5 | 6.7 | 2.1 | 1.8 | 2 x 20 | 2 x 0.75 |
| TE7510 | 10.0 | 16.7 | ||||||
| TE1008 | 8.0 | 15.1 | 5.5 | 7.1 | 2.3 | 2 | 2 x 18 | 2 x 1.0 |
| TE1010 | 10.0 | 17.1 | ||||||
| TE1508 | 8.0 | 15.5 | 6.4 | 7.5 | 2.6 | 2.3 | 2 x 16 | 2 x 1.5 |
| TE1510 | 10.0 | 17.5 | ||||||
| TE1512 | 12.0 | 19.5 | ||||||
| TE2510 | 10.0 | 18.5 | 8.0 | 8.5 | 3.3 | 2.9 | 2 x 14 | 2 x 2.5 |
| TE2512 | 12.0 | 20.5 | ||||||
| TE2513 | 13.0 | 21.5 | ||||||
| TE4012 | 12.0 | 23.1 | 8.8 | 11.1 | 4.2 | 3.8 | 2 x 12 | 2 x 4 |
| TE6014 | 14.0 | 26.1 | 9.5 | 12.1 | 5.3 | 4.9 | 2 x 10 | 2 x 6 |
| TE10-14 | 14.0 | 26.6 | 12.6 | 12.6 | 6.9 | 6.5 | 2 x 8 | 2 x 10 |
| TE16-14 | 14.0 | 31.3 | 19.0 | 17.3 | 8.7 | 8.6 | 2 x 6 | 2 x 16 |
Quickly understand the model:
TE: Product series
15: suitable for two 1.5 square millimeter wire
10: Exposed length of copper tube
Material: copper & brass
Insulator material: flame retardant PP
