Product Details:
|
| Temperature Resistance: | 105 ℃ | Application: | Wire Crimping |
|---|---|---|---|
| AWG: | 12 AWG | Surface Coating: | Electro Tin Plated |
| Type: | Crimp Terminal | Place Of Origin: | Wenzhou,China |
| High Light: | 12 AWG Crimp Terminal Ends,E6012 Insulated Wire Ferrules,Electrical Ferrules Insulated Terminal |
||

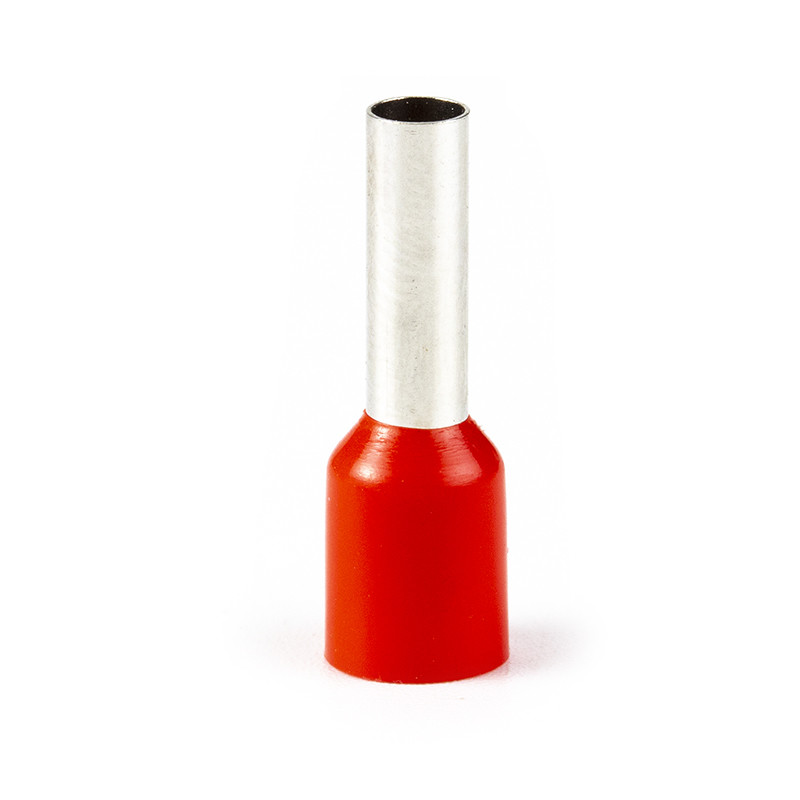

E6012 Insulated Wire Ferrules 12 AWG Electrical Wire Crimp Terminal Ends
| Item Number | E series |
| Material | Copper or Brass |
| Surface coating | Electro Tin Plated |
| Insulaor material | Flame retardant PP |
| AWG | #4,#6,#8,#10,#12,#14,#16,#18,#20,#22 |

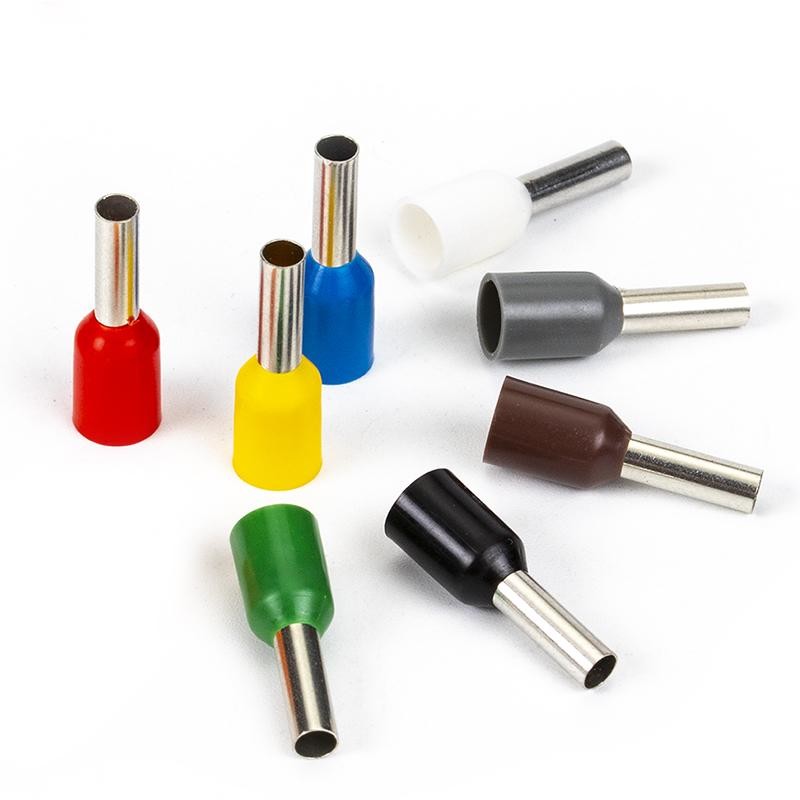

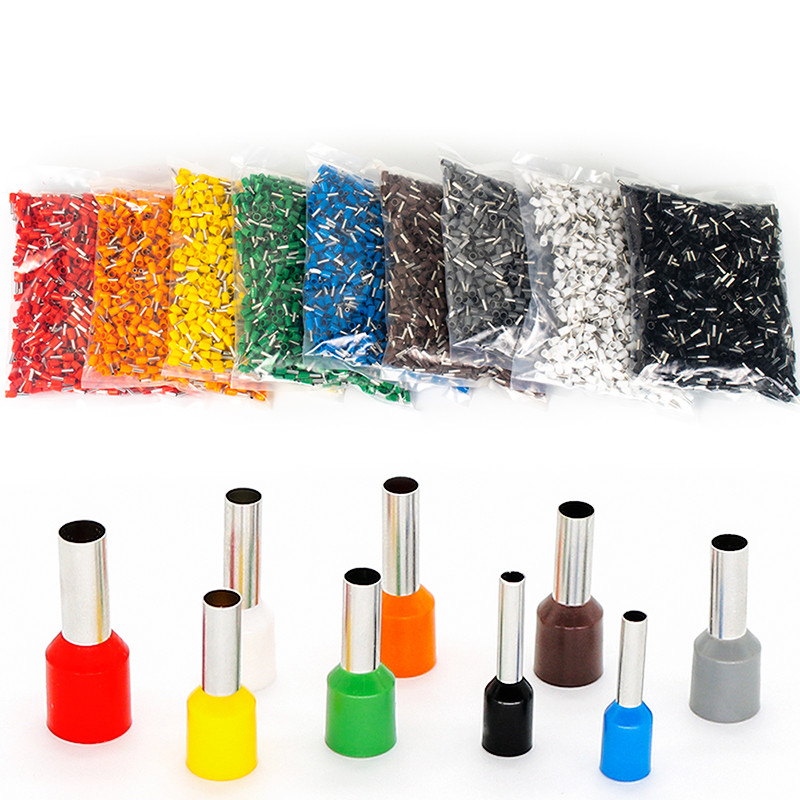

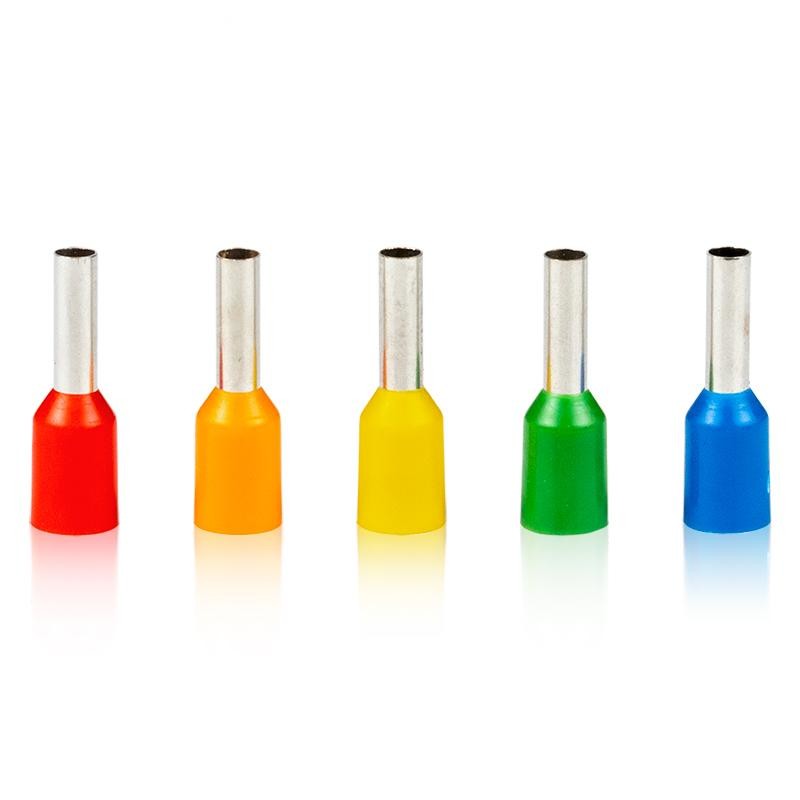

| Color | Red, yellow, blue, green, black, gray, brown, white, orange |
| Application | Wire crimping |
| Item No. | Dimension (mm) | Wire range | |||||
| F | L | W | D∅ | C∅ | A.W.G | ㎟ | |
| E0505 | 5.0 | 11.0 | 2.6 | 1.3 | 1 | 22 | 0.5 |
| E0506 | 6.0 | 12.0 | |||||
| E0508 | 8.0 | 14.0 | |||||
| E0510 | 10.0 | 16.0 | |||||
| E0512 | 12.0 | 18.0 | |||||
| E7506 | 6.0 | 12.3 | 2.8 | 1.5 | 1.2 | 20 | 0.75 |
| E7508 | 8.0 | 14.3 | |||||
| E7510 | 10.0 | 16.3 | |||||
| E7512 | 12.0 | 18.3 | |||||
| E7518 | 18.0 | 24.3 | |||||
| E1006 | 6.0 | 12.3 | 3.0 | 1.7 | 1.4 | 18 | 1.0 |
| E1008 | 8.0 | 14.3 | |||||
| E1010 | 10.0 | 16.3 | |||||
| E1012 | 12.0 | 18.3 | |||||
| E1018 | 18.0 | 24.3 | |||||
| E1508 | 8.0 | 14.3 | 3.5 | 2 | 1.7 | 16 | 1.5 |
| E1510 | 10.0 | 16.3 | |||||
| E1512 | 12.0 | 18.3 | |||||
| E1515 | 15.0 | 21.3 | |||||
| E1518 | 18.0 | 24.3 | |||||
| E2508 | 8.0 | 15.4 | 4.0 | 2.6 | 2.3 | 14 | 2.5 |
| E2510 | 10.0 | 17.4 | |||||
| E2512 | 12.0 | 19.4 | |||||
| E2518 | 18.0 | 25.4 | |||||
| E2525 | 25.0 | 32.4 | |||||
| E4009 | 9.0 | 16.7 | 4.5 | 3.2 | 2.8 | 12 | 4.0 |
| E4010 | 10.0 | 17.4 | |||||
| E4012 | 12.0 | 19.4 | |||||
| E4018 | 18.0 | 25.4 | |||||
| E6012 | 12.0 | 20.5 | 6.0 | 3.9 | 3.5 | 10 | 6.0 |
| E6018 | 18.0 | 26.5 | |||||
| E10-12 | 12.0 | 20.8 | 7.5 | 4.9 | 4.5 | 8 | 10 |
| E10-18 | 18.0 | 26.8 | |||||
| E16-12 | 12.0 | 22.0 | 8.7 | 6.2 | 5.8 | 6 | 16 |
| E16-18 | 18.0 | 28.0 | |||||
| E25-12 | 12.0 | 24.0 | 11.0 | 7.9 | 7.5 | 4 | 25 |
| E25-16 | 16.0 | 28.0 | |||||
| E25-18 | 18.0 | 30.0 | |||||
| E25-22 | 22.0 | 34.0 | |||||
| E35-16 | 16.0 | 30.0 | 12.5 | 8.7 | 8.3 | 2 | 35 |
| E35-18 | 18.0 | 32.0 | |||||
| E35-22 | 22.0 | 36.0 | |||||
| E35-25 | 25.0 | 39.0 | |||||
| E50-12 | 12.0 | 28.0 | 15.0 | 10.9 | 10.3 | 1/0 | 50 |
| E50-20 | 20.0 | 36.0 | |||||
| E70-20 | 20.0 | 37.0 | 16.0 | 14.3 | 13.5 | 2/0 | 70 |
| E70-25 | 25.0 | 42.0 | |||||
| E70-27 | 27.0 | 44.0 | |||||
| E95-25 | 25.0 | 44.0 | 18.5 | 15.6 | 14.8 | 3/0 | 95 |
| E120-27 | 27.0 | 47.6 | 20.3 | 17.7 | 16.7 | 4/0 | 120 |
| E120-32 | 32.0 | 52.6 | |||||
| E150-25 | 25.0 | 50.6 | 23.4 | 20.6 | 19.6 | 250/300 MCM | 150 |
| E150-27 | 27.0 | 52.6 | |||||
| E150-32 | 32.0 | 57.6 | |||||
