Frequency 50hz 60hz Motor Thermal Overload Relay Tripping Level 25A

100PCS
MOQ
Negotiable
Price
Frequency 50hz 60hz Motor Thermal Overload Relay Tripping Level 25A
Features Gallery Product Description Request A Quote
Features
Specifications
Contact Load: Low Power, High Power
Size: Miniature
Product Name: Thermal Relay
Coil Voltage: 24-277 VAC
OEM: Available
Rated Frequency: 50, 60Hz
High Light:

60hz Motor Thermal Overload Relay

,

Thermal Overload Relay 25A

,

25A Motor Overload Protection Relay

Basic Infomation
Place of Origin: China
Brand Name: YOKG
Certification: CE
Model Number: LR2-D13, LR2-D25, LR2-D33, LR2-D43
Payment & Shipping Terms
Packaging Details: Standard export packing or According to customer's demand
Delivery Time: 15days or Depends on ordering QTYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000pcs per Month
Product Description

Frequency 50 60hz Tripping Level 25a Motor Overload Protection Relay





Application:

LR2-D series thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-93A for protecting the phase break when the electric motor is overload.



The relay has different mechanism and temperature compensation & can be pluged in LC1-D series AC contactor. It is the most advanced thermal relay in the nineties in the world.





A.Fundamental parameter of the main circuit
(a).Rated insulation voltage 660V.
(b).Rated working current 25,36,93A separately.
(c).The regulator seal of rated setting current and setting.
(d).Current of the thermal component(see list 1)



B.Auxiliary Circuit
(a).There is one pair of NO/ and N/C contact with electric insulation.
(b).Rated insulation voltage 500V.
(c).Rated frequency 50-60Hz.
(d).Use group, rated working voltage ,appoint thermal current and rated current.







Motion Characteristic: Three-phase Balance Motion Time



No Times of the setting current Motion time Start condition Ambient temperature
1 1.05 >2h Cold state 20±5oC
2 1.2 <2h Heat state(Following the No.1 test)
3 1.5 <4min
4 7.2 10A 2s< Tp≤10s ≤63A Cold state
10 4s< Tp≤10s >63A





Phase-losing Motion Characteristic

No Times of the setting current Motion time Start condition Ambienttemperature
Any two phases Another phase
1 1.0 0.9 >2h Cold state 20±5oC
2 1.15 0 <2h Heat state(Following the No.1 test)






Type Number Setting range (A) For contactor
LR2-D13 1301 0.1~0.16 CJX2-09~32
1302 0.16~0.25 CJX2-09~32
1303 0.25~0.4 CJX2-09~32
1304 0.4~0.63 CJX2-09~32
1305 0.63~1 CJX2-09~32
1306 1~1.6 CJX2-09~32
1307 1.6~2.5 CJX2-09~32
1308 2.5~4 CJX2-09~32
1310 4~6 CJX2-09~32
1312 5.5~8 CJX2-09~32
1314 7~10 CJX2-09~32
1316 9~13 CJX2-09~32
1321 12~18 CJX2-09~32
1322 17~25 CJX2-32
LR2-D25 2353 23~32 CJX2-09~32
2355 30~40 CJX2-09~32
LR2-D33 3322 17~25 CJX2-09~32
3353 23~32 CJX2-09~32
3355 30~40 CJX2-09~32
3357 37~50 CJX2-09~32
3359 48~65 CJX2-09~32
3361 55~70 CJX2-09~32
3363 63~80 CJX2-09~32
3365 80~93 CJX2-95
LR2-D43 4365 80~104 CJX2-95
4367 95~120 CJX2-95~115
4369 110~140 CJX2-115



Type Rated working current of thermal relay Thermal component
Rated current(A)

Rated or scale of

rated current (A)

LR2-D13 25 LR2-D1301 0.16 0.10-0.16
LR2-D1302 0.25 0.16-0.25
LR2-D1303 0.4 0.25-0.40
LR2-D1304 0.63 0.40-0.63
LR2-D1305 1 0.63-1.0
LR2-D1306 1.6 1.0-1.6
LR2-D13x6 2 1.25-2.0
LR2-D1307 2.5 1.6-2.5
LR2-D1308 4 2.5-4.0
LR2-D1310 6 4.0-6.0
LR2-D1312 8 5.5-8.0
LR2-D1314 10 7.0-10.0
LR2-D1316 13 9.0-13.0
LR2-D1321 18 12.0-18.0
LR2-D1322 25 17.0-25.0
LR2-D23 36 LR2-D2353 32 23.0-32.0
LR2-D2355 36 28.0-36.0
LR2-D33 93 LR2-D3353 32 23.0-32.0
LR2-D3355 40 30.0-40.0
LR2-D3357 50 37.0-50.0
LR2-D3359 65 48.0-65.0
LR2-D3361 70 55.0-70.0
LR2-D3363 90 63.0-80.0
LR2-D3365 93 80.0-93.0

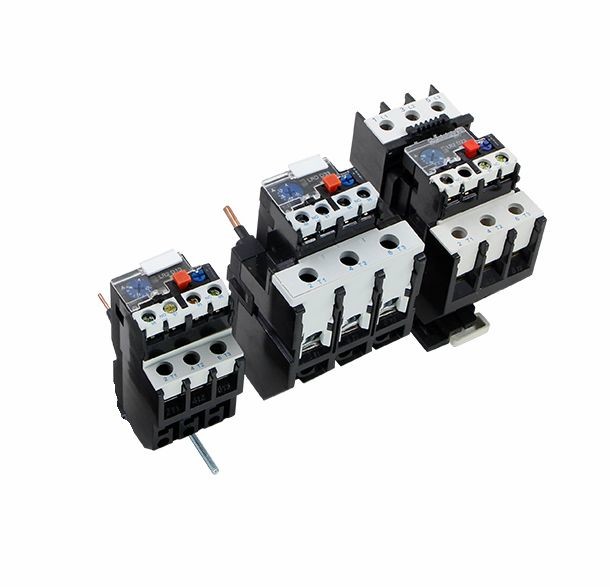

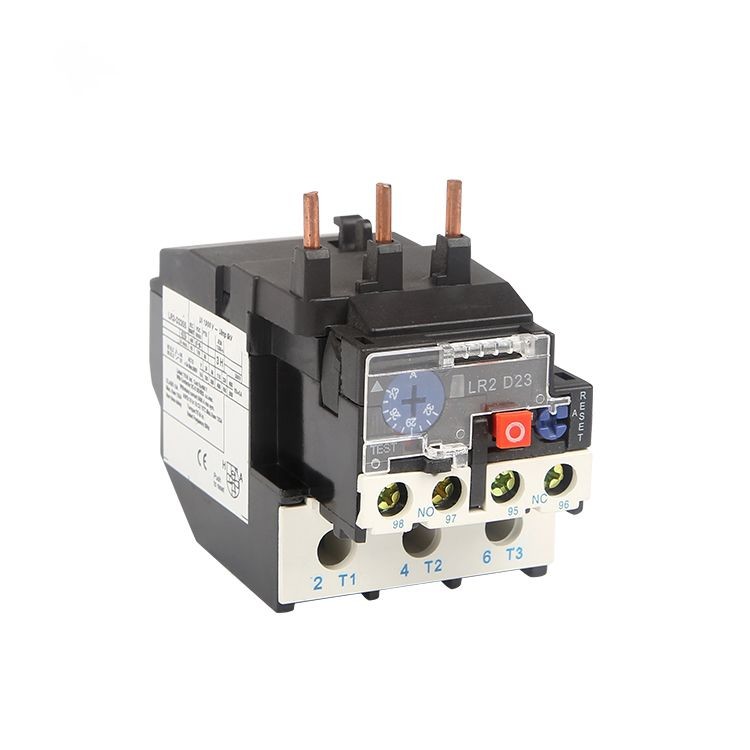

Frequency 50hz 60hz Motor Thermal Overload Relay Tripping Level 25A 0

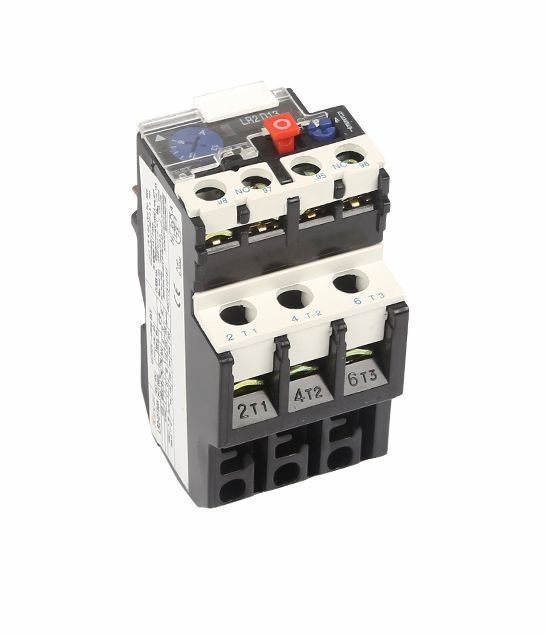

Frequency 50hz 60hz Motor Thermal Overload Relay Tripping Level 25A 1

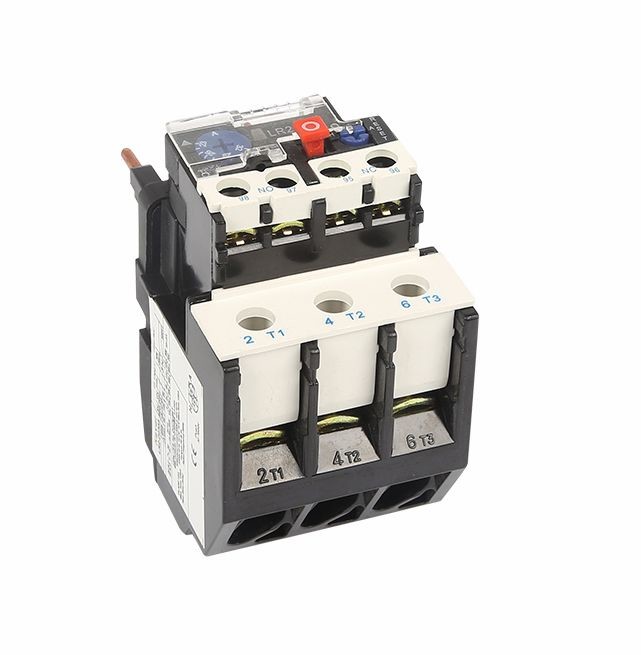

Frequency 50hz 60hz Motor Thermal Overload Relay Tripping Level 25A 2

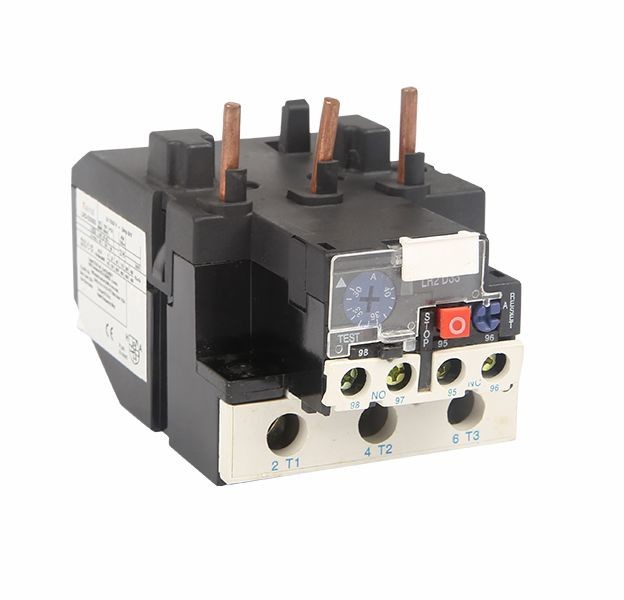

Frequency 50hz 60hz Motor Thermal Overload Relay Tripping Level 25A 3
