Product Details:
|
| Product Name: | 220V Thermal Overload Relay | Electricity Type: | AC |
|---|---|---|---|
| Contact Load: | Low Power | Rated Working Current: | 25 36 93A Seperately |
| Place Of Origin: | Place Of Origin | Color: | Black |
| High Light: | Protective Magnetic Thermal Overload Relay,Overload Relay Switch 93 Amp,Magnetic Relay Switch 240V |
||

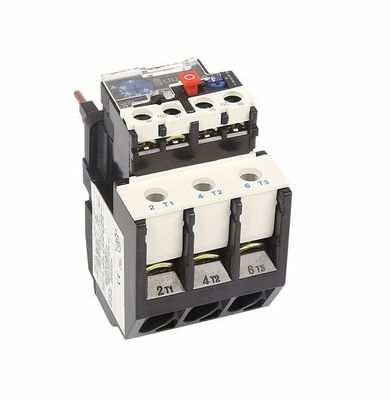

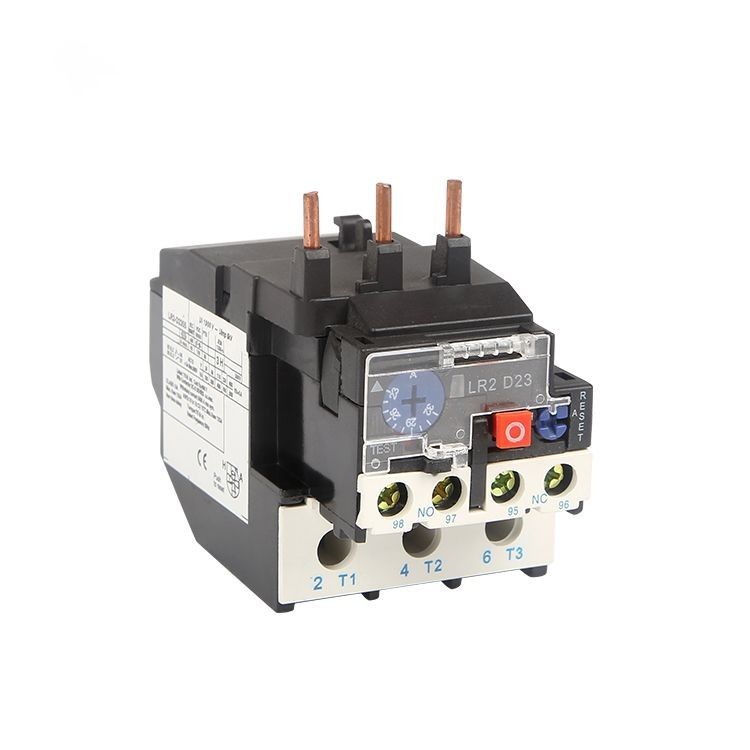

Protective Thermal Overload Relay 240 Volt 93amp Magnetic Relay Switch
Application:

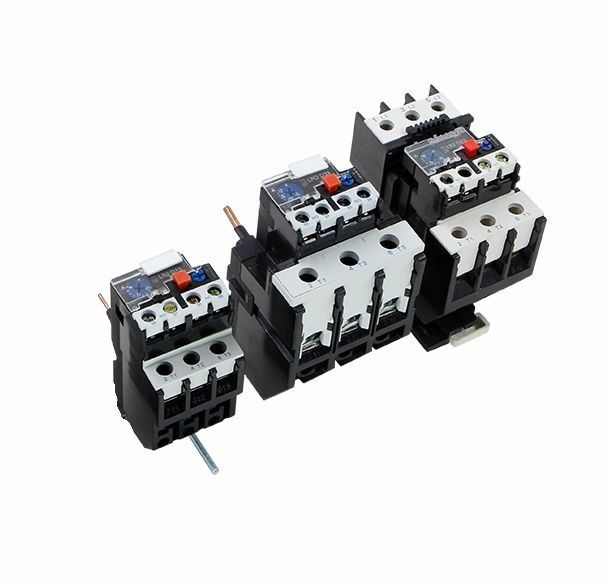

LR2-D series thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-93A for protecting the phase break when the electric motor is overload.
The relay has different mechanism and temperature compensation & can be pluged in LC1-D series AC contactor. It is the most advanced thermal relay in the nineties in the world.
A.Fundamental parameter of the main circuit
(a).Rated insulation voltage 660V.
(b).Rated working current 25,36,93A separately.
(c).The regulator seal of rated setting current and setting.
(d).Current of the thermal component(see list 1)
B.Auxiliary Circuit
(a).There is one pair of NO/ and N/C contact with electric insulation.
(b).Rated insulation voltage 500V.
(c).Rated frequency 50-60Hz.
(d).Use group, rated working voltage ,appoint thermal current and rated current.
Motion Characteristic: Three-phase Balance Motion Time
| No | Times of the setting current | Motion time | Start condition | Ambient temperature | ||
| 1 | 1.05 | >2h | Cold state | 20±5oC | ||
| 2 | 1.2 | <2h | Heat state(Following the No.1 test) | |||
| 3 | 1.5 | <4min | ||||
| 4 | 7.2 | 10A | 2s< Tp≤10s | ≤63A | Cold state | |
| 10 | 4s< Tp≤10s | >63A | ||||
Phase-losing Motion Characteristic
| No | Times of the setting current | Motion time | Start condition | Ambienttemperature | |
| Any two phases | Another phase | ||||
| 1 | 1.0 | 0.9 | >2h | Cold state | 20±5oC |
| 2 | 1.15 | 0 | <2h | Heat state(Following the No.1 test) |
|
| Type | Number | Setting range (A) | For contactor |
| LR2-D13 | 1301 | 0.1~0.16 | CJX2-09~32 |
| 1302 | 0.16~0.25 | CJX2-09~32 | |
| 1303 | 0.25~0.4 | CJX2-09~32 | |
| 1304 | 0.4~0.63 | CJX2-09~32 | |
| 1305 | 0.63~1 | CJX2-09~32 | |
| 1306 | 1~1.6 | CJX2-09~32 | |
| 1307 | 1.6~2.5 | CJX2-09~32 | |
| 1308 | 2.5~4 | CJX2-09~32 | |
| 1310 | 4~6 | CJX2-09~32 | |
| 1312 | 5.5~8 | CJX2-09~32 | |
| 1314 | 7~10 | CJX2-09~32 | |
| 1316 | 9~13 | CJX2-09~32 | |
| 1321 | 12~18 | CJX2-09~32 | |
| 1322 | 17~25 | CJX2-32 | |
| LR2-D25 | 2353 | 23~32 | CJX2-09~32 |
| 2355 | 30~40 | CJX2-09~32 | |
| LR2-D33 | 3322 | 17~25 | CJX2-09~32 |
| 3353 | 23~32 | CJX2-09~32 | |
| 3355 | 30~40 | CJX2-09~32 | |
| 3357 | 37~50 | CJX2-09~32 | |
| 3359 | 48~65 | CJX2-09~32 | |
| 3361 | 55~70 | CJX2-09~32 | |
| 3363 | 63~80 | CJX2-09~32 | |
| 3365 | 80~93 | CJX2-95 | |
| LR2-D43 | 4365 | 80~104 | CJX2-95 |
| 4367 | 95~120 | CJX2-95~115 | |
| 4369 | 110~140 | CJX2-115 |
| Type | Rated working current of thermal relay | Thermal component | ||
| Rated current(A) |
Rated or scale of rated current (A) |
|||
| LR2-D13 | 25 | LR2-D1301 | 0.16 | 0.10-0.16 |
| LR2-D1302 | 0.25 | 0.16-0.25 | ||
| LR2-D1303 | 0.4 | 0.25-0.40 | ||
| LR2-D1304 | 0.63 | 0.40-0.63 | ||
| LR2-D1305 | 1 | 0.63-1.0 | ||
| LR2-D1306 | 1.6 | 1.0-1.6 | ||
| LR2-D13x6 | 2 | 1.25-2.0 | ||
| LR2-D1307 | 2.5 | 1.6-2.5 | ||
| LR2-D1308 | 4 | 2.5-4.0 | ||
| LR2-D1310 | 6 | 4.0-6.0 | ||
| LR2-D1312 | 8 | 5.5-8.0 | ||
| LR2-D1314 | 10 | 7.0-10.0 | ||
| LR2-D1316 | 13 | 9.0-13.0 | ||
| LR2-D1321 | 18 | 12.0-18.0 | ||
| LR2-D1322 | 25 | 17.0-25.0 | ||
| LR2-D23 | 36 | LR2-D2353 | 32 | 23.0-32.0 |
| LR2-D2355 | 36 | 28.0-36.0 | ||
| LR2-D33 | 93 | LR2-D3353 | 32 | 23.0-32.0 |
| LR2-D3355 | 40 | 30.0-40.0 | ||
| LR2-D3357 | 50 | 37.0-50.0 | ||
| LR2-D3359 | 65 | 48.0-65.0 | ||
| LR2-D3361 | 70 | 55.0-70.0 | ||
| LR2-D3363 | 90 | 63.0-80.0 | ||
| LR2-D3365 | 93 | 80.0-93.0 | ||
