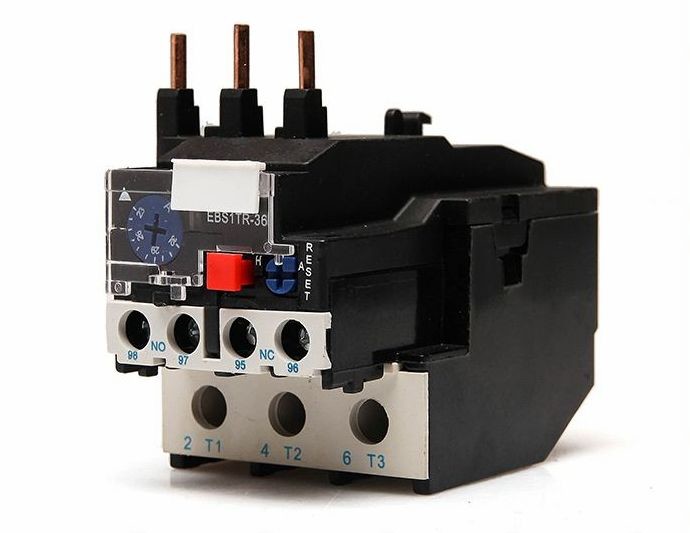

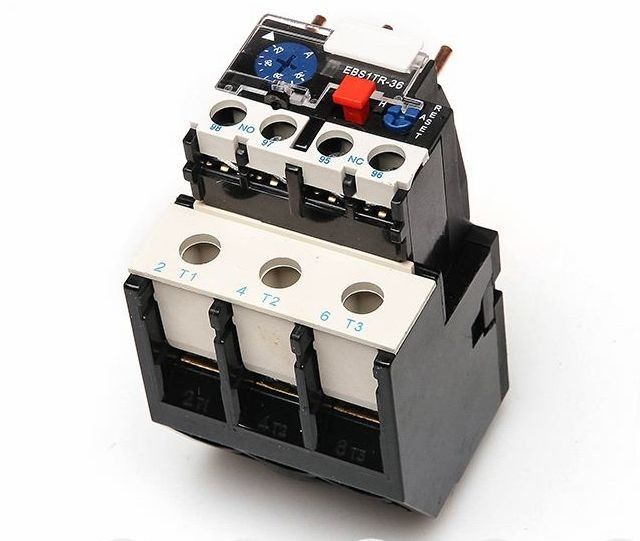

30A Thermal Overload Protection Relay 50A 80A LR2-D33 NO And NC Electromagnetic Relay

30A Thermal Overload Protection Relay 50A 80A LR2-D33 NO And NC Electromagnetic Relay
30A Thermal Overload Protection Relay 50A 80A LR2-D33 NO And NC Electromagnetic Relay 30A Thermal Overload Protection Relay 50A 80A LR2-D33 NO And NC Electromagnetic Relay

Large Image :  30A Thermal Overload Protection Relay 50A 80A LR2-D33 NO And NC Electromagnetic Relay

Product Details:
Place of Origin: China
Brand Name: YOKG
Certification: CE, Rohs
Model Number: LR2-D33
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Each unit be packed in one individual inner box
Delivery Time: 15days or Depends on ordering QTYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000pcs per Month

30A Thermal Overload Protection Relay 50A 80A LR2-D33 NO And NC Electromagnetic Relay

Description
Type: Thermal Relay Rated Current: 23-93A
Auxiliary: 1NO+1NC Rated Frequency: 50-60 Hz
Pins: 3 Color Of Buttom: Red And Blue
Application: Protect The Phase Break Product: Electric Relay
High Light:

30A Thermal Overload Protection Relay

,

LR2 D33 NO And NC Electromagnetic Relay

,

80A no nc contactor relay

30A 50A 80amp LR2-D33 Thermal Overload Protection Relay

Application:
LR2-D series thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-93A for protecting the phase break when the electric motor is overload.
The relay has different mechanism and temperature compensation & can be pluged in HC-D series AC contactor. It is the most advanced thermal relay in the nineties in the world.

Specifications:
♦ Fundamental parameter of the main circuit:
 Rated insulation voltage 660V
 Rated working current 25,36,93A separately
The regulator seal of rated setting current and setting
 Current of the thermal component

♦ Auxiliary circuit
  There are one pair of NO and NC contact with electric insulation
  Rated frequency 50-60Hz
  Use group, rated working voltage, appoint thermal current and rated current




Type Rated working current Thermal component
of thermal relay Rated current(A) Rated or scale of rated current (A)
LR2-D13 25 LR2-D1301 0.2 0.10-0.16
LR2-D1302 0.3 0.16-0.25
LR2-D1303 0.4 0.25-0.40
LR2-D1304 0.6 0.40-0.63
LR2-D1305 1.0 0.63-1.0
LR2-D1306 1.6 1.0-1.6
LR2-D13X6 2.0 1.25-2.0
LR2-D1307 2.5 1.6-2.5
LR2-D1308 4.0 2.5-4.0
LR2-D1310 6.0 4.0-6.0
LR2-D1312 8.0 5.5-8.0
LR2-D1314 10.0 7.0-10.0
LR2-D1316 13.0 9.0-13.0
LR2-D1321 18.0 12.0-18.0
LR2-D1322 25.0 17.0-25.0
LR2-D23 36 LR2-D2353 32.0 23.0-32.0
LR2-D2355 36.0 28.0-36.0
LR2-D33 93 LR2-D3353 32.0 23.0-32.0
LR2-D3355 40.0 30.0-40.0
LR2-D3357 50.0 37.0-50.0
LR2-D3359 65.0 48.0-65.0
LR2-D3361 70.0 55.0-70.0
LR2-D3363 90.0 63.0-80.0
LR2-D3365 93.0 80.0-93.0




Outline & mounting size:

30A Thermal Overload Protection Relay 50A 80A LR2-D33 NO And NC Electromagnetic Relay 0


30A Thermal Overload Protection Relay 50A 80A LR2-D33 NO And NC Electromagnetic Relay 1
30A Thermal Overload Protection Relay 50A 80A LR2-D33 NO And NC Electromagnetic Relay 2
