Product Details:
|
| Type: | Thermal Relay | Rated Current: | 23-93A |
|---|---|---|---|
| Auxiliary: | 1NO+1NC | Rated Frequency: | 50-60 Hz |
| Pins: | 3 | Color Of Buttom: | Red And Blue |
| High Light: | LR2 D33 thermal protection relay,93A thermal protection relay,3 Pins thermal overload breaker |
||

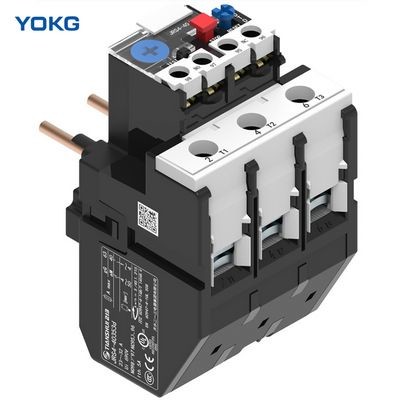

Thermal Overload Relay LR2-D33(JS28) 0.1-93A Protector In CE Certificate
Application:
LR2-D series thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-93A for protecting the phase break when the electric motor is overload.
The relay has different mechanism and temperature compensation & can be pluged in HC-D series AC contactor. It is the most advanced thermal relay in the nineties in the world.
Specifications:
♦ Fundamental parameter of the main circuit
♦ Rated insulation voltage 660V
♦ Rated working current 25,36,93A separately
♦ The regulator seal of rated setting current and setting
♦ Current of the thermal component
♦ Auxiliary circuit
♦ There are one pair of NO and NC contact with electric insulation
♦ Rated frequency 50-60Hz
♦ Use group, rated working voltage, appoint thermal current and rated current
| Type | Number | Setting Range(A) | For Contavtor |
| LR2-D33 | 3353 | 23~32 | CJX2-40~95 |
| 3355 | 30~40 | CJX2-40~95 | |
| 3357 | 37~50 | CJX2-50~95 | |
| 3359 | 48~65 | CJX2-50~95 | |
| 3361 | 55~70 | CJX2-65~95 | |
| 3363 | 63~80 | CJX2-80~95 | |
| 3365 | 80~93 | CJX2-80~95 |
Outline & mounting size:
