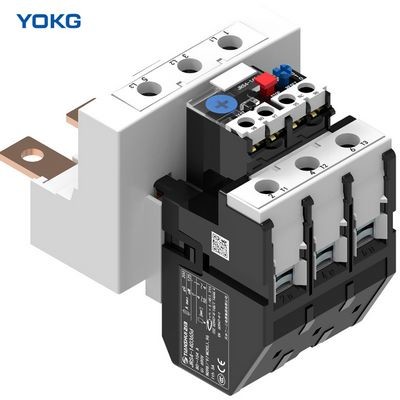

LR2-D23 Thermal Overload Relay 660V 25A 36 Amp 40 Amp 3 Pins

LR2-D23 Thermal Overload Relay 660V 25A 36 Amp 40 Amp 3 Pins
Features Gallery Product Description Request A Quote
Type: Thermal Relay
Rated Current: 23-40A
Auxiliary: 1NO+1NC
Rated Frequency: 50-60 Hz
Protection: Overload
Pins: 3
High Light:

LR2-D23 Thermal Overload Relay


Thermal Overload Relay 660V


3 Pins Thermal Overload Protector

Basic Infomation
Place of Origin: China
Brand Name: YOKG
Certification: CE
Model Number: LR2-D23
Payment & Shipping Terms
Packaging Details: Each unit be packed in one individual inner box
Delivery Time: 15days or Depends on ordering QTYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000pcs per Month
Product Description

Thermal Overload Relay LR2-D23(JS28) 660V 25A 36 Amp 40amp Protector




LR2-D series thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-93A for protecting the phase break when the electric motor is overload.


The relay has different mechanism and temperature compensation & can be pluged in HC-D series AC contactor. It is the most advanced thermal relay in the nineties in the world.




♦ Fundamental parameter of the main circuit

♦ Rated insulation voltage 660V

♦ Rated working current 25,36,93A separately

♦ The regulator seal of rated setting current and setting

♦ Current of the thermal component

♦ Auxiliary circuit

♦ There are one pair of NO and NC contact with electric insulation

♦ Rated frequency 50-60Hz

♦ Use group, rated working voltage, appoint thermal current and rated current



Type Number Setting Range(A) For Contactor
LR2-D23 2353 23~32 CJX2-25~32
2355 30~40 CJX2-25~32



Outline & mounting size:


LR2-D23 Thermal Overload Relay 660V 25A 36 Amp 40 Amp 3 Pins 0
