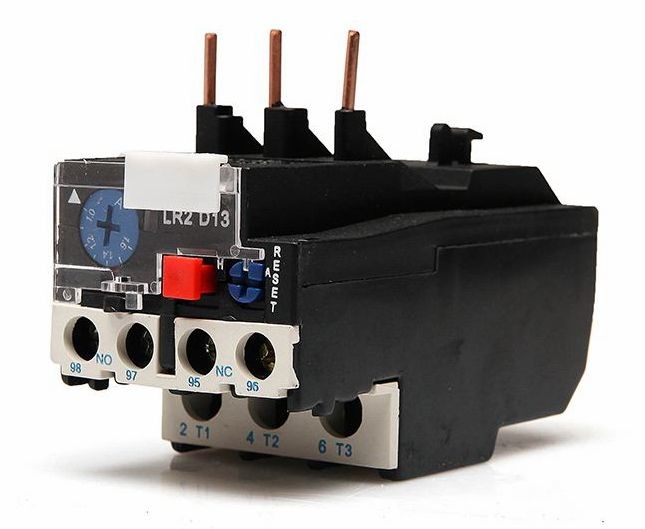

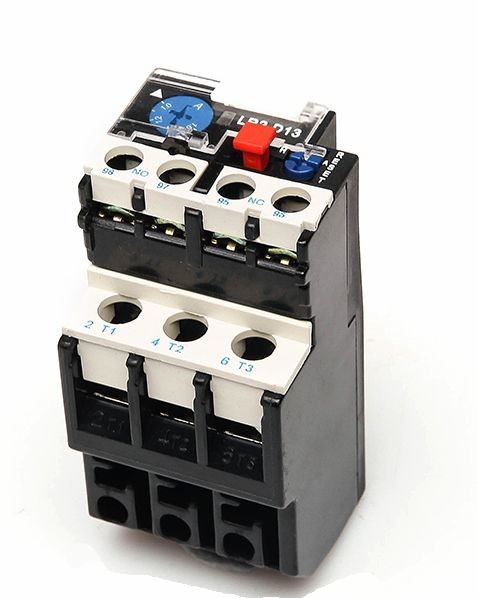

LR2 Series Electronic Thermal Overload Relay 25A For AC Contactor

100PCS
MOQ
Negotiable
Price
LR2 Series Electronic Thermal Overload Relay 25A For AC Contactor
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Thermal Relay
Rated Current: 0.1-93A
Auxiliary: 1NO+1NC
Rated Frequency: 50-60 Hz
Usage: With AC Contactor
Rated Insulation Voltage: 660V
Size: Miniature
Contact: Low Power
Standard: CE, Rohs
OEM: Available
High Light:

LR2 Electronic Thermal Overload Relay

,

Thermal Overload Relay 25A

,

LR2 Contactor Overload Relay

Basic Infomation
Place of Origin: China
Brand Name: YOKG
Certification: CE
Model Number: LR2-D13
Payment & Shipping Terms
Packaging Details: Each unit be packed in one individual inner box
Delivery Time: 15days or Depends on ordering QTYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000pcs per Month
Product Description

2021 New LR2 Series 25A Safety Thermal Type Of Electrical Relay For AC Contactor





Application:

LR2-D series thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-93A for protecting the phase break when the electric motor is overload.

The relay has different mechanism and temperature compensation & can be pluged in HC-D series AC contactor. It is the most advanced thermal relay in the nineties in the world.





Specifications:

1. Fundamental parameter of the main circuit

  • Rated insulation voltage 660V
  • Rated working current 25, 36, 93A separately
  • The regulator seal of rated setting current and setting

2. Auxiliary circuit

  • There is one pair of NO/and N/C contact with electric insulation
  • Rated insulation voltage 500V
  • Rated frequency 50-60Hz
  • Use group, rated working voltage, appoint thermal current and rated current.



Type Number Setting Range(A)
LR2-D13 1301 0.10~0.16
1302 0.16~0.25
1303 0.25~0.40
1304 0.40~0.63
1305 0.63~1
1306 1~1.6
1307 1.6~2.5
1308 2.5~4
1310 4~6
1312 5.5~8
1314 7~10
1316 9~13
1321 12~18
1322 17~25





Outline & mounting size:

LR2 Series Electronic Thermal Overload Relay 25A For AC Contactor 0





Packing and Delivery:

LR2 Series Electronic Thermal Overload Relay 25A For AC Contactor 1



LR2 Series Electronic Thermal Overload Relay 25A For AC Contactor 2



LR2 Series Electronic Thermal Overload Relay 25A For AC Contactor 3



Why Choose Us:

--------------------------------------------------

a. Reply your inquiry in 24 working hours.
b. Technical and professional guidance.
c. Best quality and best price.

We maintain excellent products and strive for 100% customer satisfaction. A good feedback is very important, we welcome for your kind suggestion or feedback on goods and our service.
