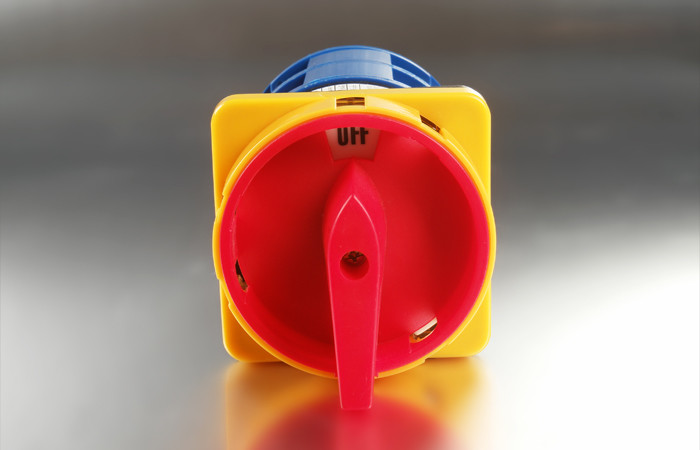

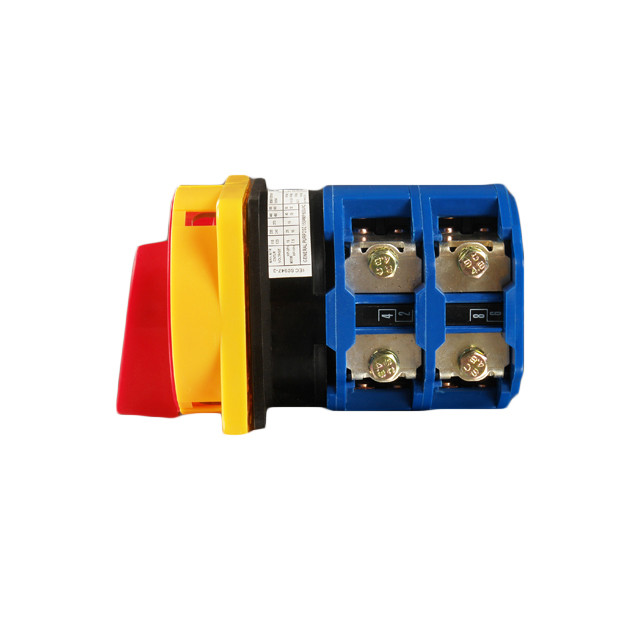

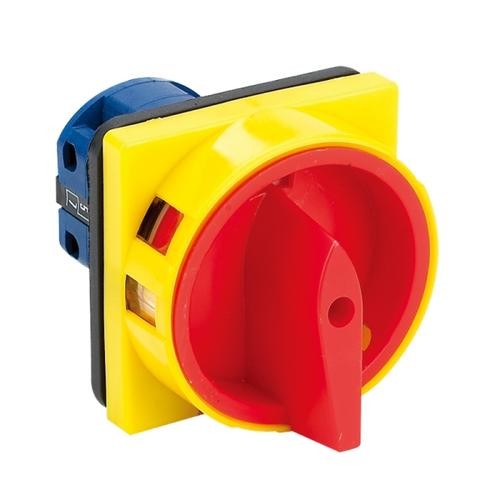

3 phase changeover 40amp 3P rotary switch
Scope:
YG11 is the product of introducing foreign advanced technology development, small volume ,most secure and reliable performance, it's a load breaker switch that suitable for ventilation, air conditioning and water pump system, and industrial equipment switch use for insulation and security isolation, equivalent foreign KG20-KG100 load breaker switch.
Normal Working Conditions:
1. Ambient air temperature ≤ +40℃,
2. Installation site altitude ≤ 2000m.
Fixed pore size:
| Switch | Type | Pole | A | B | Cam | D1 | D2 | F | G | H | L |
| YG11-25 YG11-32 |
ON-OFF | 3P | 64 | 48 | 4 | 4 | 22 | 42 | 54 | 62 | |
| ON-OFF | 4P | 64 | 48 | 4 | 4 | 22 | 56 | - | 54 | 62 | |
| ON-OFF | 3P+N | 64 | 48 | 4 | 4 | 22 | 56 | - | 54 | 62 | |
| ON-OFF | 3P+N+E | 64 | 48 | 4 | 4 | 22 | 69 | - | 54 | 62 | |
| ON-OFF | 6P | 64 | 48 | 4 | 4 | 22 | - | 84 | 54 | 62 | |
| YG11-40 YG11-63 |
ON-OFF | 3P | 64 | 48 | 4 | 4 | 22 | 50 | - | 64 | 67 |
| ON-OFF | 4P | 64 | 48 | 4 | 4 | 22 | 66 | - | 64 | 67 | |
| ON-OFF | 3P+N | 64 | 48 | 4 | 4 | 22 | 66 | - | 64 | 67 | |
| ON-OFF | 3P+N+E | 64 | 48 | 4 | 4 | 22 | 82 | - | 64 | 67 | |
| ON-OFF | 6P | 64 | 48 | 4 | 4 | 22 | -- | 100 | 64 | 67 | |
| YG11-80 YG11-100 |
ON-OFF | 3P | 64 | 48 | 4 | 5.5 | 22 | 70 | - | 80 | 82 |
| ON-OFF | 4P | 64 | 48 | 4 | 5.5 | 22 | 92 | - | 80 | 82 | |
| ON-OFF | 3P+N+E | 64 | 48 | 4 | 5.5 | 22 | 104 | - | 80 | 82 | |
| ON-OFF | 6P | 64 | 48 | 4 | 5.5 | 22 | -- | 140 | 80 | 82 |
Type designation:
Product Features:
1. Security
Insulation distance of the switch contact point is large, to achieve 13-14mm, exceeds the safety requirements VDE0113. in many cases, the security level of the switch exceeds the existing world of various circuit interrupter.
2.Flexible installation type
Switches can be applied panel type, you can also apply bottom mount, the base mounting type can be easily and securely with screws or 35mm rail mounting. switching system has strong flexibility and adaptability to add additional contacts and neutral terminals,you can not remove the switch could increase the adaptability additional contacts easily,
3. Easy installation
The built-in screw to prevent slipping manual, benefiting to pneumatic or electric tools to facilitate the best performance and ensure safety and speed at
installation.
Main technical parameters:
Panel mounting:
| Model No. | Dimensions(mm) | Mounting dimensions(mm) | |||||||
| A | B | C | K | L | E | F | D1 | D2 | |
| YG11-25 | 64 | 42 | 54 | 13.5 | 61 | 48 | 48 | ø20 | ø4.2 |
| YG11-32 | 64 | 42 | 54 | 13.5 | 61 | 48 | 48 | ø20 | ø4.2 |
| YG11-40 | 64 | 50 | 64 | 16 | 67 | 48 | 48 | ø20 | ø4.2 |
| YG11-63 | 64 | 50 | 64 | 16 | 67 | 48 | 48 | 20 | Ø4.2 |
| YG11-80 | 64 | 70 | 80 | 22.5 | 82 | 48 | 48 | ø20 | ø4.2 |
| YG11-100 | 64 | 70 | 80 | 22.5 | 82 | 48 | 48 | ø20 | ø4.2 |
