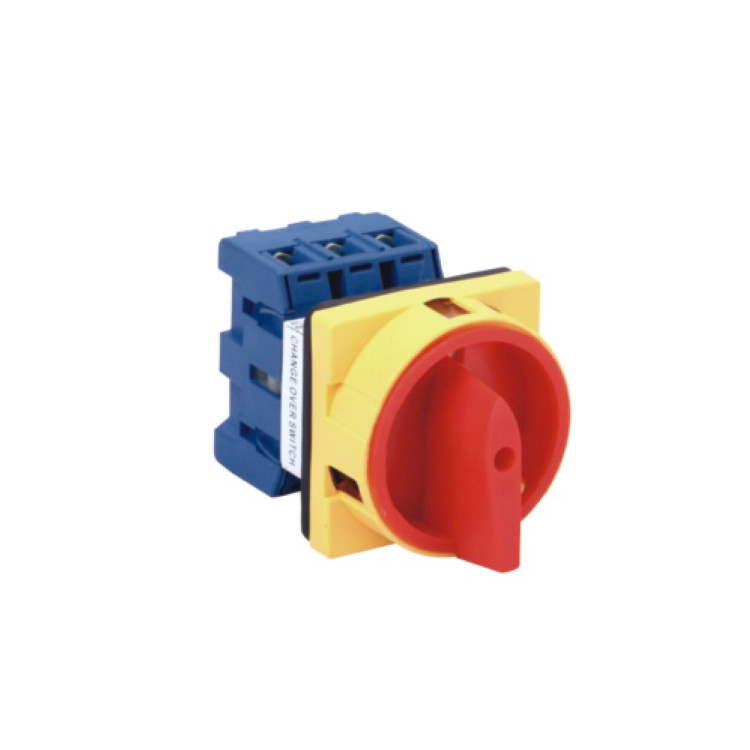

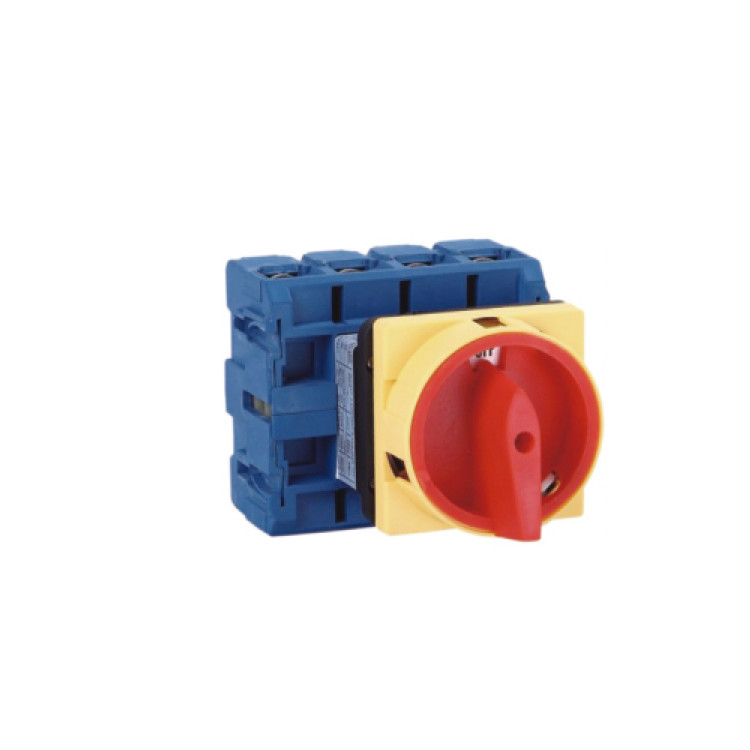

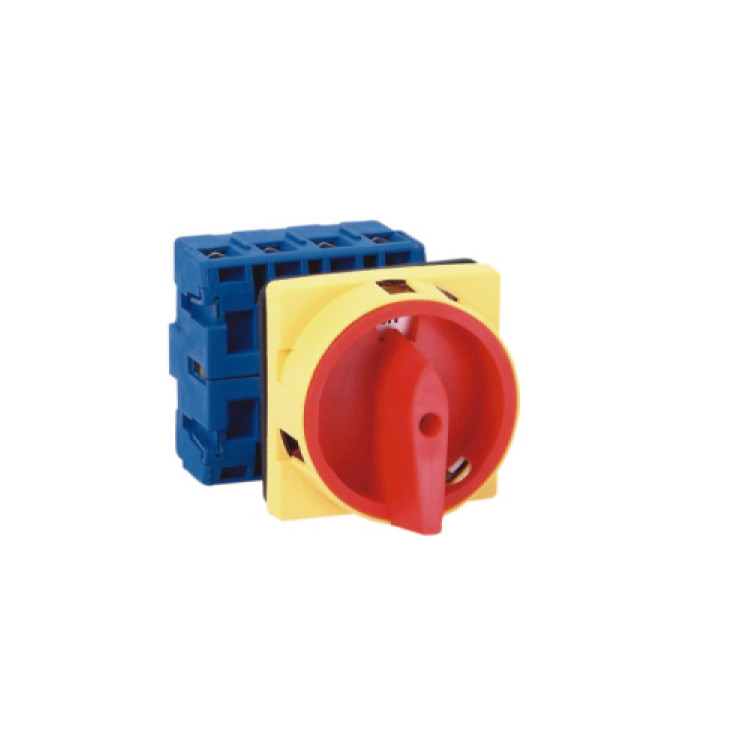

Engine Electrical 3 Position 25A 100A Rotary Automatic Cam Changeover Switch
Scope:
YG11 is the product of introducing foreign advanced technology development, small
volume ,most secure and reliable performance, it's a load breaker switch that suitable for ventilation, air conditioning and water pump system, and industrial equipment switch use for insulation and security isolation, equivalent foreign KG20-KG100 load breaker switch.
Normal Working Conditions:
1.The ambient air temperature does not exceed +40℃,the average temperature
within 24 hours and not more than +35℃.
2. The ambient air temperature is not lower than-5℃.
3.Installation site altitude does not exceed 2000m.
4. The relative humidity of the air no more than 50% when the maximum
temperature is +40℃ and at a lower temperature allows a higher relative humidity, such as when temperature is 20℃ the relative humidity reach 90%. To condensation occasionally due to temperature changes should take special measures.
Type designation:
Product Features:
1. Security
Insulation distance of the switch contact point is large, to achieve 13-14mm, exceeds the safety requirements VDE0113. in many cases, the security level of the switch exceeds the existing world of various circuit interrupter.
2.Flexible installation type
Switches can be applied panel type, you can also apply bottom mount, the base mounting type can be easily and securely with screws or 35mm rail mounting. switching system has strong flexibility and adaptability to add additional contacts and neutral terminals,you can not remove the switch could increase the adaptability additional contacts easily,
3. Easy installation
The built-in screw to prevent slipping manual, benefiting to pneumatic or electric tools to facilitate the best performance and ensure safety and speed at
installation.
Fixed pore size:
| Switch | Type | Pole | A | B | Cam | D1 | D2 | F | G | H | L |
| YG11-25 YG11-32 |
ON-OFF | 3P | 64 | 48 | 4 | 4 | 22 | 42 | - | 54 | 62 |
| ON-OFF | 4P | 64 | 48 | 4 | 4 | 22 | 56 | - | 54 | 62 | |
| ON-OFF | 3P+N | 64 | 48 | 4 | 4 | 22 | 56 | - | 54 | 62 | |
| ON-OFF | 3P+N+E | 64 | 48 | 4 | 4 | 22 | 69 | - | 54 | 62 | |
| ON-OFF | 6P | 64 | 48 | 4 | 4 | 22 | - | 84 | 54 | 62 | |
| YG11-40 YG11-63 |
ON-OFF | 3P | 64 | 48 | 4 | 4 | 22 | 50 | - | 64 | 67 |
| ON-OFF | 4P | 64 | 48 | 4 | 4 | 22 | 66 | - | 64 | 67 | |
| ON-OFF | 3P+N | 64 | 48 | 4 | 4 | 22 | 66 | - | 64 | 67 | |
| ON-OFF | 3P+N+E | 64 | 48 | 4 | 4 | 22 | 82 | - | 64 | 67 | |
| ON-OFF | 6P | 64 | 48 | 4 | 4 | 22 | - | 100 | 64 | 67 | |
| YG11-80 YG11-100 |
ON-OFF | 3P | 64 | 48 | 4 | 5.5 | 22 | 70 | - | 80 | 82 |
| ON-OFF | 4P | 64 | 48 | 4 | 5.5 | 22 | 92 | - | 80 | 82 | |
| ON-OFF | 3P+N+E | 64 | 48 | 4 | 5.5 | 22 | 104 | - | 80 | 82 | |
| ON-OFF | 6P | 64 | 48 | 4 | 5.5 | 22 | - | 140 | 80 | 82 |
Main technical parameters:
Panel mounting:
| Model No. | Dimensions(mm) | Mounting dimensions(mm) | |||||||
| A | B | C | K | L | E | F | D1 | D2 | |
| YG11-25 | 64 | 42 | 54 | 13.5 | 61 | 48 | 48 | ∅20 | ∅4.2 |
| YG11-32 | 64 | 42 | 54 | 13.5 | 61 | 48 | 48 | ∅20 | ∅4.2 |
| YG11-40 | 64 | 50 | 64 | 16 | 67 | 48 | 48 | ∅20 | ∅4.2 |
| YG11-63 | 64 | 50 | 64 | 16 | 67 | 48 | 48 | ∅20 | ∅4.2 |
| YG11-80 | 64 | 70 | 80 | 22.5 | 82 | 48 | 48 | ∅20 | ∅4.2 |
| YG11-100 | 64 | 70 | 80 | 22.5 | 82 | 48 | 48 | ∅20 | ∅4.2 |
