Product Details:
|
| Product: | Rotary Changeover Switch | Protection Degree: | IP65 |
|---|---|---|---|
| Rated Current: | 16A,20A, 25A, 32A,40A,63A,100A | Maximum Operating Frequency/h: | 50 |
| Ambient Temperature: | -25~+50 | Rated Frequency: | 50-60Hz |
| High Light: | 100 amp Rotary Changeover Switch,IP65 Rotary Changeover Switch,IP65 Rotary Cam Switch |
||

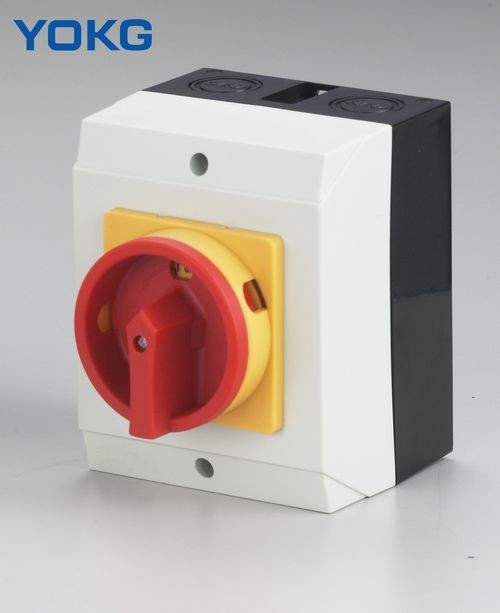

IP65 16~100A Rotary Changeover Switch Electrical Switch With CE SEMKO CCC VDE Certificate
Applications:
Rotary Changeover Switch Can be applied to: ON-OFF Switches, Emergency-Off Switches, Maintenance Switches, Safety Switches, Distribution Switches, and Motor switches
Specifications:
| Model No. | YG12 |
| Rated Current | 16A,20A, 25A, 32A,40A,63A,100A |
| Protection degree | IP65 |
| Maximum operating frequency/h | 50 |
| Ambient temperature | -25~+50 |
| Rated frequency |
50-60Hz |
Dimensions:
Surface mounting Dimensions Hole cutting Dimensions
| Model | Boundry Dimensions | Mounting Dimensions | ||||
| P (mm) | N(mm) | M (mm) | C (mm) | A1 (mm) | A2(mm) | |
| YG12-16 | 100 | 80 | 65 | 35 | 60 | 90 |
| YG12-20 | 100 | 80 | 65 | 35 | 60 | 90 |
| YG12-25 | 125 | 100 | 85 | 35 | 60 | 115 |
| YG12-32 | 125 | 100 | 85 | 35 | 60 | 115 |
| YG12-40 | 175 | 114 | 100 | 35 | 60 | 165 |
| YG12-63 | 175 | 114 | 100 | 35 | 60 | 165 |
| YG12-100 | 240 | 160 | 120 | 45 | 142 | 193 |
