Product Details:
|
| Product: | Sealed Power Cut Off Switch | Rated Current: | 20A,25A,32A,63A,125A,160A |
|---|---|---|---|
| Mechanical Life: | 100000, 120/hour | Max Voltage: | 690V |
| Origin: | Wenzhou | Color: | White |
| High Light: | 20A Rotary Changeover Switch,Rotary Changeover Switch 690V,125A Sealed Power Cut Off Switch |
||

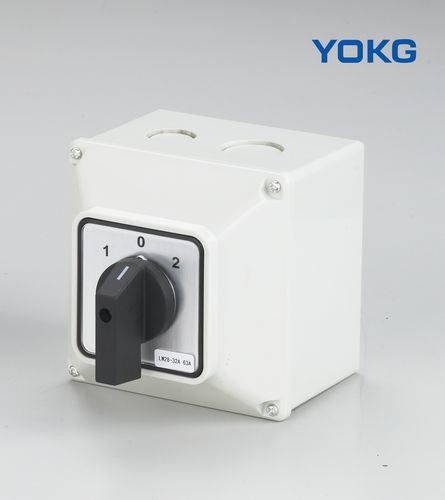

20 Amp Rotary Changeover Switch 125A Sealed Power Cut Off Switch
Rotary Changeover Switch used for manual infrequent switching or breaking circuit for control and conversion, and can also be used for direct control of three-phase asynchronous motors, master control and circuit measurement.
The products are widely used as circuit control switch, test equipment switch, motor control switch and master control switch, and welding machine switch, etc.
Main technical parameters:
| Model No. | Dimensions | Mounting dimensions(mm) | ||||||||
| A | B1 | B2 | C1 | C2 | D1 | D2 | D3 | E | F | |
| LW28-20 | 68.5 | 35.5 | 25.5 | 6.5 | ∅18 | ∅5 | 44 | |||
| LW28-20 | 68.5 | 45 | 25.5 | 6.5 | ∅18 | ∅5 | 44 | |||
| LW28-20 | 68.5 | 35.5 | 32.5 | 6.5 | ∅18 | ∅5 | 44 | |||
| LW28-20 | 68.5 | 45 | 32.5 | 6.5 | ∅18 | ∅5 | 44 | |||
| LW28-25 | 68.5 | 35.5 | 25.5 | 6.5 | ∅18 | ∅5 | 44 | |||
| LW28-25 | 68.5 | 45 | 25.5 | 6.5 | ∅18 | ∅5 | 44 | |||
| LW28-25 | 68.5 | 35.5 | 32.5 | 6.5 | ∅18 | ∅5 | 44 | |||
| LW28-25 | 68.5 | 45 | 32.5 | 6.5 | ∅18 | ∅5 | 44 | |||
| LW28-32 | 113 | 70.5 | 35.5 | 18 | 23.5 | ∅27 | ∅21 | ∅5 | 78 | |
| LW28-63 | 113 | 100.5 | 35.5 | 18 | 23.5 | ∅27 | ∅21 | ∅5 | 78 | |
| LW28-125 | 148 | 92 | 45 | 22 | 25 | ∅30 | ∅21 | ∅5 | 107 | 48 |
| LW28-160 | 148 | 152 | 45 | 22 | 25 | ∅30 | ∅21 | ∅5 | 107 | 48 |
Packing and Delivery:
Why Choose Us:
-----------------------------------------
a. Reply your inquiry in 24 working hours.
b. Technical and professional guidance.
c. Best quality and best price.
We maintain excellent products and strive for 100% customer satisfaction. A good feedback is very important, we welcome for your kind suggestion or feedback on goods and our service.
