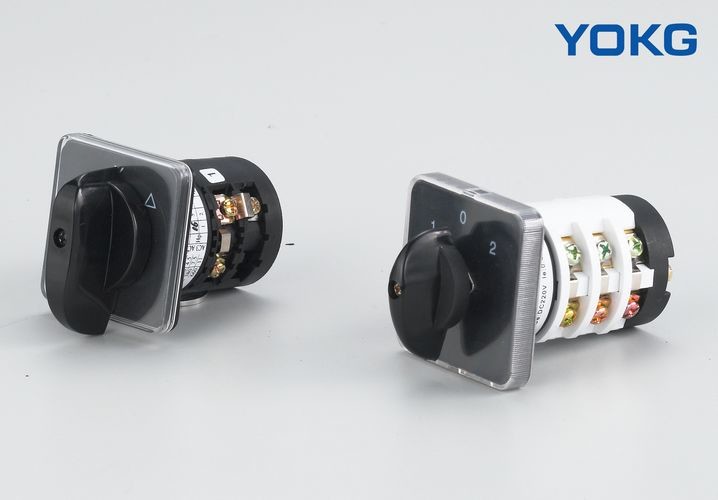

YOKG YG9 Series Universal Changeover Switch 01234 Position 20~75A OEM Switch
Scope of application:
YG9 is mainly used for switch cabinet or three-phase asynchronous motor load start variable speed steering and as the main circuit and auxiliary circuit conversion, can completely replace other conversion switches.
| Model No. | Panel specification (A) |
Overall dimensions(mm) | Mounting dimensions(mm) | |||||||||
| C | H | L | B | D1 | D2 | S | F | G | D3 | T | ||
| YG9-20 | 口54 | ø44 | 38 | 25+12n | 32 | ø9.5 | ø3.2 | 1.5 | 35 | ø45 | ø4.5 | 6 |
| YG9-20 | 口72 | ø44 | 38 | 25+12n | 32 | ø9.5 | ø3.2 | 1.5 | 58 | ø45 | ø4.5 | 6 |
| YG9-25 | 口72 | ø59 | 36 | 23+13n | 33 | ø9.5 | ø3.2 | 1.5 | 58 | ø64 | ø4.5 | 6 |
| YG9-25 | 口105 | ø59 | 53 | 23+13n | 33 | ø9.5 | ø3.2 | 1.5 | 85 | ø64 | ø4.5 | 6 |
| YG9-32 | 口72 | ø59 | 36 | 23+18n | 33 | ø9.5 | ø3.2 | 1.5 | 58 | ø64 | ø4.5 | 6 |
| YG9-32 | 口105 | ø59 | 53 | 23+18n | 33 | ø9.5 | ø3.2 | 1.5 | 85 | ø64 | ø4.5 | 6 |
| YG9-50 | 口105 | ø80 | 53 | 34+18n | 46 | ø13 | ø5.3 | 3 | 85 | ø90 | ø5.5 | 8 |
| YG9-75 | 口105 | ø80 | 53 | 34+27n | 46 | ø13 | ø5.3 | 3 | 85 | ø90 | ø5.5 | 8 |
Main technical parameters:
| Model | YG9-20 | YG9-25 | YG9-32 | YG9-50 | YG9-75 | ||||||||||||||||||||
| Comenticnal heating current |
A | 20 | 25 | 32 | 50 | 75 | |||||||||||||||||||
| Rated voltage | V | 110 | 220 | 440 | 110 | 220 | 440 | 500 | 690 | 110 | 220 | 440 | 500 | 690 | 110 | 220 | 440 | 500 | 690 | 110 | 220 | 440 | 500 | 690 | |
| Rated current |
AC-21A | A | 20 | 25 | 32 | 50 | 75 | ||||||||||||||||||
| AC-22A | A | 16 | 20 | 32 | 40 | 63 | |||||||||||||||||||
| DC-20 | A | 20 | 25 | 32 | 50 | 75 | |||||||||||||||||||
| Rated control powEr |
AC-23A | KW | 5 | 7.5 | 11 | 15 | 11 | 18.5 | 22 | 15 | 22 | 30 | 18.5 | 30 | 37 | ||||||||||
| AC-4 | KW | 4 | 7.5 | 5.5 | 7.5 | 11 | 7.5 | 15 | 18.5 | 11 | 18.5 | 22 | 15 | 22 | 30 | ||||||||||
| AC-4 | KW | 22 | 5.5 | 2.2 | 4 | 4 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 9 | 7.5 | 11 | 15 | ||||||||||
| DC-23 | KW | 12 | 3 | 2.2 | 2 | 2.2 | 3 | 6 | 8 | ||||||||||||||||
Product model and implication:
Overall dimensions and mounting dimensions:
Certificates:
Packing and Delivery:
Why Choose Us:
---------------------------------------------
a. Reply your inquiry in 24 working hours.
b. Technical and professional guidance.
c. Best quality and best price.
We maintain excellent products and strive for 100% customer satisfaction. A good feedback is very important, we welcome for your kind suggestion or feedback on goods and our service.
