IEC 60947-4-1 230V Din Rail Screw Mini AC Contactor 24/48V 50/60Hz
Product Overview
The 3 Pole AC Contactor is a highly reliable and efficient electrical device designed to control and switch AC power circuits in various industrial and commercial applications. Engineered to meet IEC60947-4 standards, this AC magnetic contactor ensures optimal performance, safety, and durability. Its robust construction and versatile features make it ideal for controlling motors, lighting, heating, and other electrical loads.
Key Features
- Product Name: 3 Pole AC Contactor
- 3 phase AC magnetic Mini contactor
- Insulation Voltage: 690VAC
- Installation Method: Screw or DIN Rail
- Rated Current Options: 6A, 9A, 12A, 16A
- Rated Operational Voltage: 220VAC
- Number of Auxiliary Contacts: 4 (1NO or 1NC configuration included)
Industrial Applications
The YOKG 3 Pole AC Contactor series, including models CJX2-K06, CJX2-K09, CJX2-K12, and CJX2-K16, is expertly designed for a wide range of industrial and commercial applications.
In industrial settings, these contactors are commonly employed to start and stop three-phase motors, ensuring smooth operation and protecting electrical circuits from overloads. They are also used in conveyor systems, pumps, compressors, and other machinery where reliable and frequent switching is needed. The compact design combined with IP20 protection level allows for easy installation in control panels and electrical cabinets, making them suitable for both new installations and retrofit projects.
Technical Specifications
| Connection Circuits |
Type |
CJX2-K06 |
CJX2-K09 |
CJX2-K12 |
CJX2-K16 |
| Coil Voltage(V) |
AC 50Hz/60Hz |
24,36,48,110,220,230,240,380,400,415,440 |
| Acting Range |
Attraction(Hot) |
(85%~110%)Us; +40℃ |
| Acting Range |
Release(Cold) |
AC:(20%~75%)Us, DC:(10%~75%)Us;-5℃ |
| Installation |
35mm DIN rail or screw(M4) |
| Connection |
Main Contact |
Screw(M3) |
| Connection |
Aux.Contact/Coil |
Screw(M3) line-pressed terminal |

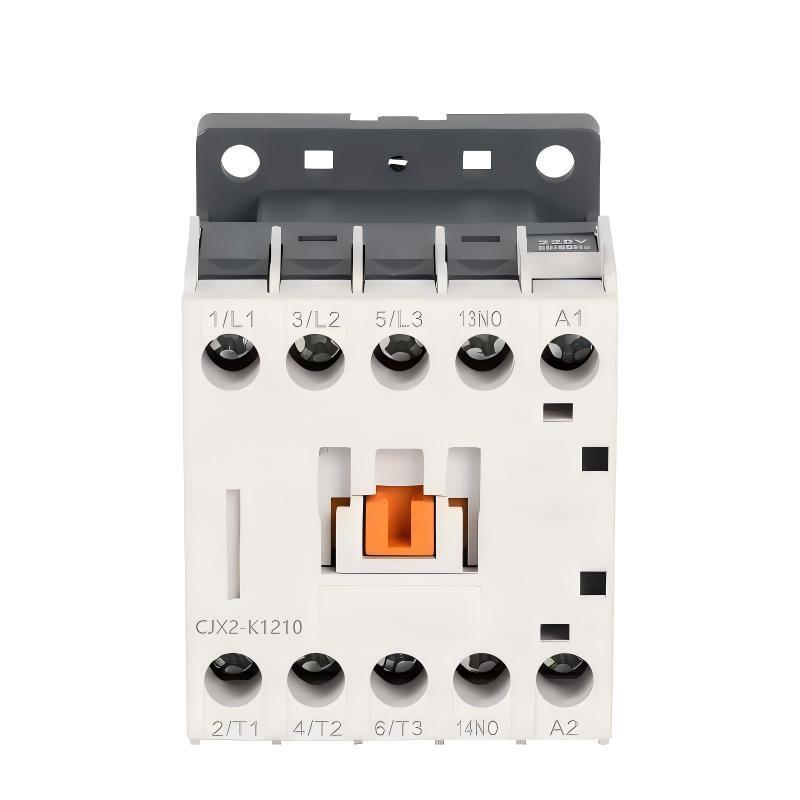

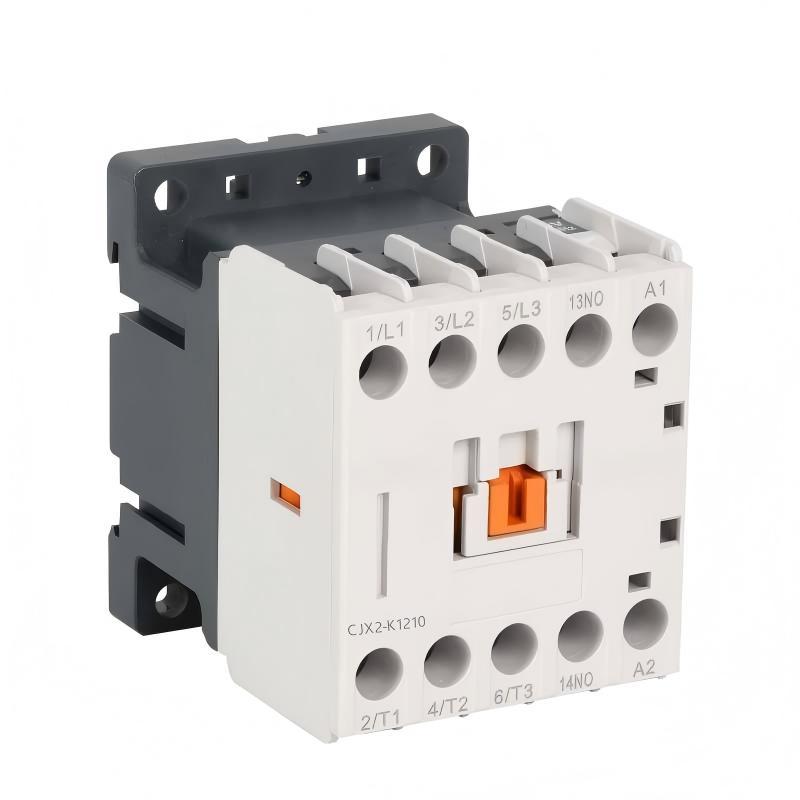

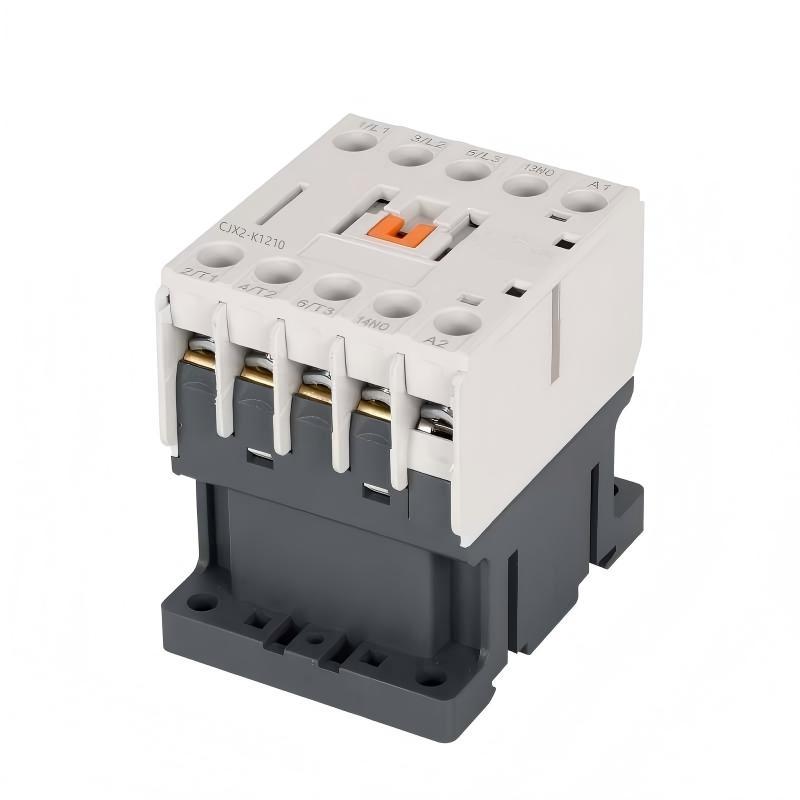

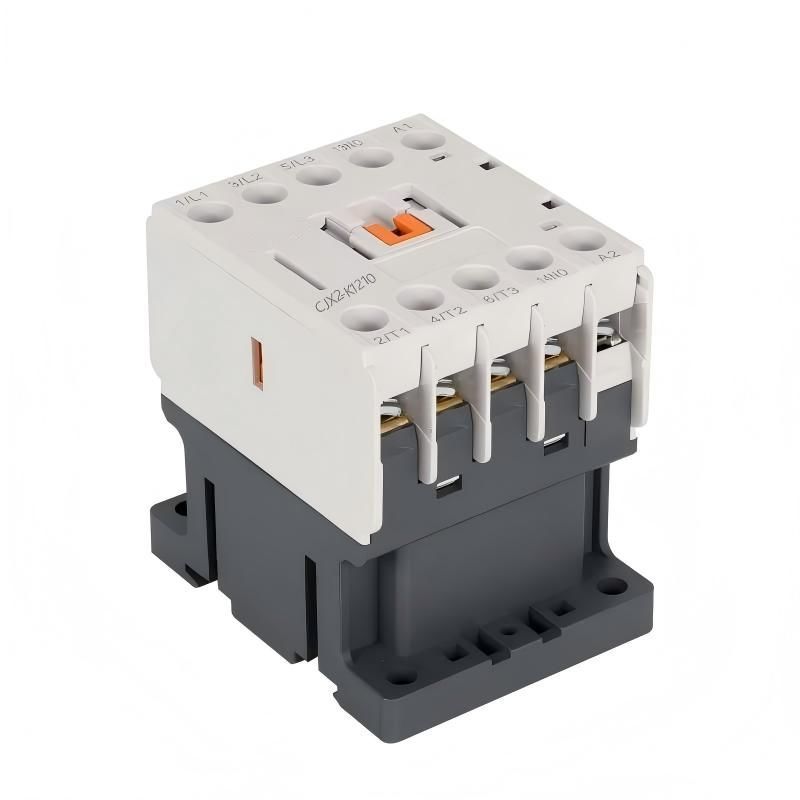

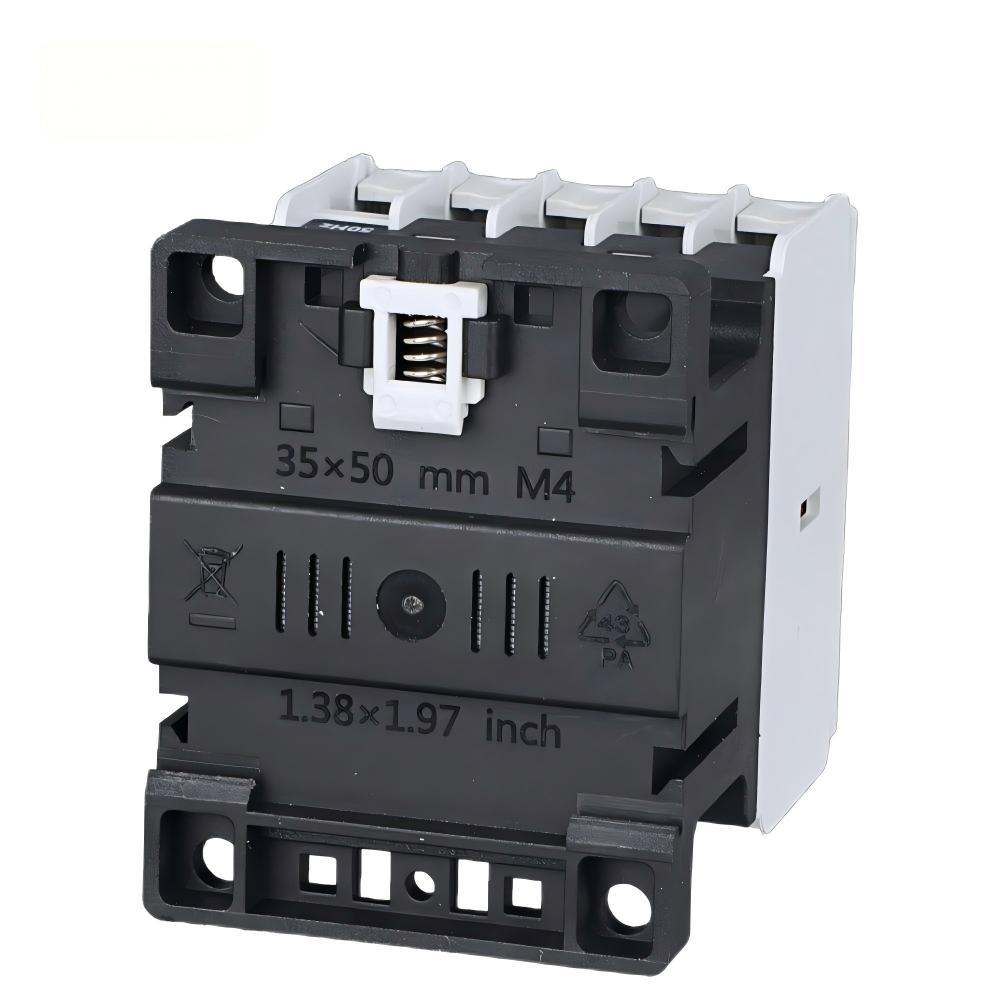

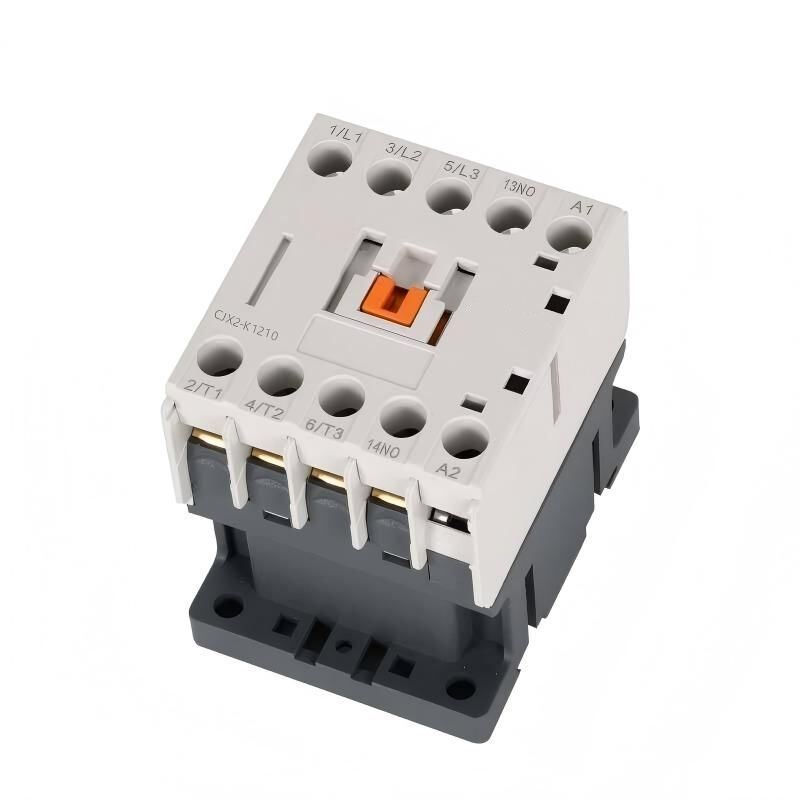

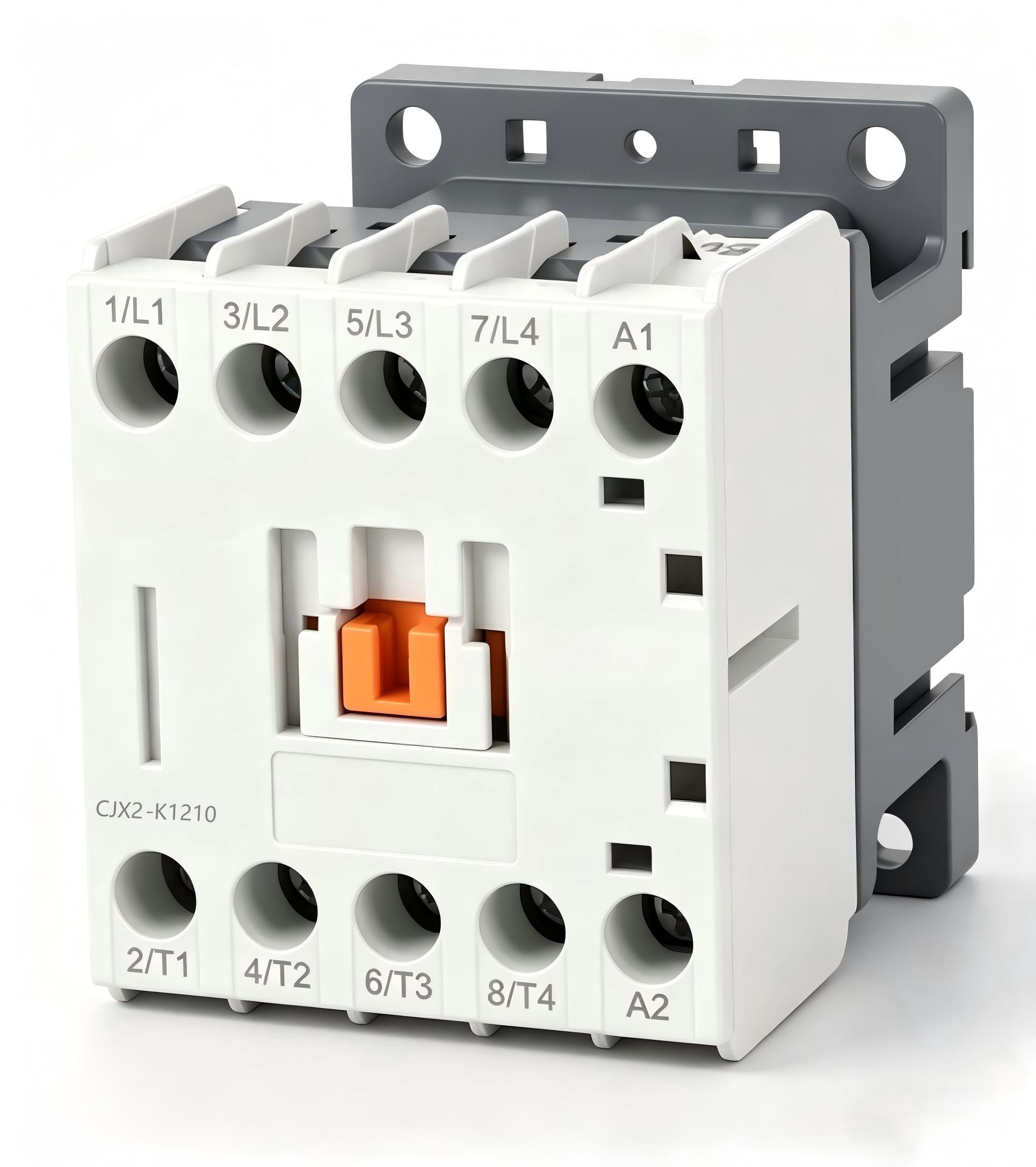

Product Images
Frequently Asked Questions
What brand names are available for the 3 Pole AC Contactor?
The 3 Pole AC Contactor is available under the brand name YOKG or can be supplied as OEM.
What model numbers are available for this product?
The available model numbers are CJX2-K06, CJX2-K09, CJX2-K12, and CJX2-K16.
Where is the 3 Pole AC Contactor manufactured?
The product is manufactured in Zhejiang, China.
What is the minimum order quantity for the 3 Pole AC Contactor?
The minimum order quantity is 200 units.
What are the payment terms and delivery time for this product?
Payment terms accepted are T/T and L/C, and the delivery time is typically 10 days.
