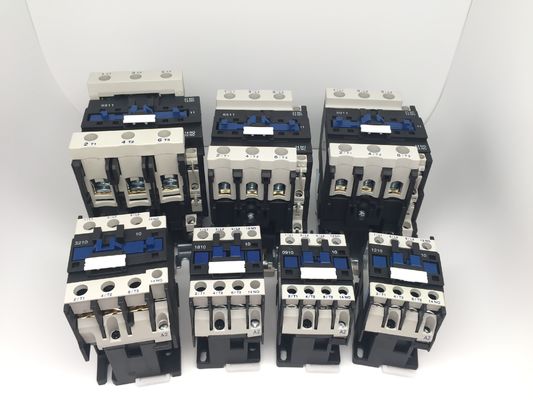

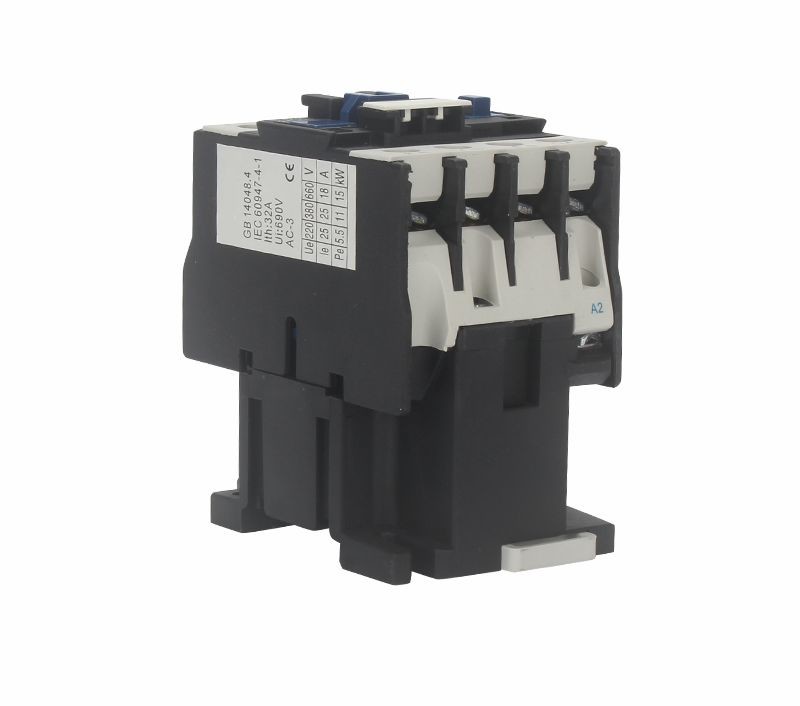

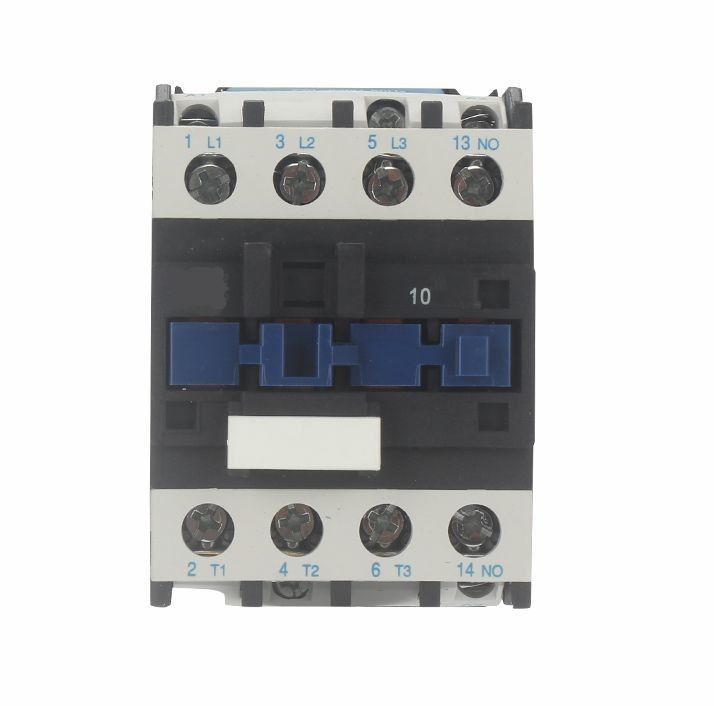

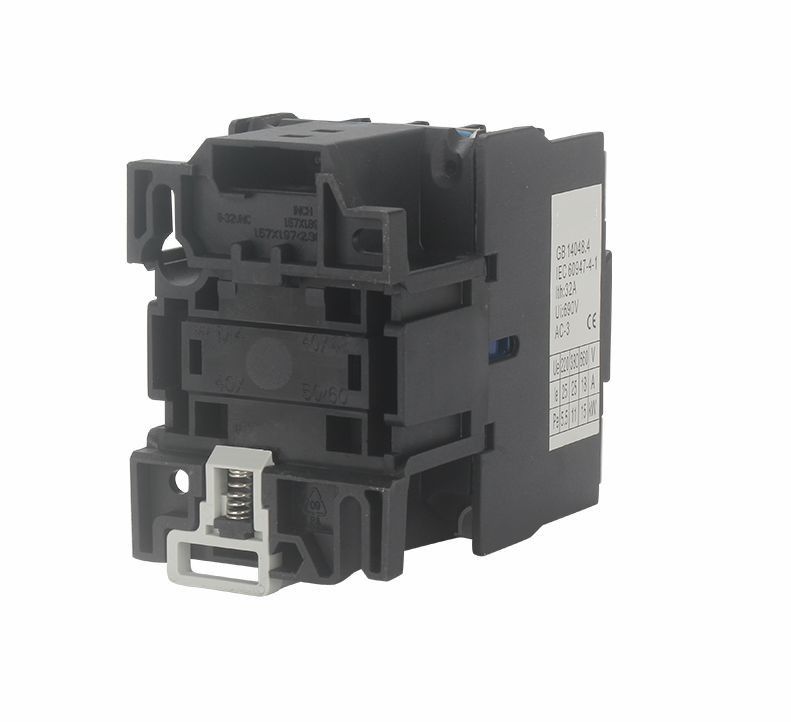

AC 220Vac 380V 3 Phase 32amp Coil Electric Magnetic Contactor 660 Vac AC Contactor
General:
| Trademark | YOKG | Model No. | SC series |
| Designation | Common type AC contactor | Current | 20/32/40/50/60/80/110 A |
| Rated frequency | 50Hz/60Hz | Coil voltage | 24V 36V 110V 220V 380V 660V |
| Operation frequency | 1200 times/hour | Ambient temperature | -5℃--+40℃ |
| Altitude | ≤2000M | Wiring ability | 6 m㎡ |
| IP grade | IP20 | Certificate | CE, TUV, CB |
| Installation | Din rail or screw installation | Standard | IEC 60947-1, IEC 60947-4-1 |
Model and Implication:
Main parameters and Technical Performance:
| Type | SC25 | ||
| Rated heating current (A) | 40 | ||
| Rated insulation voltage (V) | 690 | ||
| Rated impact withstand voltage (KV) | 6 | ||
| Rated making capacity | 10le | ||
| Rated breaking capacity | 8le | ||
| Poles | 3 | ||
| Auxiliary contact | NO/NC | ||
| Short-time withstand current(A) | 10S | 200 | |
| Rated working current(A) | 380V | AC-3 | 25 |
| AC-4 | 8.5 | ||
| 660V | AC-3 | 18 | |
| AC-4 | 4.4 | ||
| AC-3 capacity of phase 3 squirrel-cage motor (AC-3) KW |
220V | 5.5 | |
| 380V | 11 | ||
| 660V | 15 | ||
| Operation frequency (times/h) | Electrical life | AC-3 | 600 |
| AC-4 | 300 | ||
| Mechanical life | 3600 | ||
| Electrical life (10000/times) | AC-3 | 100 | |
| AC-4 | 20 | ||
| Mechanical life (10000/times) | 1000 | ||
| Equipped fuse type | RT16-40 | ||
| Rated control supply voltage Us(V) | 50/60Hz | 12~480 | |
| Operation range | Pull-in | (85%~110%)Us +40℃ | |
| Releasing | (20%~75%)Us -5℃ | ||
| Ac coil average power(VA) | Start | 110 | |
| Keeping | 11 | ||
| Power efficiency class | class 3 | ||
| Thermal loss(W) | 3~4 | ||
| Actuation time(ms) | Close | 12~25 | |
| Break | 5~20 | ||
| Main circuit wiring | flexible wire without cold pressing terminal (㎟) |
1 stick | 1.5～10 |
| 2 sticks | 1.5～6 | ||
| flexible wire with cold pressing terminal (㎟) |
1 stick | 1～6 | |
| 2 sticks |
1～4 |
||
| Hard wire (㎟) | 1 stick | 1.5～6 | |
| 2 sticks |
1.5～6 |
||
| Fastening screw size | M4 | ||
| Tightening fastening torque (N.m) | 1.2 | ||
| Control loop wiring | flexible wire without cold pressing terminal (㎟) |
1 stick | 1～4 |
| 2 sticks | 1～4 | ||
| flexible wire with cold pressing terminal (㎟) |
1 stick | 1～4 | |
| 2 sticks | 1～2.5 | ||
| Hard wire (㎟) | 1 stick | 1～4 | |
| 2 sticks | 1～4 | ||
| Fastening screw size | M3.5 | ||
| Tightening fastening torque (N.m) | 0.8 |
||
Installation dimension:
| A max | B max | C max | a | b | ∅ |
| 57 | 86 | 95 | 40 | 48 | 4.5 |
Certificates:
Packing and Delivery:
Why Choose Us:
---------------------------------------------
a. Reply your inquiry in 24 working hours.
b. Technical and professional guidance.
c. Best quality and best price.
We maintain excellent products and strive for 100% customer satisfaction. A good feedback is very important, we welcome for your kind suggestion or feedback on goods and our service.
FAQ:
1. Could I have prices of your products?
Well welcome. Please feel free to send us any inquiry. You will get our reply in 24 hours.
2. Can we print our logo/website/company name on products?
Yes, OEM and ODM are available.
3. What's the lead time for regular order?
7-15 days for order quantity less than 2000pcs. For more quantity, we can negotiate about it.
4. Do you inspect the finished products?
Our products 100% self-inspection and testing before packing.
5. How about payment terms?
30% deposit, the rest payment balance against B/L copy.
