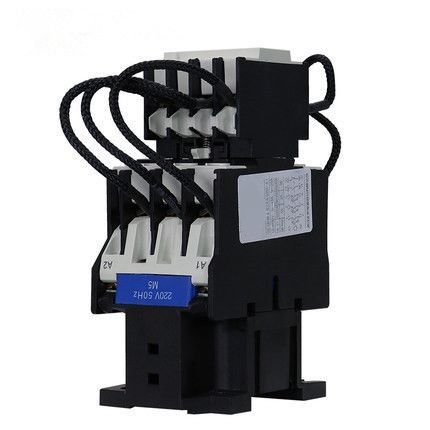

Ac Contactor For Switch Shunt Capacitor 63 Amp Coil Voltage 380 Vac
Product Description
Contactor can quickly cut off the main circuit of AC and DC and can frequently switch on and off the large current control circuit (up to 800A) device, so it is often used in the motor as a control object. It can also be used to control the load of factory equipment, electric heater, working machine and various power sets. The contactor can not only connect and cut off the circuit, but also has the protection of low voltage release. Contactor control capacity is large, suitable for frequent operation and remote control, is one of the important components in automatic control system.
Main parameters and Technical Performance:
| Model | ZJ19-25 | ZJ19-32 | ZJ19-43 | ZJ19-63 | ZJ19-95 | |
| Electrical life (x1000) | 100 | 100 | 100 | 100 | 100 | |
| Rated current le (380V) A | 17 | 23 | 29 | 43 | 63 | |
| Power of controlled capacitor | 220/230V | 6 | 9 | 10 | 15 | 22 |
| 380/440V | 12 | 18 | 20 | 30 | 40 | |
| Rated insullation voltage Ui (V) | 500 | |||||
| Rated operational voltage Ue (V) | 380 | |||||
| Restrained surge capacity | 20 le | |||||
| Operation range | Pick-up: (85%～110%Us; Drop-out: (20%～75%)Us | |||||
| Coil power (VA) | Start-up | 70 | 110 | 110 | 200 | 200 |
| Holding | 8 | 11 | 11 | 20 | 20 | |
Appearance and Installation Dimension:
Installation dimension:
| Model | A max | B max | C max | D max | E | F | Note |
| ZJ19-25 | 80 | 47 | 124 | 76 | 34/35 | 50/60 | Be fixed with 35mm din rail |
| ZJ19-32 | 90 | 58 | 132 | 86 | 40 | 48 | |
| ZJ19-43 | 90 | 58 | 136 | 86 | 40 | 48 | |
| ZJ19-63 | 132 | 79 | 150 | - | - | - | Not only fixed by screws but also could be fixed with 35mm ad 75mm din rail |
| ZJ19-80～95 | 135 | 87 | 158 | - | - | - |
