Product Details:
|
| Type: | DC Contactor | Electricity Type: | DC |
|---|---|---|---|
| Uninterrupted Duty: | 20A,32A,40A,50A,60A,80A,125A | OEM: | Available |
| Number Of Poles: | 3 | Standard: | IEC60947-4-1, GB14048.4 |
| Main Circuit Rating: | 40A | Frequency: | 50/60 Hz |
| Application: | For Controlling Circuit Making,breaking And Starting AC Motors | ||
| High Light: | LP1 D Series AC DC Contactor,AC DC Contactor 40A,40A 3 Phase Magnetic Contactor |
||

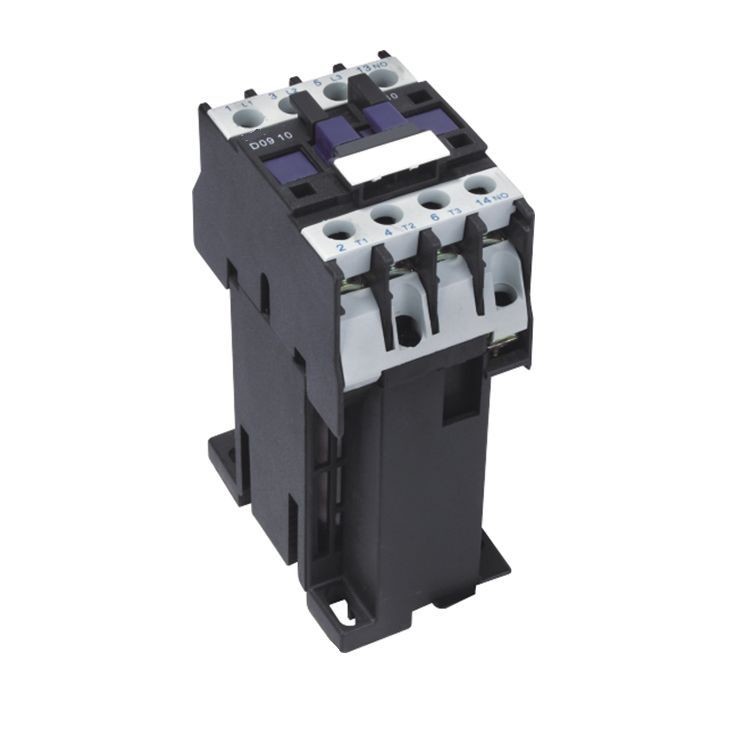

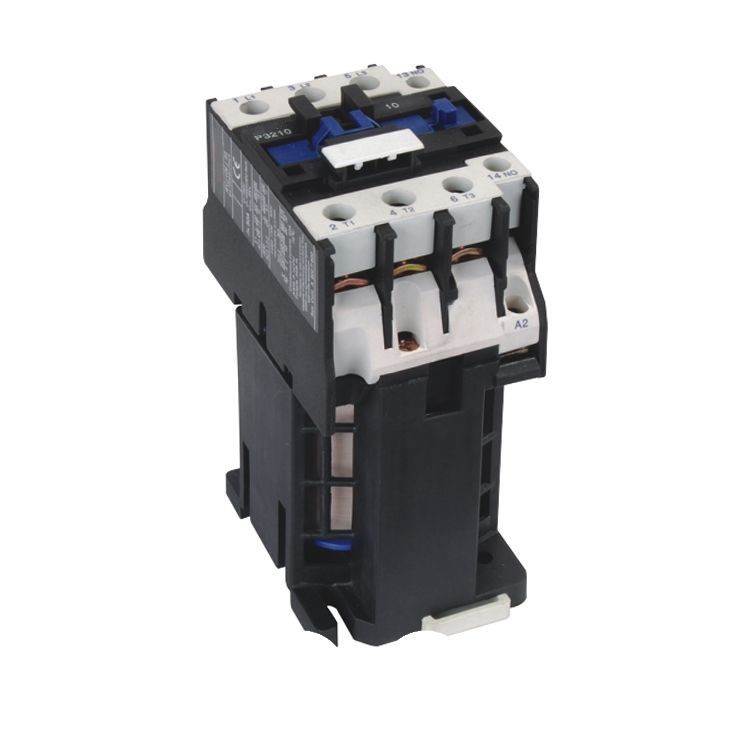

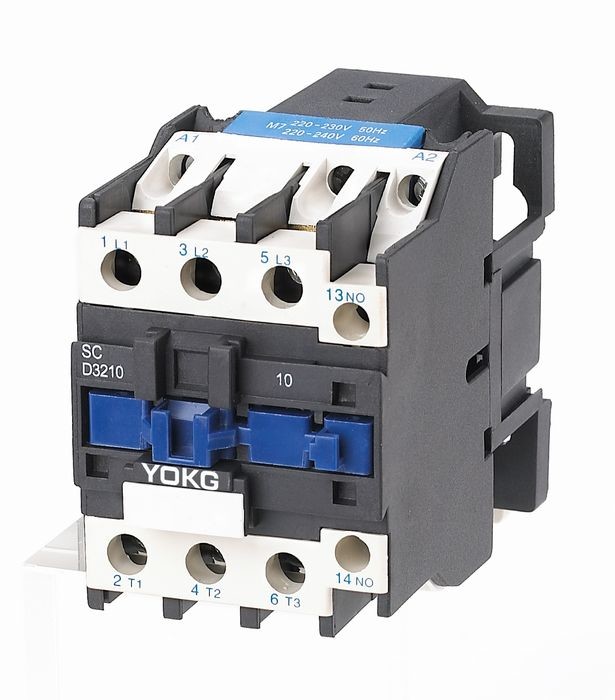

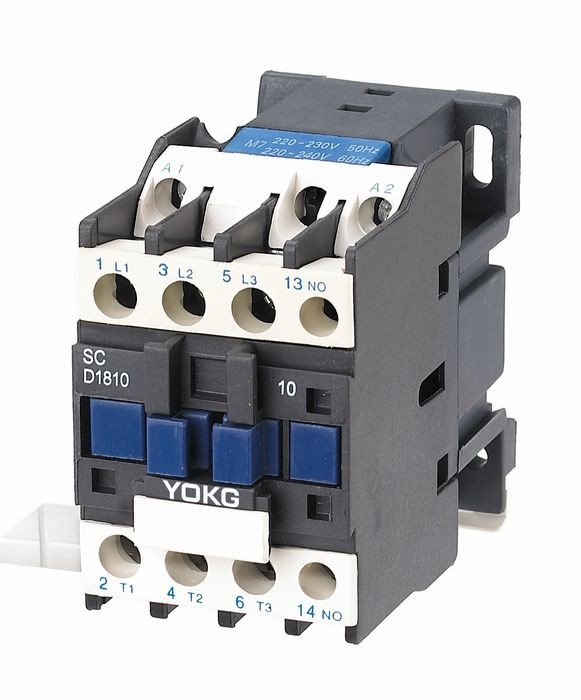

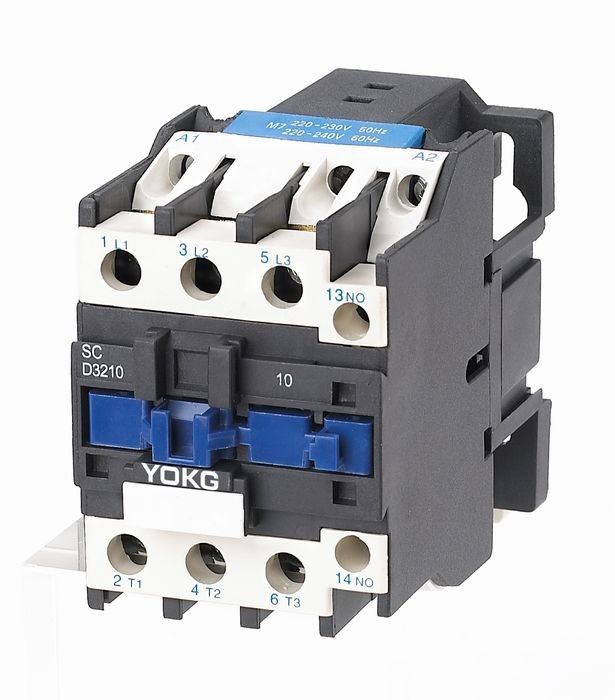

YOKG DC Operated LP1-D Series 40A 3Poles Magnetic Ac Contactor
Main parameters and Technical Performance:
| Type | LP1-D09 | LP1-D12 | LP1-D18 | LP1-D25 | LP1-D32 | LP1-D40 | LP1-D50 | LP1-D65 | LP1-D80 | LP1-D95 | ||
| Rated working current(A) | 380V | AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | ||
| 660V | AC3 | 6.6 | 8.9 | 12 | 18 | 21 | 34 | 39 | 42 | 49 | 55 | |
| AC4 | 1.5 | 2 | 3.8 | 4.4 | 7.5 | 9 | 12 | 14 | 17.3 | 21.3 | ||
| Rated heat current(A) | 25 | 25 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 | ||
| Controllable power(kW) | 220/240V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 | |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | ||
| 415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 30 | 37 | 45 | 45 | ||
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | 55 | 55 | ||
| 600/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 55 | ||
| Weight(Kg) | DC contactor | 0.64 | 0.34 | 0.65 | 0.65 | 0.95 | 2.185 | 2.185 | 2.185 | 2.525 | 2.525 | |
| Measure(Mm)3 | DC contactor | 76x115 | 76x115 | 76x120 | 76x130 | 86x135 | 128x175 | 128x175 | 128x175 | 128x183 | 128x183 | |
| x47 | x47 | x47 | x59 | x59 | x81 | x87 | x87 | x87 | x87 | |||
| Pole | 3,4 | 3,4 | 3 | 3,4 | 3 | 3,4 | 3,4 | 3,4 | 3,4 | 3,4 | ||
| Rated working voltage(V) | 380,660 | |||||||||||
| Rated insulation voltage(V) | 660 | |||||||||||
| Mechanical life x104 | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 | 800 | 600 | 600 | ||
| Electrical life | AC3x104 | 100 | 100 | 100 | 100 | 80 | 80 | 80 | 80 | 60 | 60 | |
| AC4x104 | 20 | 20 | 20 | 20 | 20 | 15 | 15 | 15 | 10 | 10 | ||
| Operating frequency | Electrical life | AC3x104 | 1200 | 1200 | 1200 | 1200 | 600 | 600 | 600 | 600 | 600 | 600 |
| AC4x104 | 300 | |||||||||||
| Mechanical life x104 | 3600 | |||||||||||
| Rated controlled voltage (V) | 24-660 | |||||||||||
| Working voltage | Close | DC% | 0.85-1.1Us | |||||||||
| Open | AC% | 0.10-0.75Us | ||||||||||
Outline and mounting dimension:
| Type | AMAX | BMAX | CMAX | DMAX | EMAX | a | b | φ | L | P | S |
| LP1-D09~12 | 74 | 35 | 50/60 | 4.5 | |||||||
| LP1-D18 | 47 | 76 | 82(116) | 120.5(154.5) | 140.5(174.5) | 34/35 | 50/60 | 4.5 | 60 | 105 | 8.6 |
| LP1-D25~32 | 57 | 86 | 95(131) | 133.5(169.5) | 153.5(189.5) | 40 | 48 | 4.5 | 70 | 13.2 | 11.7 |
| LP1-D40~65 | 77 | 129 | 116(173) | 154.5(211.5) | 174.5(231.5) | 40 | 100/110 | 6.5 | 78 | 20 | 8.6 |
| LP1-D80~95 | 84 | 129 | 116(173) | 154.5(211.5) | 174.5(231.5) | 40 | 100/110 | 6.5 | 78 | 20 | 8.6 |
| LP1-80~95 | 96 | 129 | 127(183) | 160.5(221.5) | 180.5(241.5) | 40 | 100/110 | 6.5 | 83 | 23.5 | 12 |
