Detail Information

Rated Insulation Voltage:	690VAC	Auxiliary Contact:	1NO OR 1NC
Rated Voltage:	24/ 36/ 48/ 110/ 220/ 230/ 240/ 380/ 400/ 415/ 440V	Rated Current:	6A,9A,12A,16A
Insulation Voltage:	690VAC	Protection Level:	IP20
Installation Method:	Screw OR DIN RAIL	Rated Operational Voltage:	220VAC
Highlight:	36V 3 phase magnetic contactor , 16A rated AC contactor , 7.5kW AC-3 duty contactor

Product Description

36V IP20 3 Phase AC Mini Magnetic Contactor

16A Rated Current, 7.5kW AC-3 Duty

Product Overview

This 3 Pole AC Contactor is a versatile and reliable electrical component designed to control and manage electrical power flow in various industrial and commercial applications. It offers flexible installation with support for both DIN Rail and screw mounting methods.

Key Features

Product Name: 3 Pole AC Contactor
Installation Method: Rail or Screw (DIN Rail or Screw Fixing)
Power Frequency: 50/60Hz
Rated Voltage Options: 24V, 36V, 48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 440V
Insulation Voltage: 690VAC
Compliant with IEC60947-4 standards for performance and safety
Designed for reliable operation according to IEC60947-4 requirements

Technical Parameters

Type	CJX2-K06	CJX2-K09	CJX2-K12	CJX2-K16
Rated Power kW/HP (AC-3) IEC60947-4-1
200-240V	1.5/2	2.2/3	3/4	4/5.5
380-440V	2.2/3	4/5.5	5.5/7.5	7.5/10
500-550V	3/4	4/5.5	4/5.5	5.5/7.5
660-690V	3/4	4/5.5	4/5.5	4/5.5
Rated Current A (AC-3) IEC60947-4-1
200-240V	7	9	12	16
380-440V	6	9	12	16
500-550V	5	6	7	9
660-690V	4	5	5	5
Conventional Thermal Current Ith: (A)	20	20	20	20
Rated Insulated Voltage Ui: (V)	690
Auxiliary Contact AC-15
Contact Arrangement Standard	1NO/1NC
Rated Current A (AC-15) 380-440V	0.95
Conventional Thermal Current Ith: (A)	16

Applications

This 3 Pole AC Contactor is essential for reliable switching in various industrial and commercial applications. Available in models CJX2-K06, CJX2-K09, CJX2-K12, and CJX2-K16, it is widely used for frequent switching of motors or heavy electrical loads in manufacturing plants, HVAC systems, water treatment facilities, agricultural machinery, commercial buildings, and infrastructure projects where controlling 3-phase power supply is critical for safety and efficiency.

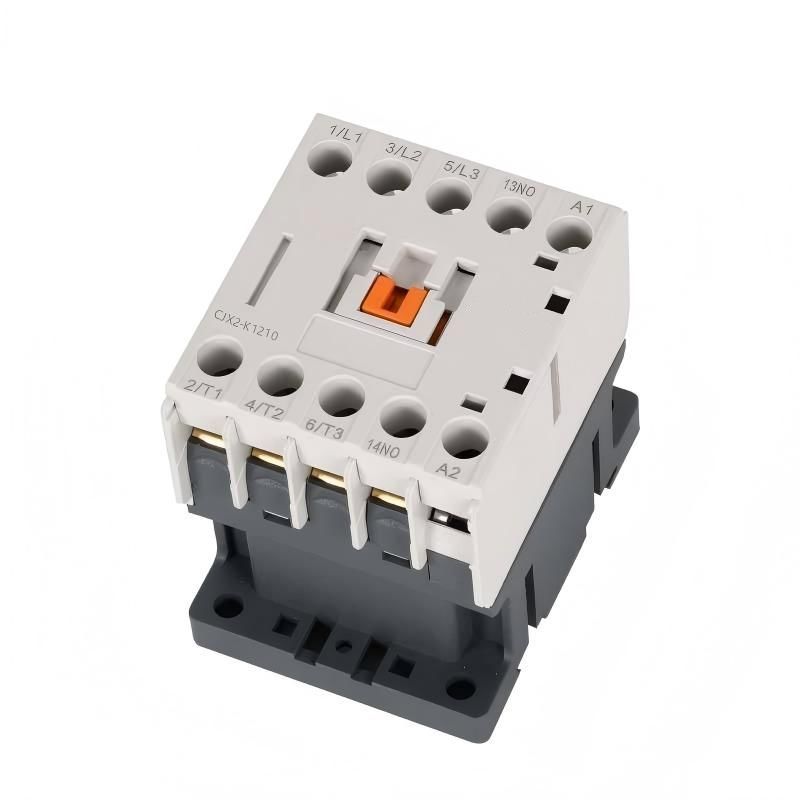

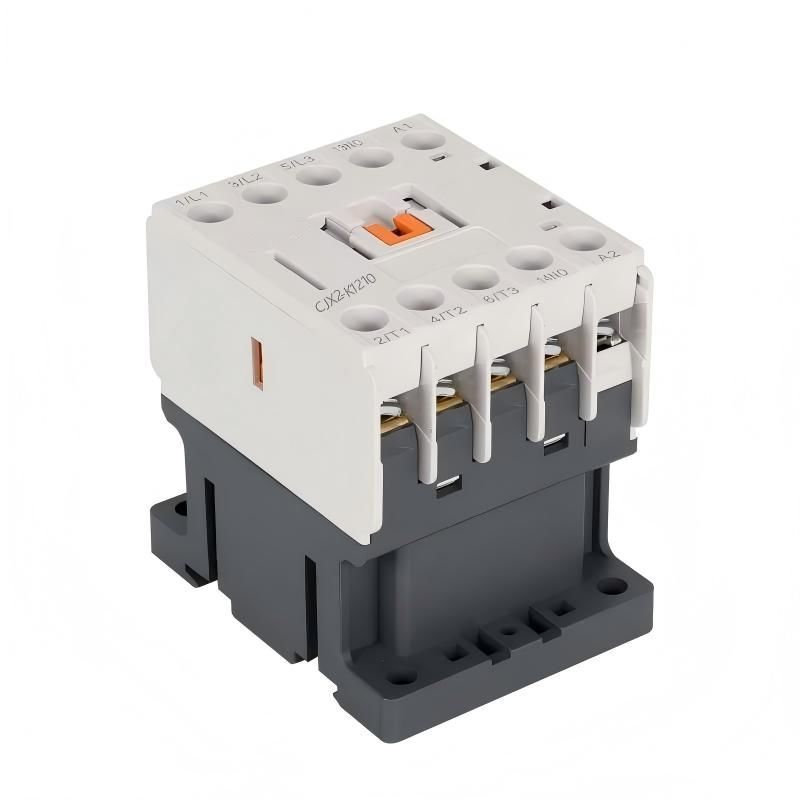

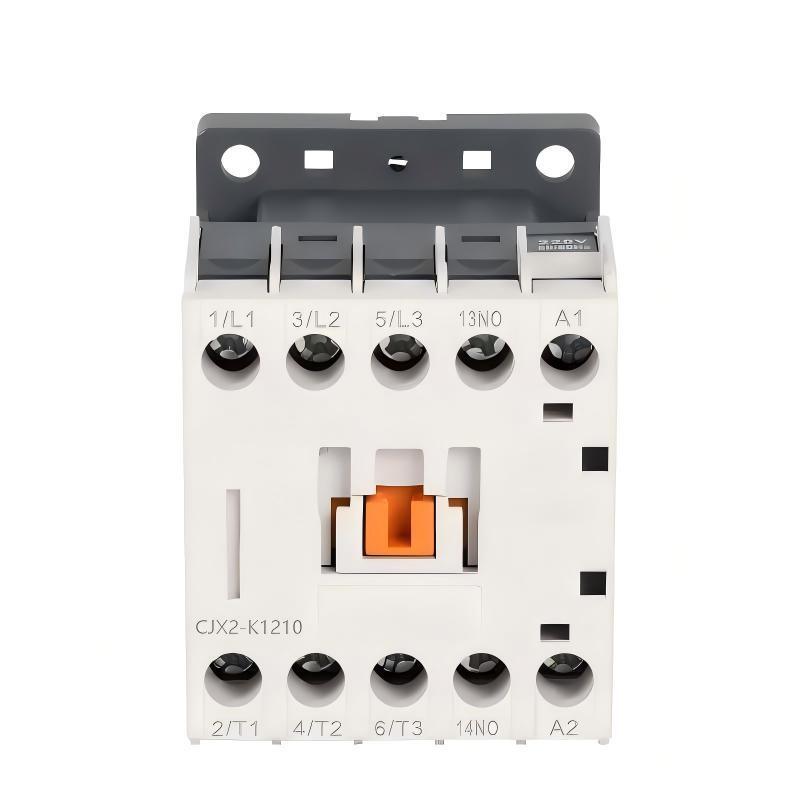

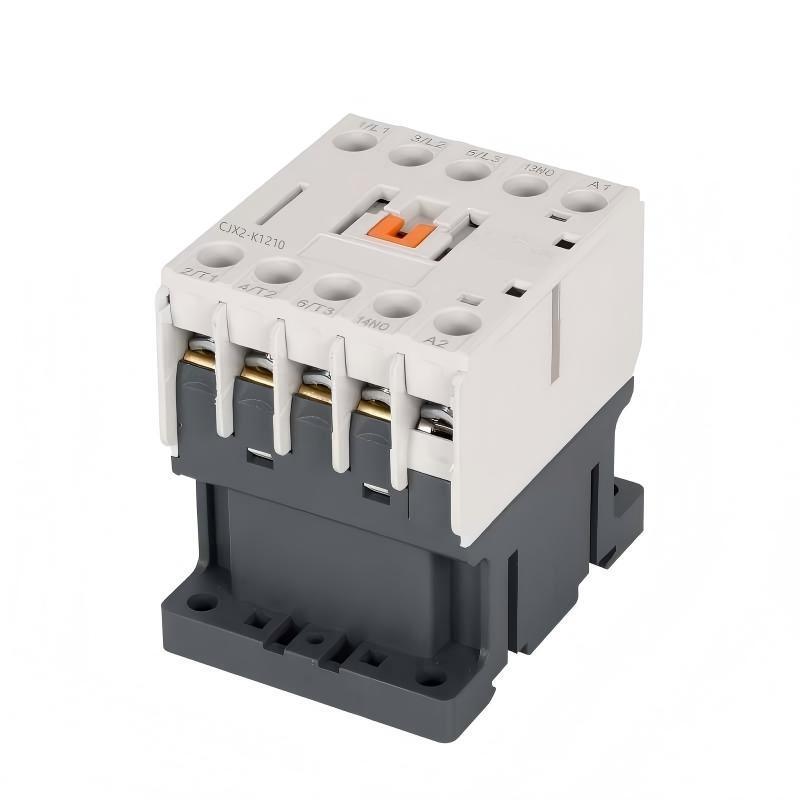

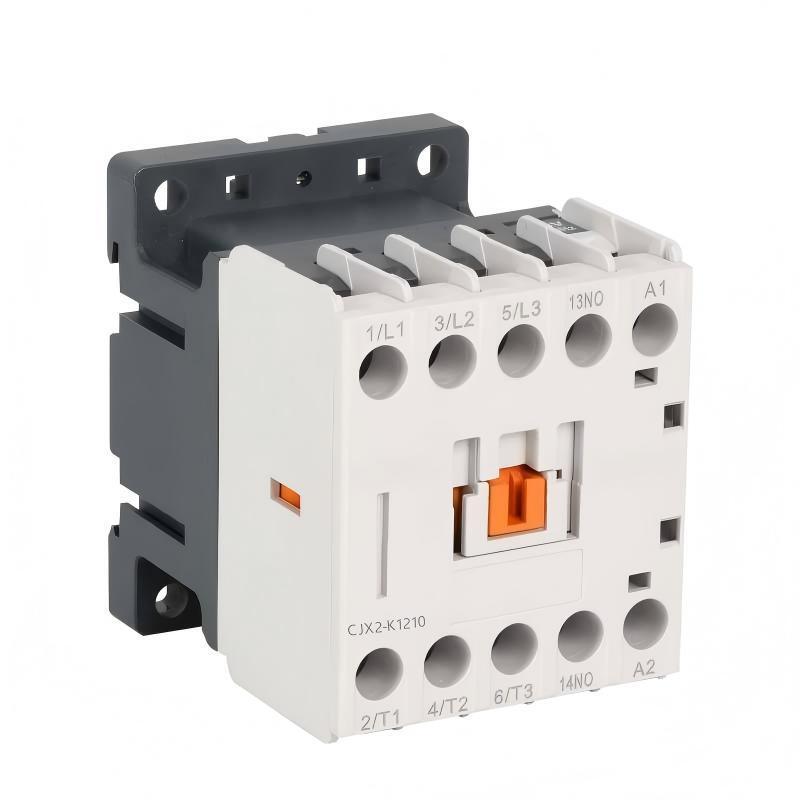

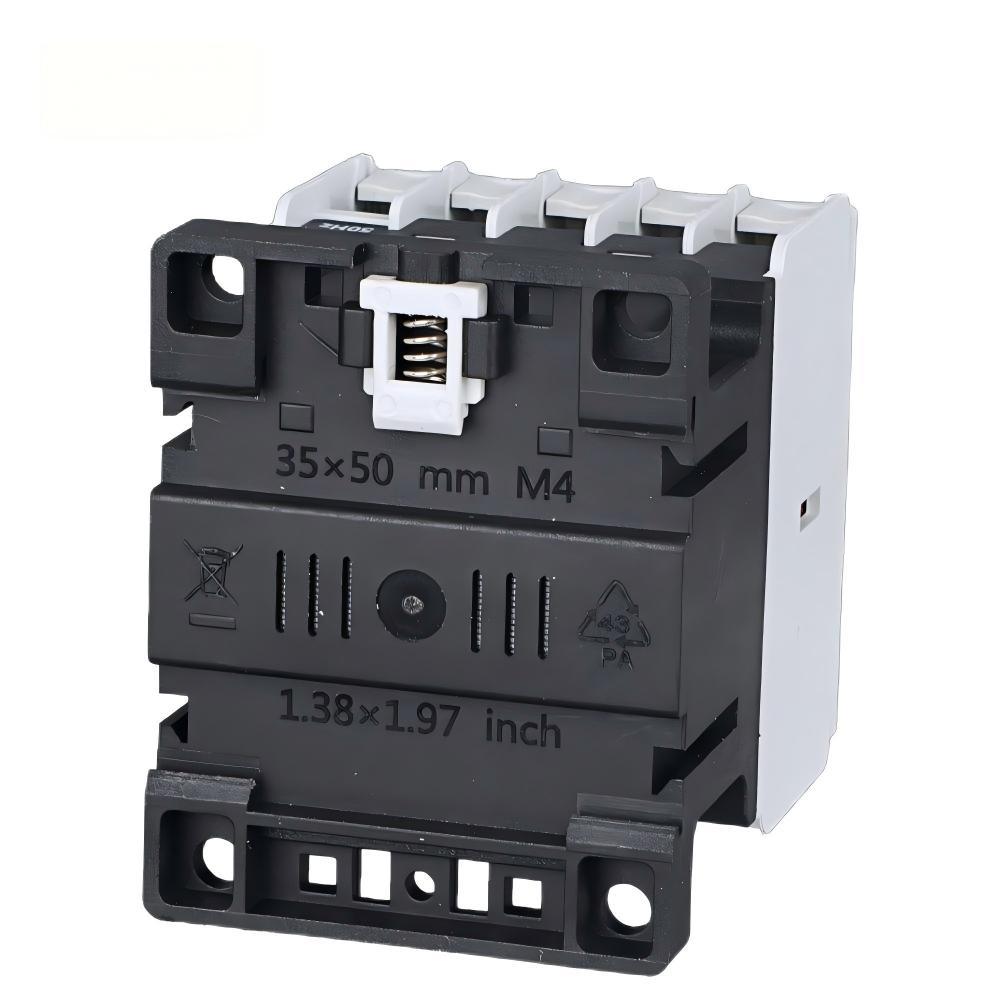

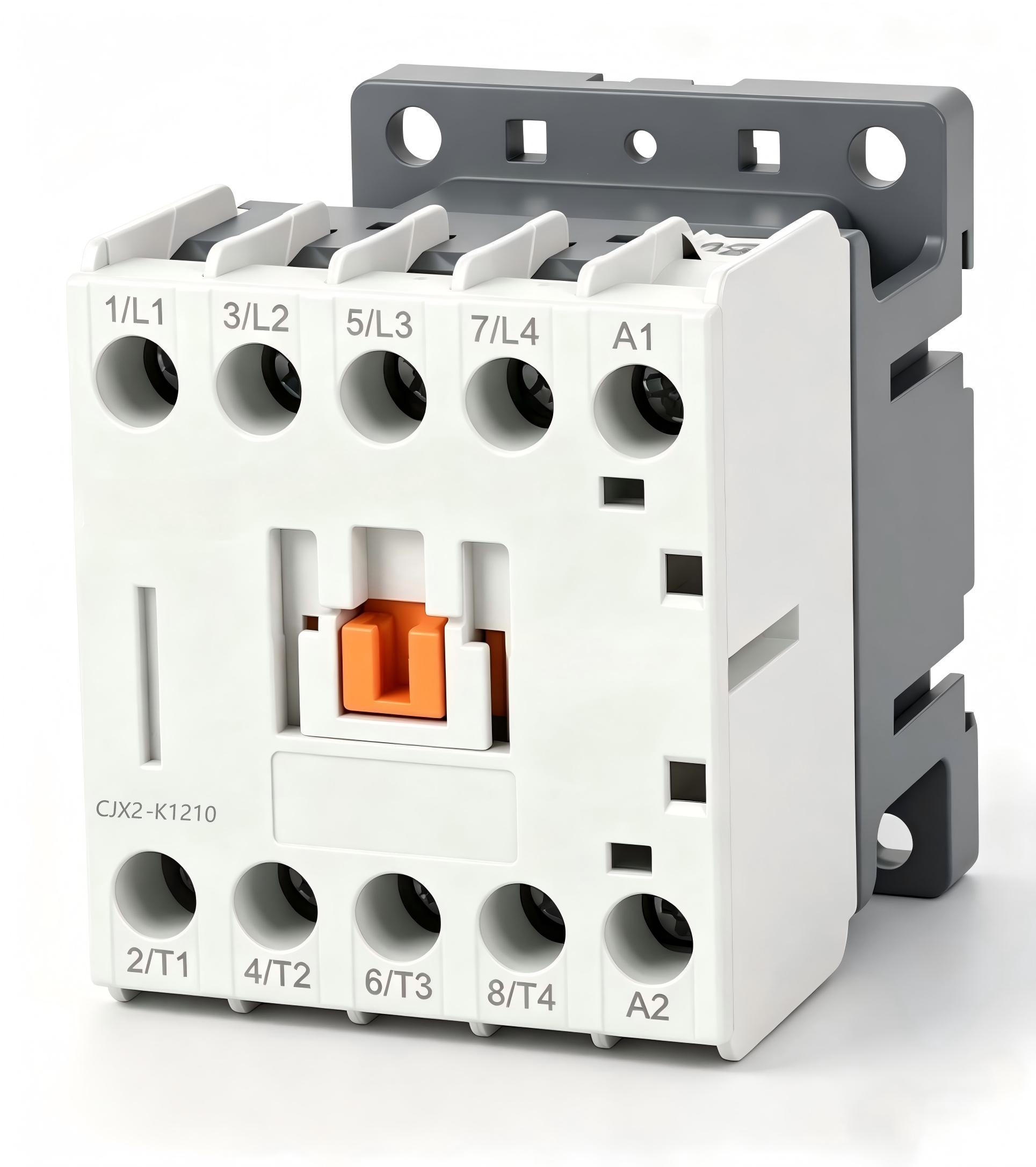

Product Images

Frequently Asked Questions

What brand names are available for the 3 Pole AC Contactor?

The 3 Pole AC Contactor is available under the brand names YOKG or OEM.

What are the model numbers for this product?

The model numbers include CJX2-K06, CJX2-K09, CJX2-K12, and CJX2-K16.

Where is the 3 Pole AC Contactor manufactured?

This product is manufactured in Zhejiang, China.

What is the minimum order quantity for the 3 Pole AC Contactor?

The minimum order quantity is 200 units.

How long does it take to deliver the 3 Pole AC Contactor after placing an order?

The delivery time is approximately 10 days.

What payment terms are accepted for purchasing the 3 Pole AC Contactor?

Payment can be made via T/T (Telegraphic Transfer) or L/C (Letter of Credit).

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	YOKG or OEM
Certification:	CE
Model Number:	CJX2-K06,CJX2-K09,CJX2-K12, CJX2-K16

Minimum Order Quantity:	200
Packaging Details:	Standard Export Package
Delivery Time:	10 DAYS
Payment Terms:	T/T,L/C
