Detail Information

Rated Operational Voltage:	220VAC	Installation Method:	Screw OR DIN RAIL
Rated Current:	6A,9A,12A,16A	Rated Voltage:	24/ 36/ 48/ 110/ 220/ 230/ 240/ 380/ 400/ 415/ 440V
Rated Insulation Voltage:	690VAC	Auxiliary Contact:	1NO OR 1NC
Power Frequency:	50/60Hz	Number Of Auxiliary Contacts:	3
Highlight:	3 pole AC contactor 12A 5.5KW , mini contactor 1NO/1NC motor control , K series AC contactor with warranty

Product Description

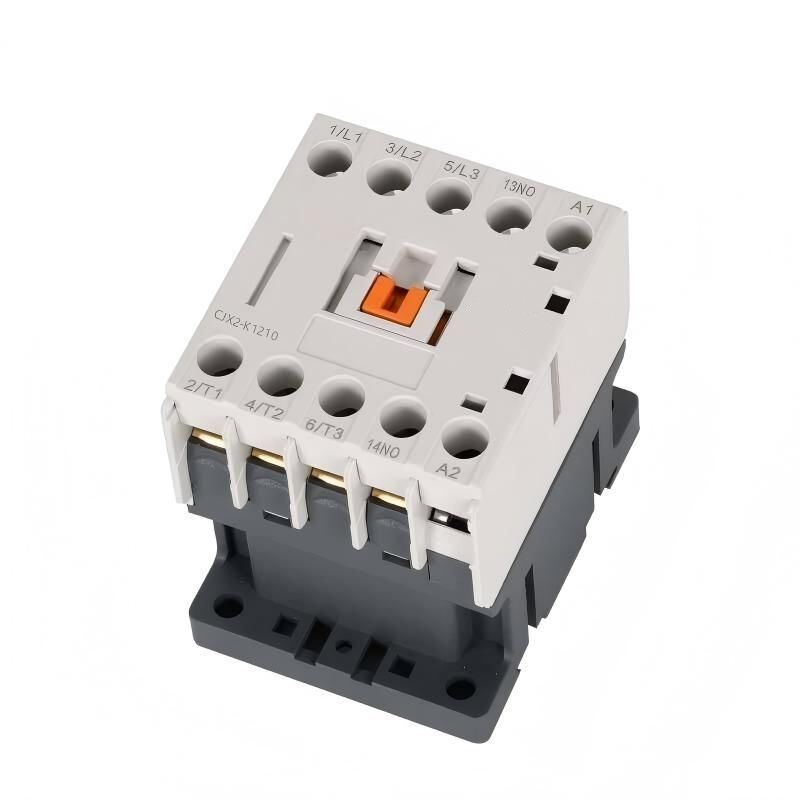

K Series 12A 3 Poles 5.5KW AC Mini Contactor

Product Overview

The 3 Pole AC Contactor is a highly reliable and efficient electrical switching device designed for controlling three-phase AC power circuits in industrial and commercial applications. Engineered for superior performance, this contactor provides dependable switching operations for motor control, lighting systems, heating equipment, and various electrical loads.

Key Features

Product Name: 3 Pole AC Contactor
Rated Insulation Voltage: 690VAC
Installation Method: DIN Rail or Screw Mounting
Rated Voltage Options: 24V, 36V, 48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 440V
Rated Current Options: 6A, 9A, 12A, 16A
Protection Level: IP20
Standard Auxiliary Contact: 1NO/1NC

Technical Specifications

Type	CJX2-K06	CJX2-K09	CJX2-K12	CJX2-K16
Rated Power kW/HP (AC-3) IEC60947-4-1
200-240V	1.5/2	2.2/3	3/4	4/5.5
380-440V	2.2/3	4/5.5	5.5/7.5	7.5/10
500-550V	3/4	4/5.5	4/5.5	5.5/7.5
660-690V	3/4	4/5.5	4/5.5	4/5.5
Rated Current A (AC-3) IEC60947-4-1
200-240V	7	9	12	16
380-440V	6	9	12	16
500-550V	5	6	7	9
660-690V	4	5	5	5
Conventional Thermal Current Ith (A)	20	20	20	20
Rated Insulated Voltage Ui (V)	690

Applications

The 3 Pole AC Contactor (models CJX2-K06, CJX2-K09, CJX2-K12, CJX2-K16) is designed for precise control of three-phase power in various industrial and commercial settings. Compliant with IEC60947-4 standards, these contactors are widely used in automation systems, motor control centers, and electrical distribution boards where quick switching and high endurance are essential.

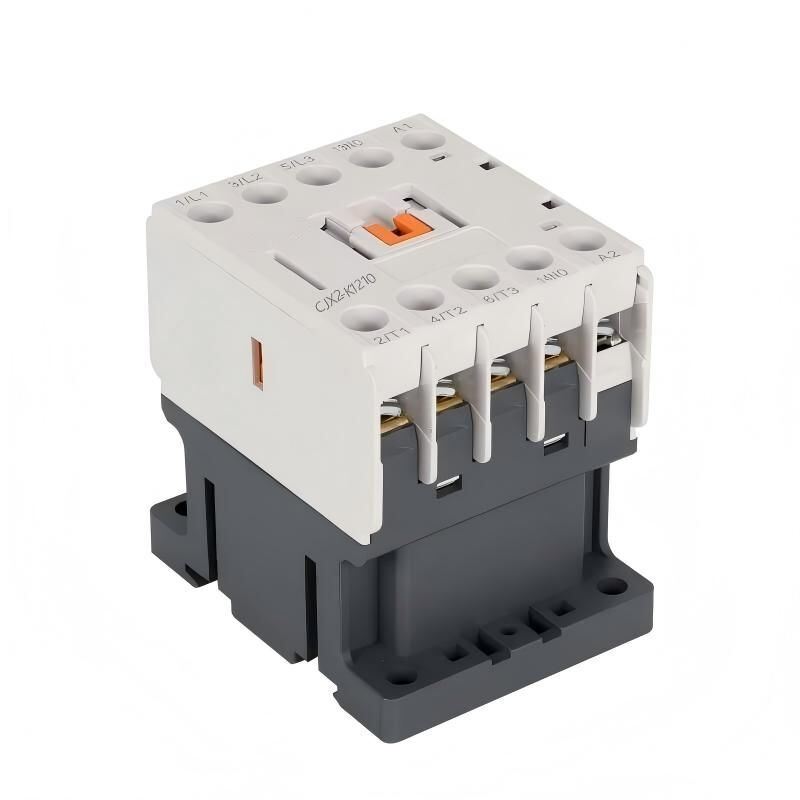

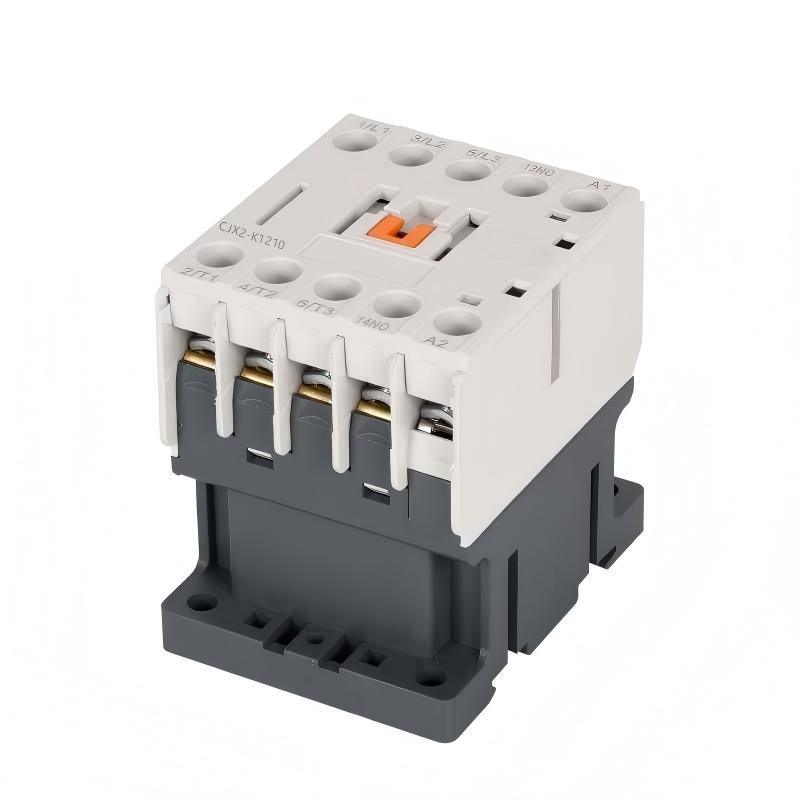

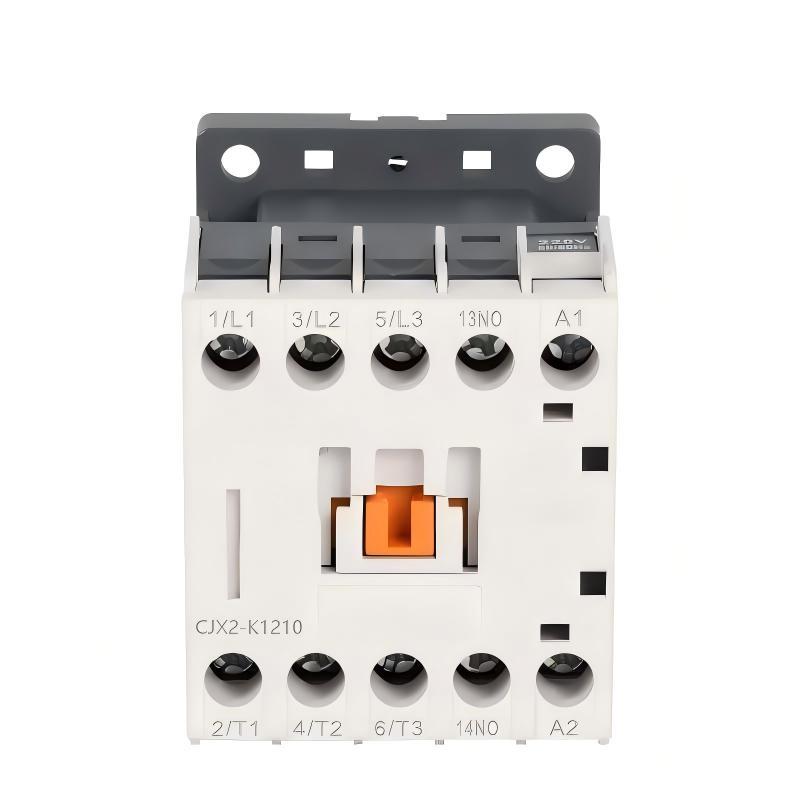

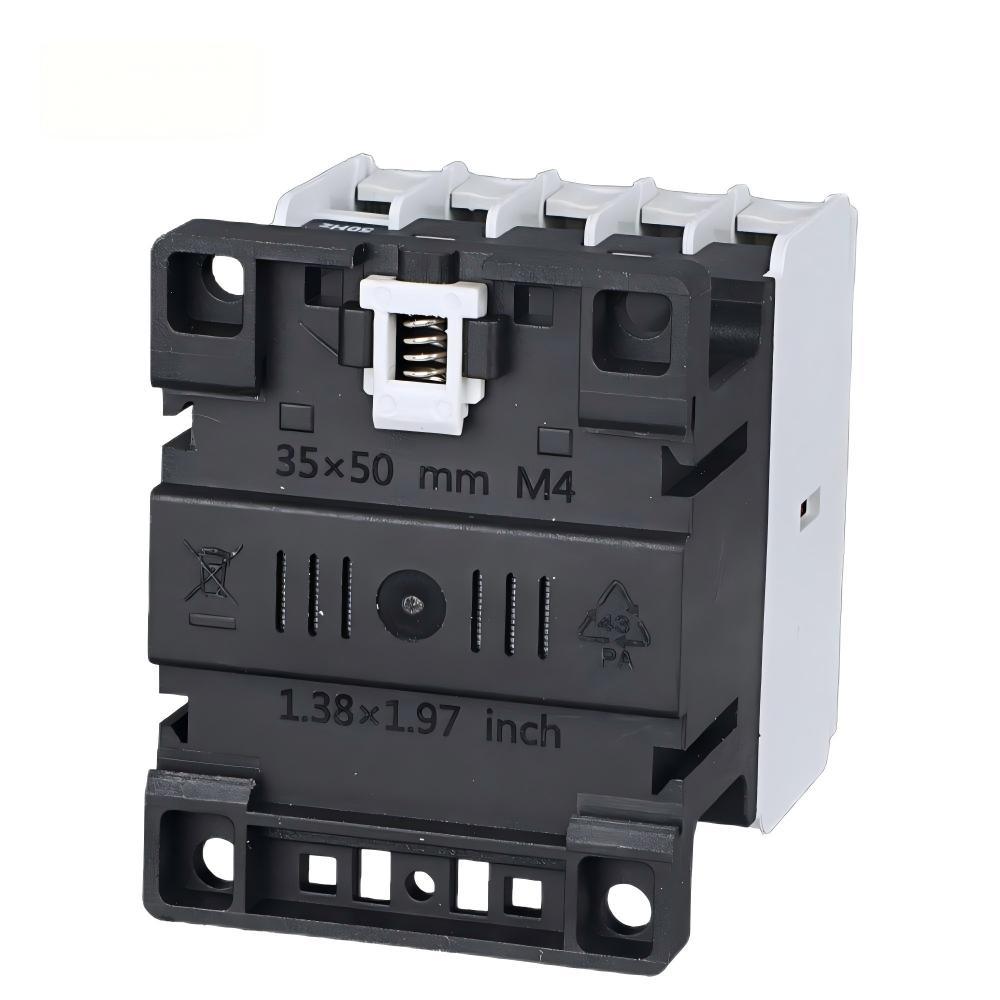

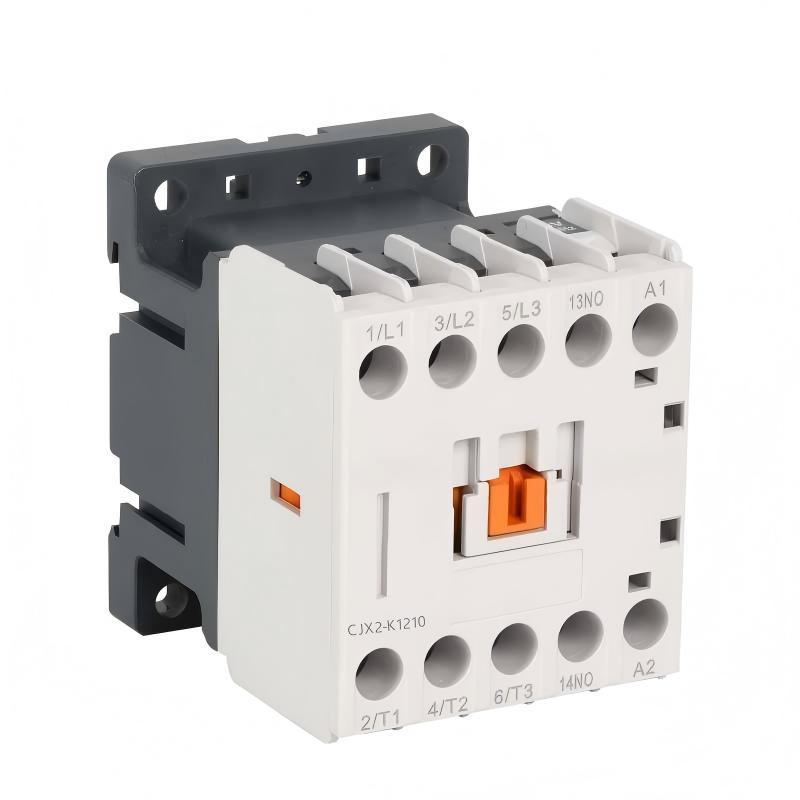

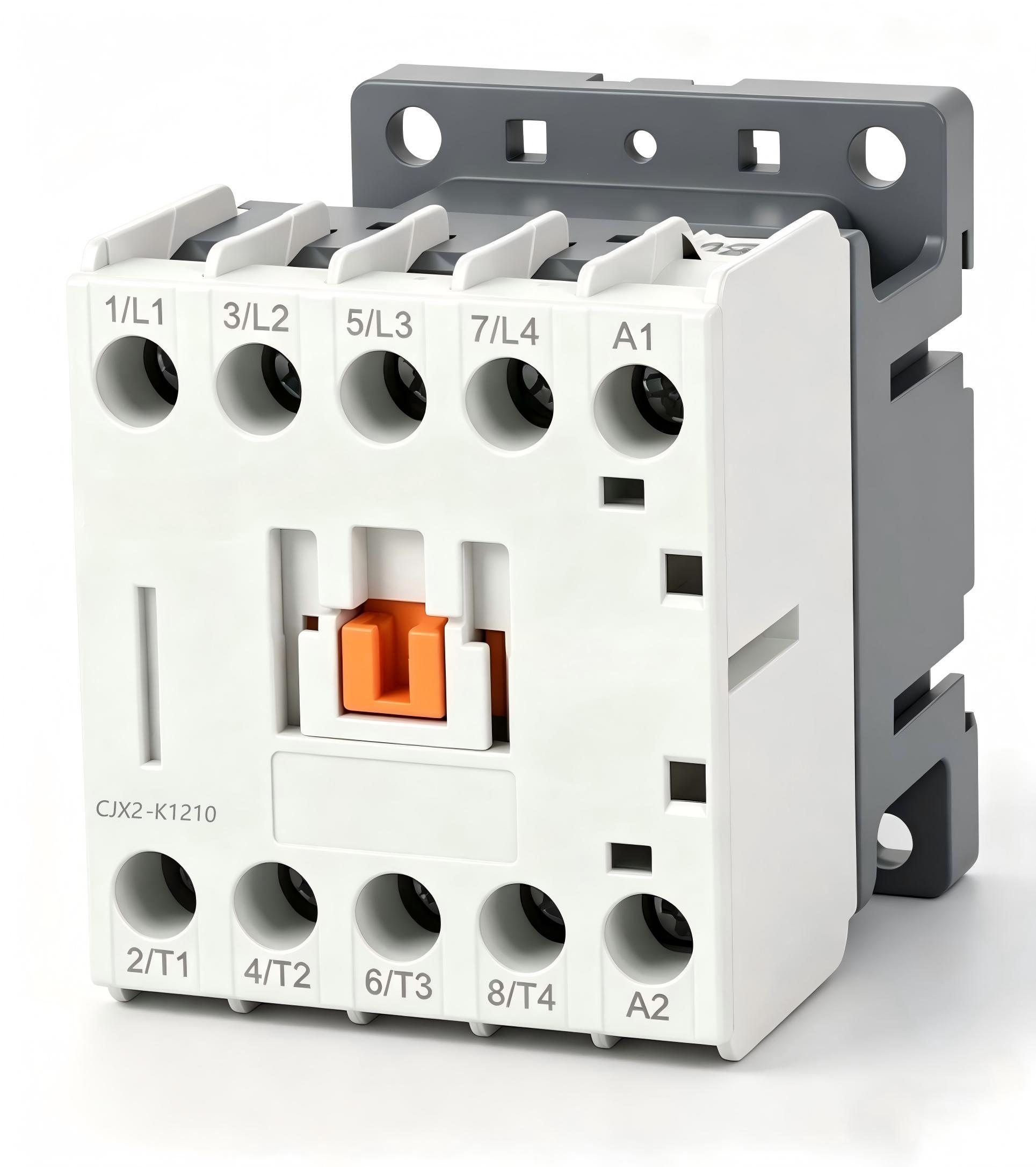

Product Images

Frequently Asked Questions

What brand and models are available for the 3 Pole AC Contactor?

The 3 Pole AC Contactor is available under the brand name YOKG or as OEM. The model numbers include CJX2-K06, CJX2-K09, CJX2-K12, and CJX2-K16.

Where is the 3 Pole AC Contactor manufactured?

The product is manufactured in Zhejiang, China.

What is the minimum order quantity for this product?

The minimum order quantity for the 3 Pole AC Contactor is 200 units.

How long does it take to deliver the 3 Pole AC Contactor after placing an order?

The delivery time for the 3 Pole AC Contactor is approximately 10 days.

What payment terms are accepted for purchasing the 3 Pole AC Contactor?

The accepted payment terms are T/T (Telegraphic Transfer) and L/C (Letter of Credit).

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	YOKG or OEM
Certification:	CE
Model Number:	CJX2-K06,CJX2-K09,CJX2-K12, CJX2-K16

Minimum Order Quantity:	200
Packaging Details:	Standard Export Carton Box
Delivery Time:	10 DAYS
Payment Terms:	T/T,L/C
