Detail Information

Rated Insulation Voltage:	690VAC	Auxiliary Contact:	1NO+1NC
Protection Level:	IP20	Installation Method:	Screw OR DIN RAIL
Rated Current:	20A, 32A, 40A, 50A, 60A, 80A, 125A	Number Of Poles:	3
Power Frequency:	50/60Hz	Insulation Voltage:	690VAC
Highlight:	3 pole AC contactor 50A motor control , 3 pole AC contactor 690VAC insulation , 3 pole AC contactor motor circuit

Product Description

SC1 Series 3 Pole AC Contactor

Rated current 50A for motor control circuits with rated insulation voltage 690VAC

Product Overview

The SC1 series AC contactor is designed for circuits up to 690V AC 50/60 Hz, with rated current up to 95A. It is ideal for making, breaking, frequently starting, and controlling AC motors. Complies with GB 14048 and IEC60947-4-1 standards.

Applications

Suitable for motor control circuits requiring reliable switching and frequent operation in industrial environments.

Operating Conditions

Ambient temperature: -5℃ to +40℃ (average ≤ +35℃ within 24 hours)
Altitude: ≤ 2000m
Humidity: Maximum 50% at +40℃, up to 90% at 20℃
Pollution degree: Class 3
Installation category: III
Protection level: IP20
Installation angle: Within ±5° of vertical
Environment: No significant shaking, impact, or vibration

Key Features

Product Name: 3 Pole AC Contactor
Number of Auxiliary Contacts: 3
Auxiliary Contact Configuration: 1NO + 1NC (3P+NC+NO)
Insulation Voltage: 690VAC
Power Frequency: 50/60Hz
Protection Level: IP20
Mounting Options: Rail or Screw
Complies with IEC60947-4 standard

Technical Specifications

Parameter	SC1-09	SC1-12	SC1-18	SC1-25	SC1-32
Rated heating current (A)	20	20	25	32	40
Rated insulation voltage (V)	690
AC-3 Rated working current 220V/230V (A)	9	12	18	25	32
AC-3 Rated working current 380V/400V (A)	9	12	18	25	32
AC-3 Rated working current 660V/690V (A)	6.5	8.9	12	18	22
AC-3 capacity 380V/400V (KW)	4	5.5	7.5	11	15
Electrical life (10000/times)	100	100	100	100	80
Mechanical life (10000/times)	1000	1000	1000	1000	800

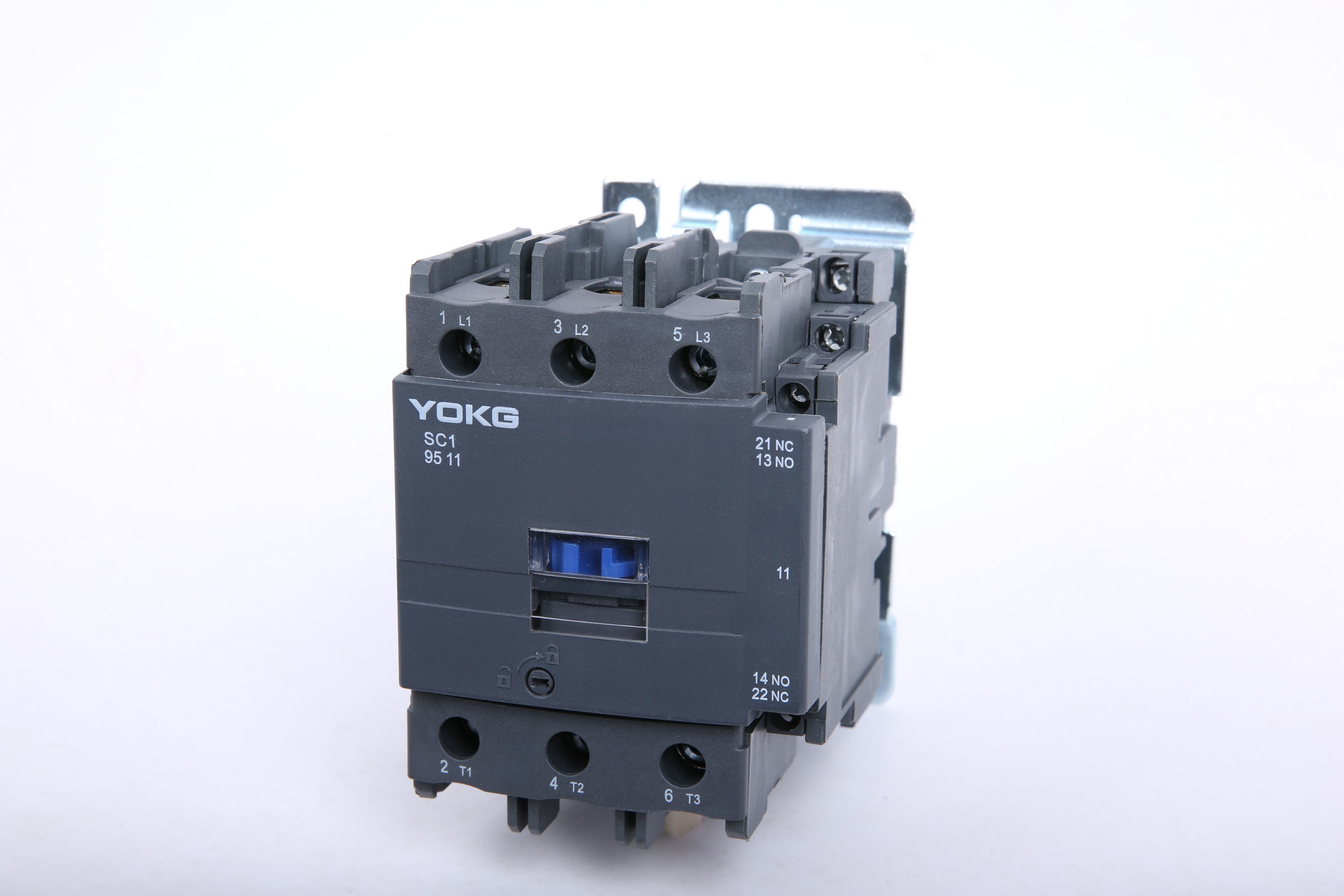

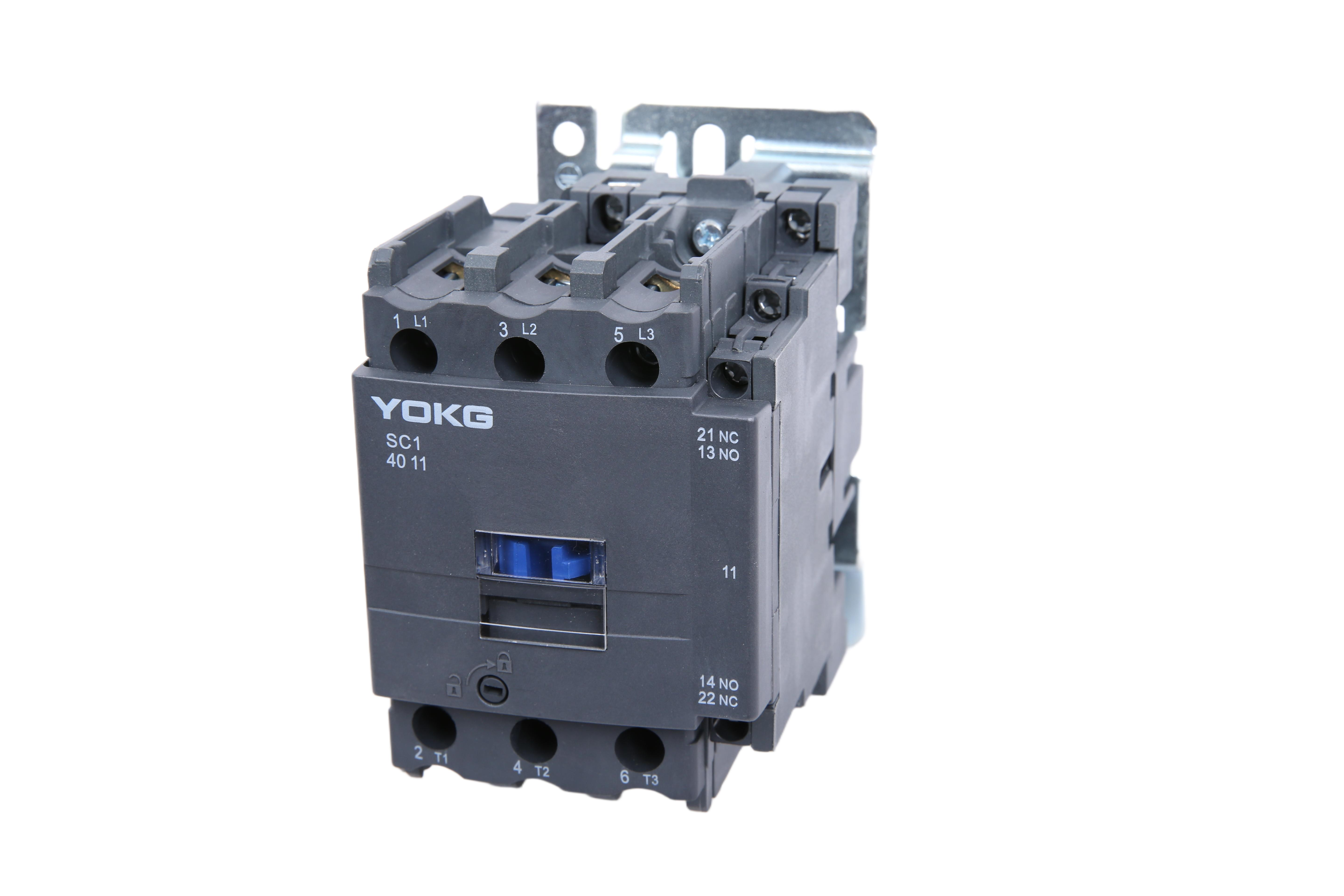

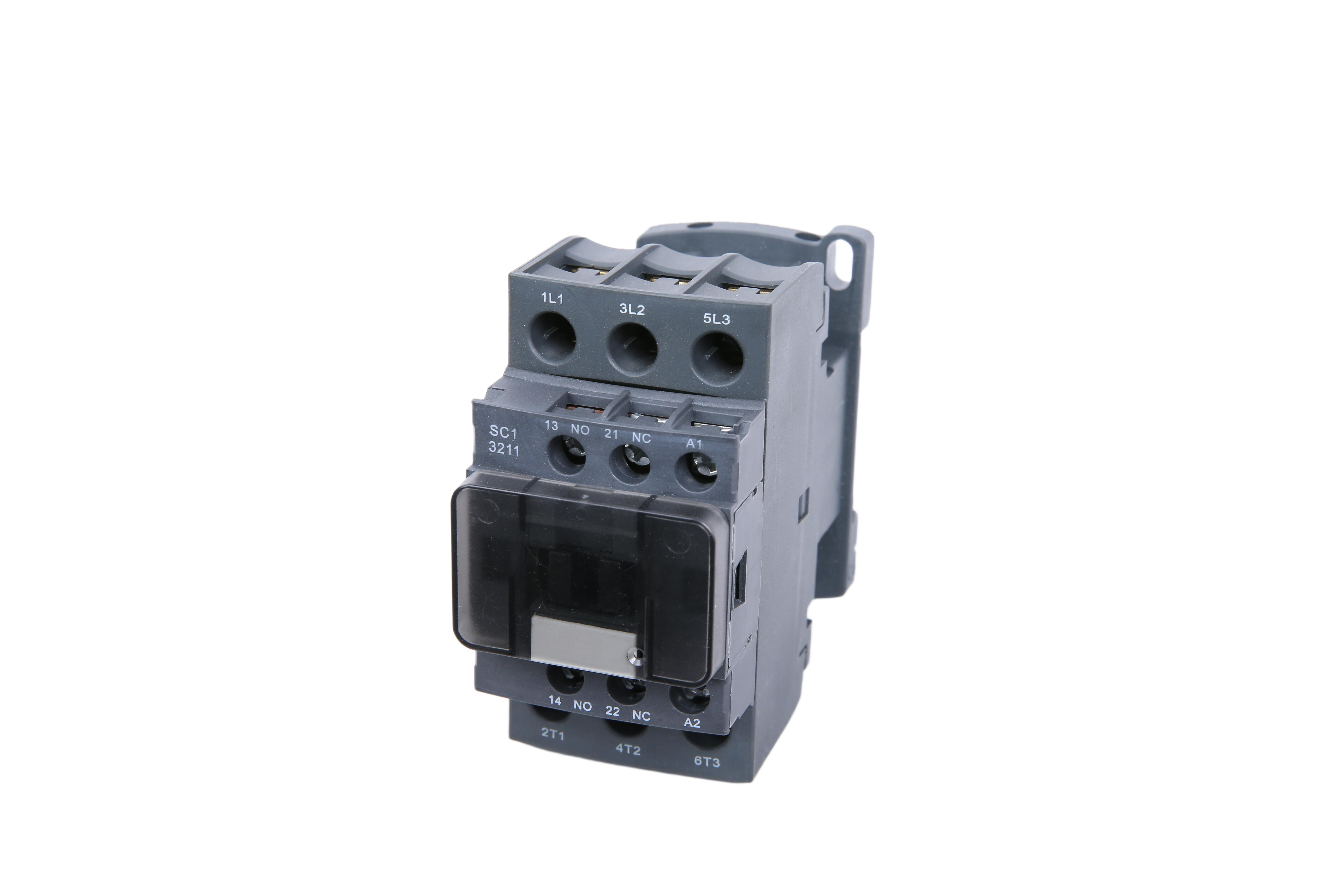

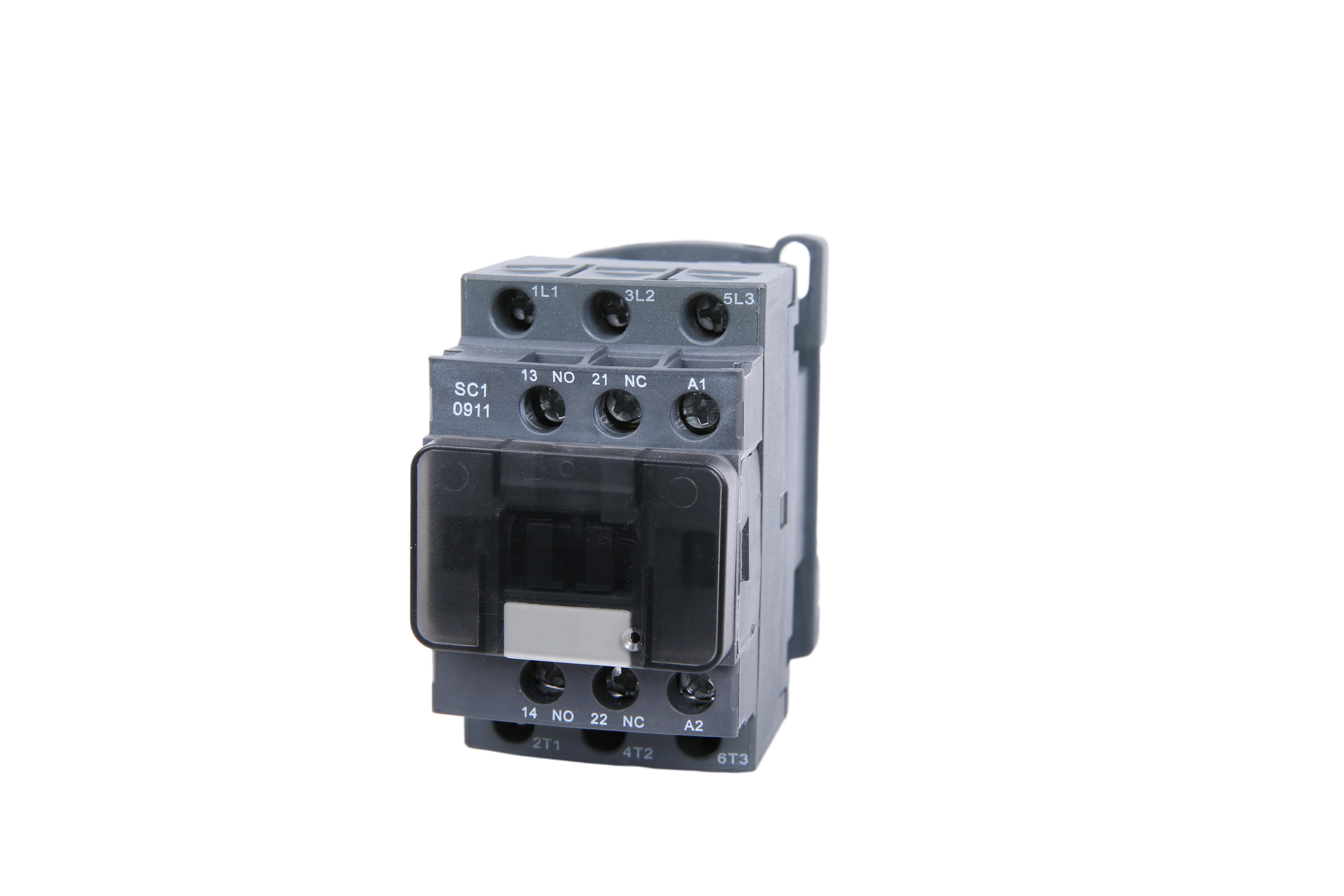

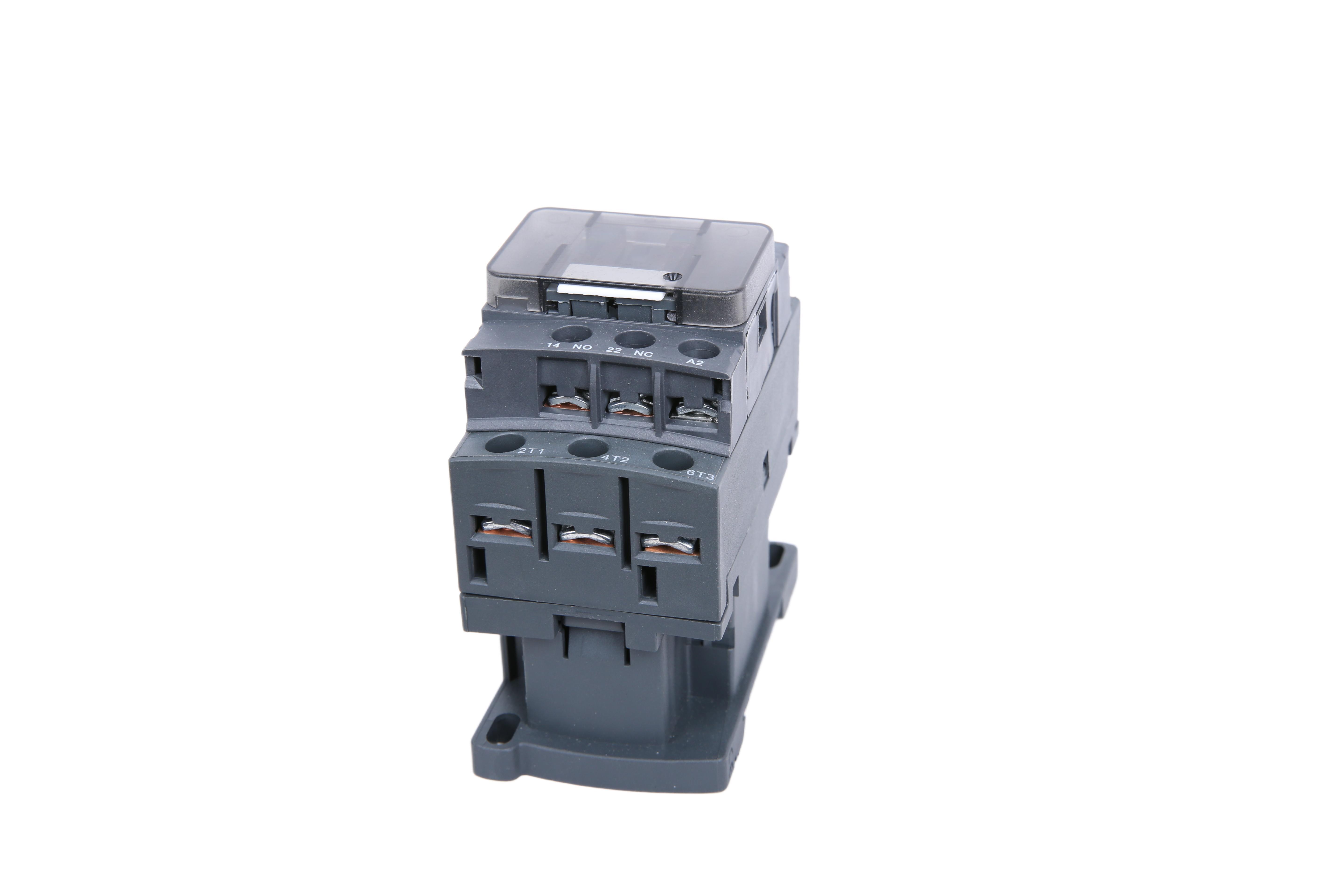

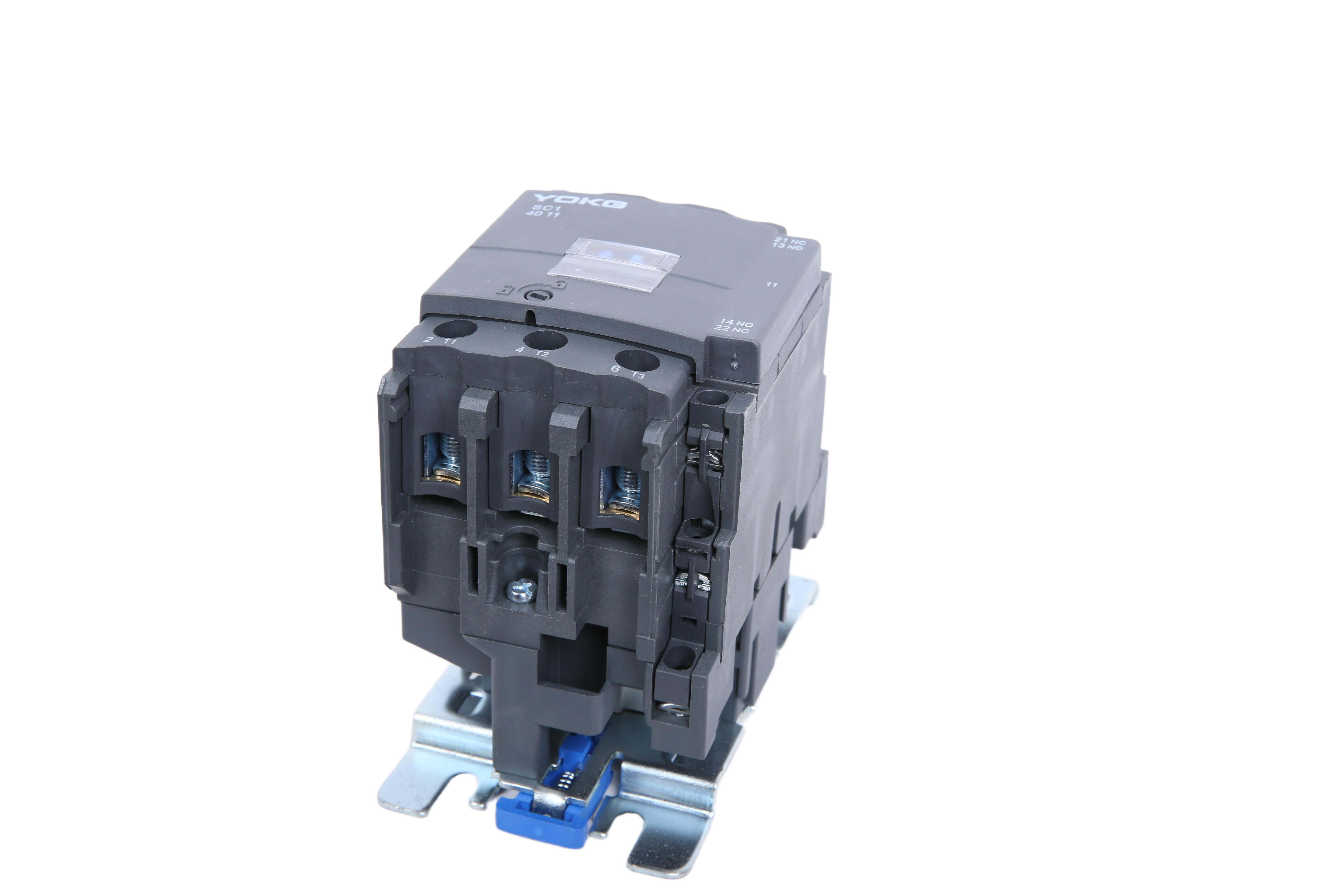

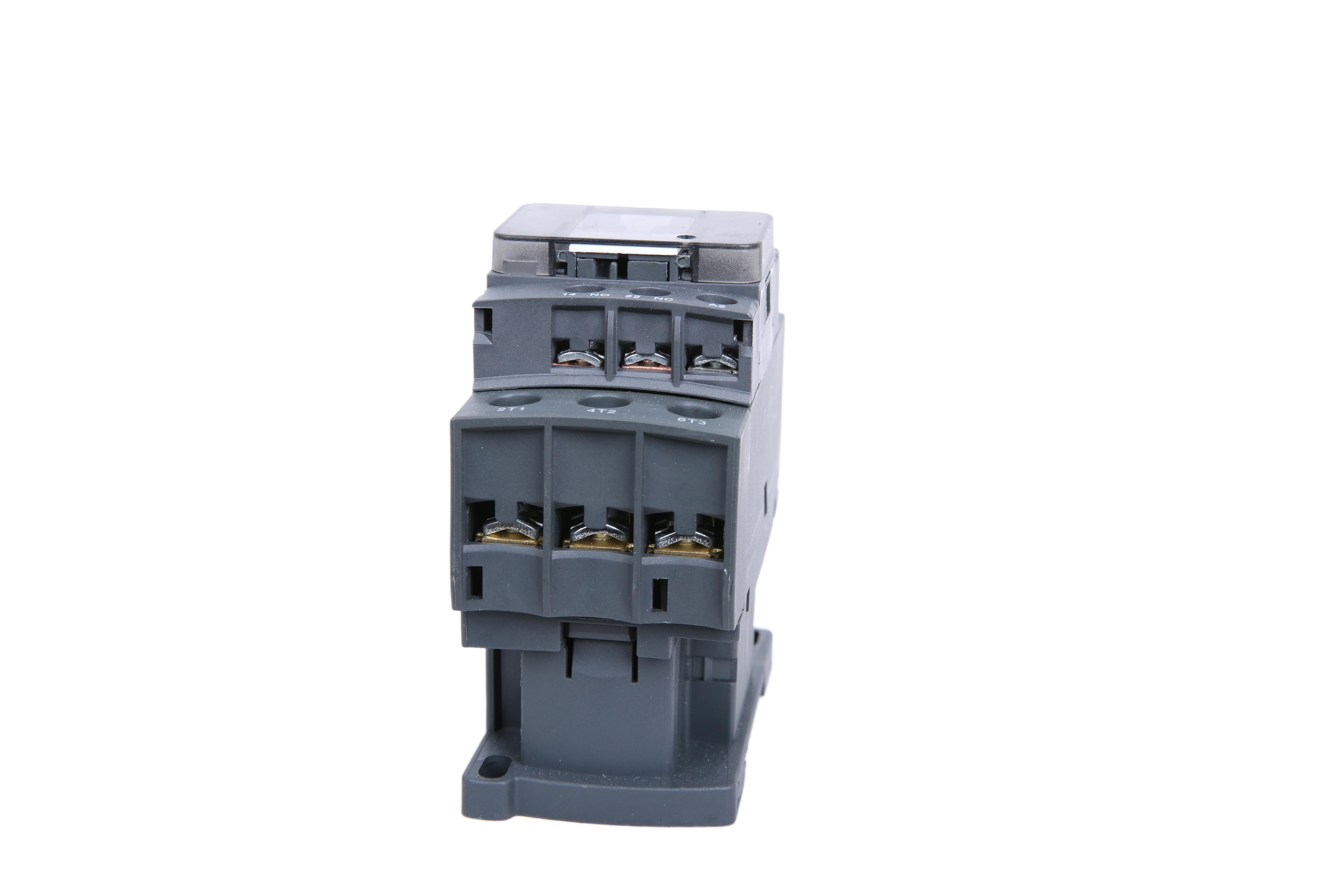

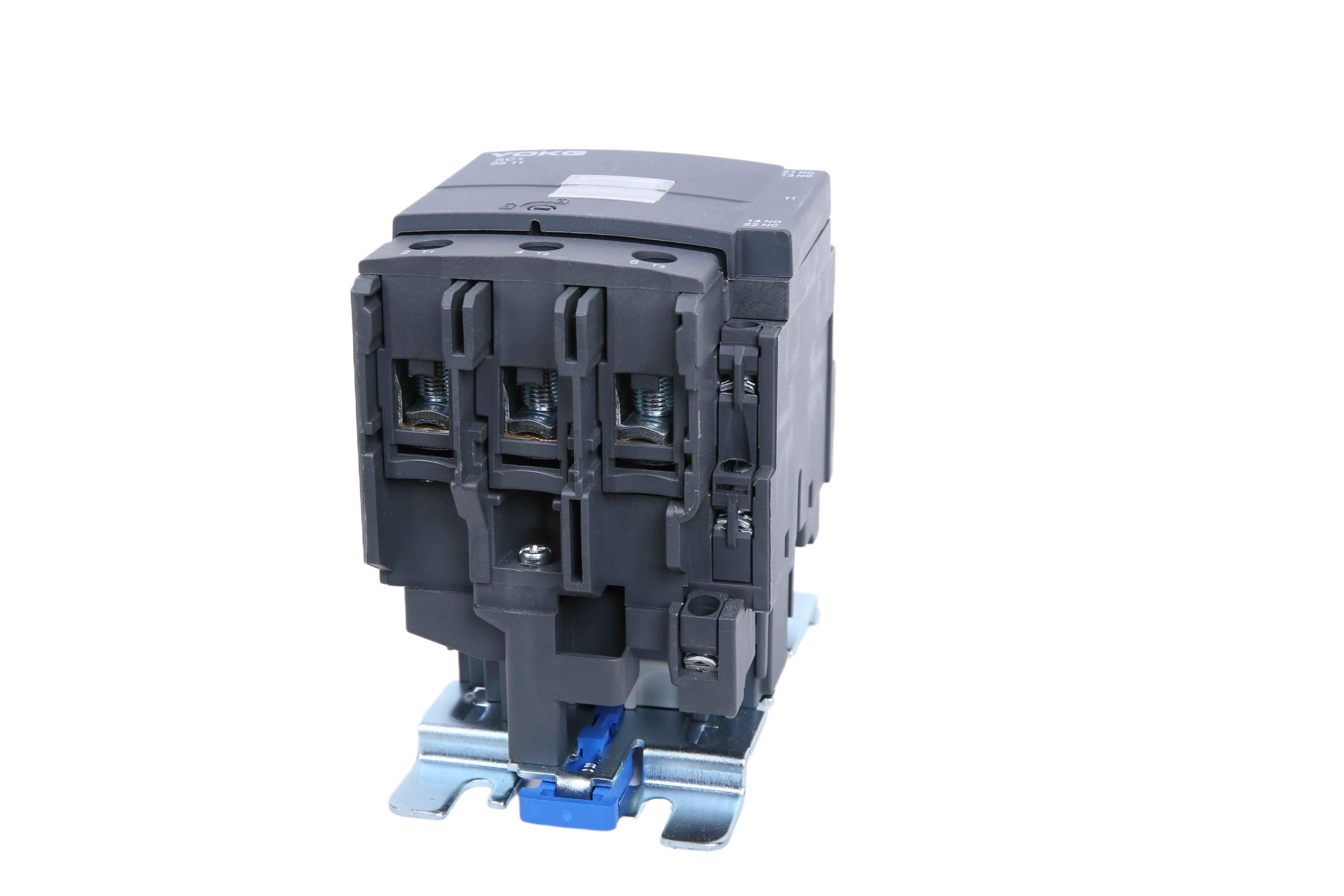

Product Images

Certifications

Frequently Asked Questions

What brand options are available for the 3 Pole AC Contactor?

The 3 Pole AC Contactor is available under the brand name YOKG or as an OEM product.

What are the model numbers available for this 3 Pole AC Contactor?

The available model numbers include SC1-09, SC1-12, SC1-18, SC1-25, SC1-32, SC1-40, SC1-50, SC1-65, SC1-80, and SC1-95.

Where is the 3 Pole AC Contactor manufactured?

This product is manufactured in Zhejiang, China.

What is the minimum order quantity for the 3 Pole AC Contactor?

The minimum order quantity for the 3 Pole AC Contactor is 200 units.

How long does it take to deliver the 3 Pole AC Contactor after placing an order?

The delivery time for the 3 Pole AC Contactor is typically 10 days.

What payment terms are accepted for purchasing the 3 Pole AC Contactor?

The accepted payment terms are T/T (Telegraphic Transfer) and L/C (Letter of Credit).

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	YOKG or OEM
Certification:	CE
Model Number:	SC1-09, SC1-12,SC1-18,SC1-25,SC1-32,SC1-40,SC1-50,SC1-65,SC1-80,SC1-95

Minimum Order Quantity:	200
Packaging Details:	Each unit be packed in one individual inner box
Delivery Time:	10 DAYS
Payment Terms:	T/T,L/C
