Detail Information

Rated Insulation Voltage:	690VAC	Rated Current:	20A, 32A, 40A, 50A, 60A, 80A, 125A
Protection Level:	IP20	Power Frequency:	50/60Hz
Auxiliary Contact:	1NO+1NC	Rated Voltage:	220VAC
Installation Method:	Screw Or Din Rail
Highlight:	220VAC 3 pole AC contactor , 3 pole AC contactor 50A , AC contactor screw DIN rail

Product Description

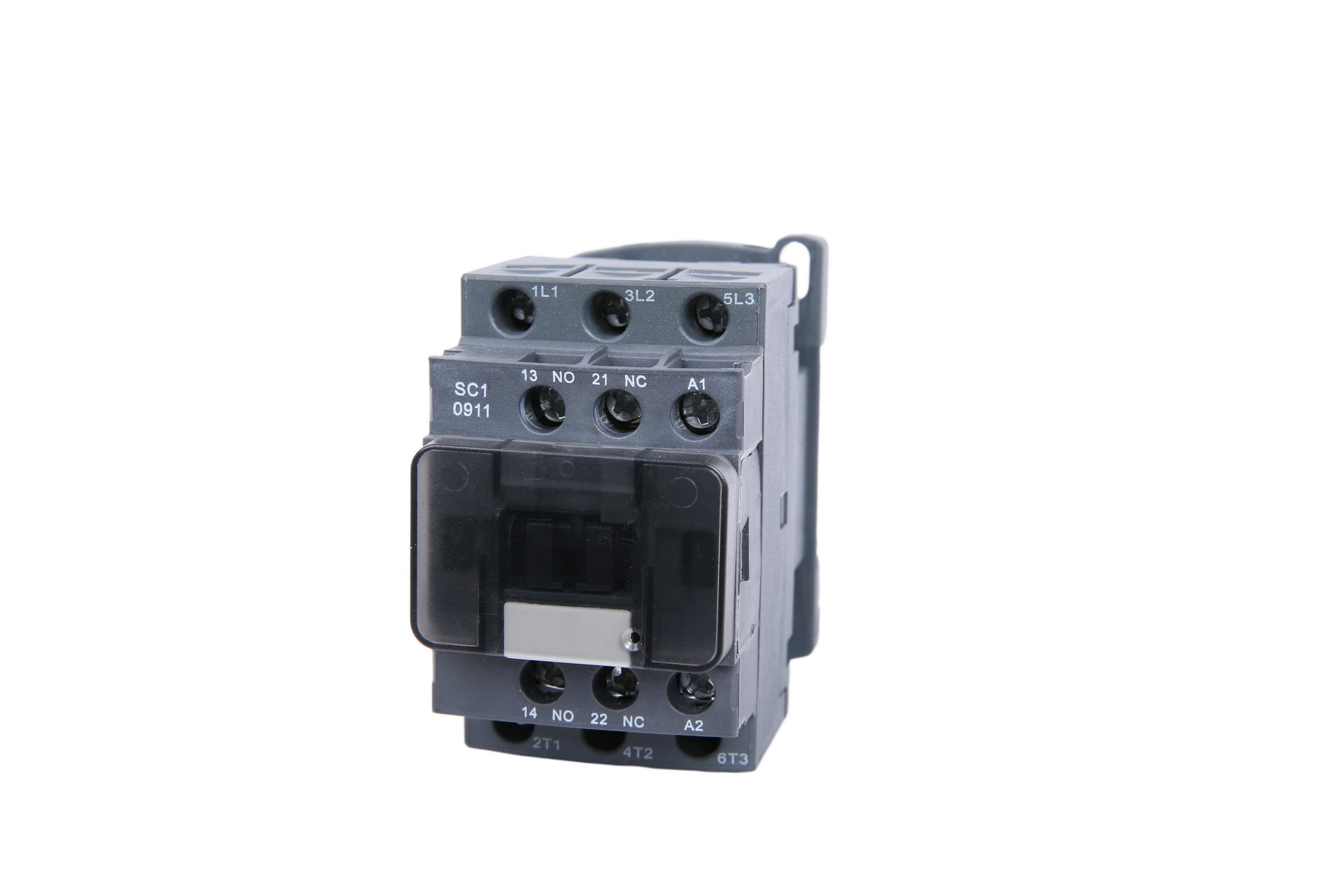

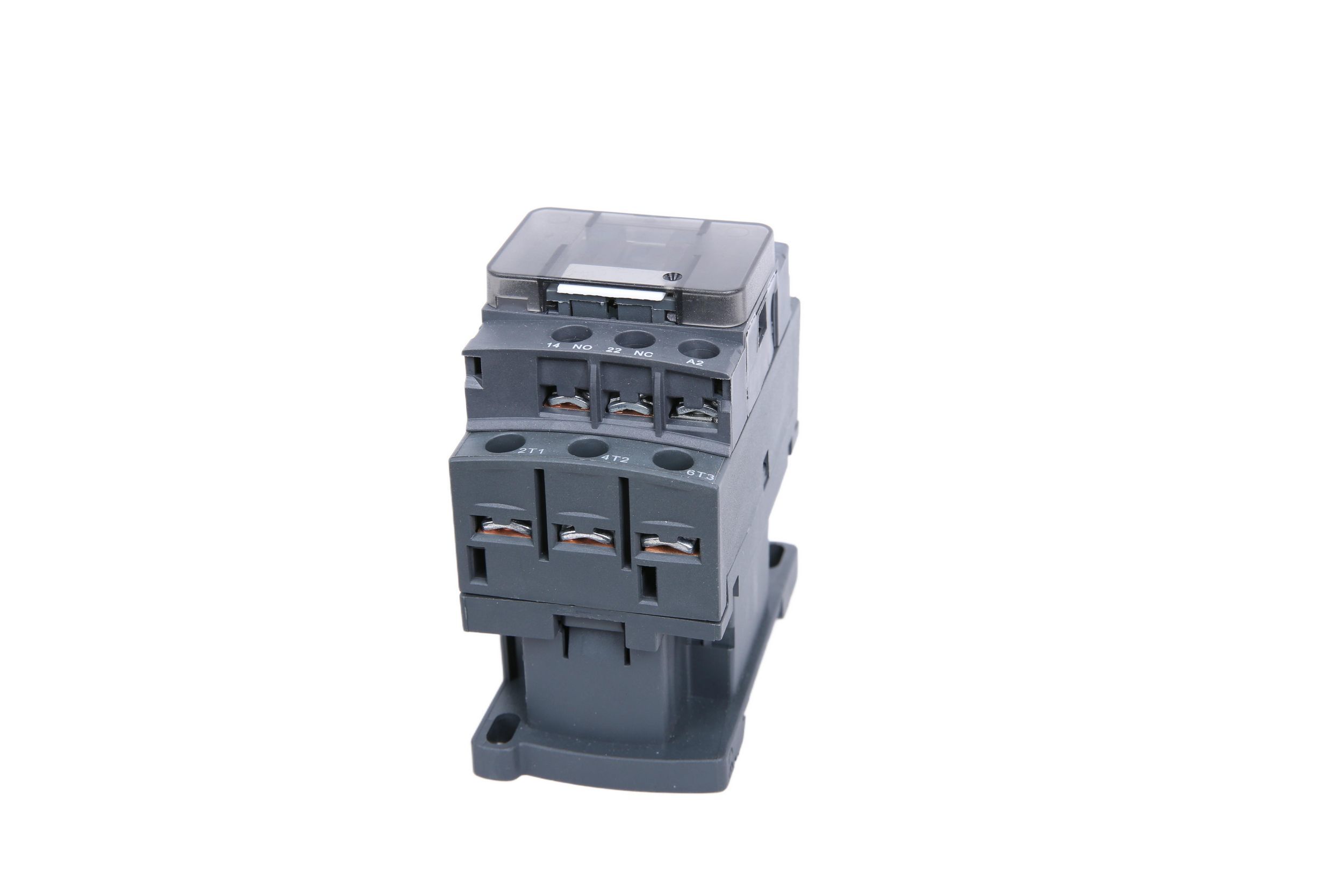

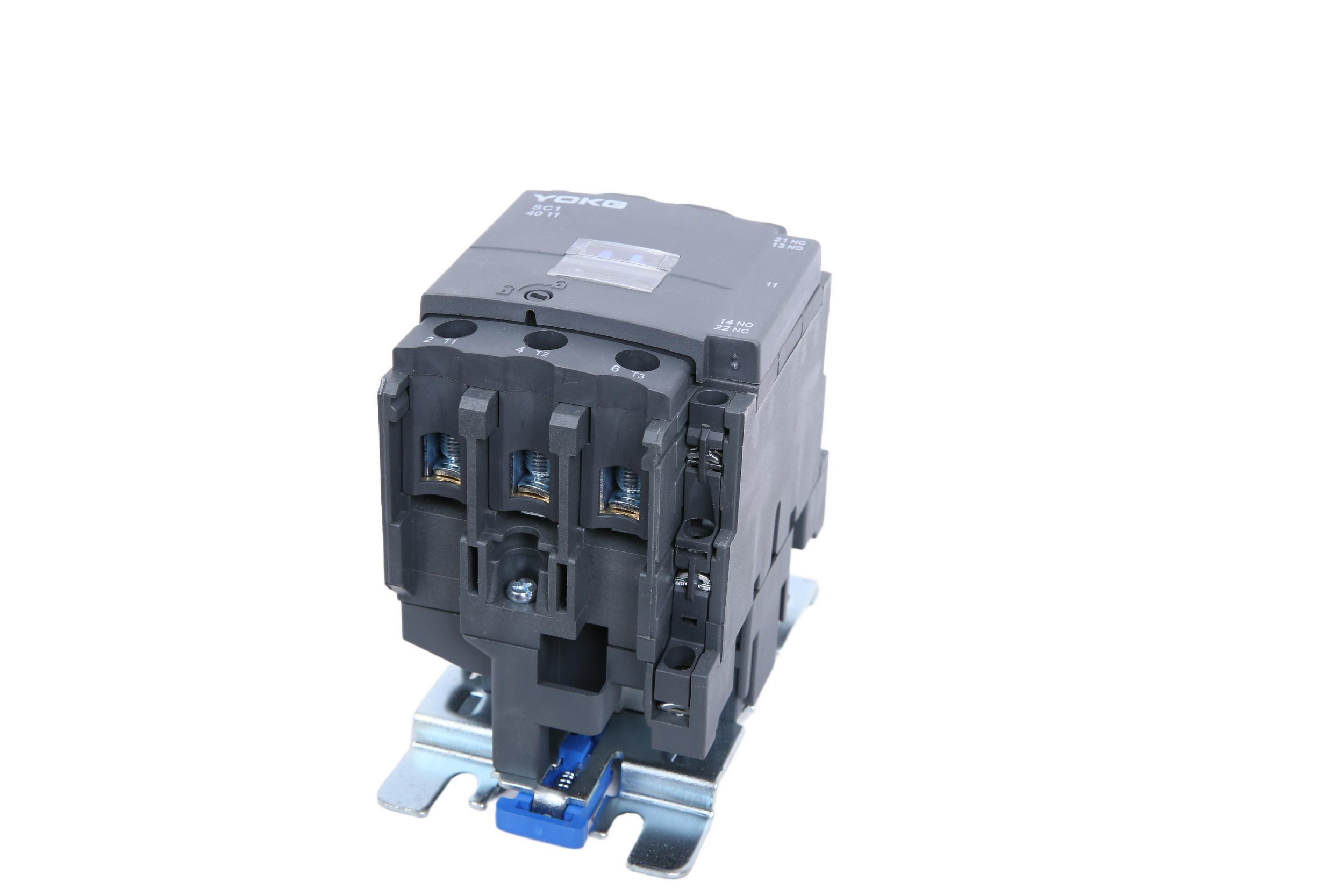

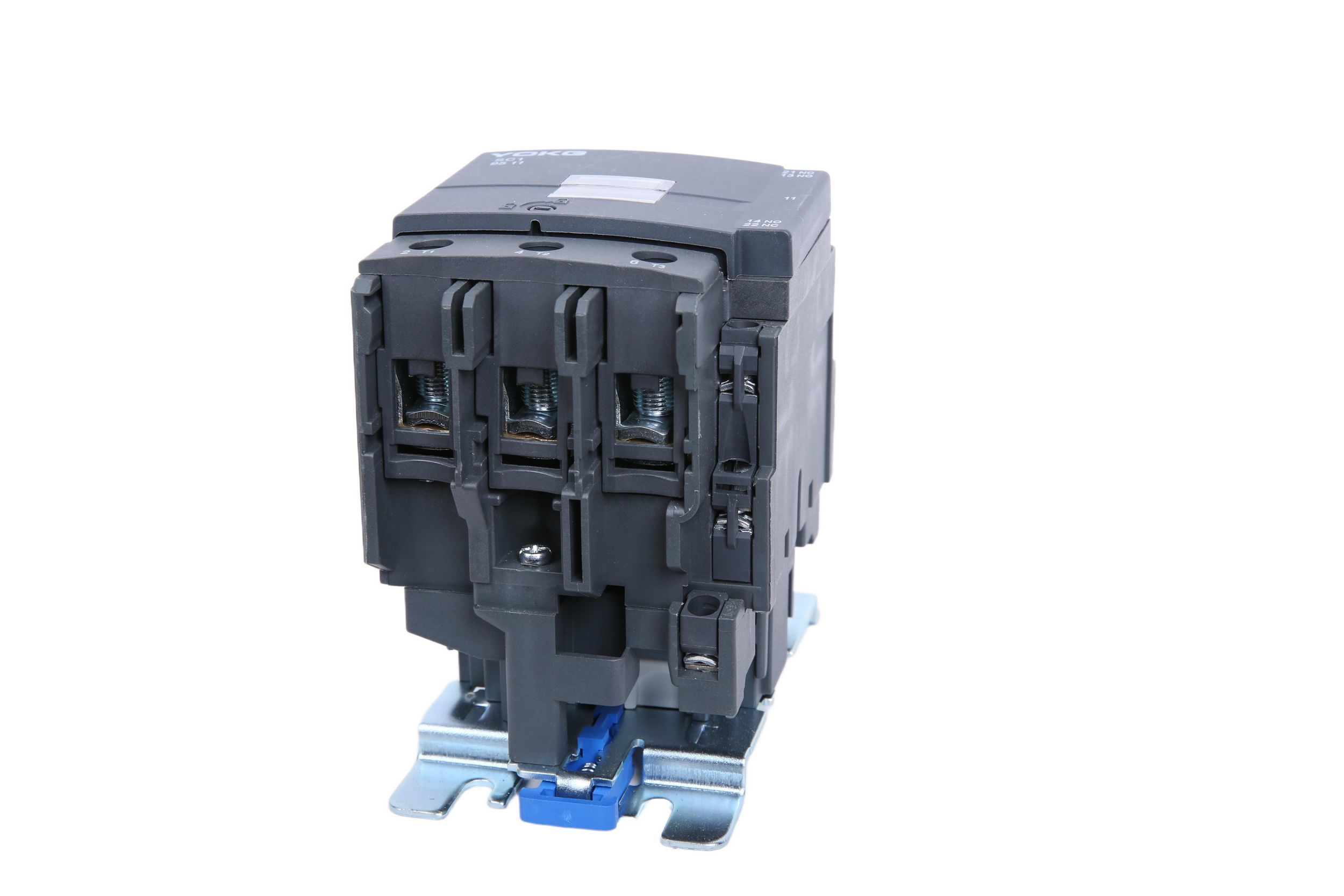

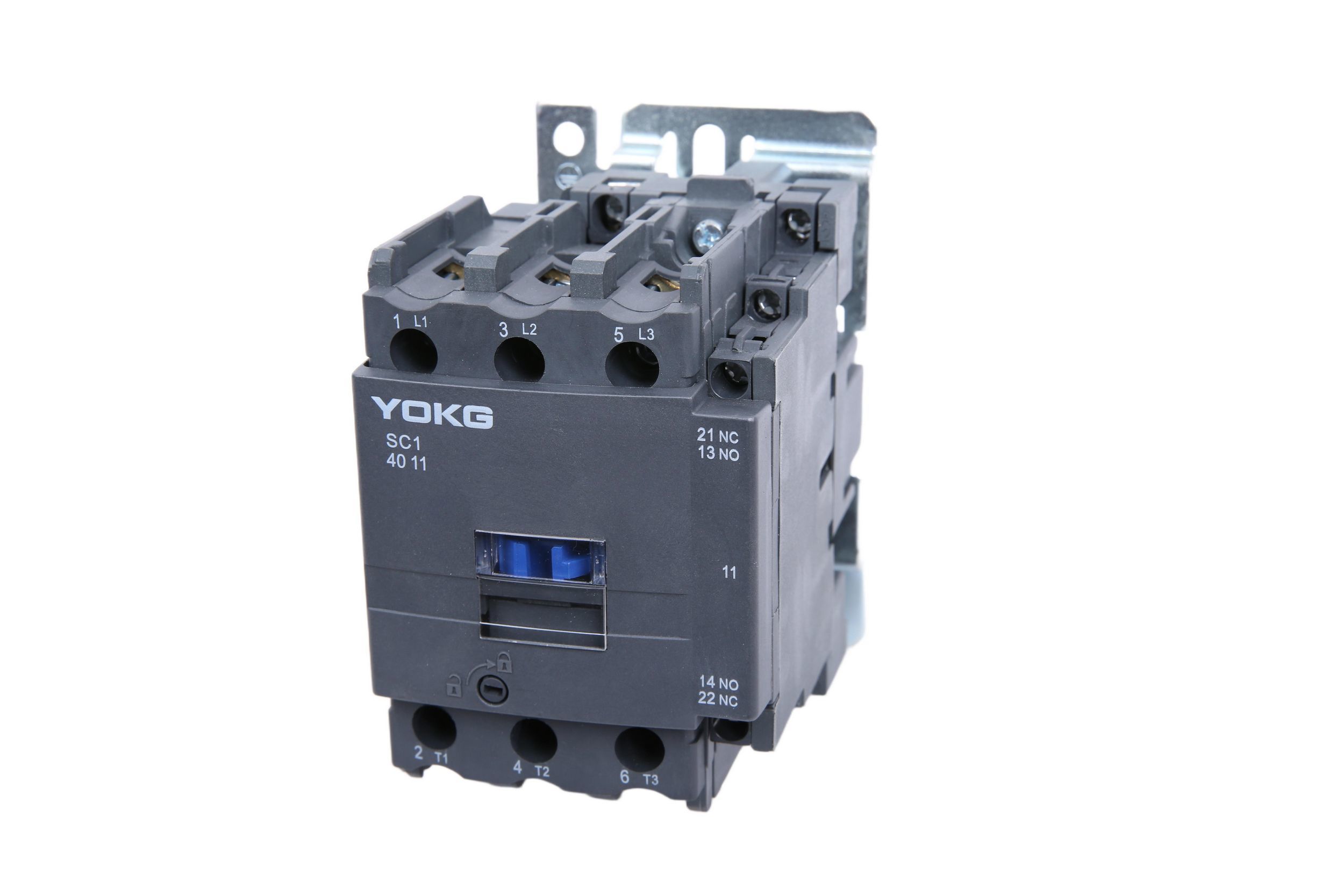

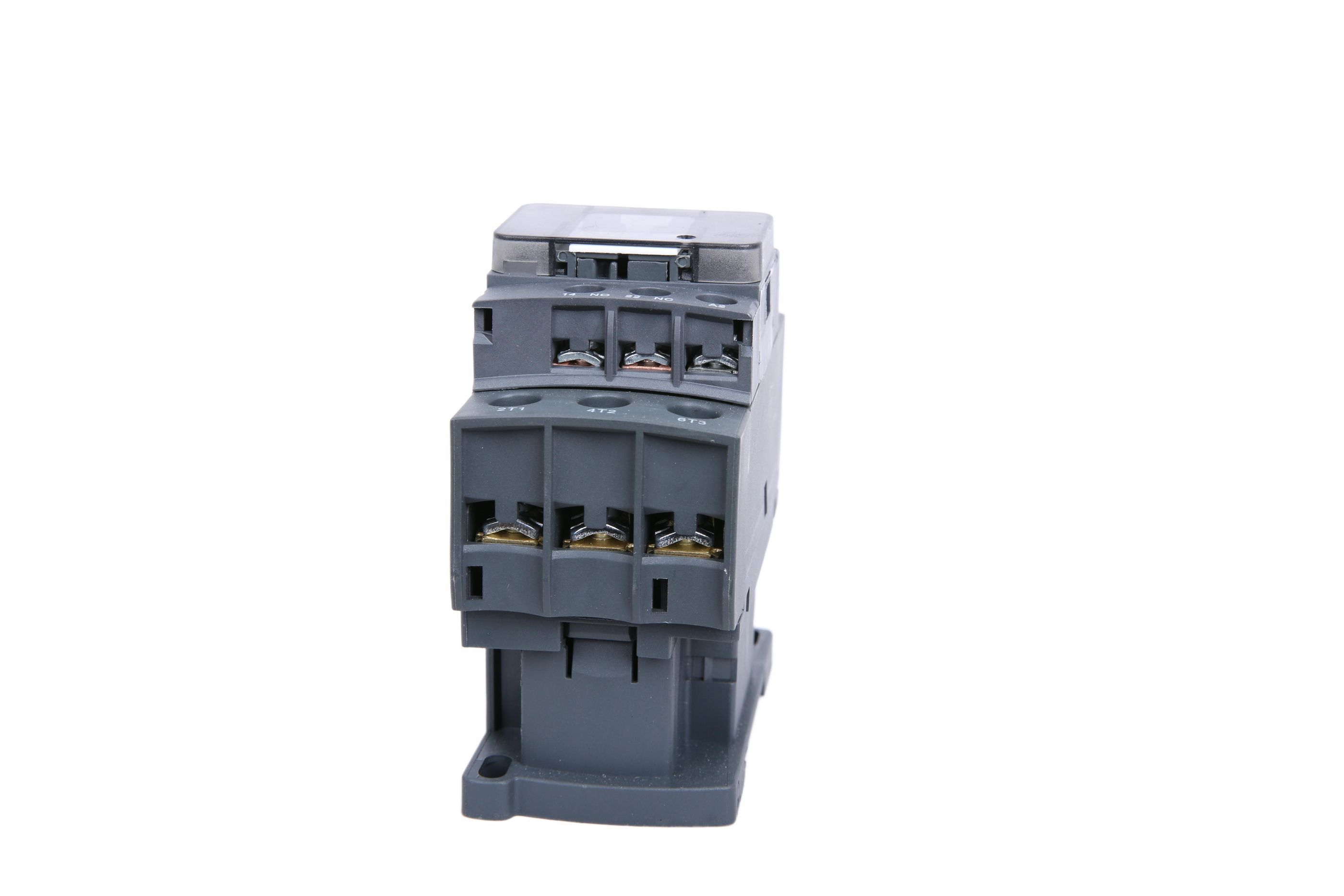

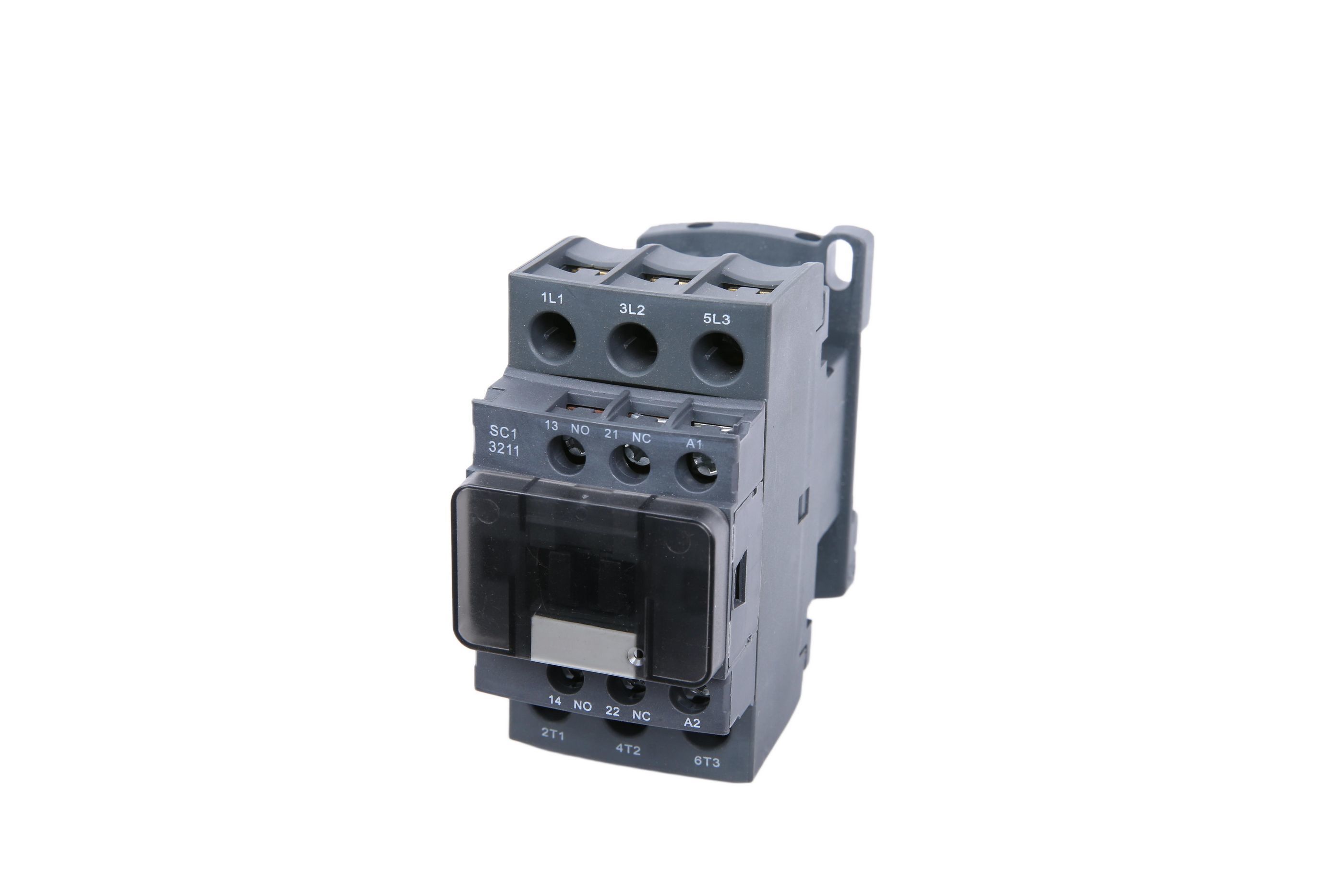

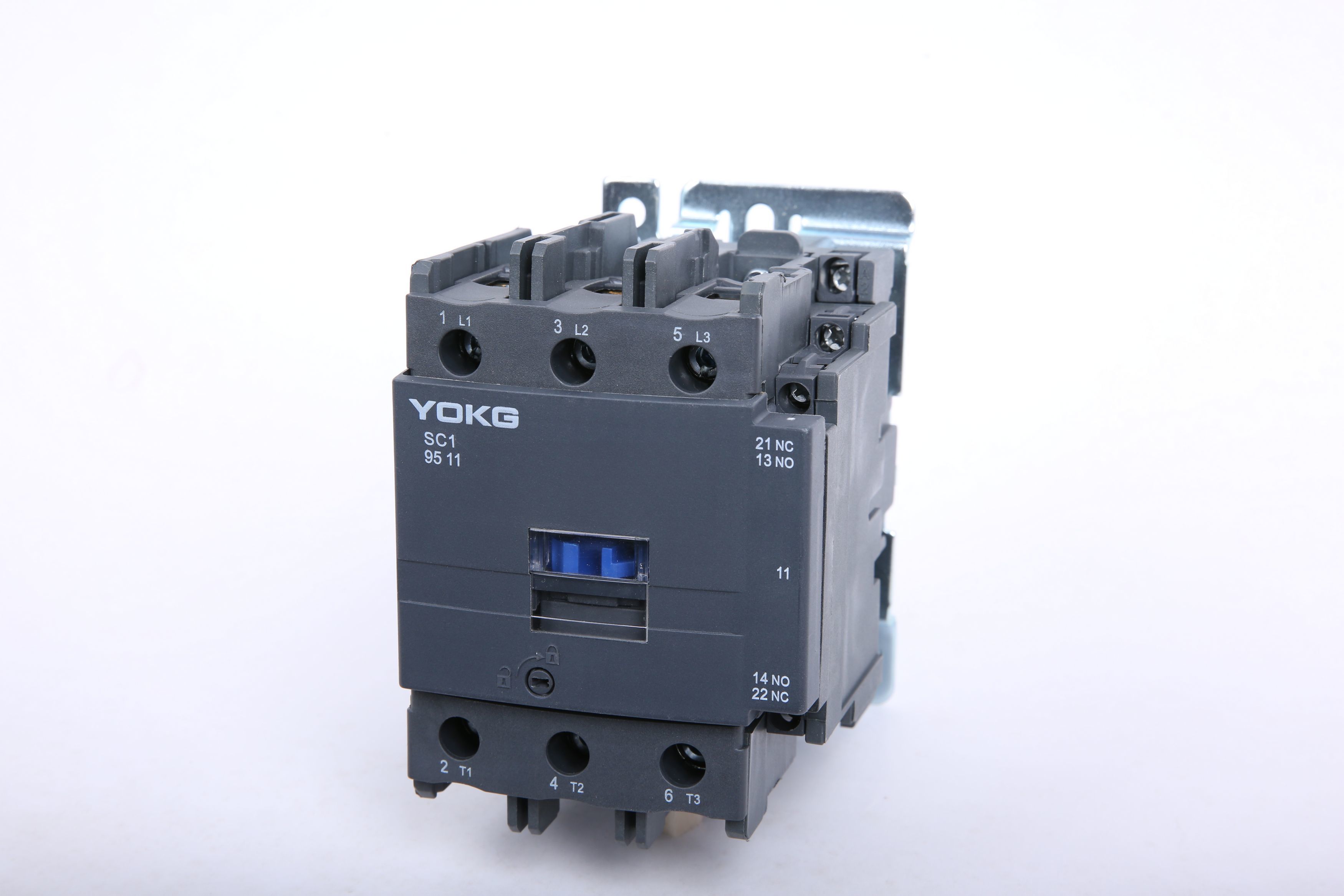

220VAC 3 Pole AC Contactor - Rated Current 50A

This 3 phase 3P+NC+NO AC Contactor is an essential component for industrial and commercial power control applications. It combines high rated current options with reliable auxiliary contact configurations and strong insulation capabilities, all housed within a durable and standard-compliant design. Whether controlling motors, lighting, heating, or other electrical loads, this contactor provides efficient switching, enhanced safety, and dependable operation.

Key Features

Product Name: 3 Pole AC Contactor
Rated Voltage: 220VAC
Rated Operational Voltage: 220VAC
Number of Poles: 3 phase
Auxiliary Contacts: 1NO + 1NC
Total Number of Auxiliary Contacts: 3
Insulation Voltage: 690VAC
Available Current Ratings: 20A, 32A, 40A, 50A, 60A, 80A, 125A

Technical Specifications

Main Parameters

Type	SC1-09	SC1-12	SC1-18	SC1-25	SC1-32
Rated heating current (A)	20	20	25	32	40
Rated insulation voltage (V)	690
Rated impact withstand voltage (KV)	6
Rated making capacity	10le
Rated breaking capacity	8le
Poles	3
Auxiliary contact	1NO + 1NC
Short-time withstand current(A) 10S	72	96	144	200	256

AC-3 Rated Working Current (A)

Voltage	SC1-09	SC1-12	SC1-18	SC1-25	SC1-32
220V/230V	9	12	18	25	32
380V/400V	9	12	18	25	32
660V/690V	6.5	8.9	12	18	22

AC-3 Capacity of Phase 3 Squirrel-Cage Motor (KW)

Voltage	SC1-09	SC1-12	SC1-18	SC1-25	SC1-32
220V/230V	2.2	3	4	5.5	7.5
380V/400V	4	5.5	7.5	11	15
660V/690V	5.5	7.5	10	15	18.5

Frequently Asked Questions

What brand names are available for the 3 Pole AC Contactor?

The 3 Pole AC Contactor is available under the brand names YOKG and OEM.

What are the model numbers available for this product?

The available model numbers are SC1-09, SC1-12, SC1-18, SC1-25, SC1-32, SC1-40, SC1-50, SC1-65, SC1-80, and SC1-95.

Where is the 3 Pole AC Contactor manufactured?

This product is manufactured in Zhejiang, China.

What is the minimum order quantity for the 3 Pole AC Contactor?

The minimum order quantity for this product is 200 units.

What are the payment terms and delivery time for this product?

The payment terms accepted are T/T and L/C, and the delivery time is approximately 10 days.

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	YOKG or OEM
Certification:	CE
Model Number:	SC1-09, SC1-12,SC1-18,SC1-25,SC1-32,SC1-40,SC1-50,SC1-65,SC1-80,SC1-95

Minimum Order Quantity:	200
Packaging Details:	Each unit be packed in one individual inner box
Delivery Time:	10 DAYS
Payment Terms:	T/T,L/C
