Detail Information

Rated Current:	20A, 32A, 40A, 50A, 60A, 80A, 125A	Rated Insulation Voltage:	690VAC
Number Of Auxiliary Contacts:	3	Installation Method:	Screw OR DIN RAIL
Insulation Voltage:	690VAC	Rated Operational Voltage:	220VAC,380VAC
Rated Voltage:	220VAC	Power Frequency:	50/60Hz
Highlight:	3 phase electrical contactor 380V , AC contactor 220VAC rated , 3 pole contactor AC voltage

Product Description

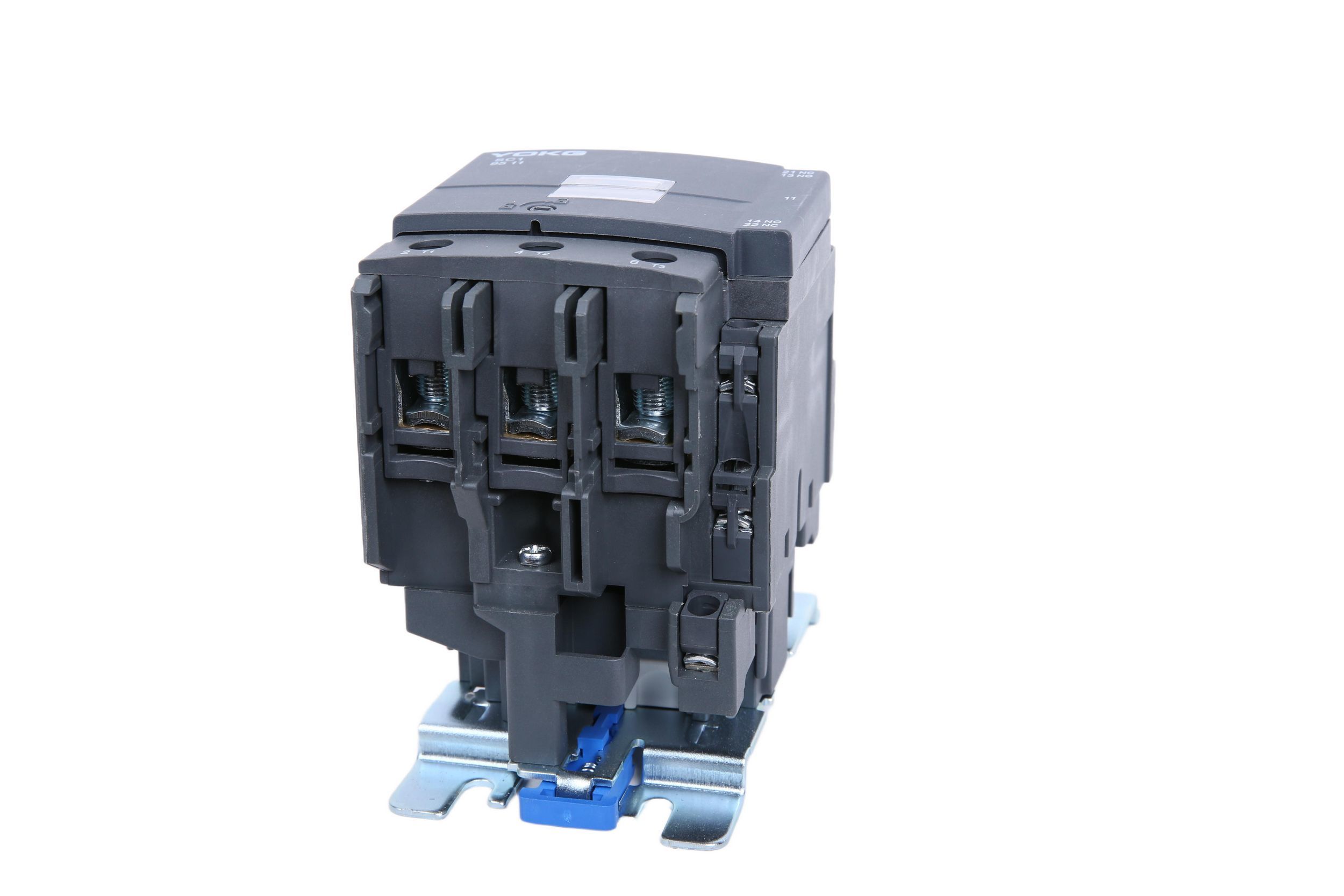

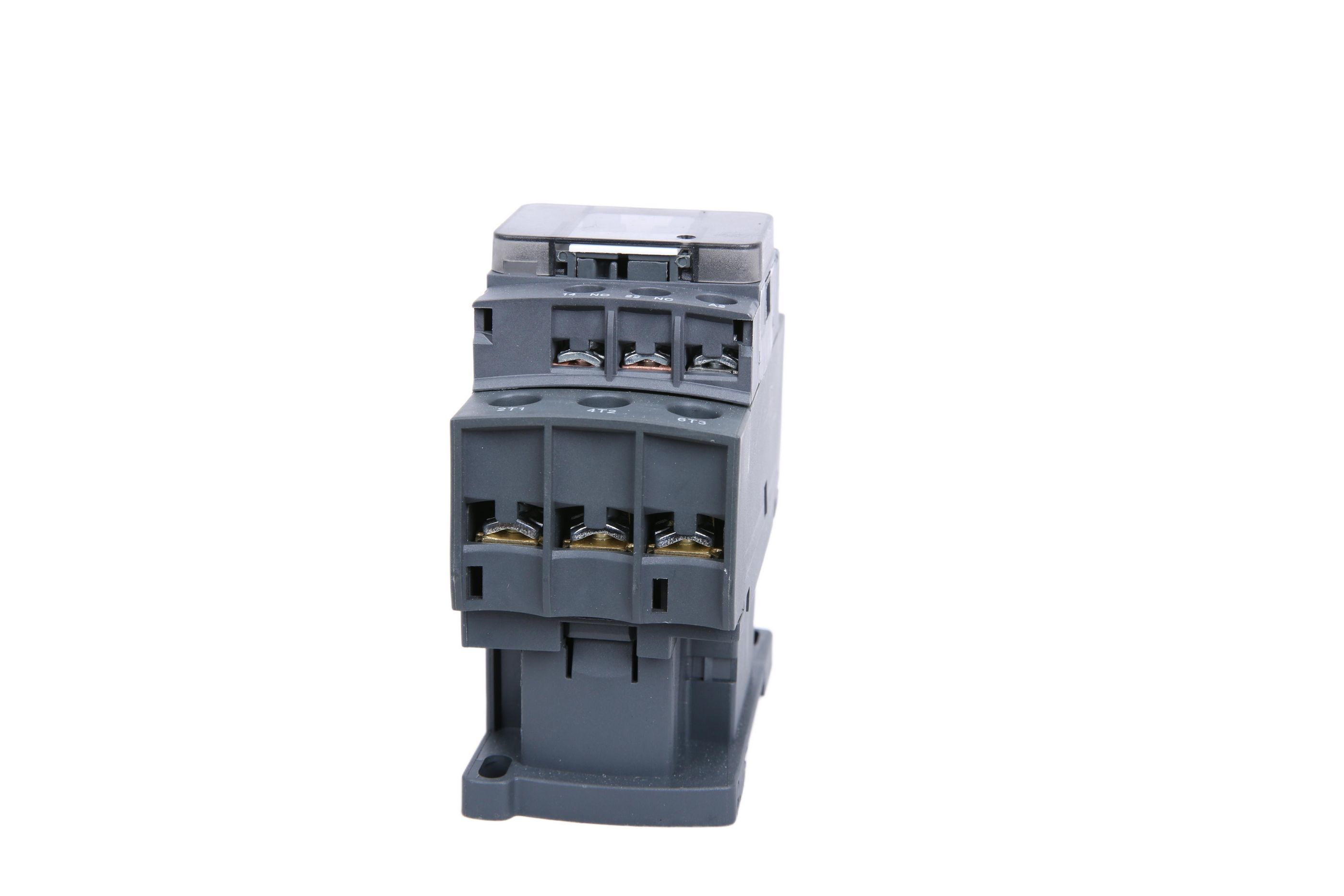

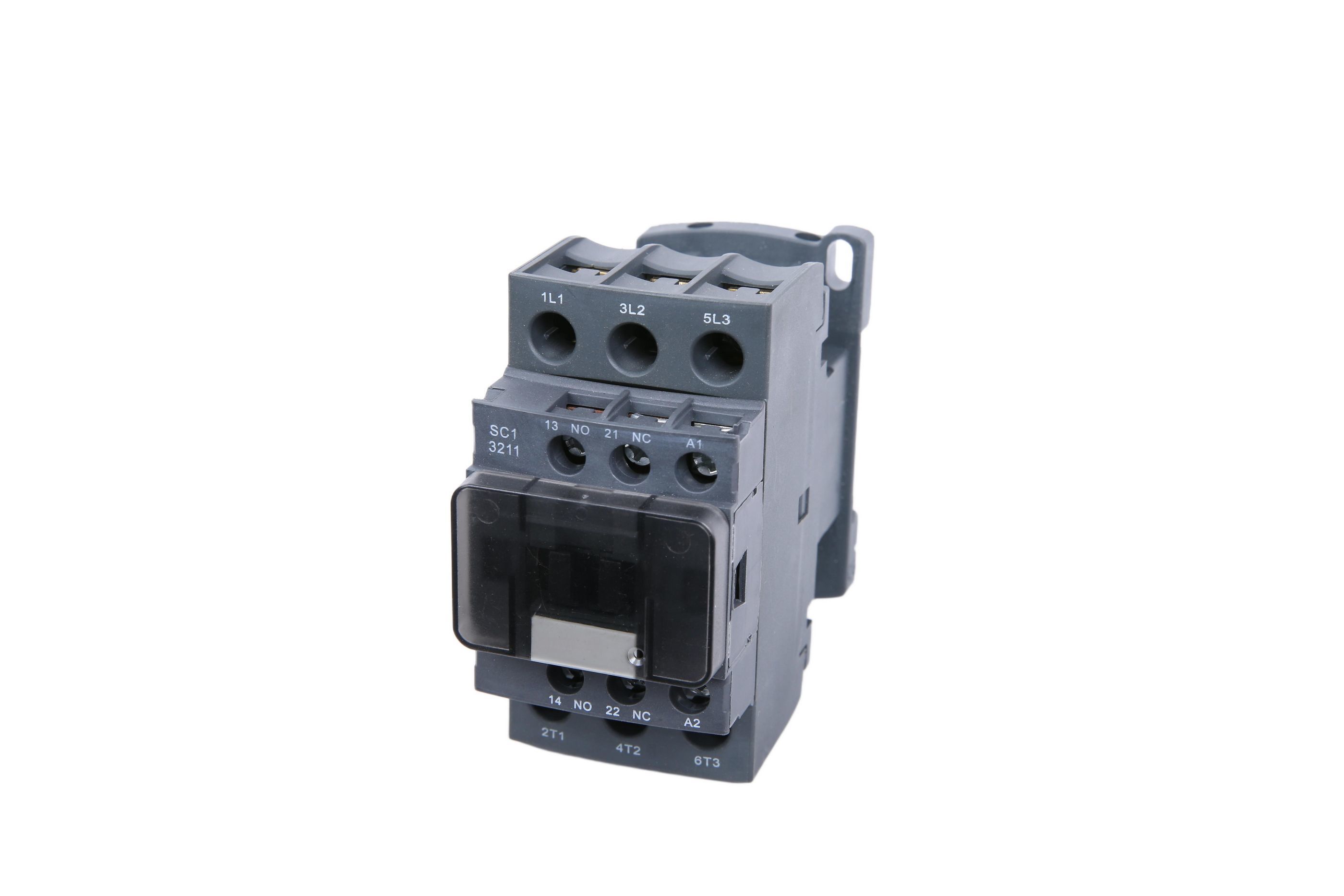

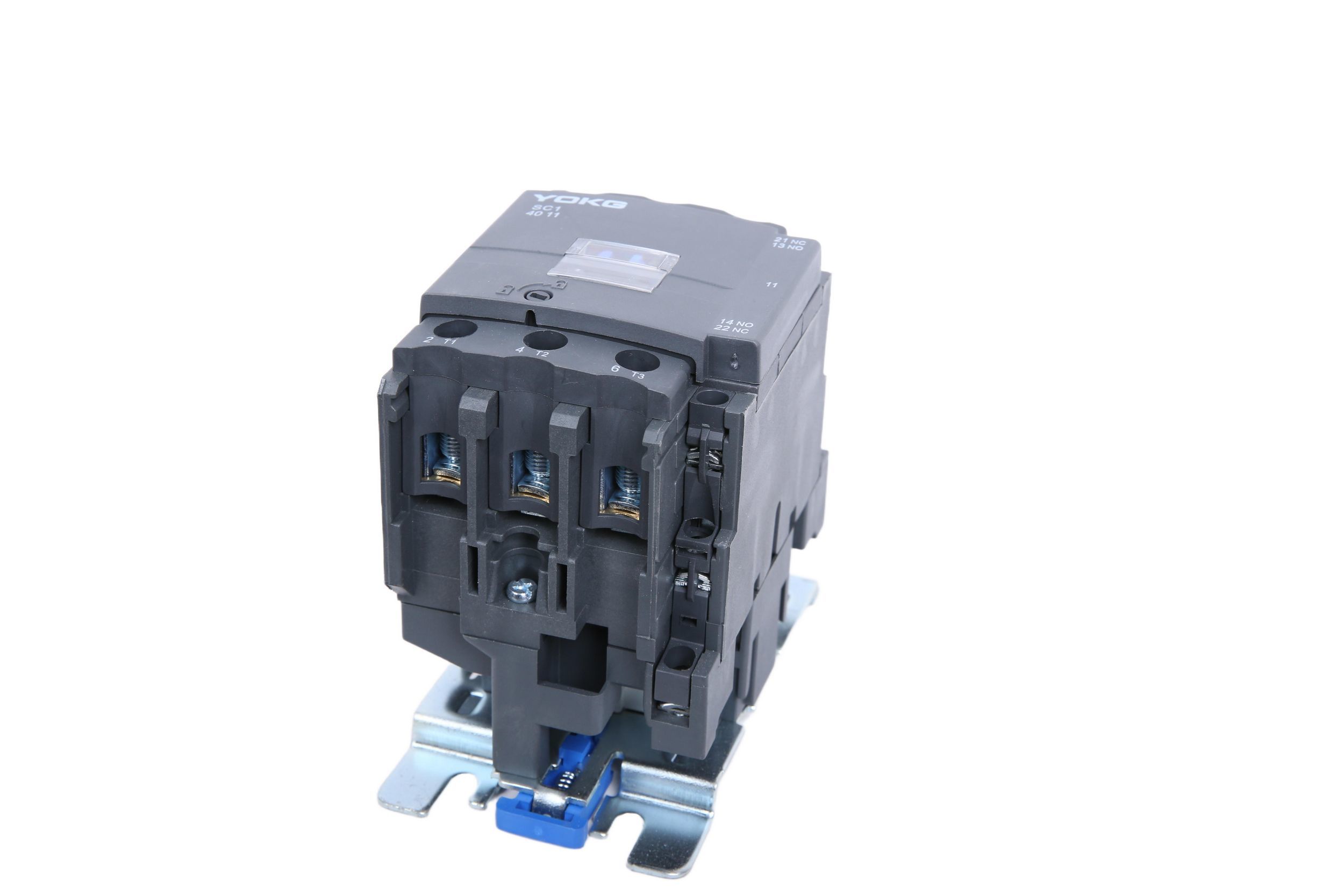

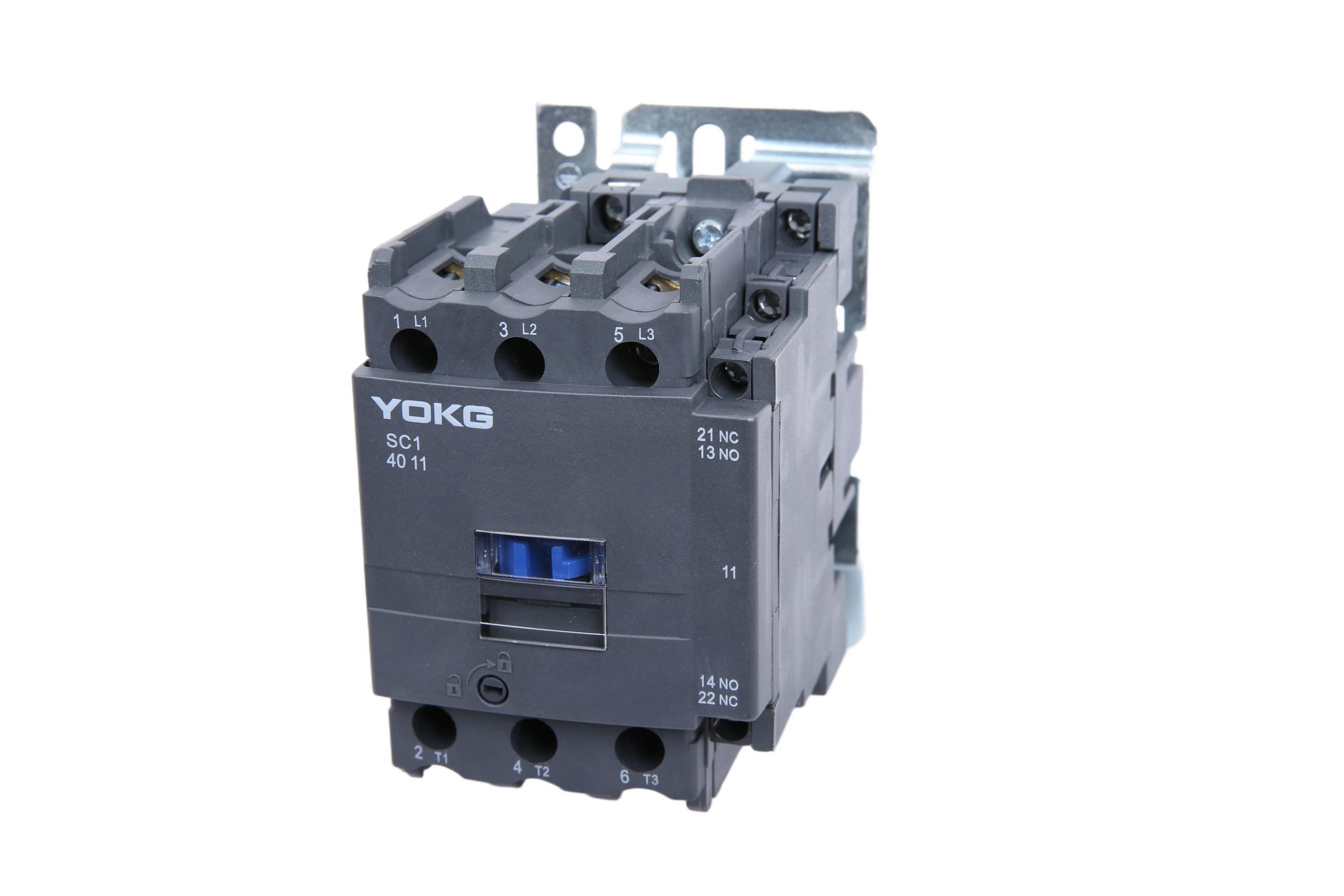

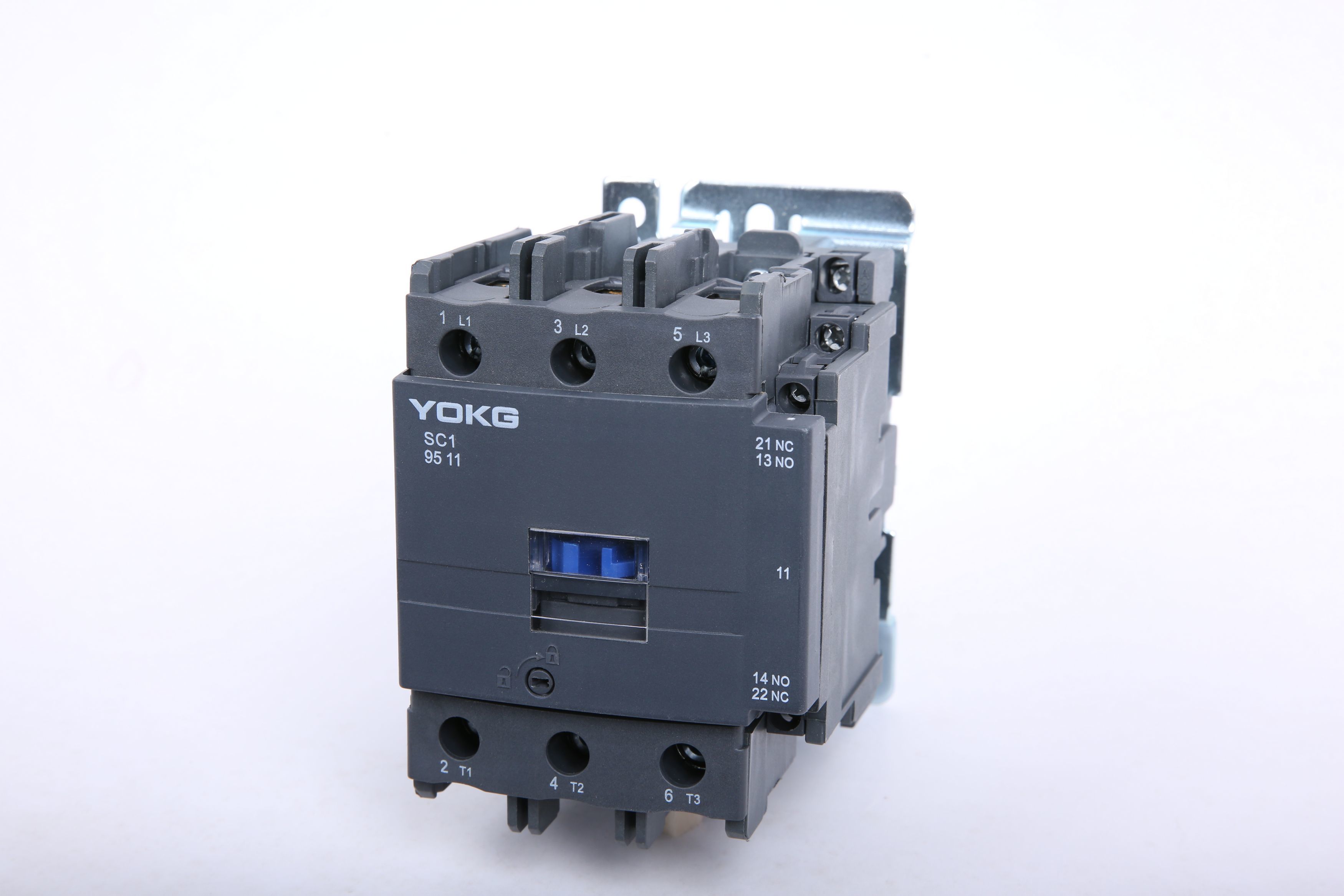

AC 380V Rated Voltage 220VAC 3 Phase Electrical Contactor

Product Features

Technical Specifications

Parameter	Value
Product Type	3 Pole AC magnetic contactor
Number of Poles	3
Insulation Voltage	690VAC
Rated Voltage	220VAC
Rated Operational Voltage	220VAC, 380VAC
Power Frequency	50/60Hz
Protection Level	IP20
Auxiliary Contact	1NO+1NC
Number of Auxiliary Contacts	3
Rated Current	20A, 32A, 40A, 50A, 60A, 80A, 125A

Detailed Technical Performance

Type	SC1-40	SC1-50	SC1-65	SC1-80	SC1-95
Rated heating current (A)	50	60	80	110	110
Rated insulation voltage (V)	690
Rated impact withstand voltage (KV)	6
Rated making capacity	10le
Rated breaking capacity	8le
Poles	3
Auxiliary contact	1NO + 1NC
Short-time withstand current(A) 10S	320	400	520	640	760
AC-3 Rated working current(A) 220V/230V	40	50	65	80	95
AC-3 Rated working current(A) 380V/400V	40	50	65	80	95
AC-3 Rated working current(A) 660V/690V	34	39	42	49	49
AC-3 capacity of phase 3 squirrel-cage motor (KW) 220V/230V	11	15	18.5	22	25
AC-3 capacity of phase 3 squirrel-cage motor (KW) 380V/400V	18.5	22	30	37	45
AC-3 capacity of phase 3 squirrel-cage motor (KW) 660V/690V	30	33	37	45	45
Operation frequency (times/h) Electrical life	600
Operation frequency (times/h) Mechanical life	3600
AC-3 Electrical life (10000/times)	80	60	60	60	60
Mechanical life (10000/times)	800	800	800	600	600
Equipped fuse type	RT16-63	RT16-80	RT16-80	RT16-100	RT16-125

Product Dimensions and Installation

Type	A max	B max	C max	a	b	∅
SC1-40～65	75	127	119	40	100/110	6.5
SC1-80～95	85	127	130	40	100/110	6.5

Frequently Asked Questions

What brand names are available for the 3 Pole AC Contactor?

The 3 Pole AC Contactor is available under the brand names YOKG or OEM.

What are the model numbers available for this product?

The product is available in several model numbers including SC1-09, SC1-12, SC1-18, SC1-25, SC1-32, SC1-40, SC1-50, SC1-65, SC1-80, and SC1-95.

Where is the 3 Pole AC Contactor manufactured?

This product is manufactured in Zhejiang, China.

What is the minimum order quantity for the 3 Pole AC Contactor?

The minimum order quantity for this product is 200 units.

What are the payment terms and delivery time for orders?

Payment terms include T/T and L/C, and the delivery time is typically 10 days after order confirmation.

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	YOKG or OEM
Certification:	CE
Model Number:	SC1-09, SC1-12,SC1-18,SC1-25,SC1-32,SC1-40,SC1-50,SC1-65,SC1-80,SC1-95

Minimum Order Quantity:	200
Packaging Details:	Each unit be packed in one individual inner box
Delivery Time:	10 DAYS
Payment Terms:	T/T,L/C
