Detail Information

Number Of Auxiliary Contacts:	3	Installation Method:	Screw OR DIN RAIL
Number Of Poles:	3	Rated Insulation Voltage:	690VAC
Rated Operational Voltage:	220VAC Or 380VAC	Insulation Voltage:	690VAC
Rated Current:	20A, 32A, 40A, 50A, 60A, 80A, 125A	Auxiliary Contacts:	1NO + 1NC
Highlight:	125A din rail contactor , 3 pole AC contactor 220VAC , din rail installation contactor

Product Description

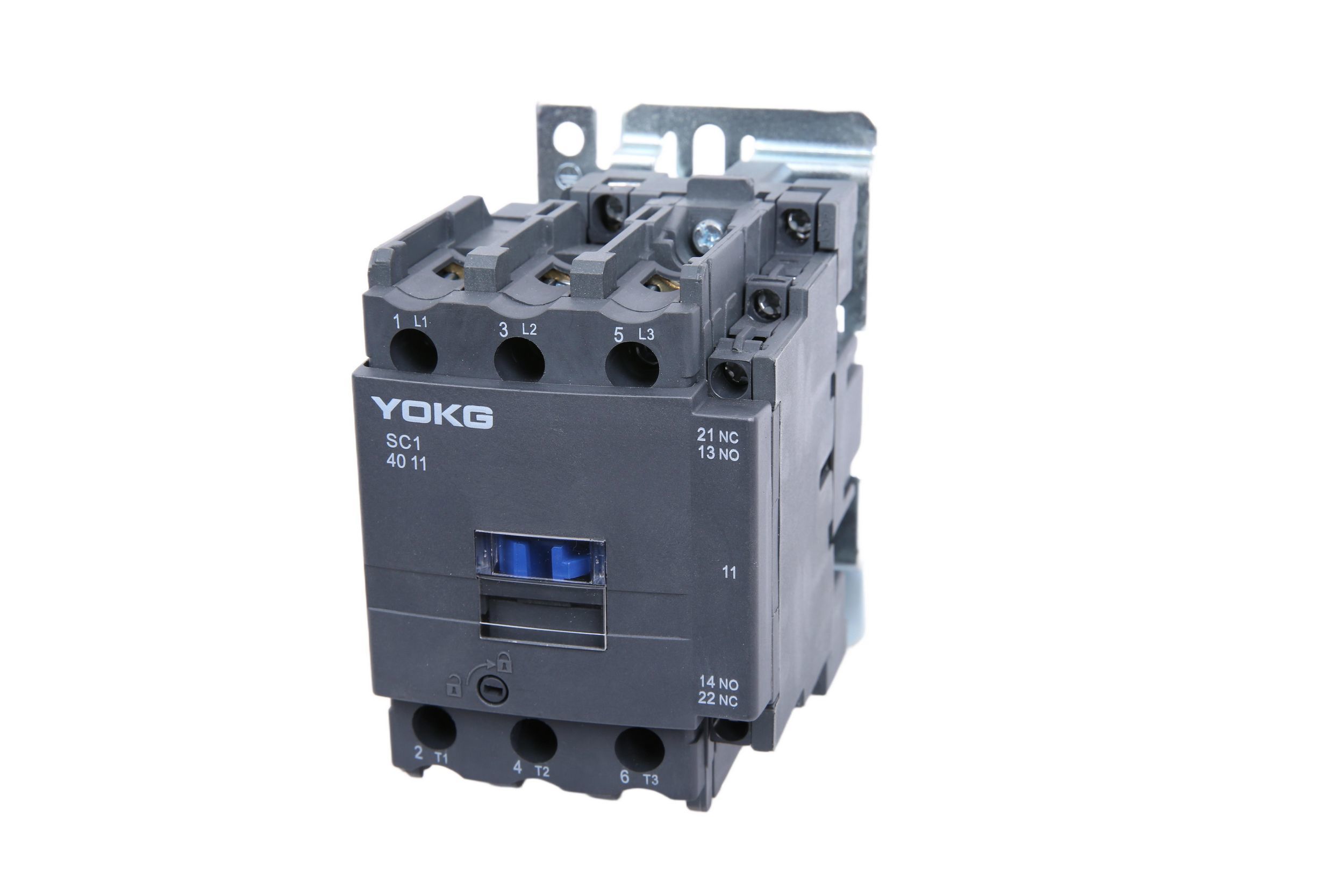

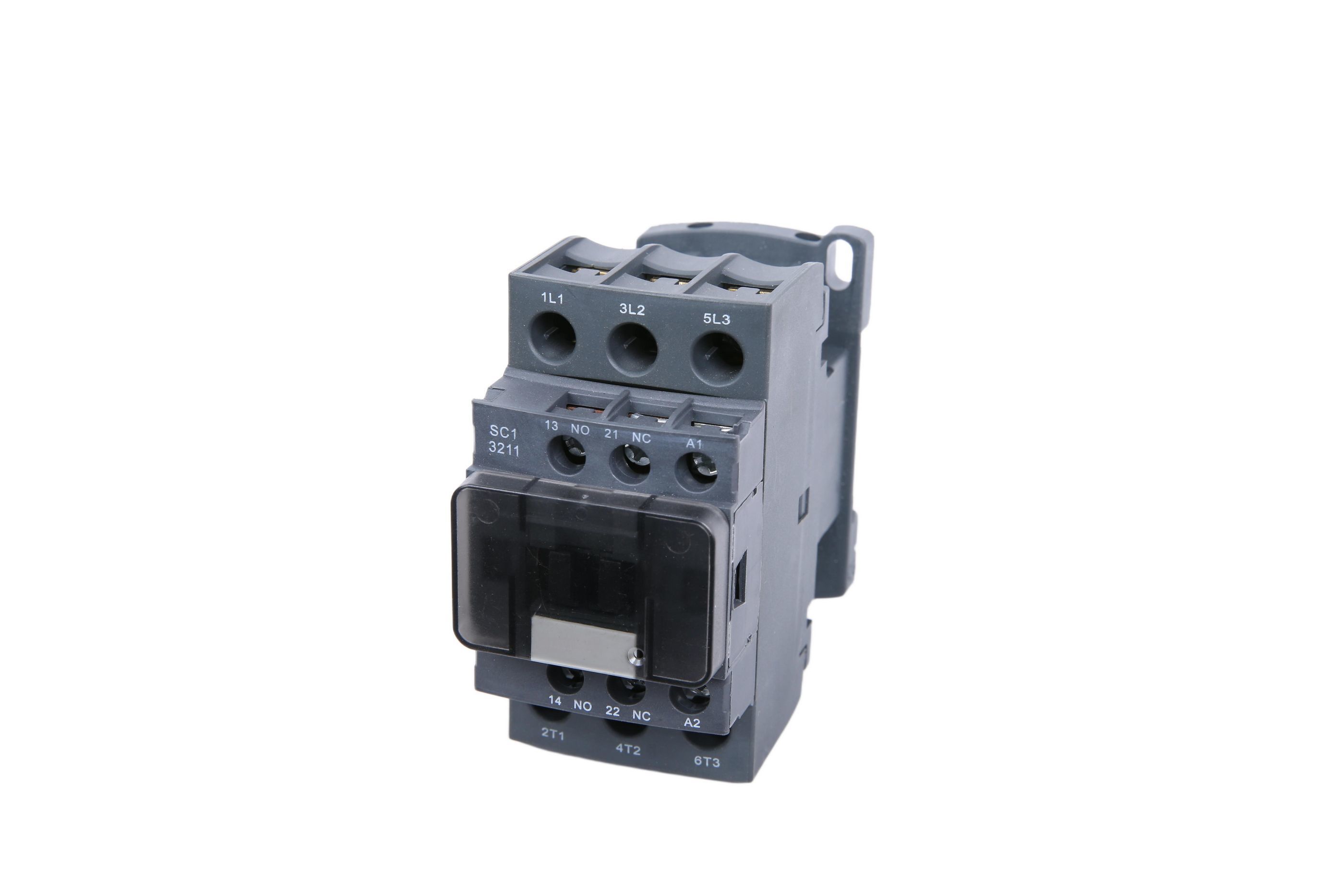

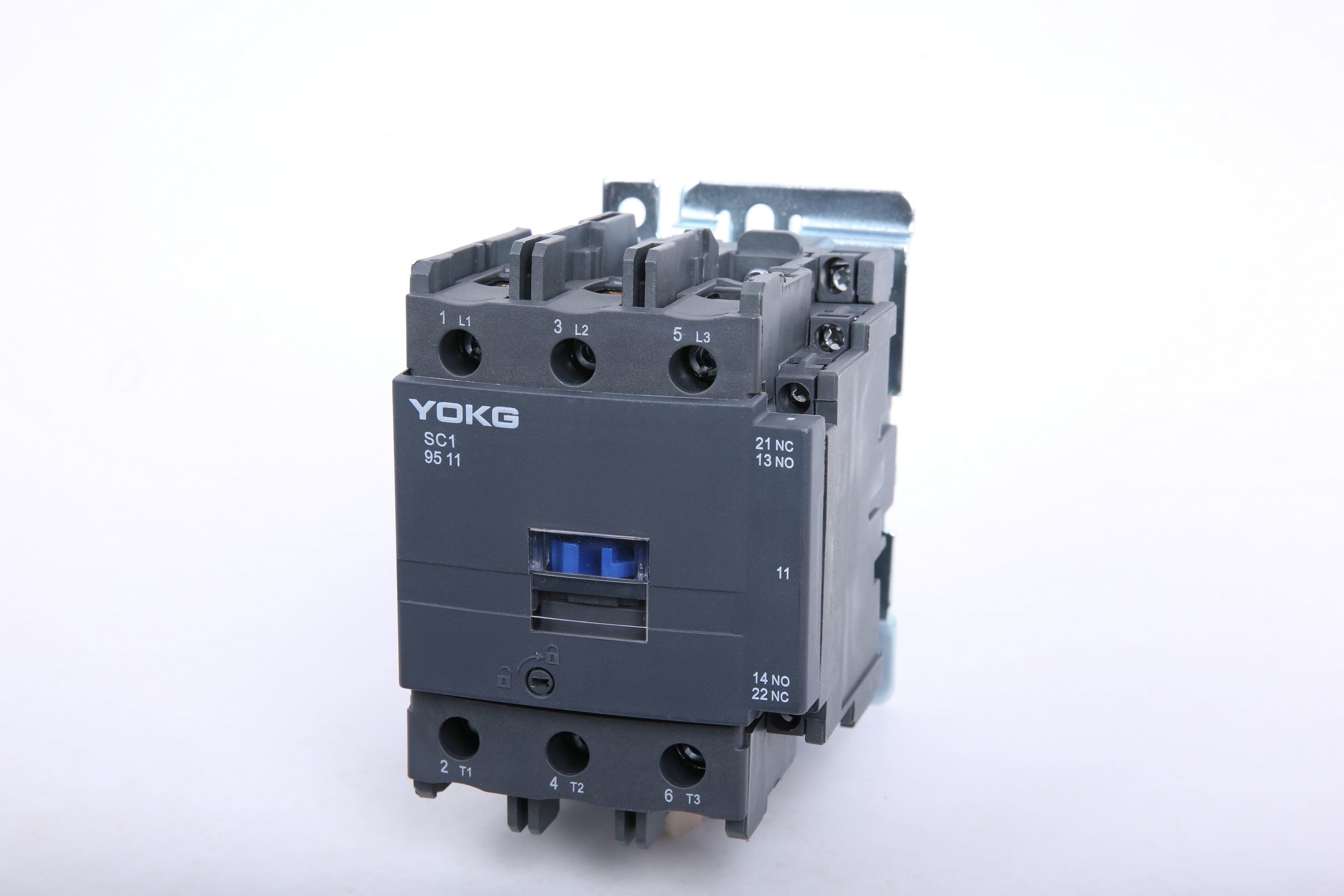

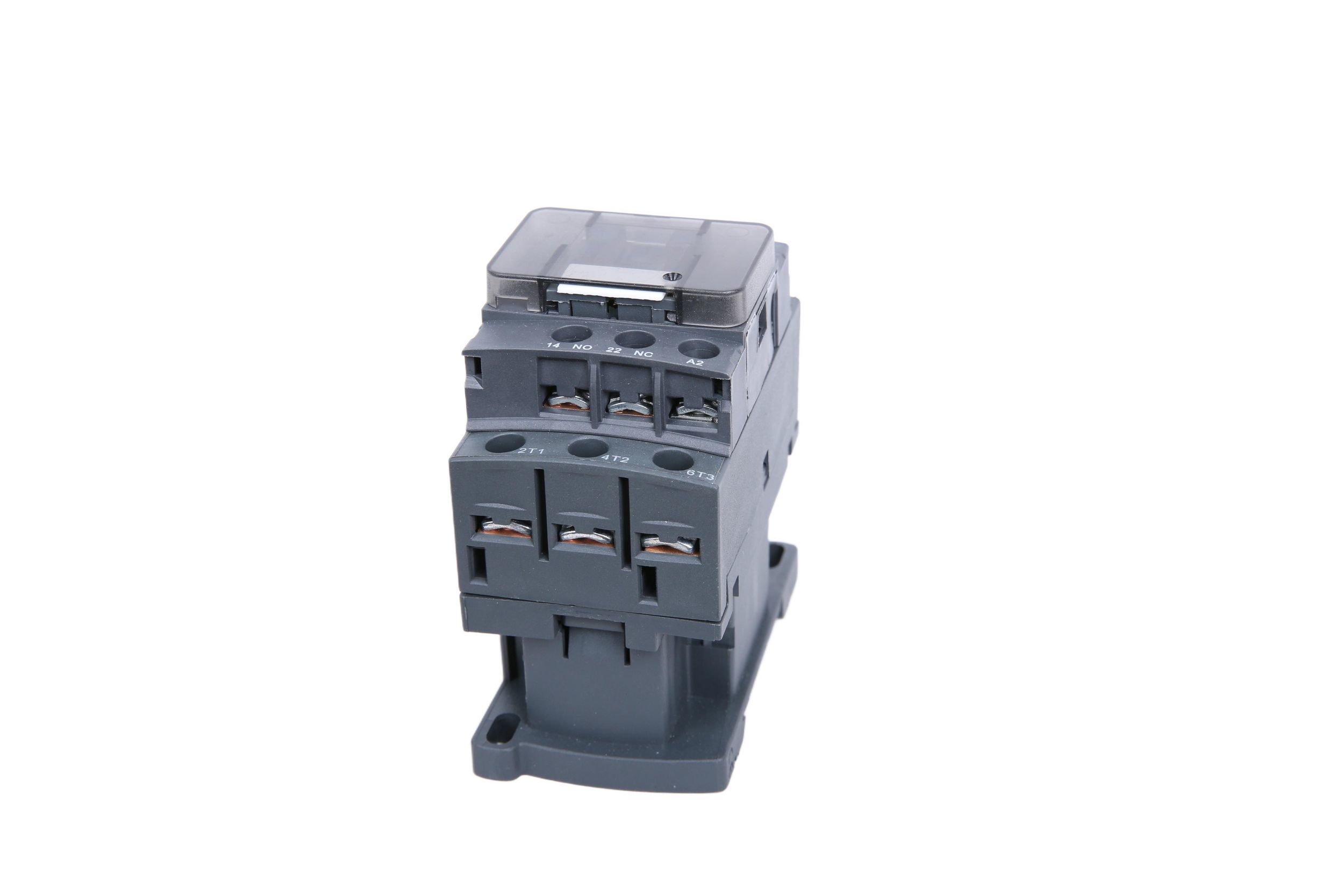

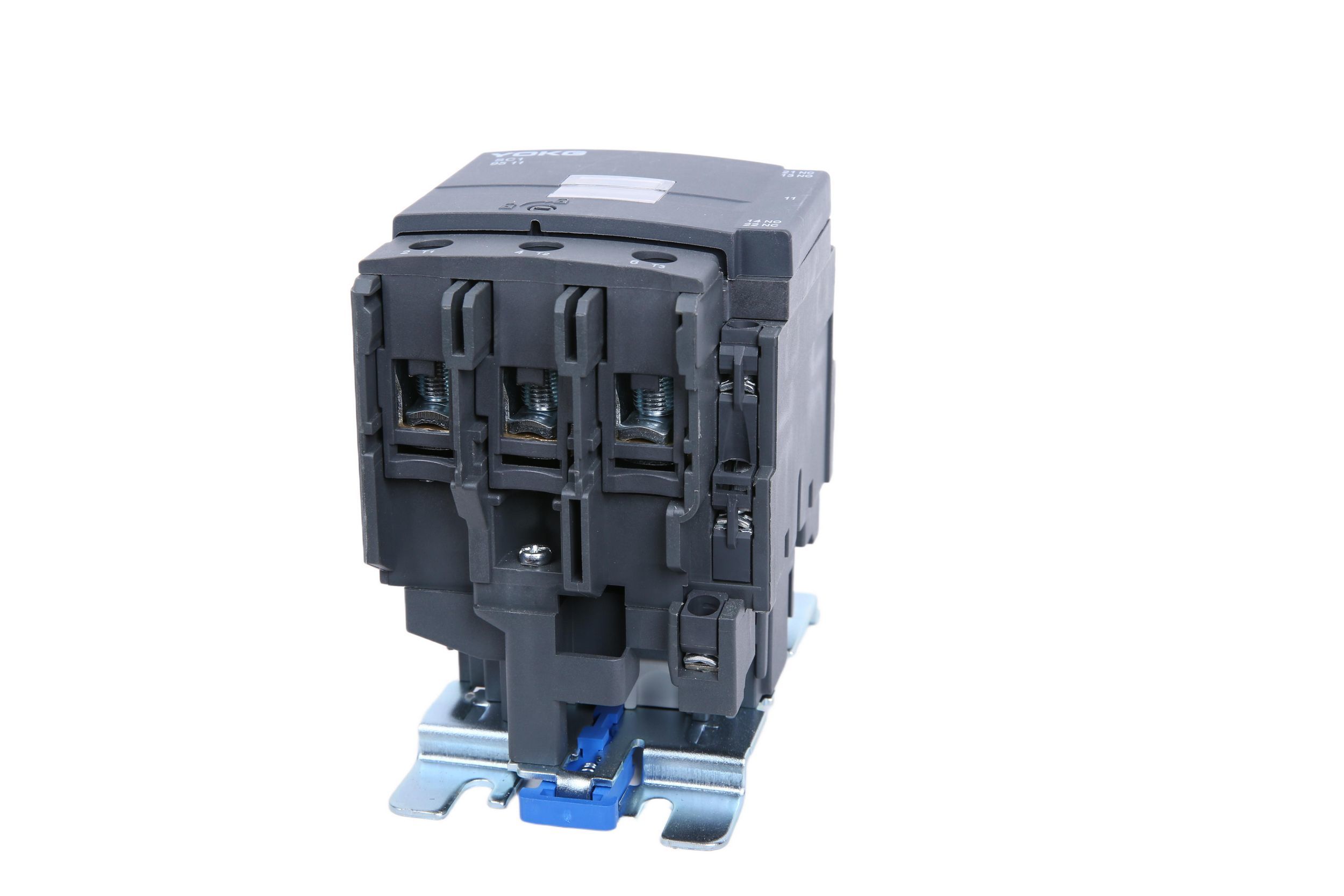

SC1 Series 3 Pole AC Contactor

Product Overview

125A DIN rail installation 3 pole AC contactor with rated operational voltage of 220VAC, designed for reliable electrical control applications.

Key Features

Technical Specifications

Basic Parameters

Technical Performance Parameters

Type	SC1-40	SC1-50	SC1-65	SC1-80	SC1-95
Rated heating current (A)	50	60	80	110	110
Rated insulation voltage (V)	690
Rated impact withstand voltage (KV)	6
Short-time withstand current(A) 10S	320	400	520	640	760
AC-3 Rated working current(A) 220V/230V	40	50	65	80	95
AC-3 capacity of phase 3 squirrel-cage motor (AC-3) KW 380V/400V	18.5	22	30	37	45
Mechanical life (10000/times)	800	800	800	600	600
Equipped fuse type	RT16-63	RT16-80	RT16-80	RT16-100	RT16-125

Product Dimensions & Installation

Installation Dimensions

Type	A max	B max	C max	a	b	∅
SC1-40～65	75	127	119	40	100/110	6.5
SC1-80～95	85	127	130	40	100/110	6.5

Frequently Asked Questions

What brand names are available for the 3 Pole AC Contactor?

The 3 Pole AC Contactor is available under the brand names YOKG and OEM.

What are the model numbers available for this product?

The product comes in various model numbers including SC1-09, SC1-12, SC1-18, SC1-25, SC1-32, SC1-40, SC1-50, SC1-65, SC1-80, and SC1-95.

Where is the 3 Pole AC Contactor manufactured?

The 3 Pole AC Contactor is manufactured in Zhejiang, China.

What is the minimum order quantity for this product?

The minimum order quantity for the 3 Pole AC Contactor is 200 units.

What is the typical delivery time once an order is placed?

The typical delivery time for the 3 Pole AC Contactor is 10 days after order confirmation.

What payment terms are accepted for purchasing this product?

Payment terms accepted include T/T (Telegraphic Transfer) and L/C (Letter of Credit).

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	YOKG or OEM
Certification:	CE
Model Number:	SC1-09, SC1-12,SC1-18,SC1-25,SC1-32,SC1-40,SC1-50,SC1-65,SC1-80,SC1-95

Minimum Order Quantity:	200
Packaging Details:	Each unit be packed in one individual inner box
Delivery Time:	10 DAYS
Payment Terms:	T/T,L/C
