Detail Information

Number Of Auxiliary Contacts:	3	Auxiliary Contact:	1NO+1NC
Rated Operational Voltage:	220VAC	Number Of Poles:	3
Power Frequency:	50/60Hz	Rated Current:	20A, 32A, 40A, 50A, 60A, 80A, 125A
Rated Insulation Voltage:	690VAC	Electricity Type:	AC
Highlight:	NO+NC 20A 380V AC contactor , 3 pole industrial AC contactor , magnetic AC contactor for control systems

Product Description

NO+NC 20A 380V Electrical Magnetic AC Contactor

Product Overview

This 3 Pole AC Contactor is designed for industrial control systems, featuring reliable magnetic operation and compliance with international safety standards.

Key Features

Product Name: 3 Pole AC Contactor
Installation Method: Screw or DIN Rail Mounting
Auxiliary Contact: 1NO+1NC Configuration
Rated Voltage: 220VAC
Number of Poles: 3
Insulation Voltage: 690VAC
Compliant with IEC60947-4 Standard
Enhanced Safety and Durability Design

Technical Specifications

General Parameters

Product Type	AC magnetic contactor, 3P+NC+NO
Power Frequency	50/60Hz
Rated Insulation Voltage	690VAC
Rated Voltage	220VAC
Rated Operational Voltage	220VAC
Rated Current	20A, 32A, 40A, 50A, 60A, 80A, 125A
Installation Method	Screw or DIN Rail
Protection Level	IP20
Auxiliary Contact	1NO+1NC

Performance Parameters

Parameter	SC3-09	SC3-12
Rated heating current (A)	20	20
Rated insulation voltage (V)	690	690
Rated impact withstand voltage (KV)	6	6
Rated making capacity	10le	10le
Rated breaking capacity	8le	8le
Poles	3	3
Auxiliary contact	1NO+1NC	1NO+1NC
Short-time withstand current(A) 10S	72	96
Rated working current(A) 380V AC-3	9	12
Rated working current(A) 380V AC-4	3.5	5
Rated working current(A) 660V AC-3	6.6	8.9
Rated working current(A) 660V AC-4	1.5	2
AC-3 capacity of phase 3 squirrel-cage motor (KW) 220V	2.2	3
AC-3 capacity of phase 3 squirrel-cage motor (KW) 380V	4	5.5
AC-3 capacity of phase 3 squirrel-cage motor (KW) 660V	5.5	7.5

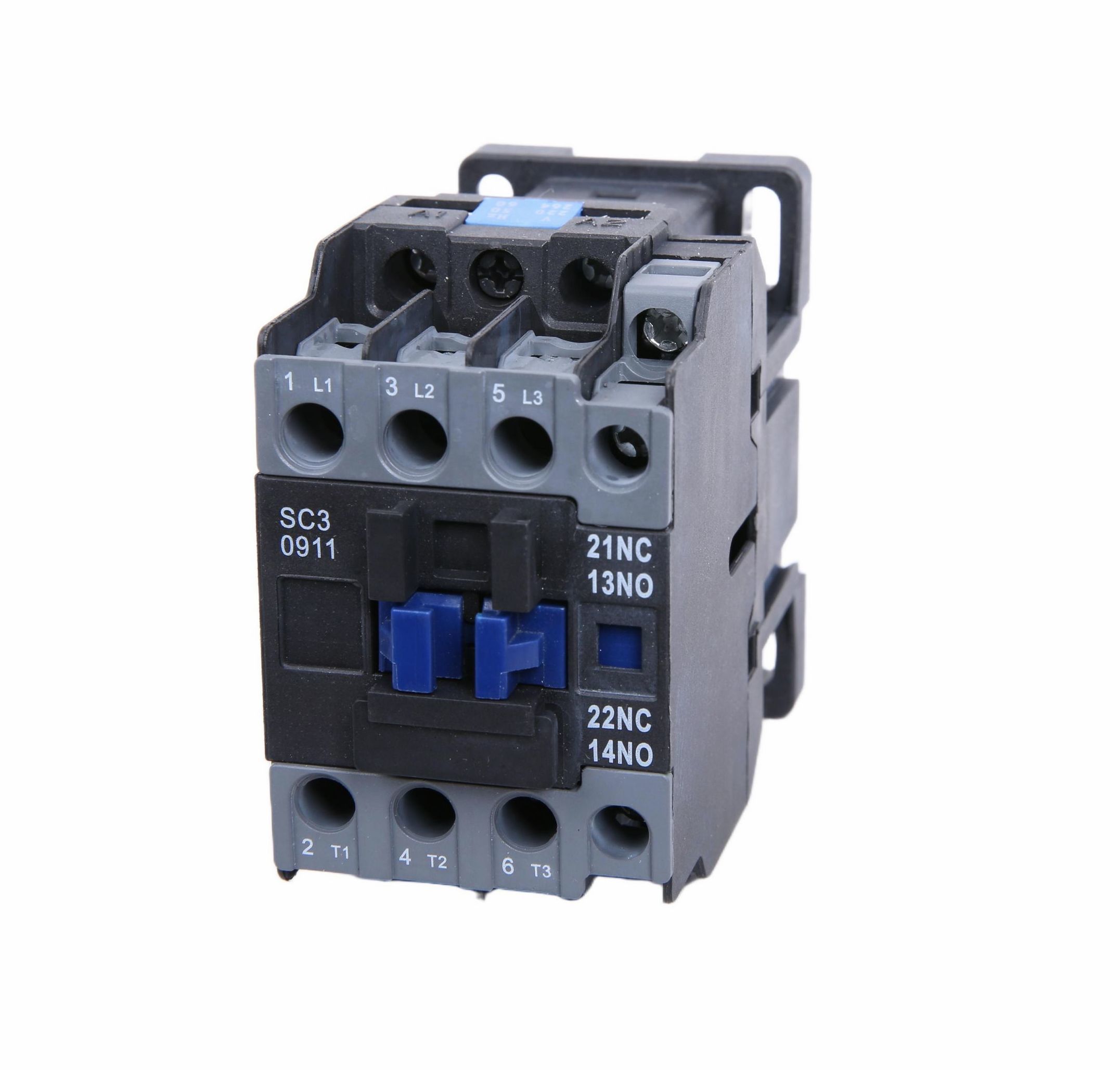

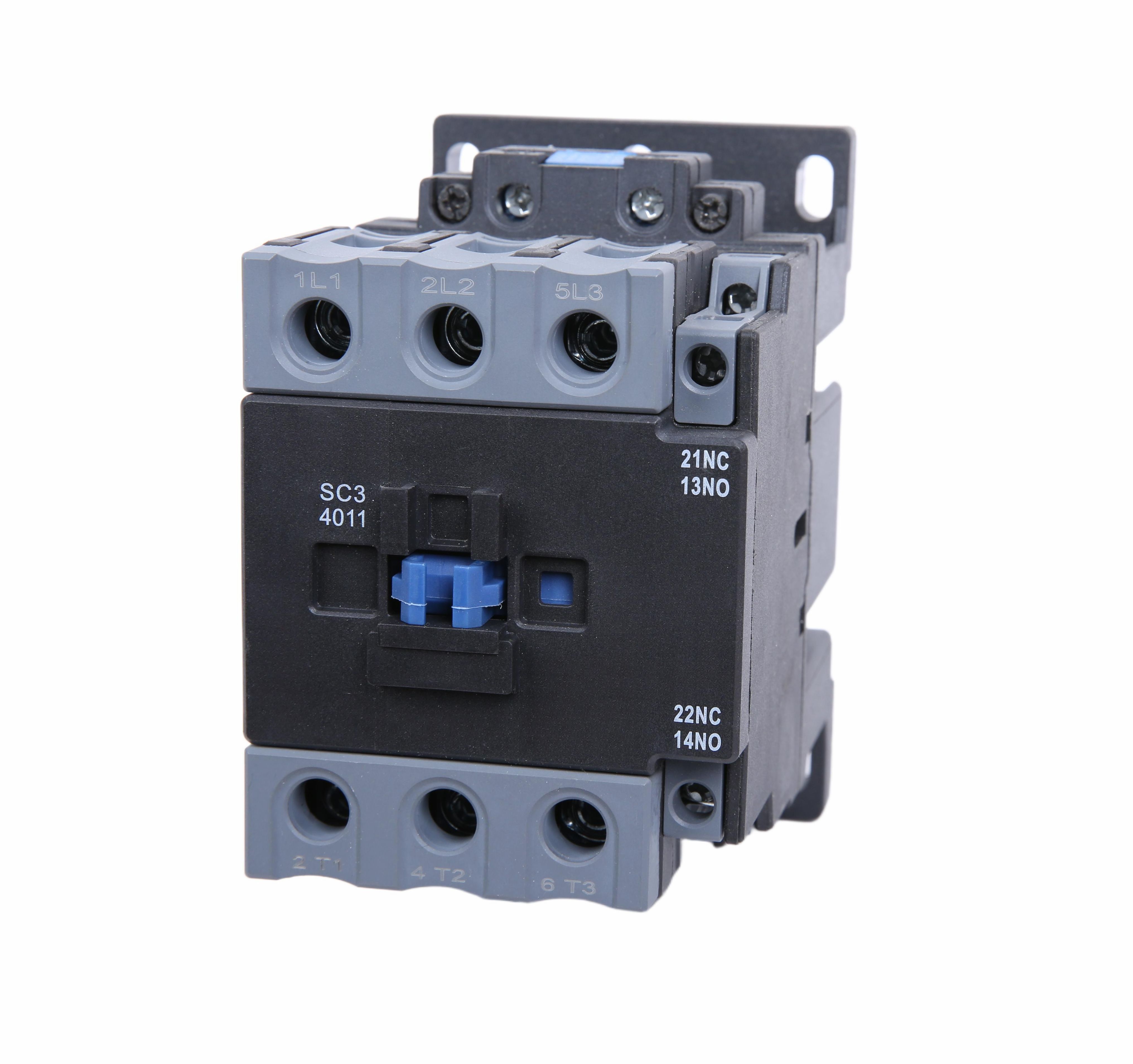

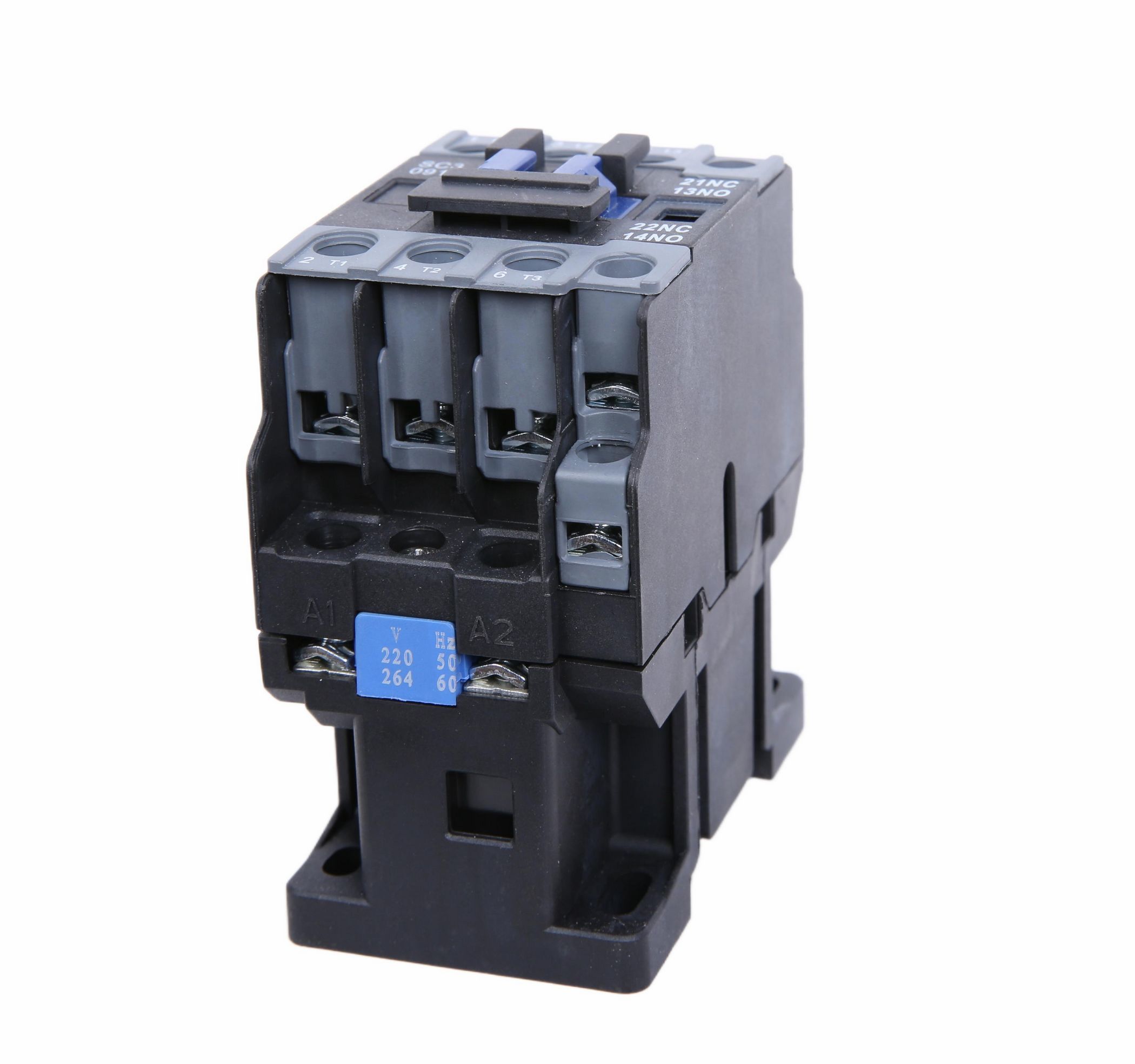

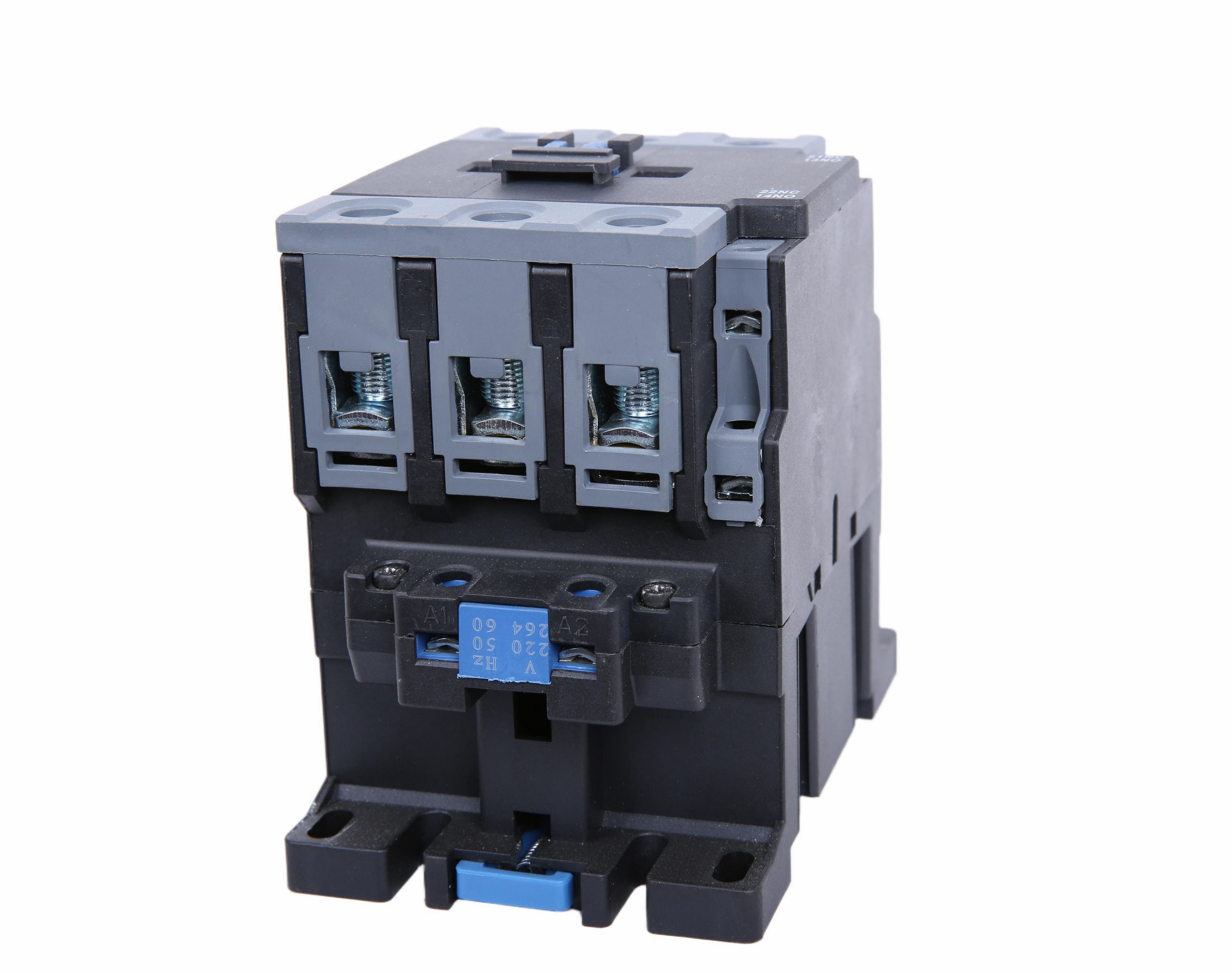

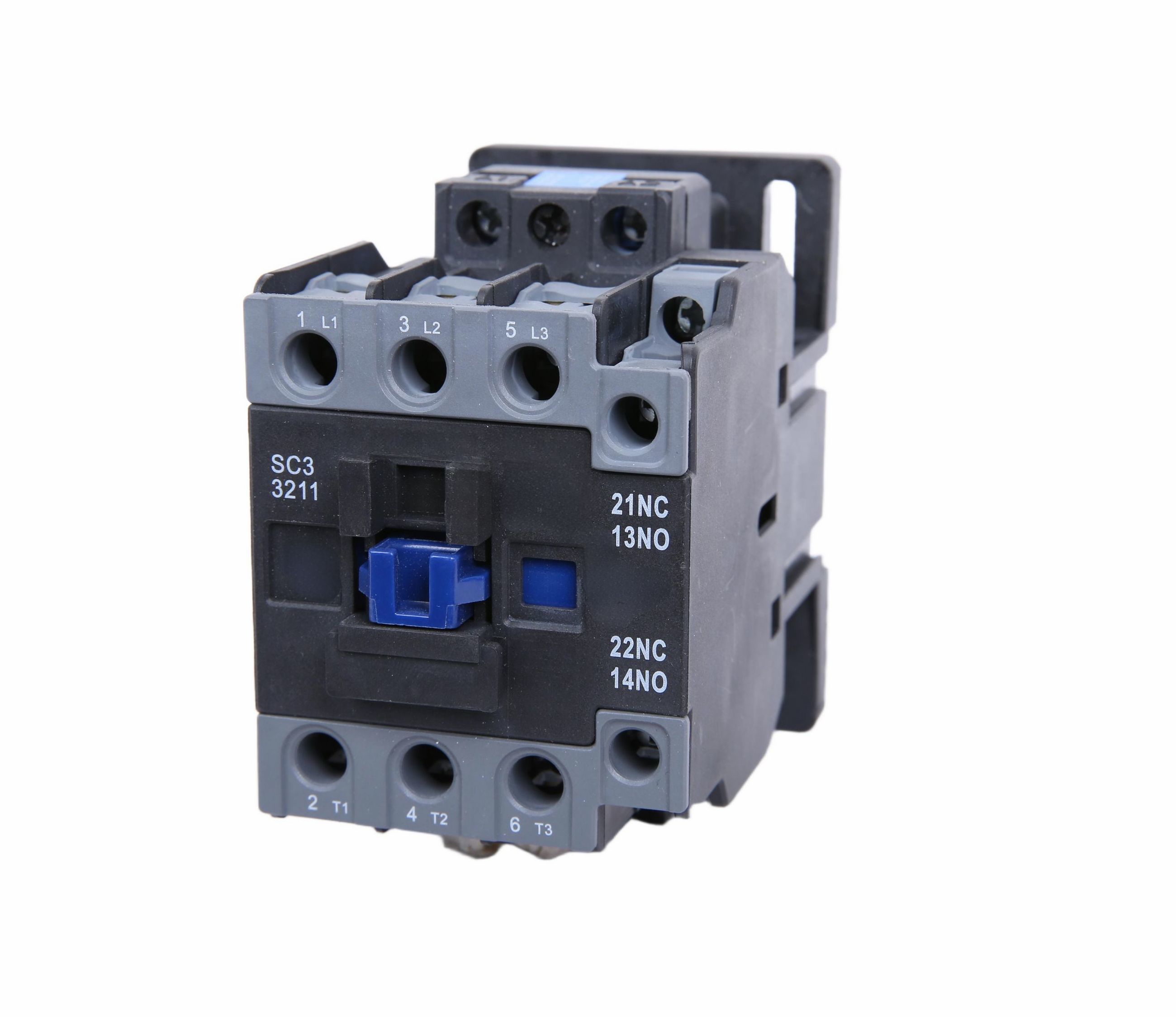

Product Images

Frequently Asked Questions

What brand names are available for the 3 Pole AC Contactor?

The 3 Pole AC Contactor is available under the brand names YOKG or OEM.

What are the model numbers offered for this 3 Pole AC Contactor?

The available model numbers are SC3-09, SC3-12, SC3-18, SC3-25, SC3-32, SC3-40, SC3-50, SC3-65, SC3-80, and SC3-95.

Where is the 3 Pole AC Contactor manufactured?

The product is manufactured in Zhejiang, China.

What is the minimum order quantity for the 3 Pole AC Contactor?

The minimum order quantity is 200 units.

What are the payment terms and delivery time for this product?

Payment terms accepted are T/T and L/C, with a delivery time of approximately 10 days.

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	YOKG or OEM
Certification:	CE
Model Number:	SC3-09, SC3-12,SC3-18,SC3-25,SC3-32,SC3-40,SC3-50,SC3-65,SC3-80,SC3-95

Minimum Order Quantity:	200
Packaging Details:	Each unit be packed in one individual inner box
Delivery Time:	10 DAYS
Payment Terms:	T/T,L/C
