Detail Information

Rated Insulation Voltage:	690VAC	Protection Level:	IP20
Rated Operational Voltage:	220VAC	Number Of Auxiliary Contacts:	3
Auxiliary Contact:	1NO+1NC	Rated Current:	20A, 32A, 40A, 50A, 60A, 80A, 125A
Number Of Poles:	3	Installation Method:	Screw OR Din Rail
Main Circuit Rating Current:	95A
Highlight:	3 phase 125A AC contactor , 220V/380V din rail contactor , 1NO 1NC silver auxiliary contact

Product Description

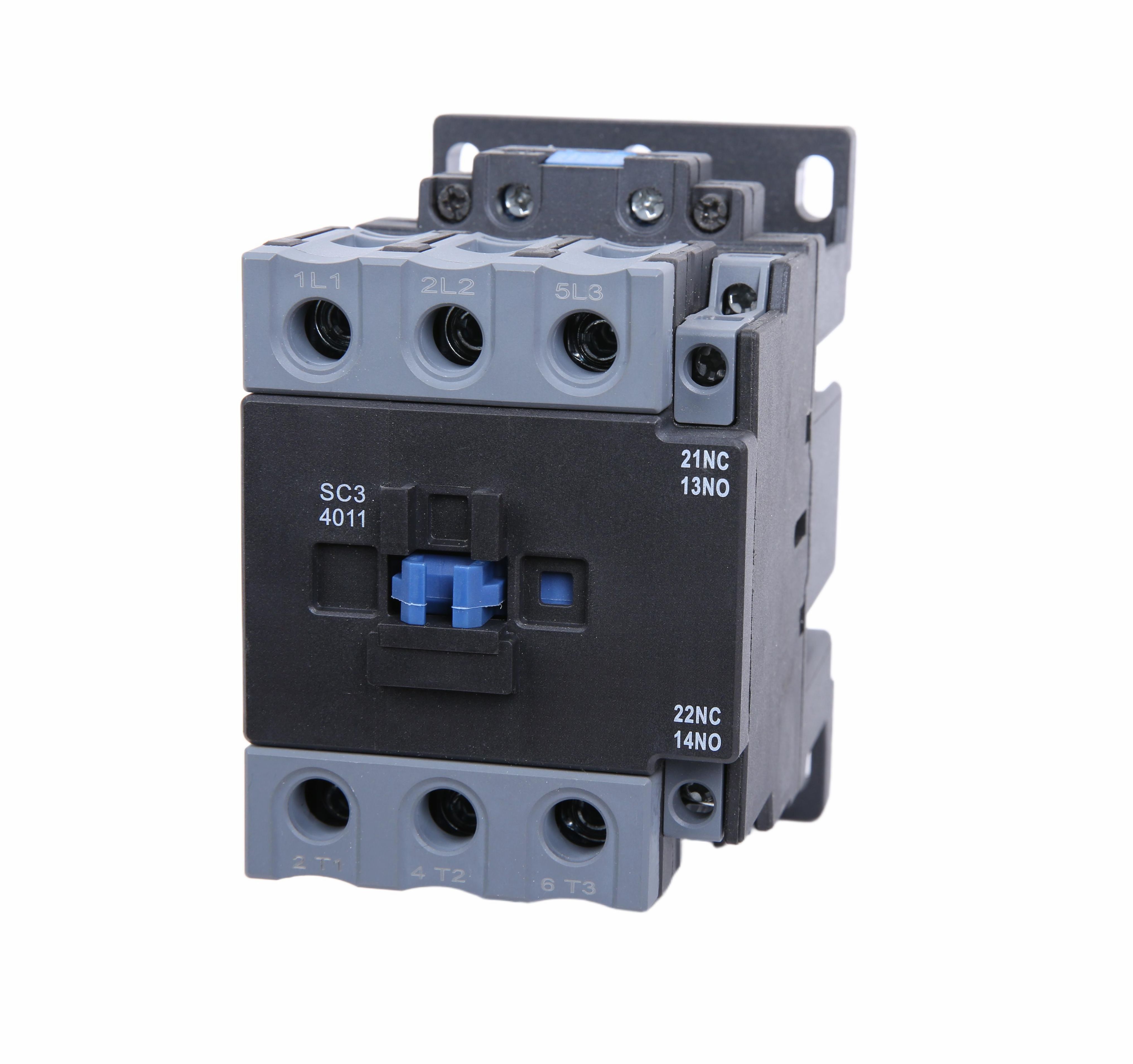

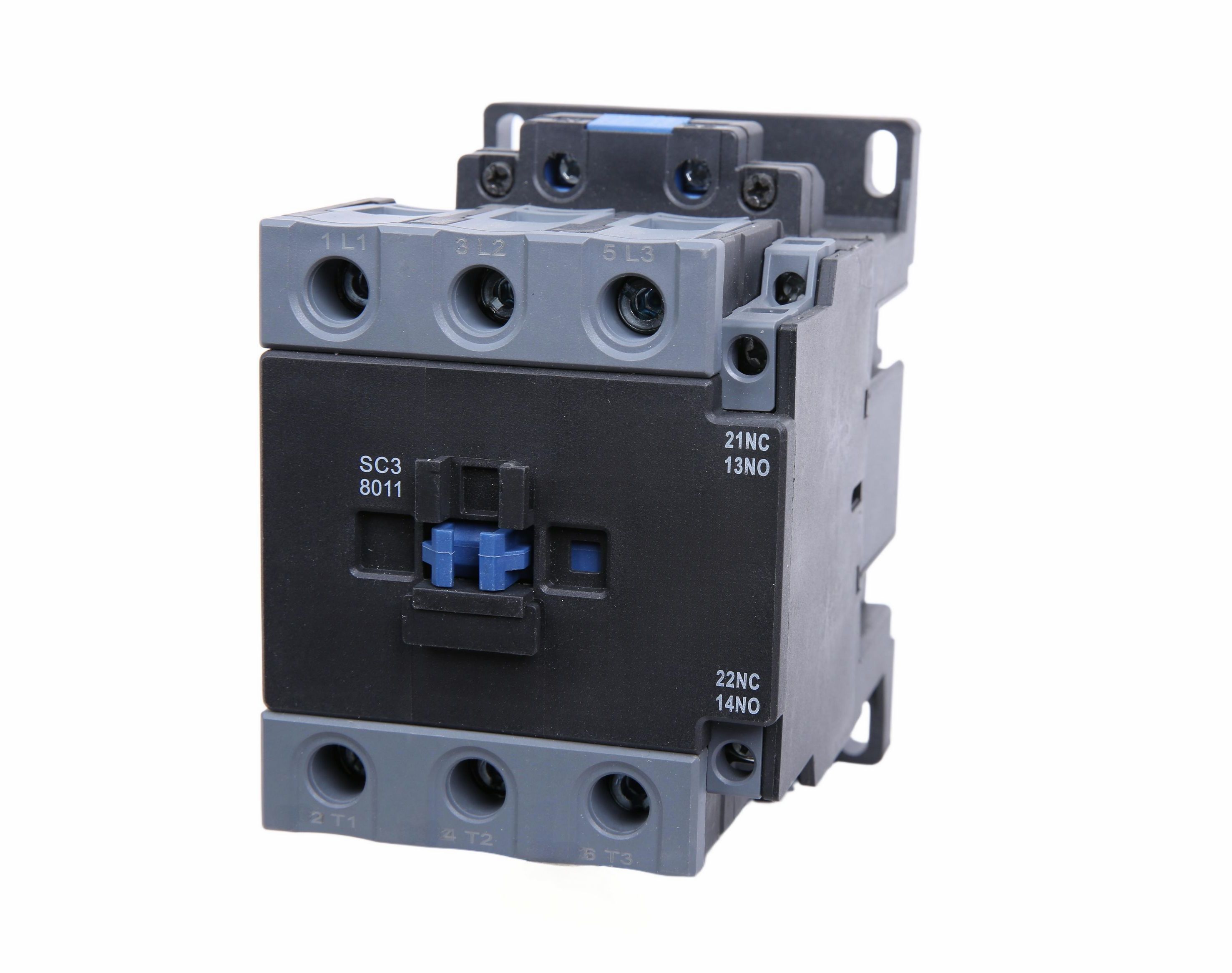

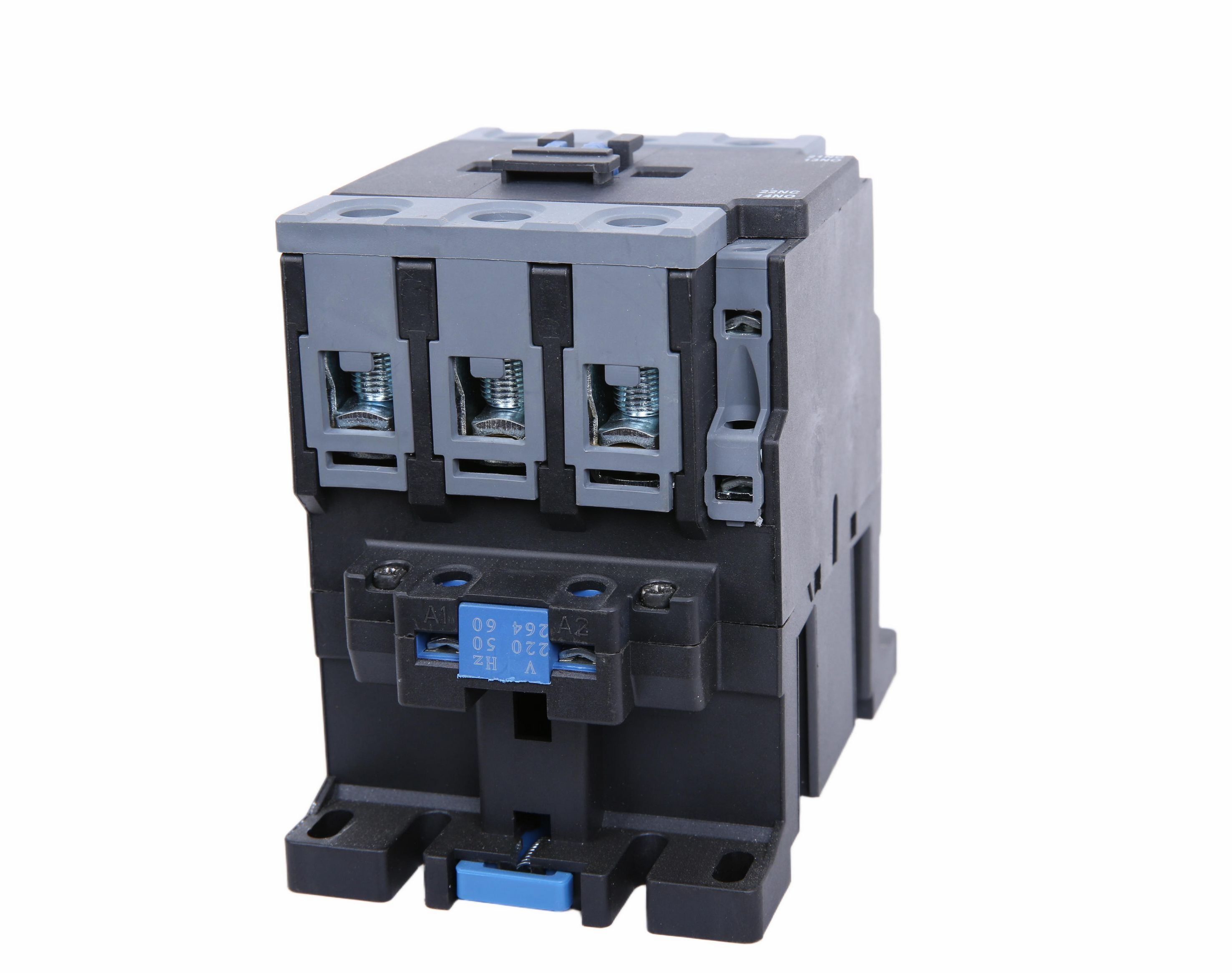

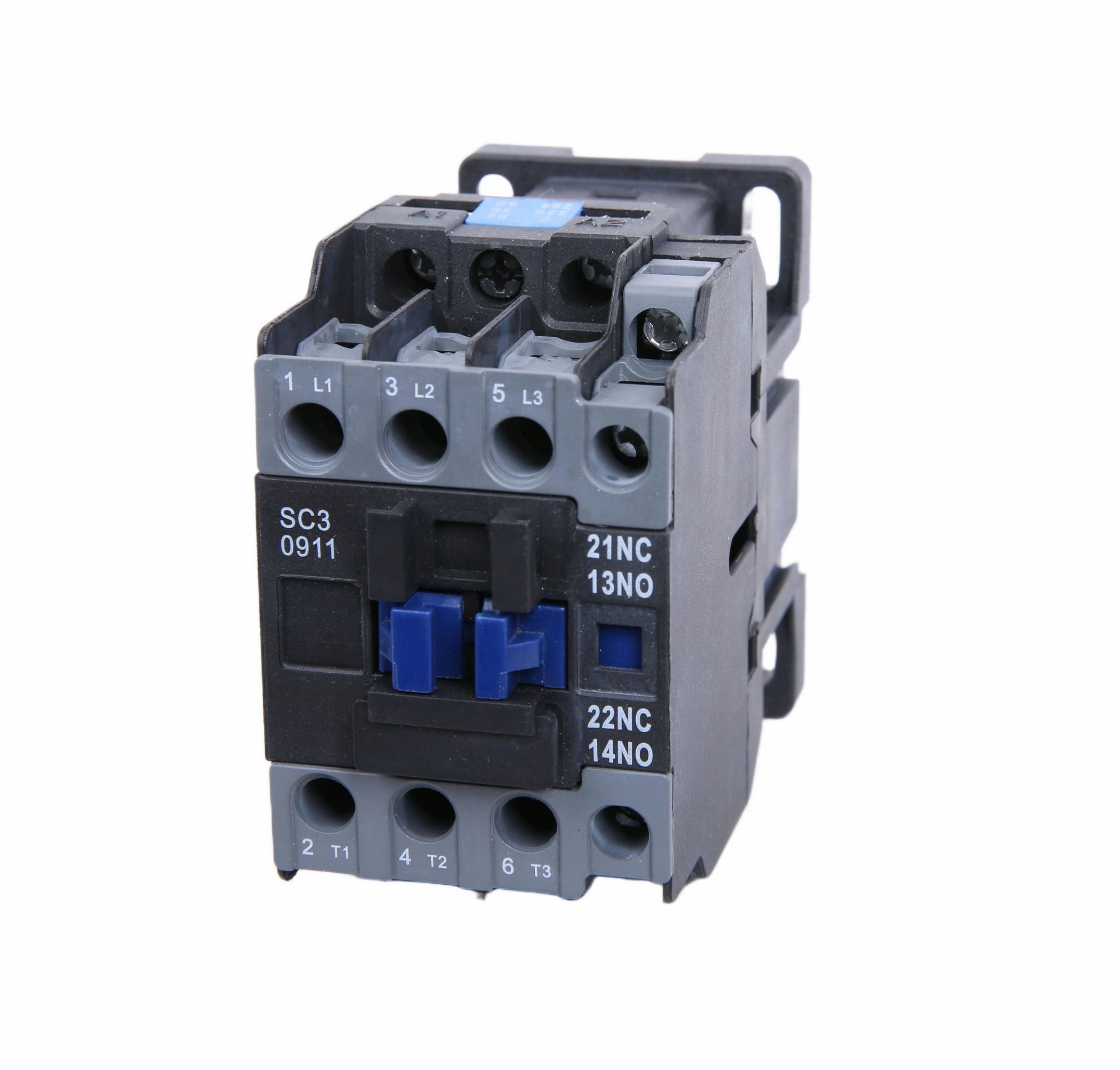

3 Phase 125A 220V/380V AC Contactor

Professional 3-pole AC magnetic contactor designed for reliable switching in AC circuits, suitable for various industrial applications requiring dependable electrical control.

Product Features

Product Name: 3 Pole AC Contactor
Installation Method: Rail or Screw (DIN RAIL or Screw)
Number of Auxiliary Contacts: 3
Rated Voltage: 220VAC
Protection Level: IP20
Rated Insulation Voltage: 690VAC
Type: AC magnetic contactor
Power Frequency: 50/60Hz

Technical Specifications

Number of Poles	3 (3P+NC+NO)
Number of Auxiliary Contacts	3
Rated Voltage	220VAC
Rated Current	20A, 32A, 40A, 50A, 60A, 80A, 125A
Rated Insulation Voltage	690VAC
Protection Level	IP20
Installation Method	Rail or Screw (DIN RAIL or Screw)

Detailed Technical Performance

Parameter	SC3-80	SC3-95
Rated heating current (A)	125	125
Rated insulation voltage (V)	690	690
Rated impact withstand voltage (KV)	6	6
Rated making capacity	10le	10le
Rated breaking capacity	8le	8le
Poles	3	3
Auxiliary contact	NO+NC	NO+NC
Rated working current 380V AC-3 (A)	80	95
Rated working current 380V AC-4 (A)	37	44
AC-3 capacity of 3-phase squirrel-cage motor 380V (KW)	37	45
Electrical life AC-3 (times/h)	600	600
Mechanical life (times/h)	3600	3600
Electrical life AC-3 (10000/times)	60	60
Mechanical life (10000/times)	600	600

Frequently Asked Questions

What brand options are available for the 3 Pole AC Contactor?

The 3 Pole AC Contactor is available under the brand name YOKG or can be supplied as an OEM product.

What model numbers are offered for the 3 Pole AC Contactor?

The available model numbers include SC3-09, SC3-12, SC3-18, SC3-25, SC3-32, SC3-40, SC3-50, SC3-65, SC3-80, and SC3-95.

Where is the 3 Pole AC Contactor manufactured?

The 3 Pole AC Contactor is manufactured in Zhejiang, China.

What is the minimum order quantity for purchasing the 3 Pole AC Contactor?

The minimum order quantity for this product is 200 units.

What are the payment terms and delivery time for the 3 Pole AC Contactor?

Payment terms accepted are T/T and L/C, with a typical delivery time of 10 days after order confirmation.

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	YOKG or OEM
Certification:	CE
Model Number:	SC1-09, SC1-12,SC1-18,SC1-25,SC1-32,SC1-40,SC1-50,SC1-65,SC1-80,SC1-95

Minimum Order Quantity:	200
Packaging Details:	Each unit be packed in one individual inner box
Delivery Time:	10 DAYS
Payment Terms:	T/T,L/C
