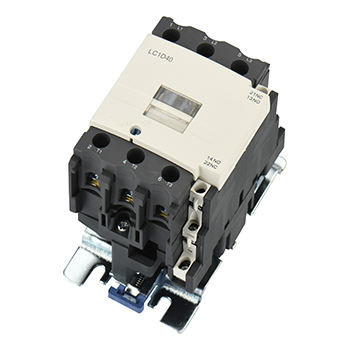

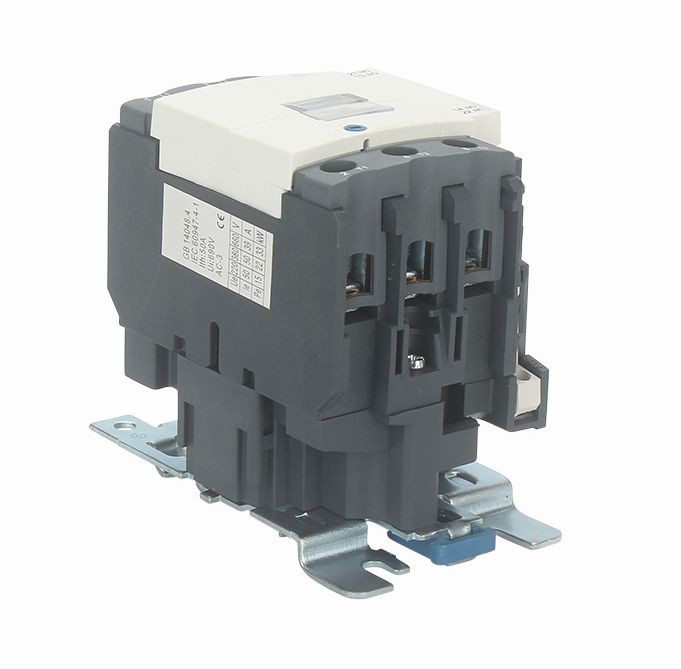

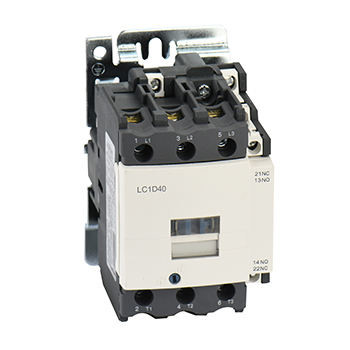

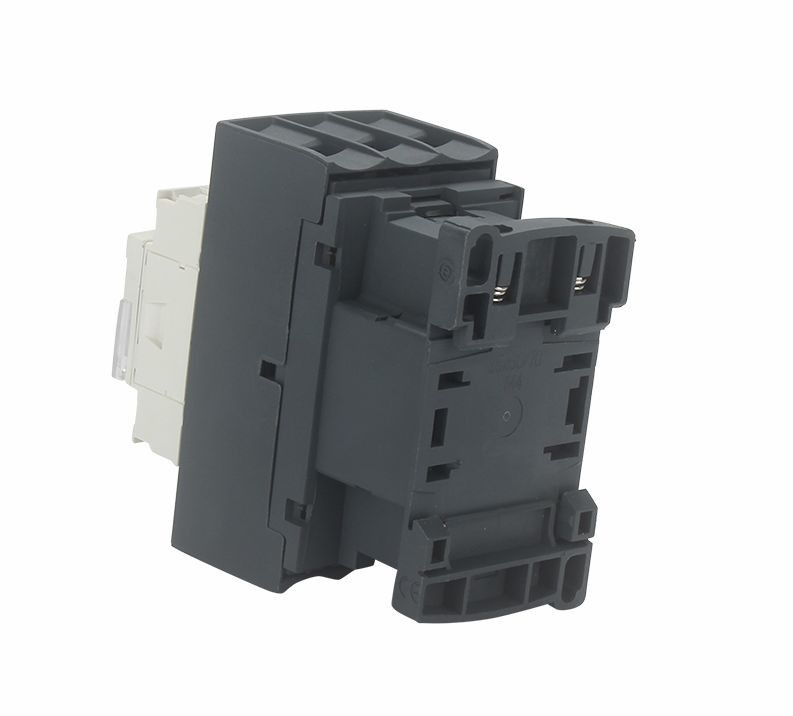

220VAC AC Magnetic Contactor for Heavy Duty Electrical Applications

220VAC AC Magnetic Contactor for Heavy Duty Electrical Applications
Features Gallery Product Description Request A Quote
Rated Operational Current: 60A
Number Of Auxiliary Contacts: 3
Power Frequency: 50/60Hz
Protection Level: IP20
Rated Insulation Voltage: 690VAC
Rated Voltage: 220VAC
Insulation Voltage: 690VAC
Rated Operational Voltage: 220VAC
High Light:

220VAC AC Magnetic Contactor


Heavy Duty Electrical AC Magnetic Contactor


220VAC Electrical AC Magnetic Contactor

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: YOKG or OEM
Certification: CE,TUV
Model Number: SC1-09, SC1-12,SC1-18,SC1-25,SC1-32,SC1-40,SC1-50,SC1-65,SC1-80,SC1-95
Payment & Shipping Terms
Packaging Details: Standard export packing or According to customer's demand
Delivery Time: 10 DAYS
Payment Terms: T/T,L/C
Product Description

Product Description:

Rated for a voltage of 220VAC and an operational voltage of 220VAC, this contactor is suitable for use in a range of electrical applications.

The 60A rated operational current of this contactor makes it ideal for use in high-power applications, providing reliable and efficient control of electrical circuits with minimal risk of overload or failure.

It is also designed with a high level of protection, with an IP20 rating that ensures safe operation in a range of environments.

Whether you need to control lighting circuits, motors, or other electrical equipment, this 3 Pole AC Contactor is a reliable and efficient choice. It is easy to install with a rail or screw mounting option, and its durable construction ensures long-lasting performance in even the most demanding applications.



  • Product Name: 3 Pole AC Contactor
  • Number of Poles: 3
  • Insulation Voltage: 690VAC
  • Rated Insulation Voltage: 690VAC
  • Mechanical Endurance: 3600/h
  • Power Frequency: 50/60Hz
  • Current Rating: 20A,32A,40A,50A,60A,80A,125A
  • Contact Configuration: 1NO+1NC

Technical Parameters:

Technical Parameter Value
Product Type 3 Pole AC Contactor
Rated Operational Voltage 220VAC
Mechanical Endurance 3600/h
Rated Operational Current 60A
Rated Current 20A, 32A, 40A, 50A, 60A, 80A, 125A
Rated Voltage 220VAC
Installation Method Screw OR DIN RAIL
Rated Insulation Voltage 690VAC
Insulation Voltage 690VAC
Number of Auxiliary Contacts 3


The 3 Pole AC magnetic contactor is designed to handle rated operational voltage of 220VAC. Its compact and robust design makes it suitable for various installation methods including screw or DIN rail. The product comes with 3 auxiliary contacts and can be used in a variety of applications such as motor control, heating and ventilation systems, and lighting control.

One of the most common applications of the AC magnetic contactor is in motor control. The contactor can be used to start and stop the motor, as well as protect it from overload and short-circuit conditions. The contactor can also be used to control the speed of the motor by using a variable frequency drive.

The AC magnetic contactor can also be used in heating and ventilation systems. The contactor can be used to control the heating and cooling cycles of the system, and to protect the system from overloads and short-circuits. The contactor can also be used to control the fans and pumps in the system.

The AC magnetic contactor is also commonly used in lighting control systems. The contactor can be used to turn the lights on and off, as well as to dim the lights. The contactor can also be used to control the power supply to the lights, protecting them from overloads and short-circuits.


220VAC AC Magnetic Contactor for Heavy Duty Electrical Applications 0220VAC AC Magnetic Contactor for Heavy Duty Electrical Applications 1
