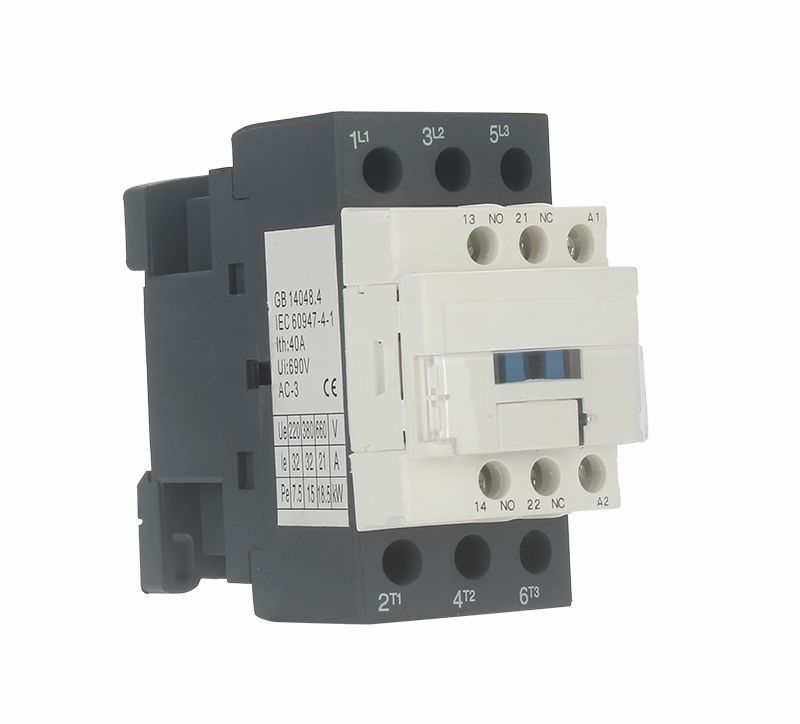

690VAC 220VAC 1NO 1NC Rated Insulation Voltage Rated Operational Voltage

690VAC 220VAC 1NO 1NC Rated Insulation Voltage Rated Operational Voltage
Features Gallery Product Description Request A Quote
Power Frequency: 50/60Hz
Number Of Auxiliary Contacts: 3
Protection Level: IP20
Number Of Poles: 3
Installation Method: Screw OR DIN RAIL
Rated Voltage: 220VAC
Insulation Voltage: 690VAC
Rated Operational Voltage: 220VAC
High Light:

1NO Rated Insulation Voltage


220VAC Rated Insulation Voltage


1NC Rated Insulation Voltage

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: YOKG or OEM
Certification: CE,TUV
Model Number: SC1-09, SC1-12,SC1-18,SC1-25,SC1-32,SC1-40,SC1-50,SC1-65,SC1-80,SC1-95
Payment & Shipping Terms
Packaging Details: Standard export packing or According to customer's demand
Delivery Time: 10 DAYS
Payment Terms: T/T,L/C
Product Description

Product Description:

The contactor is available in two installation methods, Screw or DIN RAIL, making it easy to install in a variety of applications. It comes equipped with 3 auxiliary contacts, which provide additional control options for your system.

The contactor is rated for an operational current of 60A, making it suitable for a range of applications. It can handle a rated voltage of 220VAC and an insulation voltage of 690VAC, providing a safe and reliable solution for your system.

In addition, this contactor is available in a range of other rated current options, including 20A, 32A, 40A, 50A, 80A, and 125A. This ensures that you can choose the right contactor for your specific needs.

Overall, our 3 Pole AC Contactor is a high-quality solution for controlling 3-phase motors and other electrical loads. It provides reliable and safe control, while also offering a range of installation and current options to suit your needs.



  • Product Name: 3 Pole AC Contactor
  • Power Frequency: 50/60Hz
  • Mechanical Endurance: 3600/h
  • Rated Voltage: 220VAC
  • Rated Operational Current: 60A
  • Number of Auxiliary Contacts: 3
  • Mounting Type: Din Rail or Screw
  • Standard: IEC60947-4
  • Model: LC1D

Technical Parameters:

Technical Parameter Value
Protection Level IP20
Rated Operational Voltage 220VAC
Rated Operational Current 20A, 32A, 40A, 50A, 60A, 80A, 125A
Mechanical Endurance 3600/h
Rated Insulation Voltage 690VAC
Power Frequency 50/60Hz
Number of Auxiliary Contacts 1NO+1NC
Rated Voltage 220VAC
Installation Method Din Rail or Screw
Rated Current 20A, 32A, 40A, 50A, 60A, 80A, 125A


This AC magnetic contactor is suitable for a wide range of applications due to its rated operational voltage of 220VAC and rated insulation voltage of 690VAC. It has an insulation voltage of 690VAC and mechanical endurance of 3600/h, which makes it a highly durable product. The product is available in different sizes such as 20A,32A,40A,50A,60A,80A,125A, which makes it suitable for different power applications.

It is widely used in various industrial and commercial scenarios such as water treatment plants, oil and gas plants, HVAC systems, and manufacturing industries.

The 3 Pole AC Contactor has three auxiliary contacts which can be used for various control circuits. The product is highly reliable and efficient, making it a popular choice among customers. Its compact and lightweight design makes it easy to install and maintain. The product is also cost-effective, which makes it a popular choice among customers looking for a reliable and efficient product at an affordable price.

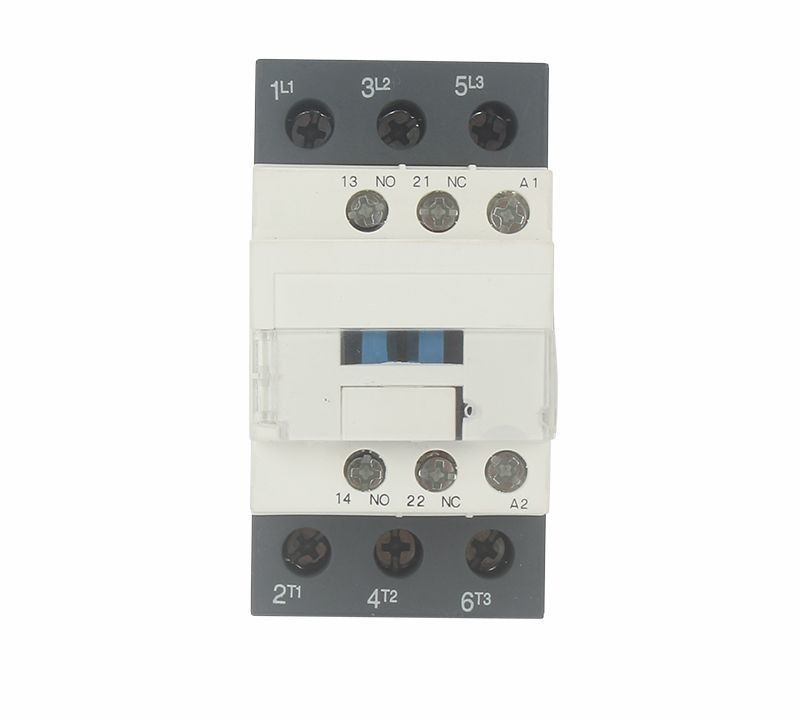

690VAC 220VAC 1NO 1NC Rated Insulation Voltage Rated Operational Voltage 0690VAC 220VAC 1NO 1NC Rated Insulation Voltage Rated Operational Voltage 1
